Technical Precision Replacement Electrical Butt Connector for TESSCO 358714: Installation and Usage Guide

Introduction

This document provides essential instructions for the safe and effective installation and use of the Technical Precision Replacement Electrical Butt Connector. This connector is engineered to serve as a compatible alternative for applications requiring TESSCO 358714. Please note that this product is manufactured by Technical Precision and is not an original TESSCO component.

Product Overview

The Technical Precision Replacement Electrical Butt Connector is designed to create a secure and insulated connection between two electrical wires. It ensures electrical continuity and protects the connection from environmental factors when properly installed.

• Product Type: Insulated Electrical Butt Connector
• Quantity: One (1) unit per sale
• Compatibility: Designed as a replacement for TESSCO 358714

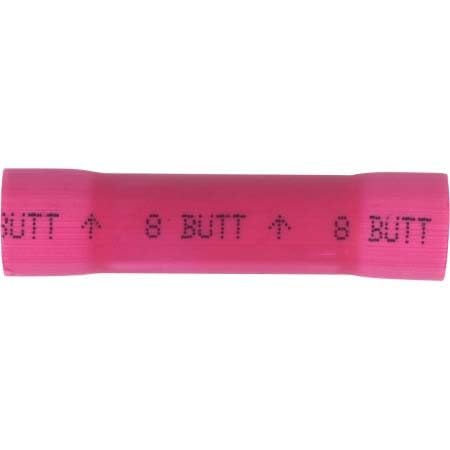

Figure 1: A single red insulated electrical butt connector, designed for joining two wires. The connector is marked with '8 BUTT', indicating it is suitable for 8-gauge wiring.

Setup and Installation

Proper installation is crucial for the performance and safety of the electrical connection. Always ensure power is disconnected before beginning any electrical work.

Safety Precautions:

• Always disconnect power to the circuit before working with electrical wires.
• Wear appropriate personal protective equipment (PPE), such as safety glasses.
• Ensure you have the correct tools for the job.

Tools Required:

• Wire Strippers (appropriate for wire gauge)
• Crimping Tool (appropriate for insulated butt connectors)

Installation Steps:

1. Prepare Wires: Using wire strippers, carefully strip approximately 3/8 to 1/2 inch (10-12 mm) of insulation from the end of each wire to be joined. Ensure the copper strands are clean and untwisted.
2. Insert First Wire: Insert one stripped wire fully into one end of the butt connector until the insulation meets the connector's barrel.
3. Crimp First Connection: Place the connector's barrel into the appropriate crimping jaw of your crimping tool. Squeeze the handles firmly until the crimp is complete and the connector is securely fastened to the wire.
4. Insert Second Wire: Insert the second stripped wire fully into the other end of the butt connector.
5. Crimp Second Connection: Repeat the crimping process for the second wire, ensuring a secure connection.
6. Verify Connection: Gently pull on both wires to ensure they are firmly seated and cannot be easily pulled out of the connector. The connection should be robust and stable.

Operating Principles

Once properly installed, the Technical Precision Replacement Electrical Butt Connector functions as a permanent, insulated splice, allowing electrical current to flow continuously between the two joined wires. It is designed to maintain a low-resistance connection, ensuring efficient power transmission and preventing short circuits through its insulating jacket.

Maintenance

Electrical butt connectors are generally maintenance-free once installed correctly. However, periodic inspection of electrical connections in critical applications is recommended.

• Visual Inspection: Periodically check the connector and surrounding wiring for any signs of damage, corrosion, discoloration, or loose connections.
• Environmental Protection: Ensure the connection remains protected from excessive moisture, chemicals, or physical stress, which could degrade the insulation or connection integrity over time.

Troubleshooting

If an electrical issue arises after installing the connector, consider the following:

• No Electrical Continuity:
  • Improper Crimp: The most common cause. Ensure the crimping tool was correctly applied and the connection is tight. Re-crimp if necessary, or replace the connector.
  • Insufficient Wire Stripping: The wire may not have made full contact with the connector's metal barrel. Ensure enough insulation was removed.
  • Incorrect Wire Gauge: Using a wire gauge that is too small or too large for the connector can result in a poor connection. This connector is suitable for 8-gauge wiring.
• Overheating or Discoloration:
  • This indicates a high-resistance connection, often due to a loose or improper crimp. Disconnect power immediately and inspect the connection. Replace the connector if any damage or degradation is observed.

Specifications

Warranty and Support

Specific warranty information for this Technical Precision Replacement Electrical Butt Connector is not provided within the available product details. For inquiries regarding product support or warranty claims, please refer to the seller or manufacturer's official contact channels.
