1. Introduction
This manual provides essential information for the safe and efficient operation, installation, and maintenance of your Godrej 1.5 Ton 5 Star 5-in-1 Convertible Inverter Split AC. Please read this manual thoroughly before using the appliance and retain it for future reference. Proper use and maintenance will ensure optimal performance and longevity of your air conditioner.
2. Safety Information
Always follow basic safety precautions to reduce the risk of fire, electric shock, or injury.
- Ensure the air conditioner is installed by a qualified technician.
- Do not operate the AC with wet hands.
- Do not insert objects into the air outlet.
- Keep children away from the unit.
- Turn off the power supply before cleaning or maintenance.
- Use only the specified refrigerant (R32).
- Ensure proper grounding to prevent electric shock.
3. What's in the Box
Upon unpacking, verify that all components are present:
- 1 Indoor Unit
- 1 Outdoor Unit
- 1 Remote Control
- User Manual (this document)
- Warranty Card
- 3m Copper wire / Interconnecting pipe
4. Setup and Installation
Installation of this split air conditioner requires professional expertise. It is strongly recommended to contact authorized Godrej service personnel for installation to ensure proper functioning and warranty validity.
4.1 Indoor Unit Placement
The indoor unit should be mounted on a wall, ensuring sufficient space around it for proper airflow and maintenance. Avoid direct sunlight and heat sources. Ensure the unit is level for efficient drainage.
Image: Godrej 1.5 Ton Inverter Split AC Indoor Unit, showcasing its design and typical installation.
4.2 Outdoor Unit Placement
The outdoor unit should be placed in a well-ventilated area, away from obstructions that could impede airflow. Ensure it is on a stable, level surface and protected from direct rain and excessive sunlight. Maintain adequate clearance around the unit for heat dissipation.

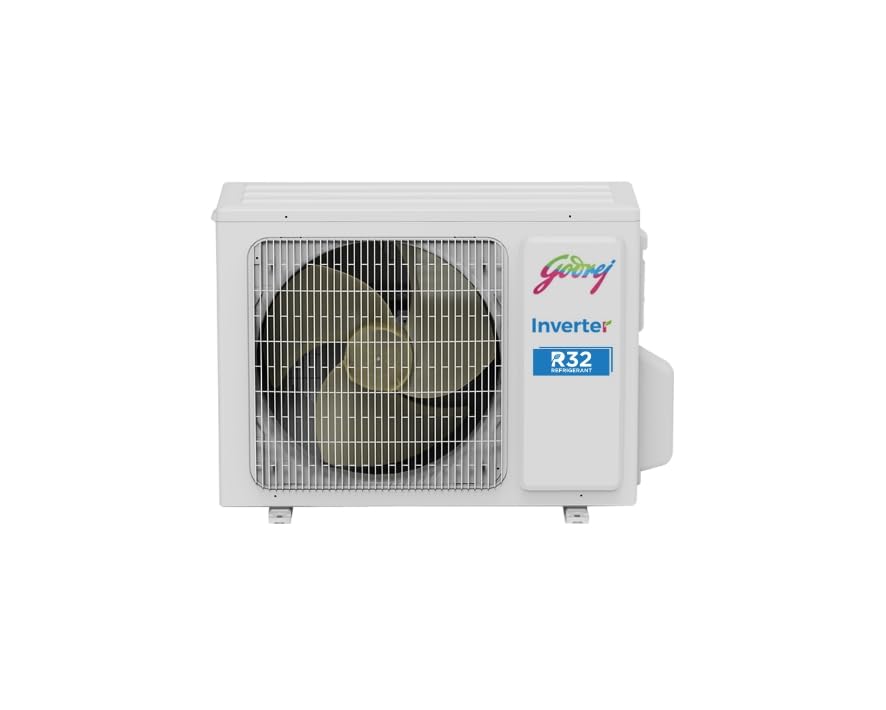

Image: Godrej 1.5 Ton Inverter Split AC Outdoor Unit, showing its external appearance.
4.3 Electrical Connections
All electrical wiring must comply with local regulations and be performed by a certified electrician. Ensure the power supply matches the unit's requirements (230 Volts) and that a dedicated circuit breaker is used.
5. Operating Instructions
Your Godrej AC is designed for user-friendly operation via the included remote control.
5.1 Remote Control Functions
The remote control features a backlit display for easy visibility. Use it to power on/off, select operating modes, adjust temperature, fan speed, and access special functions.
5.2 Operating Modes
- Cool Mode: Provides cooling by lowering the room temperature.
- Fan Mode: Circulates air without cooling.
- Dry Mode: Reduces humidity in the room.
- Auto Mode: Automatically selects the appropriate mode based on room temperature.
5.3 5-in-1 Convertible Technology
This feature allows you to adjust the cooling capacity of the AC from 40% to 110% based on your comfort needs and the number of occupants, helping to save energy. Refer to the remote control for specific settings to switch between these modes.
Image: Logo indicating the 5-in-1 Convertible Technology feature.
5.4 i-Sense Technology
The i-Sense feature uses a sensor in the remote control to measure the temperature around you, providing personalized cooling comfort by adjusting the AC operation based on your immediate surroundings.
5.5 Silent Operation
The AC is designed for quiet performance, ensuring minimal noise disturbance during operation.
Image: Depiction of silent operation, showing a baby sleeping peacefully.
6. Key Features
- Inverter Compressor: Variable speed compressor adjusts power based on heat load, offering energy efficiency and precise temperature control.
Image: Illustration of power saving inverter technology with a lightbulb and coins.
- 100% Copper Condenser with Blue Fin Anti-Corrosion Coating: Ensures durability, heavy-duty performance, and uninterrupted powerful cooling. The Blue Fin coating protects against corrosion from harsh weather and environmental factors.
Image: Close-up of copper pipes, highlighting the 100% copper condenser and connecting pipe.
Image: Illustration of the blue fin anti-corrosive coating on the condenser coil.
- R32 Refrigerant: An environmentally friendly refrigerant with no ozone depletion potential.
Image: Graphic representing R32 refrigerant and its low global warming potential.
- Anti-Dust Filter: Traps dust and other airborne particles, providing cleaner air.
Image: Visual representation of the anti-dust filter capturing dust particles.
- Anti-Microbial Self Clean Technology: Helps prevent the growth of harmful microorganisms inside the indoor unit, ensuring healthier air.
Image: Logo for Nano Coated Anti-Viral Filter, indicating advanced air purification.
- Heavy Duty Cooling at 52°C: Designed to provide effective cooling even in extreme ambient temperatures up to 52°C.
Image: Scene depicting effective cooling in a room, even at high outdoor temperatures.
- Anti-Freeze Thermostat: Prevents the evaporator coil from freezing, ensuring continuous and efficient operation.
Image: Close-up view of the anti-freeze thermostat component within the AC unit.
- Smart Diagnosis: Facilitates quick identification of issues, simplifying troubleshooting and service.
Image: Graphic representing the smart diagnosis feature, showing an AC unit connected to a mobile device for diagnostics.
7. Maintenance
Regular maintenance ensures optimal performance and extends the lifespan of your AC unit. Always disconnect power before performing any maintenance.
7.1 Air Filter Cleaning
The anti-dust filter should be cleaned regularly, typically every two weeks or more often depending on usage and air quality. To clean:
- Open the front panel of the indoor unit.
- Remove the air filters.
- Wash the filters with lukewarm water and a mild detergent.
- Rinse thoroughly and allow them to dry completely in a shaded area before reinserting.
Image: Illustration of a filter trapping foul odors and purifying air.
7.2 Outdoor Unit Cleaning
Periodically clean the outdoor unit's coils and fins to remove dust, leaves, and debris. Use a soft brush or vacuum cleaner. Ensure the area around the outdoor unit remains clear of obstructions.
7.3 Professional Servicing
It is recommended to have your AC unit professionally serviced at least once a year, preferably before the cooling season, to ensure all components are functioning correctly and to clean internal parts not accessible to the user.
8. Troubleshooting
Before contacting customer service, refer to the following common issues and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| AC does not turn on | No power supply, remote control batteries low, circuit breaker tripped. | Check power connection, replace remote batteries, reset circuit breaker. |
| Insufficient cooling | Dirty air filter, blocked outdoor unit, wrong mode selected, room too large. | Clean air filter, clear obstructions from outdoor unit, select Cool mode, ensure room size is appropriate for 1.5 Ton capacity. |
| Unusual noise | Loose parts, fan obstruction, unit not level. | Check for loose parts, remove any obstructions, ensure unit is level. If noise persists, contact service. |
| Water leakage from indoor unit | Blocked drain pipe, improper installation. | Check and clear drain pipe. If issue persists, contact professional service. |
If the problem persists after attempting these solutions, please contact Godrej customer support.
9. Specifications
| Feature | Detail |
|---|---|
| Brand | Godrej |
| Model Name | AC 1.5TR. SIC 18ITC5-WWA |
| Capacity | 1.5 Tons |
| Energy Rating | 5 Star |
| ISEER Value | 5.1 |
| Annual Energy Consumption | 744.39 Kilowatt Hours Per Year |
| Cooling Power | 4900 Kilowatts |
| Refrigerant | R32 |
| Compressor Type | Rotary Scroll (Inverter) |
| Condenser Coil | 100% Copper with Blue Fin Anti-Corrosion Coating |
| Noise Level (Indoor Unit) | 46 Decibels |
| Indoor Unit Dimensions (D x W x H) | 21D x 84.9W x 28.9H Centimeters |
| Outdoor Unit Dimensions (D x W x H) | 31.2D x 85.8W x 59.2H Centimeters |
| Voltage | 230 Volts |
| Start Year | 2023 |
| Special Features | 5-in-1 Convertible, i-Sense Technology, Anti Bacterial Filter, Dust Filter, Heavy Duty Cooling even at 52°C, Silent Operation, Anti-Freeze Thermostat, Anti-Microbial Self Clean Technology |
Image: Energy Savings Guide label, showing ISEER value and energy consumption details.

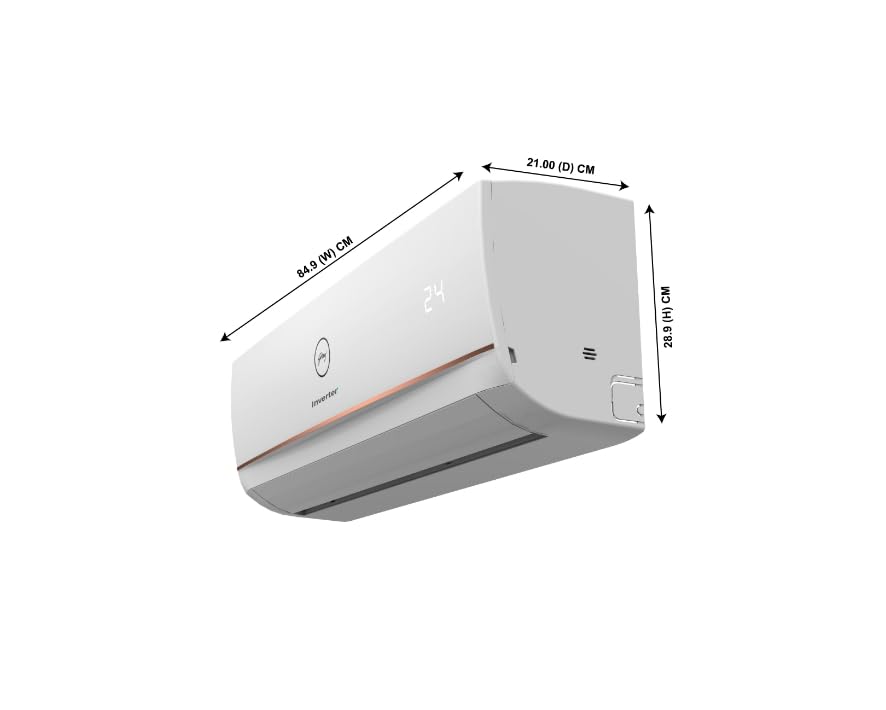

Image: Diagram showing the dimensions of the indoor unit.
Image: Diagram showing the dimensions of the outdoor unit.
10. Warranty and Support
10.1 Warranty Information
Your Godrej AC comes with the following warranty:
- 1 year on the product
- 5 years extended warranty on PCB (Printed Circuit Board)
- 10 years extended warranty on the compressor
Please retain your purchase receipt and warranty card for any warranty claims. The warranty is subject to terms and conditions outlined in the warranty card.
10.2 Customer Support
For any queries, service requests, or technical assistance, please contact Godrej customer support. Refer to your warranty card or the official Godrej website for the most current contact information.
