Eshoma 72 Inch Walnut Fireplace Mantel Instruction Manual

1. Introduction

Thank you for choosing the Eshoma 72 Inch Walnut Fireplace Mantel. This manual provides essential information for the safe and correct installation, operation, and maintenance of your new fireplace mantel. Please read all instructions carefully before beginning installation and retain this manual for future reference.

Image 1: The Eshoma 72 Inch Walnut Fireplace Mantel, showcasing its elegant design above a fireplace.

2. Safety Information

• Weight Capacity: Do not exceed the maximum weight capacity of 120 pounds on the mantel. Exceeding this limit may result in damage to the product or personal injury.
• Proper Installation: Ensure the mantel is installed securely according to the provided instructions. Improper installation can lead to instability and potential hazards.
• Heat Source Clearance: Maintain appropriate clearance from any heat source to prevent damage to the wood or fire hazards. Consult local building codes for specific requirements.
• Material Handling: The mantel is crafted from solid wood and can be heavy. Exercise caution and use proper lifting techniques during handling and installation. It is recommended that two people install this product.

3. Product Overview & Features

The Eshoma Fireplace Mantel is a handcrafted, wall-mounted floating shelf designed to enhance your living space. It features a clean, minimal design with traditional wood elements.

• Material: Crafted from solid pine wood, showcasing natural grain variations.
• Finish: Sealed with a water-resistant finish for durability and protection.
• Design: Hollow faux mantel acts as a barrier, shielding items from smoke and heat.
• Versatility: Ideal for displaying books, awards, photos, or decor. Suitable for wood-burning, gas, or electric fireplaces.

Image 2: Product dimensions (72 inches long, 8 inches deep, 6 inches high) and maximum weight capacity of 120 lbs.

Image 3: Detail of the genuine natural pine wood construction, highlighting its authentic texture.

Image 4: The unique character of the wood, featuring natural imperfections such as wormholes, wood knots, and aging cracks.

4. Package Contents

Your Eshoma Fireplace Mantel package includes the following items:

• 1 x Fireplace Mantel Shelf (72 X 8 X 6 Walnut)
• 1 x Mounting Kit (includes wall anchors, screws, invisible shelf brackets)
• 1 x Easy-to-Follow Instruction Manual

5. Installation Instructions

Follow these steps for a secure and proper installation of your fireplace mantel. It is recommended to have two people for installation.

1. Mark the Wall: Determine the desired height and center position for your mantel. Use a level to mark a straight line on the wall where the top edge of the mounting bracket will sit.
2. Locate Studs (Optional but Recommended): If possible, locate wall studs behind your marked line for maximum support. Mark their positions.
3. Drill Pilot Holes: Based on your wall type (drywall, brick, or wood) and the marked positions, drill appropriate pilot holes for the wall anchors/screws. Refer to Image 5 for guidance on drill bit size and fasteners.
4. Insert Wall Anchors (if applicable): For drywall or masonry, insert the appropriate wall anchors into the drilled pilot holes. Tap gently with a hammer until flush with the wall surface.
5. Install Mounting Bracket: Align the invisible shelf bracket (French cleat) with the marked line and secure it to the wall using the provided screws. Ensure it is perfectly level.
6. Hang the Mantel: Carefully slide the hollow mantel over the installed mounting bracket. The internal structure of the mantel is designed to fit snugly over the bracket, creating a floating effect.
7. Secure the Mantel (if applicable): Some designs may include small screws to further secure the mantel to the top of the bracket. Follow specific instructions in your package.

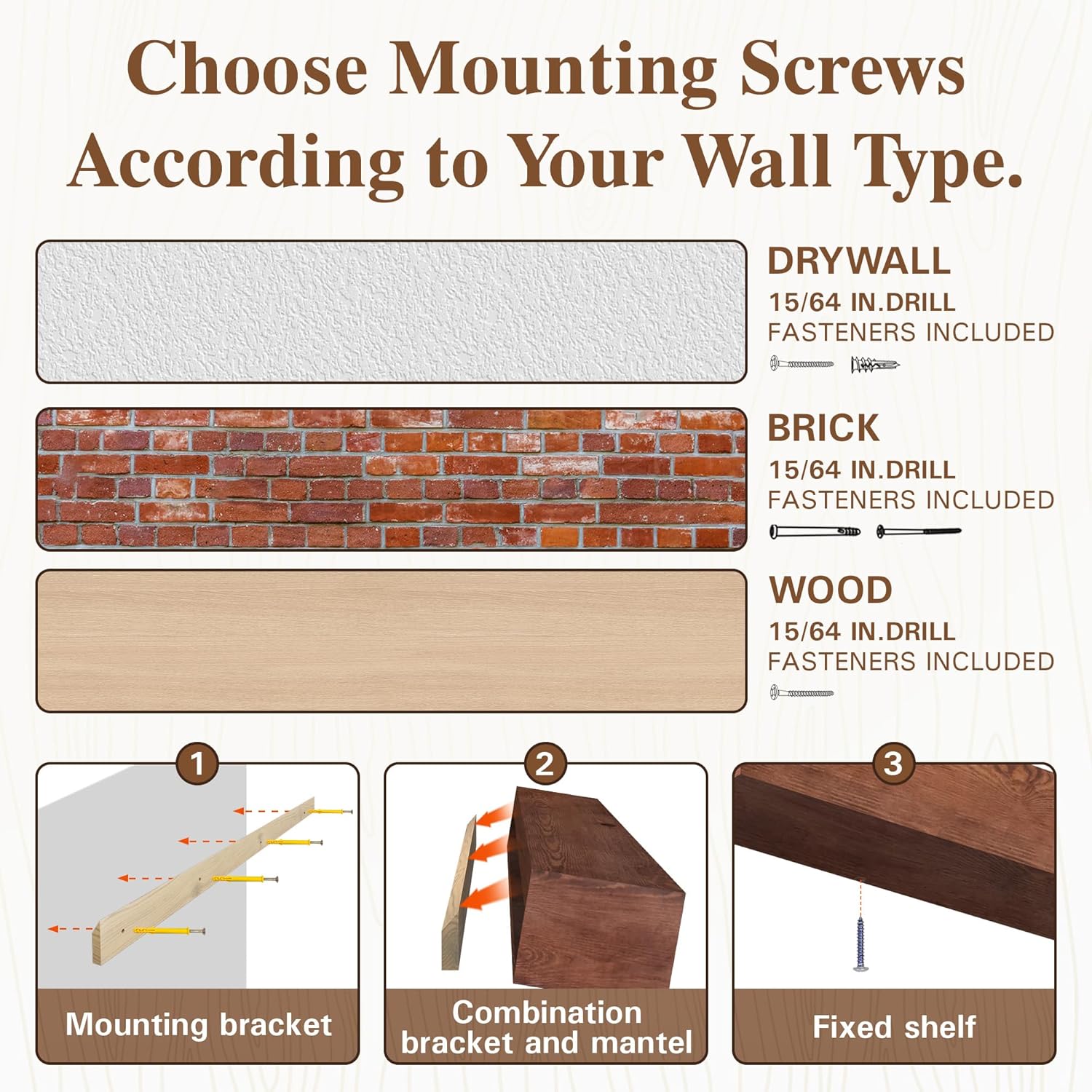

Image 5: Guide for choosing appropriate mounting screws and drill sizes based on your wall material.

Image 6: Visual representation of the three key steps for installing the fireplace mantel.

6. Usage & Display

Once installed, your Eshoma Fireplace Mantel provides a versatile surface for various decorative and functional purposes:

• Decorative Display: Showcase your favorite books, awards, photographs, candles, or other decorative items to personalize your living space.
• Protection: The hollow design helps create a barrier, protecting items placed on the mantel from direct heat and smoke from the fireplace.
• Above Fireplace: It serves as an ideal base for positioning a wall-mounted mirror, television, or artwork directly above your fireplace.

7. Maintenance & Care

To maintain the beauty and longevity of your Eshoma Fireplace Mantel, follow these simple care instructions:

• Cleaning: Wipe the mantel with a dry, soft cloth to remove dust and debris. Avoid using abrasive cleaners or harsh chemicals that could damage the wood finish.
• Spills: In case of spills, wipe immediately with a dry cloth. The water-resistant finish provides some protection, but prolonged exposure to moisture should be avoided.
• Avoid Direct Sunlight: Prolonged exposure to direct sunlight can cause fading or discoloration of the wood. Position the mantel in a location where it is not constantly exposed to intense sunlight.
• Temperature Control: While the mantel is heat-resistant, extreme temperature fluctuations can affect wood. Maintain a stable room temperature to preserve the wood's integrity.

8. Specifications

9. Troubleshooting

If you encounter any issues during or after installation, consider the following common solutions:

• Mantel feels loose: Recheck the tightness of all screws in the mounting bracket. Ensure the wall anchors are fully seated and appropriate for your wall type. If possible, secure into wall studs.
• Mantel is not level: Adjust the mounting bracket slightly. Use a level during installation to ensure accuracy.
• Damage during shipping: Inspect the product immediately upon receipt. If any damage is found, contact customer support for assistance.

10. Warranty & Support

For warranty information or technical support, please refer to the contact details provided with your purchase documentation or visit the official Eshoma brand store online. Keep your proof of purchase for any warranty claims.
