OLIXIS Criss Cross Legged Office Chair User Manual

1. Introduction

Thank you for choosing the OLIXIS Criss Cross Legged Office Chair. This manual provides essential information for the safe assembly, operation, and maintenance of your new chair. Please read this manual thoroughly before use and retain it for future reference.

This armless office chair is designed for comfort and versatility, featuring a wide seat, adjustable height, 360-degree swivel, and a rocking function. Its modern design and durable PU leather make it suitable for various settings, including home offices, bedrooms, and study rooms.

Figure 1.1: OLIXIS Criss Cross Legged Office Chair (Black)

This image displays the OLIXIS Criss Cross Legged Office Chair in black, showcasing its armless design, padded seat and backrest, and sturdy cross-legged base. The chair is presented from a front-side angle, highlighting its modern aesthetic.

Figure 1.2: Wide Seat for Cross-Legged Sitting

This image demonstrates the spacious design of the chair's seat, allowing a user to comfortably sit cross-legged, highlighting the chair's wider seat width and depth for enhanced comfort and flexibility.

2. Safety Information

• The maximum weight capacity for this chair is 300 pounds (approximately 136 kg). Do not exceed this limit to prevent damage or injury.
• Ensure all screws and bolts are securely tightened before initial use and periodically check for looseness.
• Do not stand on the chair.
• Avoid placing hot items directly on the PU leather surface to prevent damage.
• Keep children away from moving parts during assembly and adjustment.
• Use the chair on a flat, stable surface to prevent tipping.

3. What's in the Box?

Please verify that all components are present before beginning assembly. If any parts are missing or damaged, please contact customer support.

• 1 x Armless Office Chair (Seat and Backrest Assembly)
• 1 x Set of Assembling Tools (Hex Key, Screws)
• 1 x User Manual (This Document)
• 1 x Gas Lift Cylinder
• 1 x Chair Base (Cross-legged)

4. Setup and Assembly

Assembly is required. It is recommended to assemble the chair on a soft, clean surface to prevent scratches. Two people may be helpful for certain steps.

1. Attach the Backrest to the Seat: Align the backrest with the seat cushion. Secure them using the provided screws and hex key. It may be necessary to apply slight pressure to align the screw holes. Start all screws loosely before fully tightening.
2. Insert the Gas Lift: Place the gas lift cylinder into the center hole of the chair base.
3. Attach the Seat Assembly to the Gas Lift: Carefully place the assembled seat and backrest onto the gas lift cylinder, ensuring it is securely seated.
4. Final Check: Once assembled, ensure all connections are tight and the chair is stable before use.

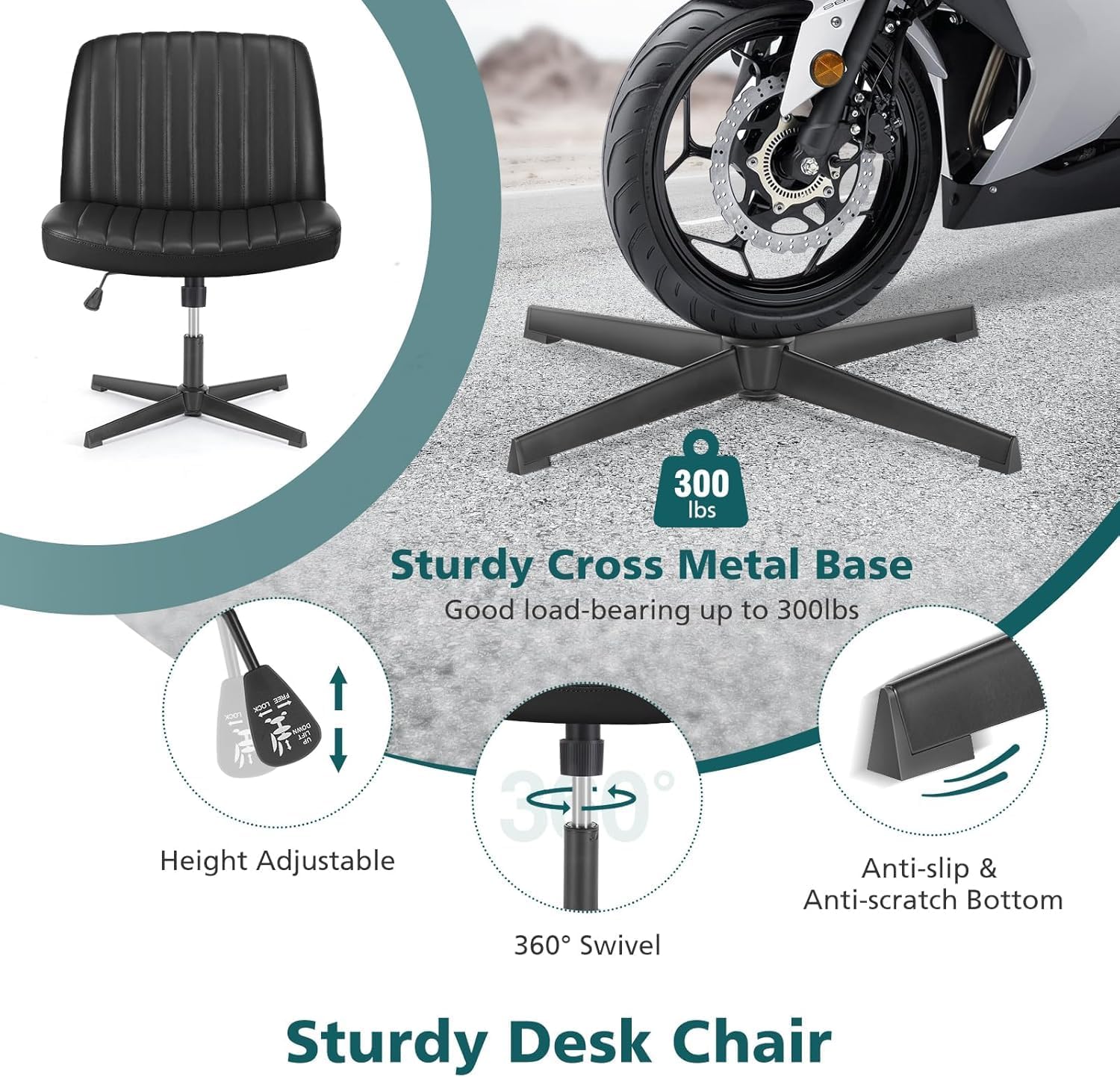

Figure 4.1: Chair Base and Gas Lift Components

This image illustrates the sturdy cross metal base of the chair, highlighting its load-bearing capacity of up to 300 lbs. It also shows the height-adjustable gas lift and the anti-slip, anti-scratch rubber bottom of the base.

5. Operating Instructions

Your OLIXIS chair offers several adjustable features for optimal comfort.

• Height Adjustment: To adjust the seat height, locate the lever on the right side under the seat.
  • To raise the seat: Lift the lever while taking your weight off the seat.
  • To lower the seat: Lift the lever while remaining seated.
  The seat height adjusts from approximately 15.94 inches to 19.69 inches.
• 360° Swivel: The chair seat can rotate a full 360 degrees, allowing for easy movement and access to your surroundings without needing to reposition the entire chair.
• Rocking Function: To activate the rocking function, pull out the lever located under the seat. The chair can recline up to 21 degrees, providing a comfortable rocking motion. To lock the chair in an upright position, push the lever back in. You can also adjust the tension of the rocking mechanism by turning the knob located under the seat cushion. Turn clockwise to increase tension (harder to rock) and counter-clockwise to decrease tension (easier to rock).

Figure 5.1: Rocking Mode and Versatile Use

This image demonstrates the 21-degree rocking mode of the chair, controlled by a rocking function knob. It also illustrates various scenarios where the chair can be used, such as for work, reading, gaming, in a living room, or a bedroom.

6. Maintenance

Proper care will extend the life and appearance of your OLIXIS chair.

• Cleaning: For general cleaning, wipe the PU leather surface with a soft, damp cloth. For tougher stains, use a mild soap solution and wipe dry immediately. Avoid abrasive cleaners or solvents, as they can damage the material.
• Inspection: Periodically check all screws and connections to ensure they remain tight. Re-tighten if necessary.
• Avoid Direct Sunlight: Prolonged exposure to direct sunlight can cause the PU leather to fade or crack over time.
• Weight Limit: Always adhere to the stated weight capacity of 300 lbs.

7. Troubleshooting

8. Specifications

Figure 8.1: Detailed Product Dimensions

This diagram provides precise measurements of the OLIXIS chair, including overall height, seat height range, seat depth, and backrest width, along with the 300 lbs load capacity.

9. Warranty and Support

OLIXIS stands behind the quality of its products. This chair comes with a 12-month warranty from the date of purchase, covering manufacturing defects.

For any questions, concerns, or warranty claims, please contact OLIXIS customer support. Have your purchase receipt and model number (JFPO356) ready when contacting support.

You can visit the official OLIXIS store for more information and support: OLIXIS Store on Amazon.
