1. Introduction
This manual provides essential information for the safe and efficient installation, operation, and maintenance of your Ledvion LED TL Armature. This product is a powerful and efficient lighting solution designed for both indoor and outdoor use, featuring a 15W LED tube, 4000K cool white light, IP65 rating for water and dust resistance, and an integrated motion sensor.
Please read this manual thoroughly before installation and retain it for future reference.
2. Safety Information
- Electrical Safety: Installation must be performed by a qualified electrician in accordance with local electrical codes and regulations. Ensure the power supply is disconnected before any installation, maintenance, or repair work.
- Voltage: Verify that the supply voltage matches the voltage specified on the product label.
- IP65 Rating: The fixture is protected against dust ingress and low-pressure water jets from any direction. While suitable for outdoor use, avoid submerging the fixture in water.
- Temperature: Do not operate the fixture outside its specified operating temperature range.
- Damage: Do not use the fixture if any part is damaged. Contact customer support for replacement parts or service.
- Disassembly: Do not attempt to disassemble or modify the fixture, as this will void the warranty and may pose safety risks.
3. Package Contents
Carefully unpack the box and ensure all components are present and undamaged. If any items are missing or damaged, please contact your retailer.
- 1x LED TL Armature
- 1x LED Tube
- 1x Connector
- 2x Suspension Set
- 10x Clips
- 2x Screws
- 2x Screw Wall Plugs
- 1x Instruction Manual
Image: Contents of the product package, including fixture, LED tube, connector, suspension set, clips, screws, screw wall plugs, and manual. Note: The SKU shown in the image (LV30011) may differ from your specific model (LV30012-4000K), but the contents are generally representative.
4. Product Overview and Features
The Ledvion LED TL Armature is designed for robust performance and energy efficiency. Key features include:
- Industrial Style: Durable construction suitable for various environments.
- IP65 Water & Dust Resistant: Protected against dust and splash-proof, ideal for outdoor and demanding indoor conditions.
- Integrated Motion Sensor: Automatic activation and deactivation based on movement, contributing to energy savings.
- LED Technology: Provides bright, energy-efficient 4000K cool white light.
- IK06 Durability: Polycarbonate fixture and stainless steel clamps ensure a long lifespan and impact resistance.
- Integrated Iron Reflector: Enhances light output by approximately 10%.
Image: Close-up of the Ledvion LED TL Armature, highlighting the integrated motion sensor.
Image: Visual representation of the IP65 rating, indicating protection against water and dust, suitable for various environments.
Image: Illustration highlighting the IK06 durability rating, polycarbonate fixture, and stainless steel clamps for enhanced longevity.
Image: Close-up view of the integrated iron reflector, designed to contribute to a higher lumen output.
5. Setup and Installation
The Ledvion LED TL Armature is designed for surface mounting. Professional installation by a qualified electrician is strongly recommended to ensure safety and proper functionality.
5.1 Pre-Installation Checks
- Ensure the power supply is turned off at the main circuit breaker.
- Verify that the mounting surface is suitable to support the weight of the fixture.
- Confirm that all necessary tools and components are available.
5.2 Mounting Steps
- Mark the desired mounting points on the ceiling or wall using the fixture as a template.
- Drill pilot holes at the marked locations.
- Insert the screw wall plugs into the drilled holes.
- Secure the suspension set or clips to the mounting surface using the provided screws.
- Attach the fixture to the secured mounting hardware.
5.3 Electrical Connection
- Open the wiring compartment of the fixture.
- Connect the live, neutral, and ground wires from your electrical supply to the corresponding terminals within the fixture. Ensure all connections are secure.
- Close the wiring compartment securely, ensuring the IP65 seal is maintained.
- Install the LED tube into the fixture according to the markings.

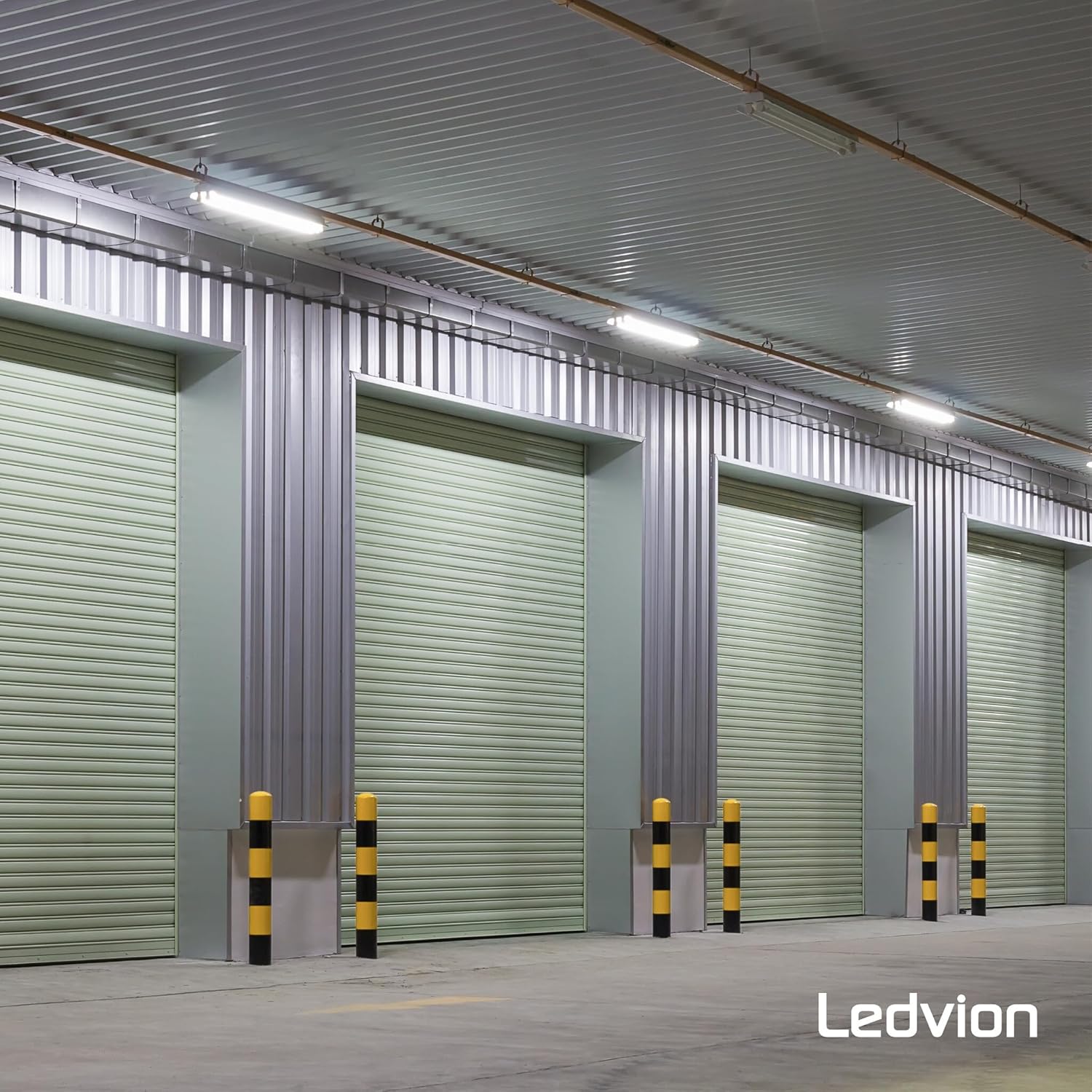

Image: Example of Ledvion LED TL Armatures installed in a large industrial space.
Image: Example of Ledvion LED TL Armatures providing illumination in a garage environment.
6. Operating Instructions
Once installed and powered, the Ledvion LED TL Armature will operate automatically via its integrated microwave motion sensor.
6.1 Motion Sensor Functionality
The microwave sensor detects movement within its adjustable range, automatically turning the light on. The light will remain on for a set 'hold time' after the last detected movement and then turn off if no further motion is detected.
- Detection Area: Adjustable, typically 50M / 100M (refer to product specifications for exact range).
- Hold Time: Adjustable settings such as 5 seconds, 1 minute, 3 minutes, or 10 minutes.
- Daylight Threshold: Adjustable setting (e.g., 30 LUX) or can be disabled, allowing the light to operate regardless of ambient light levels.
Refer to the specific sensor settings on your fixture for detailed adjustment instructions. These settings are typically adjusted via small dials or switches located on the sensor module inside the fixture.

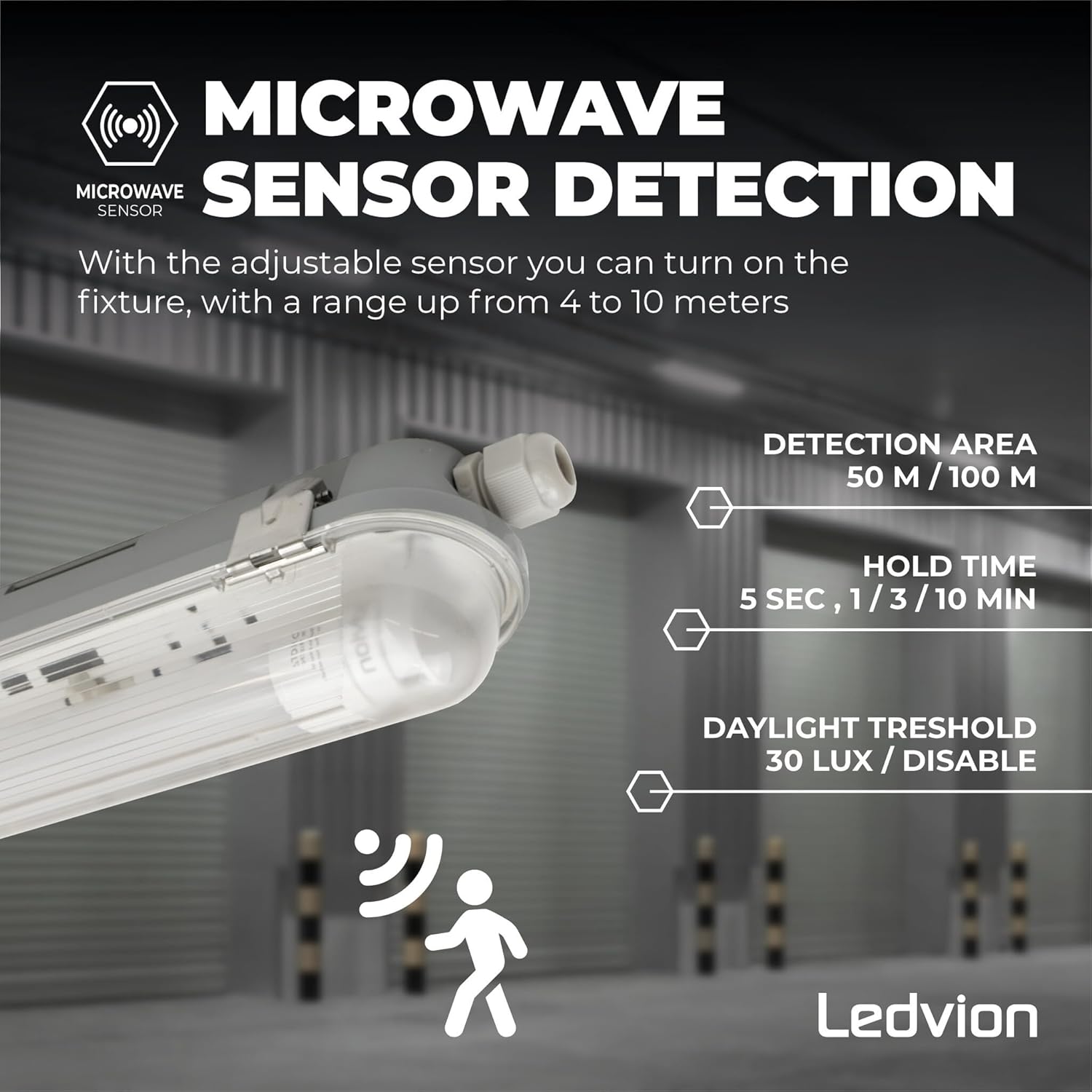

Image: Diagram illustrating the microwave sensor detection capabilities, including adjustable detection area, hold time, and daylight threshold settings.
7. Maintenance
The Ledvion LED TL Armature is designed for minimal maintenance due to its durable construction and LED technology.
- Cleaning: Periodically clean the exterior of the fixture with a soft, damp cloth. Do not use abrasive cleaners or solvents, as these can damage the finish or seals. Ensure the power is off before cleaning.
- Inspection: Regularly inspect the fixture for any signs of damage, loose connections, or wear. If any issues are found, disconnect power and consult a qualified electrician.
- LED Tube Replacement: The LED tube is designed for a long lifespan. If replacement is necessary, ensure the power is off and use a compatible LED TL tube.
8. Troubleshooting
If you encounter issues with your Ledvion LED TL Armature, refer to the following common troubleshooting steps:
| Problem | Possible Cause | Solution |
|---|---|---|
| Light does not turn on | No power supply Faulty wiring Sensor settings Damaged LED tube/fixture | Check circuit breaker and power connection. Verify wiring connections (consult electrician). Adjust daylight threshold or hold time settings. Inspect LED tube and fixture for damage. |
| Light stays on continuously | Constant motion detected Sensor sensitivity too high Hold time too long Sensor malfunction | Ensure no continuous movement in detection area. Reduce sensor sensitivity. Shorten hold time setting. Contact customer support if sensor is faulty. |
| Light turns on/off randomly | Interference Sensor sensitivity too high | Check for sources of interference (e.g., HVAC, moving objects). Reduce sensor sensitivity. |
| Dim or flickering light | Loose connection Faulty LED tube Power supply issue | Check electrical connections. Replace LED tube. Consult electrician to check power supply. |
If the problem persists after attempting these solutions, please contact Ledvion customer support or a qualified electrician.
9. Specifications
| Feature | Specification |
|---|---|
| Model Number | LV30012-4000K |
| Dimensions (L x W x H) | 156 x 12 x 12 cm |
| Item Weight | 1.82 kg |
| Power Consumption | 15W |
| Light Color Temperature | 4000K (Cool White) |
| Ingress Protection (IP) Rating | IP65 (Dust tight, protected against water jets) |
| Impact Protection (IK) Rating | IK06 |
| Material | ABS Plastic |
| Finish | Painted |
| Installation Type | Surface Mount |
| Energy Source | Corded Electric |
| Usage Environment | Indoor/Outdoor (House, driveway, garage, hall, etc.) |
Image: Illustrative technical drawing showing dimensions. Please note that this image depicts a 1200mm (120cm) version, while your product is 156cm in length.
Image: EU Energy Label for the Ledvion product, indicating energy efficiency class C and 15 kWh/1000h consumption. For more details, visit the EPREL database.
10. Warranty and Support
The Ledvion LED TL Armature comes with a 2-year warranty from the date of purchase, covering manufacturing defects under normal use. Please retain your proof of purchase for warranty claims.
For technical support, warranty claims, or any questions not covered in this manual, please contact your retailer or visit the official Ledvion website for customer service information.
