Bosch 11032521 Range Main Control Board Instruction Manual

Introduction

This manual provides essential information for the Bosch 11032521 Range Main Control Board. This component is a genuine Bosch part designed to control the functions of your range, including temperature settings. Proper installation and handling are crucial for the safe and effective operation of your appliance.

Important Safety Information

WARNING: Before attempting any installation, repair, or maintenance, ensure the appliance is disconnected from its power source. Failure to do so may result in electric shock, injury, or death.

• Always wear appropriate personal protective equipment (PPE) such as gloves and eye protection.
• Installation should only be performed by a qualified service professional.
• Refer to your appliance's service manual for specific instructions and wiring diagrams.
• Do not attempt to modify the control board or any other appliance components.
• Keep children and pets away from the work area.

Product Overview

The Bosch 11032521 is a Main Control Board (MCB) or Main Control Module for Bosch ranges. It serves as the central processing unit, managing various functions such as oven temperature regulation, burner control, and display operations. This board ensures the precise and reliable performance of your range.

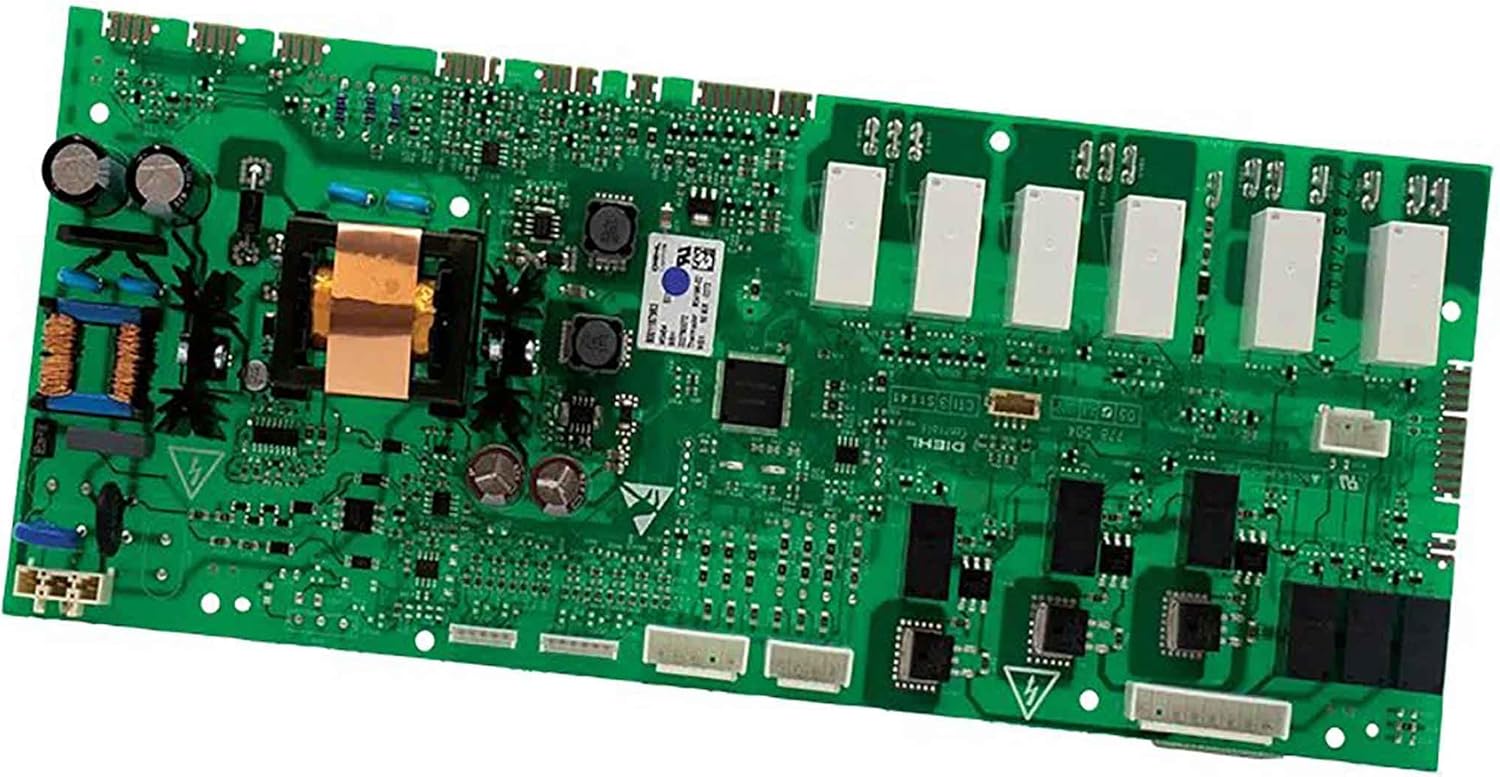

Image 1: Front view of the Bosch 11032521 Range Main Control Board. This image displays the top side of the circuit board, featuring numerous electronic components including capacitors, resistors, integrated circuits, and various connectors. The board is green with white markings.

Image 2: Rear view of the Bosch 11032521 Range Main Control Board. This image shows the underside of the circuit board, primarily displaying solder points, circuit traces, and a few surface-mounted components. The board is green.

Compatibility

This Main Control Board is designed for use with Bosch brand ranges. To ensure correct fitment and function, it is highly recommended to:

• Consult your specific appliance's service manual.
• Contact your appliance manufacturer directly.
• Consult a qualified service professional.

Verifying the needed part number for your appliance prior to purchase is essential.

Installation

Installation of the Bosch 11032521 Range Main Control Board requires technical expertise and should only be performed by a qualified service technician. Incorrect installation can lead to appliance malfunction, damage, or safety hazards.

General Installation Steps (for qualified professionals):

1. Disconnect Power: Ensure the range is completely disconnected from the electrical supply at the circuit breaker.
2. Access Control Board: Carefully remove the necessary panels or components to gain access to the existing control board.
3. Document Connections: Before disconnecting, take clear photos or make detailed diagrams of all wire connections to the old board.
4. Remove Old Board: Disconnect all wires and mounting hardware from the old control board.
5. Install New Board: Mount the new Bosch 11032521 control board securely in place.
6. Reconnect Wires: Carefully reconnect all wires to the new board according to your documentation. Double-check all connections for security and correctness.
7. Reassemble Appliance: Replace all panels and components removed during access.
8. Restore Power & Test: Restore power to the appliance and perform a functional test to ensure all range functions operate correctly.

This is a general guide. Always follow the specific instructions provided in your appliance's service manual.

Operating Principles

The Main Control Board operates continuously when the range is powered, interpreting user inputs from the control panel and sending commands to various components such as heating elements, fans, and sensors. It manages cooking cycles, temperature regulation, and safety features. As an internal component, there are no direct user operating steps for the control board itself; its function is integral to the overall operation of the range.

Maintenance

The Bosch 11032521 Main Control Board is a sealed electronic component and does not require routine user maintenance. To ensure its longevity and proper function, it is important to:

• Keep the appliance clean and free from spills or debris that could affect internal components.
• Avoid exposing the appliance to extreme temperatures or humidity.
• Ensure proper ventilation around the appliance.

If the control board is suspected of malfunction, professional diagnosis and replacement are necessary.

Troubleshooting

If your range is experiencing issues that you suspect are related to the main control board, consider the following general troubleshooting steps. Note: Many issues can stem from other components. Professional diagnosis is highly recommended.

• No Power/Display Issues: Check the circuit breaker. If other components have power but the display is blank or erratic, the control board may be faulty.
• Inaccurate Temperatures: If the oven temperature is consistently incorrect despite calibration attempts, the control board's temperature regulation circuit might be compromised.
• Function Malfunctions: If specific functions (e.g., certain burners not working, oven not heating) fail without an obvious cause from other components, the control board could be the issue.
• Error Codes: Consult your range's user manual for explanations of any displayed error codes. These often point to specific component failures, including the control board.

Always consult a qualified technician for diagnosis and repair of complex appliance issues.

Specifications

Replacement Part Information

The Bosch 11032521 Main Control Board replaces the following part numbers:

• AP6888389
• PS12724351
• EAP12724351

Always verify the correct part number for your specific appliance model.

Warranty and Support

For information regarding the warranty of your Bosch 11032521 Range Main Control Board, please refer to the documentation provided with your original appliance or contact Bosch customer support directly. Warranty terms typically cover manufacturing defects.

For technical support, installation assistance, or to schedule service, please contact a qualified appliance service professional or Bosch customer service. Do not attempt repairs beyond your technical capability.

You can find more information on Bosch products and support at the official Bosch Home Appliances Store.
