LITFAD Mutil-Functional Wood Wardrobe Instruction Manual

1. Introduction and Overview

Thank you for choosing the LITFAD Mutil-Functional Wood Wardrobe. This modern storage armoire is designed to provide spacious and organized storage for your bedroom or dressing area. Featuring sliding doors, multiple shelves, and a clothing rod, it offers versatile storage solutions for various items, from hanging garments to folded clothes and accessories. This manual provides essential information for the safe assembly, operation, and maintenance of your new wardrobe.

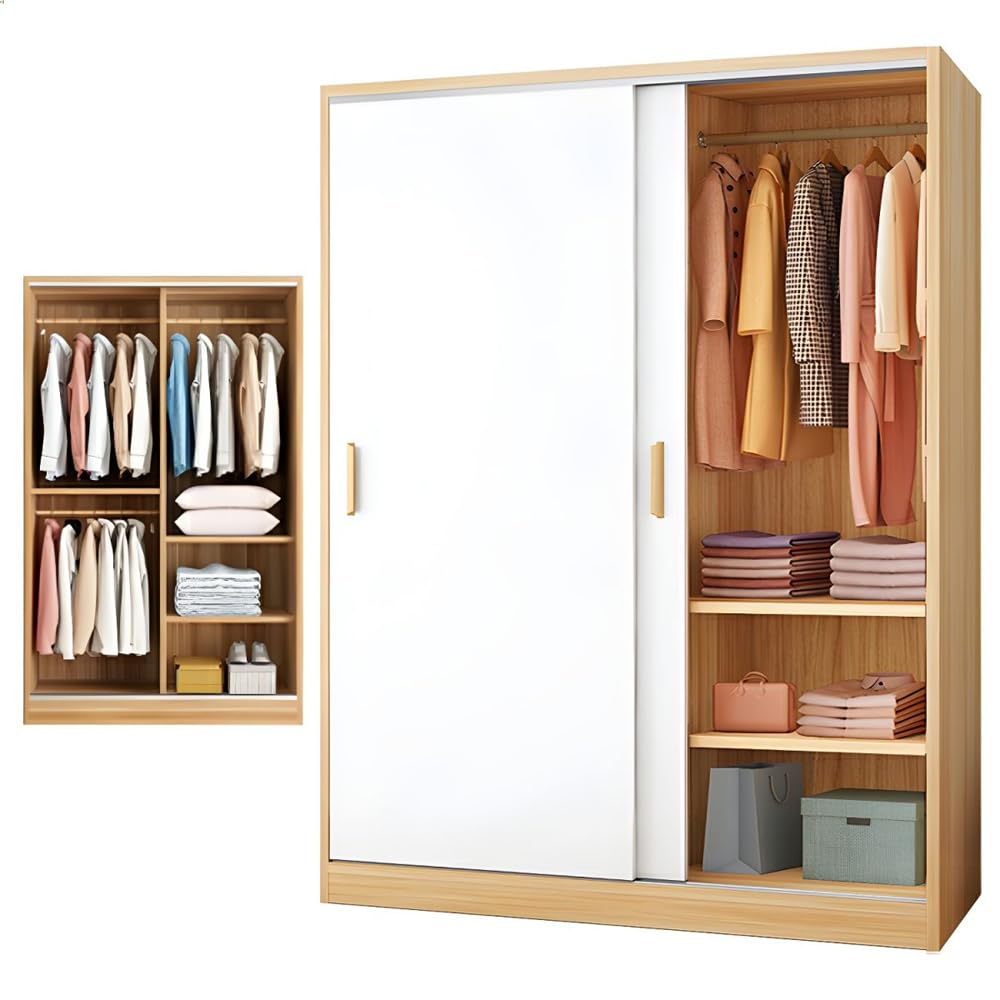

Figure 1: Overview of the LITFAD Mutil-Functional Wood Wardrobe, showing its overall dimensions of 47"L x 18"W x 71"H.

2. Safety Information

Please read and understand all safety instructions before assembly and use. Failure to follow these instructions may result in injury or damage to the product.

• Proper Assembly: Always ensure that the cabinet is properly assembled and stable before use. Verify all connections are secure.
• Pinch Points: Be cautious of pinch points when operating the sliding doors. Keep hands and fingers clear of the door tracks and edges during movement.
• Overloading: Do not overload the cabinet. Excessive weight can compromise stability and cause the unit to tip over, leading to injury or damage. Distribute weight evenly across shelves.
• Safety Gear: Always use appropriate safety gear, such as gloves, when handling heavy or sharp components during assembly.
• Children and Pets: Keep children and pets away from the assembly area. Do not allow children to climb on or play with the wardrobe.
• Wall Anchoring: For added stability and safety, especially in homes with children, consider anchoring the wardrobe to a wall using appropriate hardware (not included).

3. Package Contents

Before beginning assembly, verify that all components are present and undamaged. If any parts are missing or damaged, please contact customer support.

• Wardrobe Panels (sides, top, bottom, back)
• Sliding Door Panels (2 pieces)
• Shelves (quantity varies by configuration, typically 2, 3, or 5)
• Clothing Rod
• Hardware Pack (screws, dowels, cam locks, door rollers, tracks, handles)
• Instruction Manual (this document)

4. Setup and Assembly Instructions

Assembly requires two adults. Ensure you have a clear, spacious area for assembly. Tools typically required include a Phillips head screwdriver and a hammer (not included).

1. Prepare the Area: Clear a flat, clean surface for assembly. Lay out all components and hardware.
2. Assemble the Base: Attach the side panels to the bottom panel using the provided hardware (e.g., dowels and cam locks). Ensure the base is stable.
3. Install Back Panel: Secure the back panel to the assembled frame. This often involves small nails or screws.
4. Attach Top Panel: Connect the top panel to the side panels, ensuring all connections are tight.
5. Insert Shelves: Place the shelves into the designated slots or attach them with support pins. The number of shelves may vary.
6. Install Clothing Rod: Secure the clothing rod supports to the interior side panels and insert the rod.

Figure 2: Interior section of the wardrobe, highlighting the clothing rod for hanging garments.

7. Assemble Sliding Doors: Attach the rollers and handles to the sliding door panels according to the specific instructions in the included manual.
8. Install Door Tracks: Secure the upper and lower door tracks to the wardrobe frame.
9. Mount Sliding Doors: Carefully lift and place the sliding doors onto the tracks. Ensure they move smoothly and are properly aligned.

Figure 3: Detailed view of the bottom track for the sliding doors, illustrating the mechanism.

5. Operating Instructions

The wardrobe is designed for straightforward use.

• Sliding Doors: To open or close the doors, gently grasp the handle and slide the door along its track. Avoid forcing the doors, as this can damage the mechanism.
• Shelves: Utilize the shelves for folded clothing, bags, or other items. Ensure items are placed securely and do not protrude, which could obstruct door movement.
• Clothing Rod: Hang garments on the clothing rod. Distribute weight evenly to prevent sagging or stress on the rod supports.

Figure 4: Illustration of the sliding door operation, showing the direction of movement with red arrows.

6. Maintenance and Care

Proper care will extend the life and appearance of your wardrobe.

• Cleaning: Wipe the surfaces with a damp cloth. Avoid harsh chemicals or abrasive cleaners, which can damage the wood finish. Dry immediately with a clean cloth.
• Dusting: Regularly dust the wardrobe with a soft, dry cloth.
• Door Tracks: Periodically clean the sliding door tracks to remove dust and debris, which can hinder smooth operation. A vacuum cleaner with a narrow attachment can be useful.
• Hardware Check: Periodically check all screws and fasteners to ensure they remain tight. Retighten if necessary.
• Environmental Conditions: Avoid placing the wardrobe in direct sunlight or near heat sources, as this can cause warping or fading. Maintain a stable room temperature and humidity.

7. Troubleshooting

If you encounter issues with your wardrobe, refer to the following common solutions:

• Doors Not Sliding Smoothly:
  • Check the door tracks for any obstructions (dust, debris). Clean thoroughly.
  • Ensure the rollers are properly seated in the tracks.
  • Verify that the wardrobe is level. Uneven surfaces can affect door alignment.
• Wardrobe Feels Unstable:
  • Re-check all assembly hardware to ensure screws and cam locks are fully tightened.
  • Ensure the wardrobe is placed on a flat, level surface.
  • Consider using wall anchoring hardware for additional stability.
• Missing or Damaged Parts:
  • Review the package contents list. If parts are missing or damaged upon arrival, contact customer support immediately with your purchase details.

8. Specifications

Figure 5: Visual representation of the material's properties, emphasizing its hardness, stable structure, and resistance to cracking.

9. Warranty and Support

LITFAD is committed to providing high-quality products and customer service. If you have any questions, concerns, or require assistance with your wardrobe, please do not hesitate to contact us.

For support, please refer to the contact information provided with your purchase or visit the official LITFAD website. When contacting support, please have your model number (bc965ee9-6b7a-476e-9b63-f9be038c25bc) and purchase details readily available.
