Introduction
Thank you for choosing Cielsa Dawn Glass Door Knobs. This manual provides comprehensive instructions for the proper installation, operation, and maintenance of your new interior door knobs with privacy lock functionality. Please read this guide thoroughly before beginning installation to ensure correct setup and optimal performance.
These door knobs are designed for interior doors requiring privacy, such as bedrooms and bathrooms. They feature a satin nickel finish and crystal glass knobs, combining functionality with an elegant aesthetic.
Image: An overview of the Cielsa Dawn Glass Door Knobs, showcasing the complete assembly of the crystal knob and satin nickel base with the internal locking mechanism.
Package Contents
Verify that all components are present before starting installation. The package should contain the following items:
- 3 x Crystal Glass Door Knobs (with spindle and rosettes)
- 3 x Latch Mechanisms
- 3 x Strike Plates
- 3 x Mounting Screw Packs
- 1 x Emergency Release Tool (for privacy function)

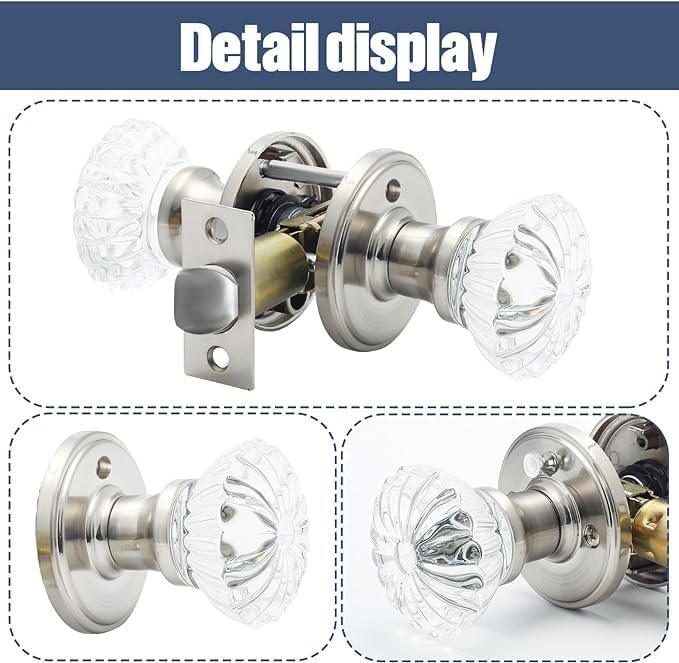

Image: Detailed view of the Cielsa Dawn glass door knob components. This image shows the crystal knob, the satin nickel rosette, and the internal latch mechanism, providing a clear look at the individual parts included in the package.
Setup and Installation
Follow these steps for proper installation of your Cielsa Dawn door knobs. A Phillips head screwdriver is typically required.
1. Prepare the Door
- Ensure your door has standard bore holes. These knobs are designed for door thicknesses between 1-3/8 inches and 1-3/4 inches.
- Remove any existing door hardware.
2. Install the Latch Mechanism
- Insert the latch mechanism into the edge bore hole of the door, ensuring the bevel of the latch bolt faces the direction the door closes.
- Secure the latch mechanism with the provided screws.
3. Install the Door Knobs
- Separate the interior and exterior knob assemblies if they are not already apart.
- Insert the exterior knob assembly (the side with the emergency release hole) through the exterior side of the door, aligning the spindle with the latch mechanism.
- Insert the interior knob assembly (the side with the privacy lock button) through the interior side of the door, aligning it with the exterior assembly and the latch mechanism.
- Secure both knob assemblies together using the long mounting screws, ensuring they are tightened evenly. Do not overtighten.
4. Install the Strike Plate
- Align the strike plate with the latch bolt on the door frame.
- Mark and pre-drill pilot holes if necessary, then secure the strike plate with the provided screws.

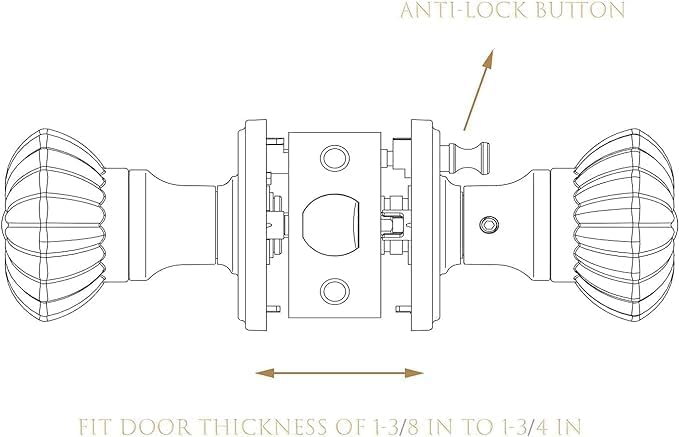

Image: An exploded diagram illustrating the components and assembly of the door knob. It highlights the compatible door thickness range (1-3/8 to 1-3/4 inches) and points to the anti-lock button mechanism, which is part of the privacy function.
Operating Instructions
The Cielsa Dawn Glass Door Knobs feature a privacy locking mechanism suitable for interior doors.
- To Lock: From the interior side of the door, press the button located on the center of the knob. The door is now locked.
- To Unlock: From the interior side, turn the knob to release the lock. The lock will also automatically release when the knob is turned from the exterior side.
- Emergency Release: In case of an emergency or accidental lockout, insert the emergency release tool (or a small pointed object like a paperclip) into the small hole on the center of the exterior knob and push firmly to unlock the door.
Image: A Cielsa Dawn glass door knob installed on a white interior door, highlighting its flower-shaped crystal design and satin nickel finish. This image demonstrates the aesthetic appeal of the installed product.
Maintenance
To ensure the longevity and appearance of your Cielsa Dawn door knobs, follow these maintenance guidelines:
- Cleaning: Clean the glass knobs and satin nickel finish with a soft, damp cloth. Avoid abrasive cleaners, harsh chemicals, or solvents, as these can damage the finish and crystal.
- Lubrication: Periodically, a small amount of graphite lubricant can be applied to the latch mechanism to ensure smooth operation. Do not use oil-based lubricants, as they can attract dust and debris.
- Tightening: Check mounting screws periodically and tighten them if they become loose. Loose screws can affect the stability and function of the knob.

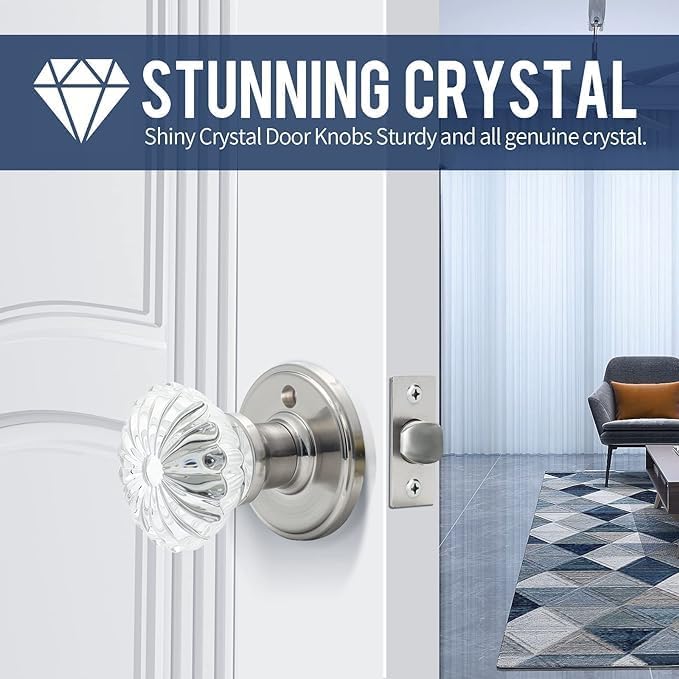

Image: A close-up view of the Cielsa Dawn crystal door knob, highlighting the clarity and intricate design of the genuine crystal material. This image emphasizes the quality and aesthetic detail of the knob.
Troubleshooting
If you encounter any issues with your door knobs, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Knob is loose or wobbly. | Mounting screws are not tight enough. | Tighten the mounting screws evenly. Ensure the spindle is properly engaged. |
| Latch does not retract smoothly. | Debris in the latch mechanism or lack of lubrication. | Clean the latch mechanism and apply a small amount of graphite lubricant. |
| Door does not latch or close properly. | Strike plate misalignment or incorrect latch installation. | Adjust the strike plate position on the door frame. Recheck latch installation to ensure it is correctly oriented. |
| Privacy lock button is stuck or not engaging. | Internal mechanism obstruction or misalignment. | Ensure the knob assemblies are properly aligned and tightened. If the issue persists, contact customer support. |
| Crystal knob detaches from the metal base. | Adhesive failure or manufacturing defect. | This indicates a potential defect. Contact Cielsa Dawn customer support for assistance or replacement. |
Specifications
- Model: B0CJ8MS7M5
- Brand: Cielsa Dawn
- Material: Crystal, Glass, Metal (Satin Nickel finish)
- Color: Satin Nickel
- Lock Type: Privacy (Push-button interior lock, emergency release exterior)
- Door Thickness Compatibility: 1-3/8" to 1-3/4"
- Included Components: Knob, Lock, Mounting Hardware
- Product Dimensions: Approximately 10.63"L x 9.25"W (overall package dimensions, individual knob dimensions vary)
- Item Weight: Approximately 6.21 pounds (for 3-pack)
Warranty and Support
Cielsa Dawn products are manufactured to high-quality standards. While specific warranty details are not provided in this manual, please retain your proof of purchase. For any questions, technical assistance, or warranty claims, please contact Cielsa Dawn customer support through the retailer where the product was purchased or visit the official Cielsa Dawn website for contact information.
Customer Support: Refer to your purchase documentation or the Cielsa Dawn brand store on Amazon for contact details.
