1. Introduction
Thank you for purchasing the SAMSUNG RZ32C7CBEB1/EF freestanding freezer. This manual provides essential information for the safe and efficient operation, installation, and maintenance of your appliance. Please read these instructions thoroughly before use and retain them for future reference.
This freezer features a generous 323-liter capacity, No Frost technology to prevent ice buildup, and an energy-efficient design. Its sleek black finish and reversible door offer flexibility for various kitchen layouts.
2. Safety Information
To ensure safe operation, always adhere to the following safety precautions:
- Electrical Safety: Ensure the appliance is connected to a properly grounded 220V power outlet. Do not use extension cords or multiple adapters. Disconnect power before cleaning or maintenance.
- Ventilation: Maintain adequate ventilation around the freezer to prevent overheating. Ensure at least 10 cm of clearance on the sides and rear.
- Flammable Materials: Do not store explosive substances or flammable materials inside or near the freezer.
- Child Safety: Keep children away from the appliance. Ensure they do not play with the controls or climb inside.
- Handling: The appliance is heavy (72 kg). Use appropriate lifting techniques and assistance when moving to prevent injury.
3. Setup and Installation
Follow these steps for proper setup of your new freezer:
- Unpacking: Carefully remove all packaging materials, including protective films and tapes. Inspect the freezer for any damage during transit.
- Placement: Position the freezer on a firm, level surface away from direct sunlight, heat sources (e.g., oven, radiator), and areas of high humidity. Ensure sufficient air circulation around the appliance.
- Leveling: Adjust the leveling feet at the bottom of the freezer to ensure it is stable and level. This helps reduce noise and ensures proper door closure.
- Electrical Connection: Plug the power cord into a dedicated, grounded 220V wall outlet. Do not share the outlet with other appliances.
- Initial Cleaning: Before first use, wipe the interior and exterior of the freezer with a soft cloth dampened with a mild detergent solution. Dry thoroughly.
- Door Reversal: The door hinge is reversible. If you wish to change the door opening direction, please consult a qualified technician or refer to the detailed door reversal instructions available on the SAMSUNG support website for your specific model.
- First Use: After installation, allow the freezer to stand upright for at least 2-4 hours before plugging it in. Once plugged in, allow it to operate empty for 2-3 hours to reach the desired temperature before storing food.

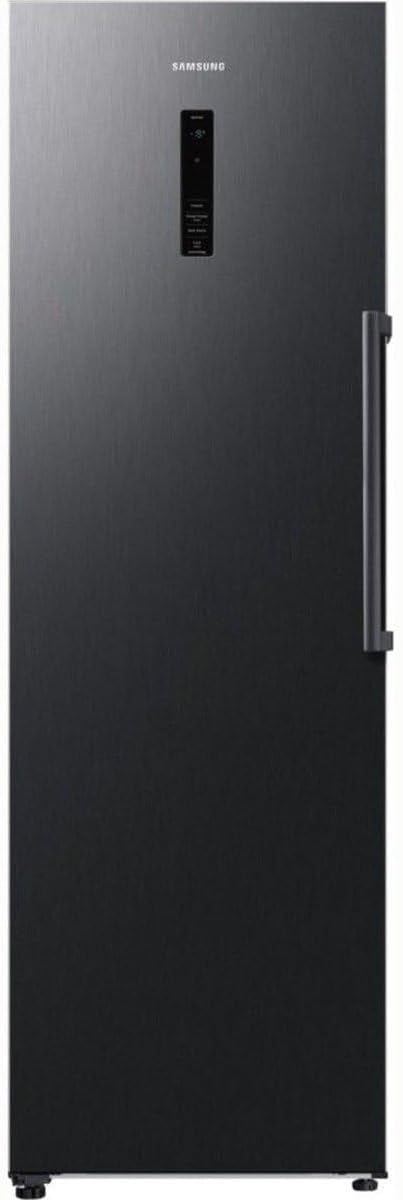

Figure 1: Front view of the SAMSUNG RZ32C7CBEB1/EF freestanding freezer.
4. Operating Instructions
Your SAMSUNG freezer is designed for convenient and efficient food preservation.
- Control Panel: The control panel, located on the door, allows you to adjust the temperature and activate special functions. Refer to the icons on the panel for specific settings.
- Temperature Adjustment: Press the temperature button to cycle through available temperature settings. The recommended temperature for optimal freezing is -18°C to -20°C.
- Power Freeze Function: Use the Power Freeze function to rapidly freeze a large quantity of food. This helps preserve the food's quality. Activate this function before adding fresh items.
- Food Storage: Organize food items in the designated compartments and drawers. Ensure proper air circulation by not overfilling shelves. Wrap food tightly to prevent freezer burn and odor transfer.
- No Frost Technology: Your freezer is equipped with No Frost technology, which prevents ice buildup by circulating cold air. This eliminates the need for manual defrosting.
- Slim Ice Maker: The integrated Slim Ice Maker provides convenient access to ice. Fill the water reservoir as instructed and allow time for ice production.
Figure 2: Interior view of the SAMSUNG RZ32C7CBEB1/EF freezer, highlighting storage compartments and the Slim Ice Maker.
5. Maintenance
Regular maintenance ensures the longevity and efficiency of your freezer.
- Cleaning the Interior: Disconnect power. Remove all food items. Clean the interior with a solution of mild detergent and warm water. Rinse with clean water and dry thoroughly. Do not use abrasive cleaners or sharp objects.
- Cleaning the Exterior: Wipe the exterior surfaces with a soft, damp cloth. For stubborn stains, use a mild household cleaner.
- Door Seals: Regularly check and clean the door seals to ensure they are free from food particles and remain flexible. A clean, tight seal helps maintain temperature and energy efficiency.
- Defrosting: While your freezer features No Frost technology, it is still recommended to periodically clean the interior and remove any minor frost buildup that may occur, especially around the door seals.
- Power Outage: In case of a power outage, keep the freezer door closed to maintain the internal temperature for as long as possible. Avoid opening the door unnecessarily.
6. Troubleshooting
Before contacting service, try these troubleshooting steps for common issues:
| Problem | Possible Cause | Solution |
|---|---|---|
| Freezer not operating | No power supply; power cord unplugged; circuit breaker tripped. | Check power connection; ensure outlet is functional; reset circuit breaker. |
| Temperature is too warm | Door not closed properly; excessive door openings; thermostat set too high; large amount of warm food added. | Ensure door is sealed; reduce door openings; adjust thermostat to a colder setting; allow time for new food to freeze. |
| Excessive noise | Freezer not level; objects touching the back or sides; normal operating sounds. | Level the appliance; ensure clearance from walls/cabinets; some sounds (compressor, fan) are normal. |
| Condensation on exterior | High humidity environment; door seal not tight. | Wipe dry; check and clean door seals for proper closure. |
If the problem persists after attempting these solutions, please contact SAMSUNG customer service for assistance.
7. Specifications
Key technical specifications for the SAMSUNG RZ32C7CBEB1/EF freezer:
| Feature | Specification |
|---|---|
| Model Number | RZ32C7CBEB1/EF |
| Type | Freestanding Freezer |
| Capacity | 323 Liters |
| Energy Class | E |
| Annual Energy Consumption | 263 kWh |
| Noise Level | 36 dB (Class C) |
| Climate Class | SN-N-ST-T |
| Dimensions (H x W x D) | 186 cm x 60 cm x 69.4 cm |
| Weight | 72 kg |
| Anti-icing Feature | No Frost |
| Door Hinge | Reversible |
| Voltage | 220 Volt |
| Wattage | 100 kW |
| Number of Compartments | 3 |
8. Warranty and Support
Your SAMSUNG RZ32C7CBEB1/EF freezer comes with a manufacturer's warranty. Please refer to the warranty card included with your purchase for specific terms and conditions, including coverage period and what is covered.
For technical support, service requests, or to purchase genuine SAMSUNG spare parts, please contact SAMSUNG customer service through their official website or the contact number provided in your warranty documentation.
SAMSUNG Official Website: www.samsung.com
