1. Introduction
Thank you for choosing the BODEGACOOLER 18 Quart Portable Car Refrigerator and Freezer. This versatile appliance is designed to keep your food and beverages chilled or frozen, whether you're on the road, camping, or at home. This manual provides essential information for safe operation, setup, maintenance, and troubleshooting to ensure optimal performance and longevity of your unit.
Figure 1.1: BODEGACOOLER 18 Quart Portable Car Refrigerator and Freezer.
2. Safety Information
Please read all safety warnings and instructions carefully before using the appliance to prevent injury or damage.
- Ensure proper ventilation around the unit. Do not block air vents.
- Do not immerse the unit in water or expose it to excessive moisture.
- Use only the provided power adapters (12/24V DC and 100-240V AC).
- Avoid placing hot items directly into the refrigerator. Allow them to cool first.
- When operating in a vehicle, ensure the unit is securely fastened to prevent movement, especially on bumpy roads. The unit features anti-30° slip and secure fastening holes.
- The battery protection system (H/M/L settings) helps prevent your vehicle's battery from draining. Adjust according to your vehicle's battery health.
- Keep out of reach of children.
3. Product Features
The BODEGACOOLER X18 offers a range of features designed for convenience and efficiency:
- Portable Design: Compact and lightweight (25.7 lbs / 11.7 kg) with durable handles for easy transport.
- Generous Capacity: 18 Quart (17 Liters) capacity, suitable for short trips and various storage needs.
- Dual Functionality: Operates as both a refrigerator and a freezer.
- Wide Temperature Range: Adjustable from -4℉ to 68℉ (-20℃ to 20℃).
- Fast Cooling: Advanced compressor refrigeration technology cools from 68℉ to 32℉ in 15 minutes (empty).
- Low Energy Consumption: Average consumption of only 45W, even in MAX mode.
- Quiet Operation: Operates at less than 45dB, ensuring a comfortable environment.
- Battery Protection: H/M/L settings to prevent vehicle battery drain.
- Detachable 2-Way Lid: Lid can be easily removed and re-attached to open from either side for convenience.
- Integrated Cup Slots: Prevents spills and provides stable placement for drinks.
- Interior LED Light: For easy access to contents in low-light conditions.
Figure 3.1: 18 Quart Capacity Overview.
Figure 3.2: Refrigerator or Freezer Functionality.

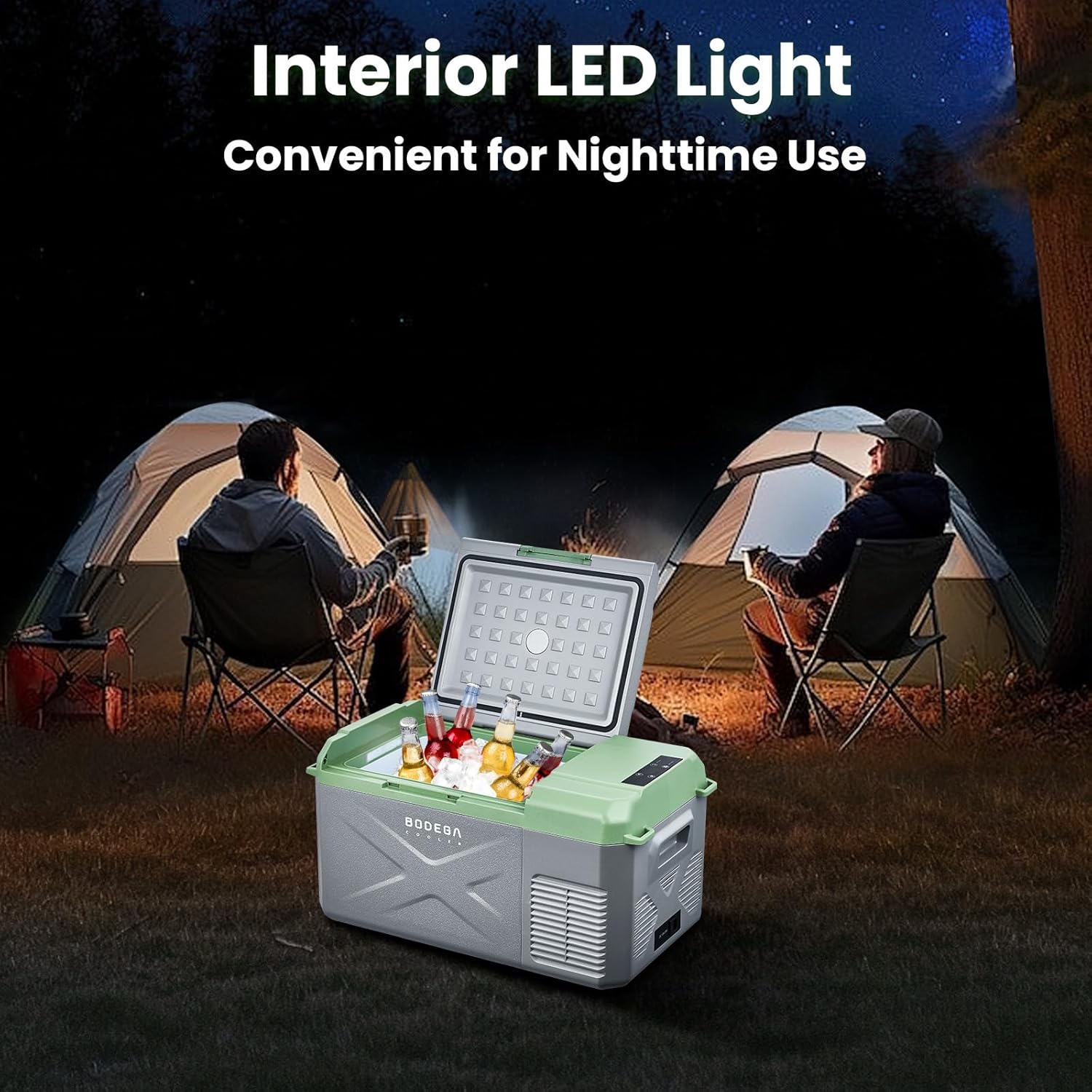

Figure 3.3: Interior LED Light for Nighttime Use.
Figure 3.4: Quiet Operation at 45dB.
4. Setup
4.1 Unpacking and Initial Placement
Upon receiving your BODEGACOOLER, carefully remove it from its packaging. Before plugging it in, allow the unit to stand upright for at least 6 hours. This allows the refrigerant to settle, ensuring optimal performance and preventing damage to the compressor.
4.2 Power Connection
Your BODEGACOOLER comes with both AC and DC power adapters, allowing for versatile use.
- DC Power (12V/24V): For use in vehicles (cars, RVs, trucks, campers, vans). Connect the DC power cord to the unit's DC input port and then to your vehicle's 12V/24V power outlet (cigarette lighter socket).
- AC Power (100-240V): For home or standard wall outlet use. Connect the AC power cord to the unit's AC input port and then to a standard wall socket.
Figure 4.1: Compatible Power Sources.
4.3 Battery Protection Settings
The unit features a battery protection system to prevent excessive discharge of your vehicle's battery. There are three settings: High (H), Medium (M), and Low (L).
| Mode | Cut Out (12V DC) | Cut In (12V DC) | Cut Out (24V DC) | Cut In (24V DC) |
|---|---|---|---|---|
| High (H) | 11.3V | 12.5V | 24.6V | 26.0V |
| Medium (M) | 10.1V | 11.4V | 22.3V | 23.7V |
| Low (L) | 9.60V | 10.9V | 21.3V | 22.7V |
The factory default setting is High (H) mode. If the input voltage drops below the 'Cut Out' value for the selected mode, the refrigerator will automatically turn off to protect your battery. It will resume operation when the voltage rises above the 'Cut In' value.
5. Operating Instructions
5.1 Control Panel and Display
The BODEGACOOLER features an intuitive LED digital display for easy operation.
Figure 5.1: LED Digital Display and Controls.
- Power Button: Press to turn the unit ON/OFF.
- Temperature Adjustment Buttons (Up/Down Arrows): Press to increase or decrease the desired temperature.
- ECO/MAX Button: Toggle between ECO (energy-saving) and MAX (fast cooling) modes.
- Settings Button: Used to access advanced settings, such as battery protection level.
5.2 Setting Temperature
With the unit powered on, use the Up and Down arrow buttons to set your desired temperature. The display will show the current internal temperature and the set temperature.
5.3 Cooling Modes (ECO/MAX)
Press the ECO/MAX button to switch between the two cooling modes:
- MAX Mode: Provides maximum cooling power for rapid temperature reduction. Ideal for quickly chilling items.
- ECO Mode: Optimizes energy consumption for longer run times, suitable for maintaining temperature.
5.4 Detachable 2-Way Lid
The lid is designed for convenience and can be opened from either side or completely detached.
- To change the opening direction: Open the lid to a 20° angle, then gently pull it upwards to detach. Realign the door shaft with the compartment hole on the opposite side and insert it to reinstall.
Figure 5.2: Detachable 2-Way Lid in Use.
5.5 Cup Slots and Interior LED Light
The integrated cup slots on the lid provide a stable place for your drinks. The interior LED light automatically illuminates when the lid is opened, making it easy to find items in the dark.
Figure 5.3: Interior LED Light for Nighttime Use.
5.6 APP Control
For added convenience, the BODEGACOOLER can be controlled via a smartphone application. Refer to the separate APP instruction guide for detailed pairing and control procedures. The app allows for remote temperature monitoring and adjustment.
6. Maintenance
6.1 Cleaning
- Interior: Clean the interior with a damp cloth and mild detergent. Rinse with clean water and wipe dry. Do not use abrasive cleaners or harsh chemicals.
- Exterior: Wipe the exterior with a soft, damp cloth.
- Ensure the unit is unplugged before cleaning.
6.2 Defrosting
The unit features automatic defrosting. However, if a thick layer of ice builds up, manually defrost the unit by turning it off and leaving the lid open until the ice melts. Use a soft cloth to wipe away melted water. Do not use sharp objects to remove ice.
6.3 Long-Term Storage
If storing the unit for an extended period, ensure it is clean and completely dry. Leave the lid slightly ajar to prevent odors and mold growth. Store in a dry, well-ventilated area.
7. Troubleshooting
If you encounter issues with your BODEGACOOLER, refer to the common problems and solutions below. For more complex issues or error codes not listed, please contact customer support.
| Problem | Possible Cause | Solution |
|---|---|---|
| Unit not powering on | No power supply; loose connection; vehicle battery low (DC); fuse blown. | Check power source and connections. Ensure vehicle battery is charged. Check vehicle's fuse box. |
| Not cooling effectively | Vents blocked; lid not closed properly; ambient temperature too high; too many items inside. | Ensure clear ventilation. Close lid securely. Operate in a cooler environment if possible. Do not overfill. |
| Displaying error code (e.g., E1) | Low voltage input (E1 is common for this). | Check power supply voltage. Adjust battery protection setting to a lower level if safe for your battery. |
| Excessive noise | Unit not level; fan obstruction. | Place unit on a flat, stable surface. Check for any obstructions around the fan. |
8. Specifications
| Attribute | Value |
|---|---|
| Brand | BODEGA |
| Model | X18 |
| Capacity | 18 Quarts (17 Liters) |
| Temperature Range | -4℉ to 68℉ (-20℃ to 20℃) |
| Power Input | DC 12V/24V, AC 100-240V |
| Rated Power | 45W (Average) |
| Noise Level | <45dB |
| Item Weight | 25.7 pounds (11.7 kg) |
| Product Dimensions | 24 x 10 x 12 inches |
| Material Type | ABS/PP |
| Included Components | Car Refrigerator, DC Power Cord, AC Power Adapter |
9. Official Product Videos
Watch these official videos from the seller for visual guides and demonstrations of your BODEGACOOLER.
BODEGACOOLER Portable Car Refrigerator (18QT/26QT)
This video provides an overview of the BODEGACOOLER Portable Car Refrigerator, highlighting its features and different sizes available.
BODEGACOOLER Portable Fridge Freezer
A detailed demonstration of the BODEGACOOLER's functionality as both a portable fridge and freezer, showcasing its versatility.
10. Warranty and Support
BODEGACOOLER stands behind the quality of its products.
- Compressor Warranty: 5-year lifespan warranty on the compressor.
- Parts Warranty: 1-year warranty on all other parts.
For any questions, technical support, or warranty claims, please contact BODEGACOOLER customer service. Refer to your purchase documentation or the official BODEGA website for the most current contact information.
Figure 10.1: Powerful Compressor with 5-Year Warranty.
