CobydA Washing Machine Shock Absorber Instruction Manual

1. Introduction

This manual provides essential information for the installation, maintenance, and troubleshooting of your CobydA Washing Machine Shock Absorber. This component is designed to reduce vibrations and stabilize the washing machine drum during operation, ensuring efficient and quiet performance. Please read these instructions carefully before proceeding with installation or maintenance.

2. Product Overview

The CobydA Washing Machine Shock Absorber is a high-quality replacement part engineered for durability and stable performance. It plays a critical role in absorbing the kinetic energy generated by the rotating drum, preventing excessive movement and noise. Its robust construction is designed to extend the life of your washing machine by minimizing stress on internal components.

Image 2.1: A single CobydA washing machine shock absorber, shown diagonally. It features a black plastic body with a silver metallic rod and white plastic bushings at each end. The body has some molded text and ridges.

3. Compatibility

This shock absorber is compatible with specific models of Haier and LG drum washing machines. Please verify your washing machine's model number before purchasing and installing this part to ensure proper fit and function.

• Compatible with Haier: Model B04080002
• Compatible with LG: Model B04080001

If your washing machine model is not listed, or if you are unsure about compatibility, please consult your appliance's original documentation or contact a qualified technician.

4. Installation Instructions

Safety First: Before attempting any installation or repair, ensure the washing machine is unplugged from the power outlet and the water supply is turned off. It is recommended to wear appropriate safety gear, such as gloves.

Replacing washing machine shock absorbers can be complex. If you are not comfortable performing this repair, it is highly recommended to seek assistance from a qualified appliance repair technician.

Required Tools (May Vary):

• Wrenches or sockets (appropriate sizes for mounting bolts)
• Pliers
• Screwdrivers
• Work gloves
• Flashlight

General Installation Steps:

1. Prepare the Appliance: Disconnect power and water. Pull the washing machine away from the wall to access the rear or side panels.
2. Access Shock Absorbers: Depending on your washing machine model, you may need to remove the top panel, front panel, or rear panel to gain access to the shock absorbers. Consult your washing machine's service manual for specific access instructions.
3. Locate and Inspect: Identify the existing shock absorbers. There are typically two to four shock absorbers supporting the drum. Inspect them for signs of wear, leakage, or damage.
4. Remove Old Shock Absorbers:
   • Support the washing machine drum if necessary to prevent it from dropping when the shock absorbers are removed.
   • Using appropriate tools, carefully unbolt or unclip the old shock absorbers from their mounting points on the drum and the base frame of the washing machine.
   • Note the orientation of the old shock absorbers before removal.
5. Install New Shock Absorbers:
   • Align the new CobydA shock absorber with the mounting points.
   • Securely attach the new shock absorber using the original bolts or clips. Ensure all connections are tight and secure.
   • Repeat for all shock absorbers being replaced.
6. Reassemble and Test:
   • Reattach any panels removed during the process.
   • Reconnect the power and water supply.
   • Run a small, empty wash cycle to check for proper operation, stability, and any unusual noises or vibrations.

Image 4.1: Two CobydA washing machine shock absorbers, positioned parallel to each other. This image helps visualize the quantity typically needed for replacement.

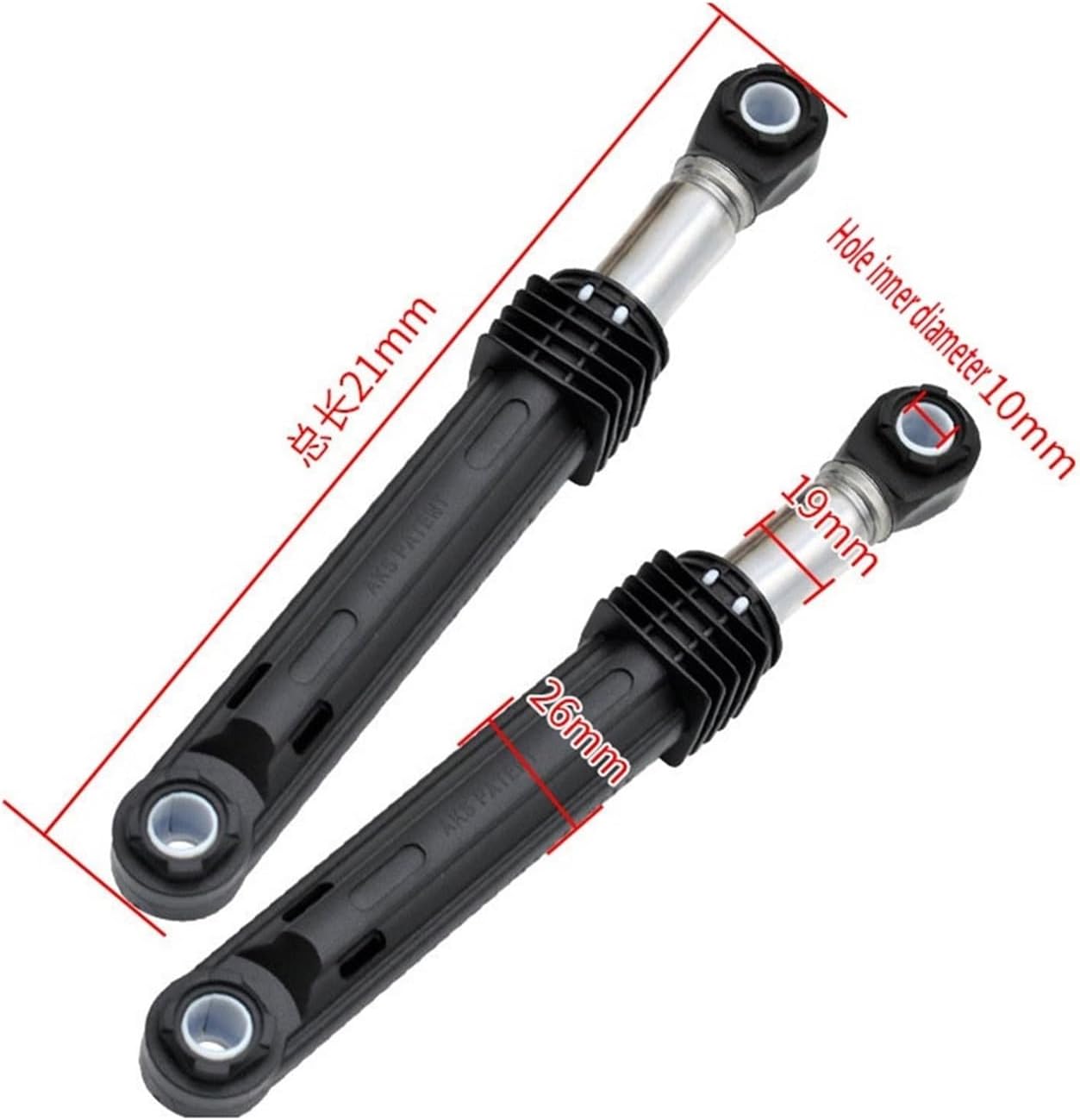

Image 4.2: A CobydA washing machine shock absorber with key dimensions labeled in millimeters. It shows an overall length of 21mm, a hole inner diameter of 10mm, and body section measurements of 19mm and 26mm. This is crucial for verifying fit.

5. Maintenance

Washing machine shock absorbers are wear-and-tear components. While they do not require regular user maintenance, periodic inspection can help identify potential issues before they become severe.

• Annual Inspection: If accessible, visually inspect the shock absorbers annually for signs of wear, such as cracks in the plastic, oil leaks (if applicable to your specific shock absorber type), or excessive looseness at the mounting points.
• Listen for Noise: Pay attention to unusual banging, thumping, or excessive vibration during the spin cycle, which can indicate failing shock absorbers.
• Keep Area Clean: Ensure the area around the washing machine is clean and free of debris that could interfere with the appliance's stability.

6. Troubleshooting

If your washing machine exhibits symptoms related to shock absorber failure, consider the following:

• Excessive Vibration/Shaking: This is the most common symptom of worn or broken shock absorbers. The drum may hit the sides of the machine during the spin cycle.
• Loud Banging Noises: Particularly during the spin cycle, loud noises can indicate that the drum is not properly dampened.
• Washing Machine "Walking": If the machine moves significantly across the floor during operation, it could be due to failing shock absorbers or an unbalanced load. Ensure the machine is level first.

If these symptoms persist after checking for unbalanced loads and ensuring the machine is level, it is likely that the shock absorbers need replacement. Refer to the installation section or contact a professional technician.

7. Specifications

Image 7.1: A CobydA washing machine shock absorber with key dimensions labeled in millimeters, showing an overall length of 21mm, a hole inner diameter of 10mm, and body section measurements of 18mm and 23mm. This provides an alternative perspective on the product's physical characteristics.

8. Warranty and Support

CobydA is committed to providing high-quality washing machine accessories. This product comes with a reliable guarantee. If you encounter any issues during the use or installation of this shock absorber, please do not hesitate to contact the seller or manufacturer for assistance. We are dedicated to resolving any problems to ensure your satisfaction.

For support, please refer to your purchase documentation for contact information or visit the official CobydA support channels.
