KZ Castor In-Ear Monitor User Manual

1. Introduction

The KZ Castor In-Ear Monitor (IEM) is a high-fidelity earphone designed for immersive audio experiences. Featuring a Dual-Dynamic driver acoustic design, it delivers exceptional sound quality across bass, middle, and treble frequencies. The ergonomic design ensures comfortable wear for extended periods, making it suitable for musicians, DJs, singers, and general audio enthusiasts.

Figure 1: KZ Castor In-Ear Monitors (Silver Harman Version). The transparent housing reveals the internal dual-dynamic drivers and tuning switches.

2. Key Features

• Dual-Dynamic Driver Acoustic Design: Combines a balanced armature driver to enhance definition across bass, mid, and treble frequencies, providing immersive audio.
• Tunable Sound: Features built-in professional-grade filters with 4-gear, 16-mode sound adjustment options, allowing users to customize low and high frequencies.
• Elegant Appearance and Exquisite Craft: Constructed with a zinc alloy metal faceplate and high-gloss electroplating process.
• Detachable Cable: Utilizes an 8-strand upgraded silver-plated OFC (Oxygen-Free Copper) cable with a 2PIN-C detachable design and thickened high-durability pins, ensuring longevity and resistance to interference.
• Noise Cancelling Design: In-ear monitor design with soft silicone ear tips capable of blocking up to 36 dB of external noise, creating a physical seal within the ear canal.
• Ergonomic Comfort: Designed for extended wear, the ergonomic shape and ear-hook design provide a snug fit, reducing pressure and fatigue.
• Wide Compatibility: Connects to virtually any digital audio source with a 3.5mm stereo plug, including headphone amplifiers, audio interfaces, laptops, desktops, tablets, and cellphones.

Figure 2: The KZ Castor IEMs are designed with tuning adjustability for a personalized audio experience.

Figure 3: Internal structure illustrating the top and bottom stacked cavity design for optimal sound delivery.

Figure 4: Detailed view of the 10mm dual magnetic dynamic driver and 8mm dynamic driver within the earphone.

3. Setup

3.1. Connecting the Detachable Cable

1. Identify the left and right earpieces. The earpieces are typically marked with 'L' for left and 'R' for right.
2. Align the 2-pin connector on the cable with the corresponding port on the earpiece. Ensure the pins are correctly oriented to avoid damage.
3. Gently push the connector into the earpiece until it clicks securely into place. Do not force the connection.
4. Repeat for the other earpiece.

Video 1: Official product video demonstrating the features and connection of the KZ Castor IEMs.

Figure 5: The silver KZ Castor IEMs showcasing the external tuning switches for sound customization.

3.2. Selecting and Installing Ear Tips

The KZ Castor comes with various sizes of silicone ear tips to ensure a comfortable and secure fit, which is crucial for optimal sound isolation and audio performance.

1. Experiment with different ear tip sizes (small, medium, large) to find the best fit for your ear canals. A good fit will provide excellent passive noise isolation and rich bass response.
2. Gently remove the pre-installed ear tips by pulling them off the nozzle.
3. Push the desired ear tip onto the nozzle of the earpiece until it is firmly seated.

Figure 6: High-quality memory foam ear tips designed for enhanced comfort and sound isolation.

3.3. Adjusting Sound with Tuning Switches

The KZ Castor features four tuning switches on each earpiece, allowing for 16 different sound profiles. Use a small, non-metallic tool (like a toothpick or the included tool, if any) to adjust these switches.

• Refer to the frequency response chart to understand the effect of each switch combination.
• Switches 1 and 2 typically control bass frequencies.
• Switches 3 and 4 typically control mid and high frequencies.
• Experiment with different switch positions to find your preferred sound signature.

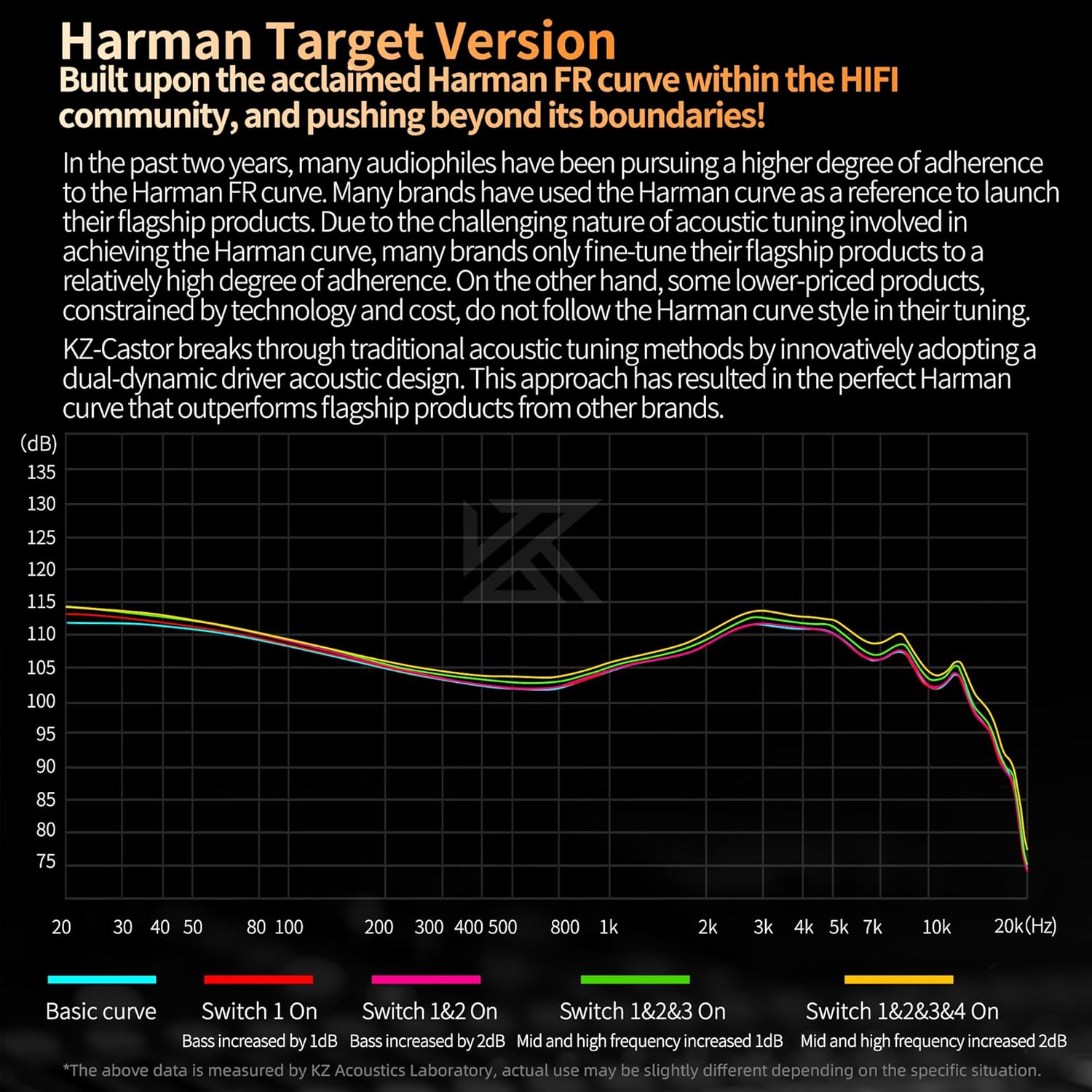

Figure 7: Frequency Response (FR) curve demonstrating the impact of different tuning switch configurations on sound.

Figure 8: The built-in professional-grade filters support adjustable low and high frequencies via the tuning switches.

4. Operating Instructions

4.1. Wearing the IEMs

1. Insert the earpiece into your ear canal, ensuring a snug fit.
2. Loop the cable over the top of your ear. The ear-hook design helps secure the IEMs in place and reduces microphonics (cable noise).
3. Adjust the cable length using the chin slider for a comfortable and secure fit.

Figure 9: Proper wearing technique for the KZ Castor IEMs, with the cable looped over the ear for stability.

4.2. Audio Playback

Connect the 3.5mm stereo plug to your audio source (smartphone, DAP, computer, audio interface, etc.). Adjust the volume on your audio source to a comfortable listening level before placing the IEMs in your ears.

The KZ Castor is designed for high-fidelity audio reproduction. For optimal performance, consider using a dedicated headphone amplifier, especially with devices that may have lower power output.

5. Maintenance

5.1. Cleaning the IEMs

• Regularly clean the ear tips with a soft, damp cloth. Ensure they are completely dry before reattaching.
• Gently wipe the earpiece bodies with a dry, soft cloth to remove any dirt or oils.
• Inspect the nozzle grilles for earwax buildup. Use a small, soft brush or a cleaning tool (if provided) to carefully remove any debris. Avoid pushing debris further into the nozzle.

5.2. Cable Care

• When not in use, coil the cable loosely to prevent tangling and kinking.
• Avoid sharp bends or excessive pulling on the cable, especially near the connectors.
• Store the IEMs and cable in a protective case to prevent damage during transport.

6. Troubleshooting

7. Specifications

Figure 10: Overview of KZ Castor product specifications.

8. Warranty and Support

For warranty information and customer support, please refer to the documentation included in your product packaging or contact the manufacturer directly. Specific warranty terms and support channels may vary by region and retailer.
