AUTOUTLET 75W Cordless Car Vacuum Cleaner User Manual

1. Introduction

Thank you for choosing the AUTOUTLET 75W Cordless Car Vacuum Cleaner. This 4-in-1 handheld device is designed for versatile cleaning, offering powerful suction, blowing, exhausting, and inflating capabilities. Equipped with a 75W brushless motor and a high-efficiency HEPA filter, it provides a comprehensive solution for maintaining cleanliness in your vehicle and beyond. This manual provides essential information for safe operation, maintenance, and troubleshooting.

2. Safety Information

Please read all safety instructions carefully before using the appliance. Failure to follow these instructions may result in electric shock, fire, or serious injury.

• Do not use the vacuum cleaner to pick up flammable or combustible liquids, such as gasoline, or use in areas where they may be present.
• Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.
• Keep hair, loose clothing, fingers, and all parts of the body away from openings and moving parts.
• Do not immerse the vacuum cleaner in water or other liquids.
• Use only as described in this manual. Use only manufacturer's recommended attachments.
• Do not operate the appliance while charging.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Ensure the filter is properly installed before use to prevent damage to the motor.
• Store the vacuum cleaner in a dry place when not in use.

3. Package Contents

Verify that all items are included in your package:

Image: The AUTOUTLET 75W Cordless Car Vacuum Cleaner, along with its various attachments, charging cable, and storage bag, neatly arranged in its retail packaging.

• 1 x AUTOUTLET Cordless Car Vacuum Cleaner
• 1 x Blowing Brush Nozzle
• 1 x Long Brush Nozzle
• 1 x Vacuum Nozzle
• 1 x Small Floor Brush
• 3 x HEPA Filter Cartridges (One already installed)
• 1 x User Manual
• 1 x Type C Charging Cable
• 1 x EVA Storage Bag

4. Product Overview

Familiarize yourself with the components of your AUTOUTLET Cordless Car Vacuum Cleaner.

Image: The main unit of the vacuum cleaner, showing the dust cup, power button, charging port, and various nozzles and filters.

• Main Unit: Contains the motor, battery, and control buttons.
• Dust Cup: Transparent container for collecting debris.
• HEPA Filter: High-efficiency particulate air filter, located inside the dust cup.
• Power Button: Controls power on/off and suction/blowing modes.
• Charging Port: USB Type-C port for charging the device.
• Various Nozzles: Interchangeable attachments for different cleaning tasks (e.g., brush nozzles, vacuum nozzle, blowing nozzle).

5. Setup

5.1 Initial Charging

Before first use, fully charge the vacuum cleaner. A full charge takes approximately 3 hours.

1. Connect the provided Type C charging cable to the charging port on the vacuum cleaner.
2. Connect the other end of the cable to a 5V/2A or above USB power adapter (not included).
3. The charging indicator light will be red while charging.
4. Once fully charged, the indicator light will turn green.

Image: Close-up of the vacuum cleaner's charging port, showing a red light indicating charging and a green light indicating a full charge.

5.2 Attaching Accessories

The vacuum cleaner supports various attachments for different functions. The front and rear heads can be adapted.

• To attach a nozzle for vacuuming, firmly insert it into the front opening of the dust cup.
• To attach a nozzle for blowing or inflating, firmly insert it into the rear opening of the main unit.

Image: An exploded view diagram illustrating how different vacuum accessories, such as the long brush nozzle and blowing brush nozzle, connect to the main unit for various functions.

6. Operating Instructions

The AUTOUTLET vacuum cleaner offers 4-in-1 functionality: vacuuming, blowing, exhausting, and inflating.

6.1 Power On/Off and Speed Control

• Press the power button once to turn on the vacuum cleaner at the first speed (6.7KPa suction / blowing).
• Press the power button a second time to switch to the second speed (11KPa suction / blowing).
• Press the power button a third time to turn off the device.

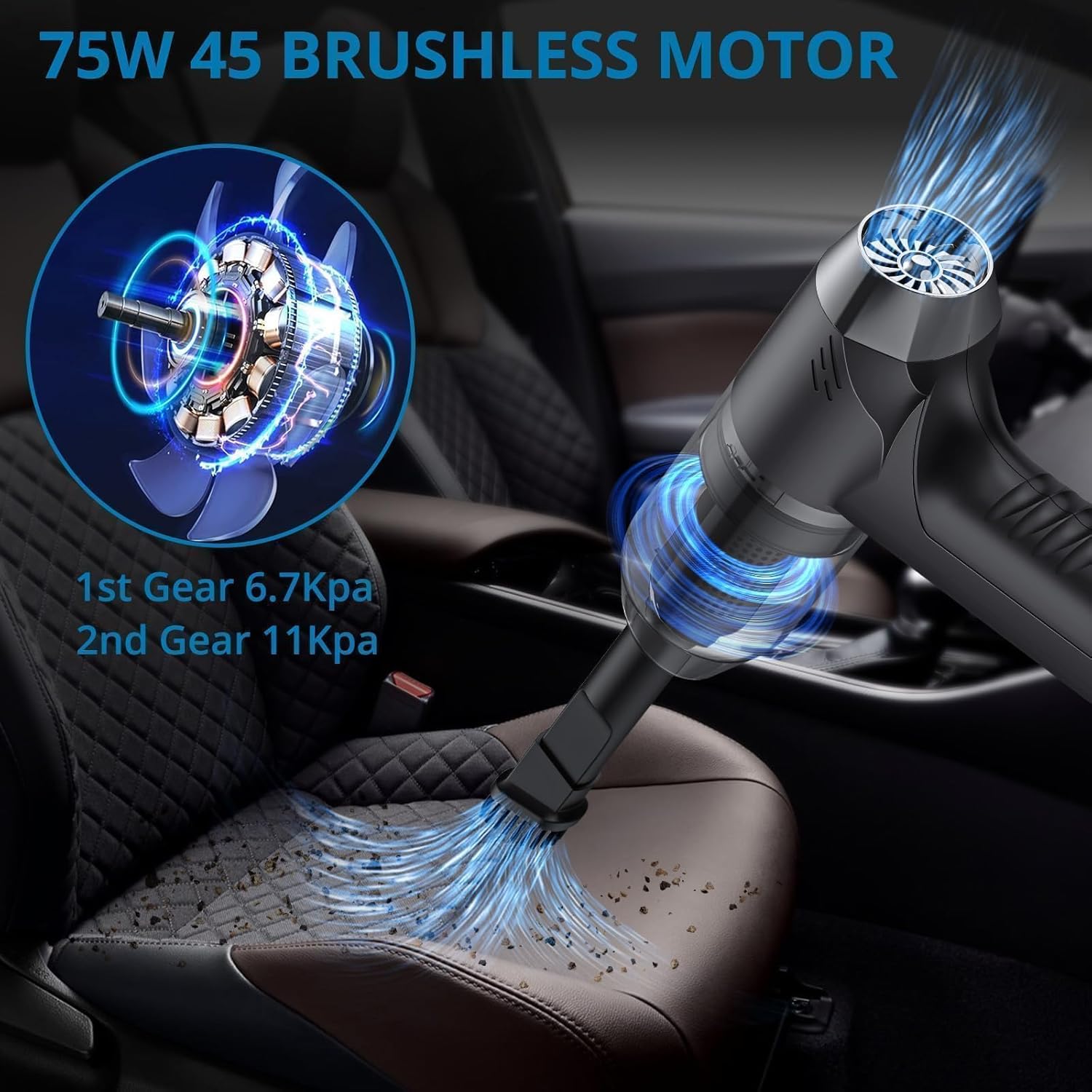

Image: The vacuum cleaner in action, showing debris being suctioned from a car seat, with text indicating 1st Gear (6.7KPa) and 2nd Gear (11KPa) suction levels.

6.2 Using the 4-in-1 Functions

Attach the appropriate nozzle for your desired function:

• Vacuuming: Attach a vacuum nozzle (e.g., long brush nozzle, small floor brush) to the front opening. Ideal for cleaning car interiors, keyboards, and other small spaces.
• Blowing: Attach a blowing nozzle to the rear opening. Useful for clearing dust from crevices, keyboards, or drying surfaces.
• Exhausting/Pumping: Use the rear opening with a suitable adapter to exhaust air from vacuum storage bags.
• Inflating: Use the rear opening with an inflation nozzle to inflate small items like swimming rings or sports balls.

Image: A collage of four images showing the vacuum cleaner being used to clean a car, clean a keyboard, inflate a swimming ring, and deflate vacuum storage bags, illustrating its multi-functional capabilities.

7. Maintenance

Regular maintenance ensures optimal performance and extends the lifespan of your vacuum cleaner.

7.1 Emptying the Dust Cup

1. Ensure the vacuum cleaner is turned off.
2. Twist the dust cup counter-clockwise to detach it from the main unit.
3. Carefully remove the HEPA filter from the dust cup.
4. Empty the collected debris into a waste bin.

7.2 Cleaning the HEPA Filter

The HEPA filter is washable and reusable. Clean it regularly to maintain suction power.

1. After emptying the dust cup, gently tap the HEPA filter to dislodge any remaining dust.
2. Rinse the HEPA filter under running water until clean. Do not use detergents or hot water.
3. Allow the filter to air dry completely before reinserting it into the dust cup. Ensure it is fully dry to prevent mold or damage to the motor.
4. Reassemble the filter into the dust cup, then attach the dust cup back to the main unit by twisting clockwise until secure.

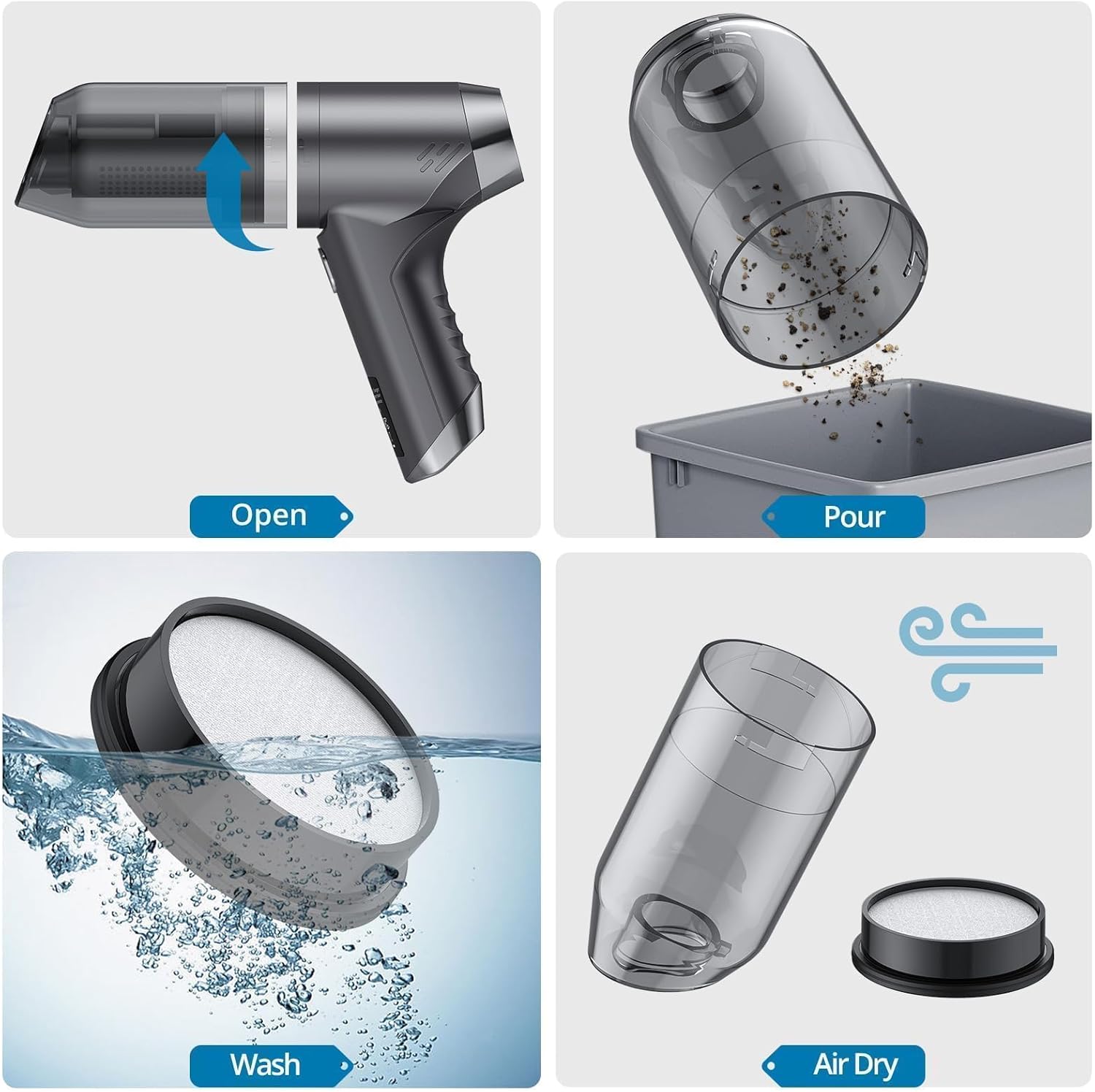

Image: A visual guide demonstrating the steps for cleaning the vacuum: opening the dust cup, pouring out debris, washing the HEPA filter, and air drying the components.

8. Troubleshooting

If you encounter issues with your AUTOUTLET vacuum cleaner, refer to the following common problems and solutions:

9. Specifications

10. Warranty and Support

For warranty information or technical support, please contact AUTOUTLET customer service directly. Refer to the contact details provided with your product packaging or visit the official AUTOUTLET store on Amazon:

Visit the AUTOUTLET Store on Amazon

Please have your model number (EFU088BE) and purchase details ready when contacting support.
