1. Introduction
Thank you for choosing the Valman LIGE8908 Men's Watch. This multi-functional timepiece combines sporty design with fashionable aesthetics, offering reliability and a range of useful features. This manual provides essential information on how to set up, operate, maintain, and troubleshoot your watch to ensure its longevity and optimal performance.
Image 1.1: The Valman LIGE8908 Men's Watch in Golden Black. This image showcases the watch's overall design, including its black dial, golden accents, and silicone strap.
2. Product Features
- Stylish Design: Features a distinctive dial with unique sword-shaped pointers, a dual flywheel design, and a calendar display for a sophisticated and modern look.
- Comfortable Strap: Equipped with a flexible and wear-resistant silicone strap designed to fit comfortably around the wrist.
- Luminous Display: The watch hands and markers absorb light and glow in the dark, providing visibility in low-light conditions.
- Water Resistance: Rated for 30 meters (3ATM) water resistance, suitable for daily use such as hand washing and splashes, but not for swimming or diving.
- High-Quality Movement: Utilizes a high-quality quartz movement for accurate timekeeping.
- Multi-functional Dial: Includes small three-needle sub-dials for chronograph functions.
Image 2.1: Detailed view of the LIGE8908 watch's multifunction dial. This image highlights the three sub-dials: a 1/1000 second indicator (NO.1), a chronograph minute hand (NO.2), and a chronograph second hand (NO.3).
Image 2.2: Comparison of the watch display in normal light and dark conditions. This image demonstrates the luminous feature of the watch, showing how the hands and markers glow brightly in the dark after absorbing sufficient light.
3. Setup and Initial Use
3.1 Setting the Time and Date
- Pull out the Crown: Gently pull the crown (the knob on the side of the watch) to position 2 for setting the date, or position 3 for setting the time.
- Set the Date: If in position 2, turn the crown clockwise or counter-clockwise to adjust the date. Push the crown back to position 1 when done.
- Set the Time: If in position 3, turn the crown to move the hour and minute hands. Ensure you set the correct AM/PM for the date change. Push the crown back to position 1 when done.
- Engage the Crown: Always push the crown fully back into position 1 (normal operating position) to ensure water resistance and proper function.
3.2 Adjusting the Strap
The silicone strap is designed for comfort. To adjust the fit, use the buckle to find the desired hole that allows the watch to sit snugly but comfortably on your wrist. Ensure it is not too tight to restrict circulation, nor too loose to slide around excessively.
4. Operating Instructions
4.1 Using the Chronograph (Stopwatch)
The LIGE8908 watch features a chronograph function, indicated by the small sub-dials.
- Start/Stop: Press the top pusher button (usually at 2 o'clock position) to start and stop the chronograph.
- Reset: Press the bottom pusher button (usually at 4 o'clock position) to reset the chronograph hands to zero. This can only be done when the chronograph is stopped.
4.2 Luminous Function
The luminous material on the watch hands and markers requires exposure to light to charge. For optimal glow, expose the watch to a bright light source (natural or artificial) for a few minutes before entering a dark environment. The intensity and duration of the glow will depend on the amount of light absorbed.
4.3 Water Resistance Guidelines
Your watch is rated for 30 meters (3ATM) water resistance. This means it is suitable for daily use and can withstand splashes, rain, and brief immersion in water (e.g., hand washing).
- Do NOT operate the crown or pushers when the watch is wet or submerged.
- Do NOT use the watch for swimming, diving, snorkeling, or any water sports.
- Avoid exposure to hot water, steam, or extreme temperature changes, as this can compromise the water seals.
- If the watch is exposed to saltwater, rinse it gently with fresh water and dry it thoroughly.
5. Maintenance and Care
- Cleaning: Wipe the watch case and strap regularly with a soft, dry cloth to remove dust and dirt. For the silicone strap, a damp cloth with mild soap can be used, then rinse and dry thoroughly.
- Avoid Chemicals: Do not expose the watch to solvents, detergents, perfumes, or cosmetic sprays, as these can damage the case, strap, or seals.
- Temperature Extremes: Avoid exposing the watch to extreme temperatures (hot or cold) or sudden temperature changes, which can affect the movement and seals.
- Magnetic Fields: Keep the watch away from strong magnetic fields (e.g., speakers, refrigerators, mobile phones) as they can affect the accuracy of the quartz movement.
- Storage: When not in use, store the watch in a cool, dry place, away from direct sunlight.
- Battery Replacement: The watch uses a high-quality quartz battery. When the watch stops or the second hand starts skipping, it indicates a low battery. Battery replacement should be performed by a qualified watch technician to ensure proper sealing and function.
6. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Watch not running / Hands stopped | Battery depleted. | Replace the battery. Consult a professional watch repair service. |
| Time is inaccurate | Exposure to strong magnetic fields; Crown not fully pushed in. | Demagnetize the watch (professional service recommended); Ensure crown is fully pushed in. |
| Condensation inside crystal | Water ingress due to compromised seals or improper crown operation. | Immediately take the watch to a professional for inspection and repair to prevent further damage. Avoid extreme temperature changes. |
| Chronograph hands not resetting to zero | Requires calibration. | Refer to specific movement instructions or consult a watch technician for calibration. |
7. Specifications

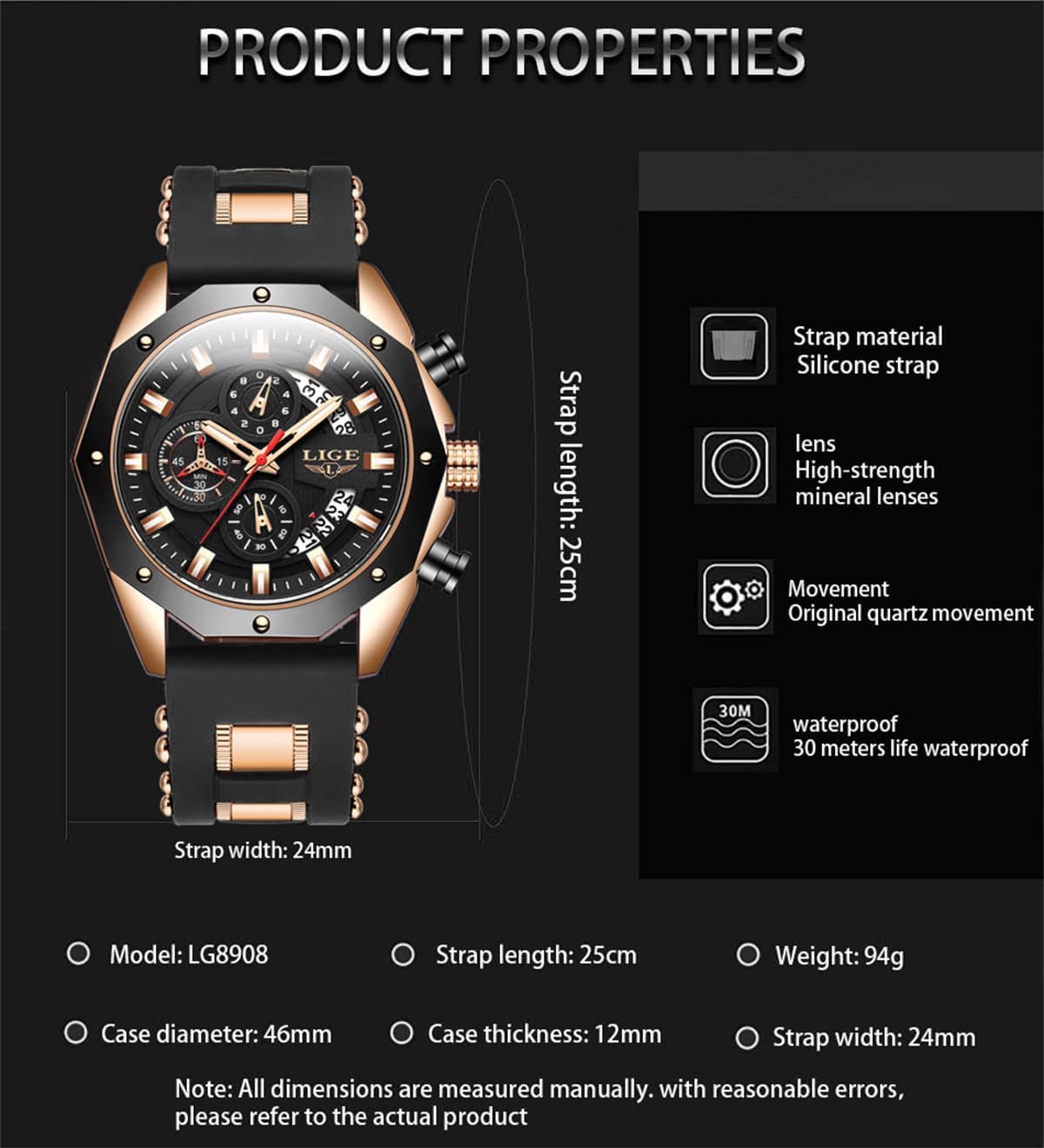

Image 7.1: Visual representation of the LIGE8908 watch's key dimensions and material properties. This image details the strap length, strap width, dial thickness, and dial diameter, along with material information.
| Property | Value |
|---|---|
| Model Number | LG8908 |
| Movement Type | High-quality Quartz Movement |
| Display Type | Pointer |
| Case Material | Alloy |
| Strap Material | Silicone Strap |
| Lens Material | High-strength Mineral Lenses |
| Water Resistance | 30 meters (3ATM) |
| Dial Diameter | 46mm |
| Dial Thickness | 12mm |
| Bandwidth | 24mm |
| Watch Circumference | 250mm |
| Watch Weight | 94 grams |
| Product Dimensions (L x W x H) | 25 x 4.6 x 1.2 cm |
8. Warranty Information
Specific warranty terms and conditions for your Valman LIGE8908 watch are typically provided at the time of purchase or included with the product packaging. Please refer to any documentation received with your watch for detailed warranty coverage, duration, and claim procedures. Keep your proof of purchase for warranty validation.
9. Customer Support
For any questions, concerns, or technical assistance regarding your Valman LIGE8908 watch, please contact the retailer or the manufacturer's customer support. Contact information can usually be found on the product packaging, the seller's website, or your purchase invoice.
When contacting support, please have your watch model number (LG8908) and purchase details readily available.
