PARKSIDE® Hobby Electric Stapler PHET 15 User Manual

1. Introduction

Thank you for choosing the PARKSIDE® Hobby Electric Stapler PHET 15. This manual provides important information for the safe and efficient operation, maintenance, and troubleshooting of your electric stapler. Please read this manual thoroughly before first use and keep it for future reference.

The PHET 15 is designed for hobby applications, offering automatic operation and efficient stapling with 70 watts of power. Its robust plastic construction ensures durability, and its modern design makes it a practical addition to any workspace.

2. Safety Instructions

Always observe basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock, and personal injury.

• Read all instructions: Familiarize yourself with the controls and proper use of the stapler.
• Wear eye protection: Always wear safety glasses or goggles when operating the stapler.
• Disconnect power: Always unplug the stapler from the power outlet before loading staples, clearing jams, or performing any maintenance.
• Keep work area clear: Ensure your work area is well-lit and free from clutter.
• Avoid accidental starting: Ensure the switch is in the off position before plugging in the stapler.
• Use correct staples: Only use staples of the type and size specified in the specifications section.
• Do not overreach: Maintain proper footing and balance at all times.
• Store idle stapler: When not in use, store the stapler in a dry, secure place out of reach of children.
• Maintain stapler with care: Keep the stapler clean for best and safest performance. Follow instructions for lubricating and changing accessories.
• Check for damaged parts: Before further use, check for any damaged parts. A guard or other part that is damaged should be properly repaired or replaced by an authorized service center.

3. Package Contents

Carefully unpack all items and ensure you have received the following:

• PARKSIDE® Hobby Electric Stapler PHET 15
• Operating Manual
• Starter pack of staples (if included)

If any items are missing or damaged, please contact customer support.

4. Product Overview

Familiarize yourself with the components of your electric stapler.

Figure 4.1: Front view of the PARKSIDE PHET 15 Electric Stapler, showing the main body, handle, and staple magazine.

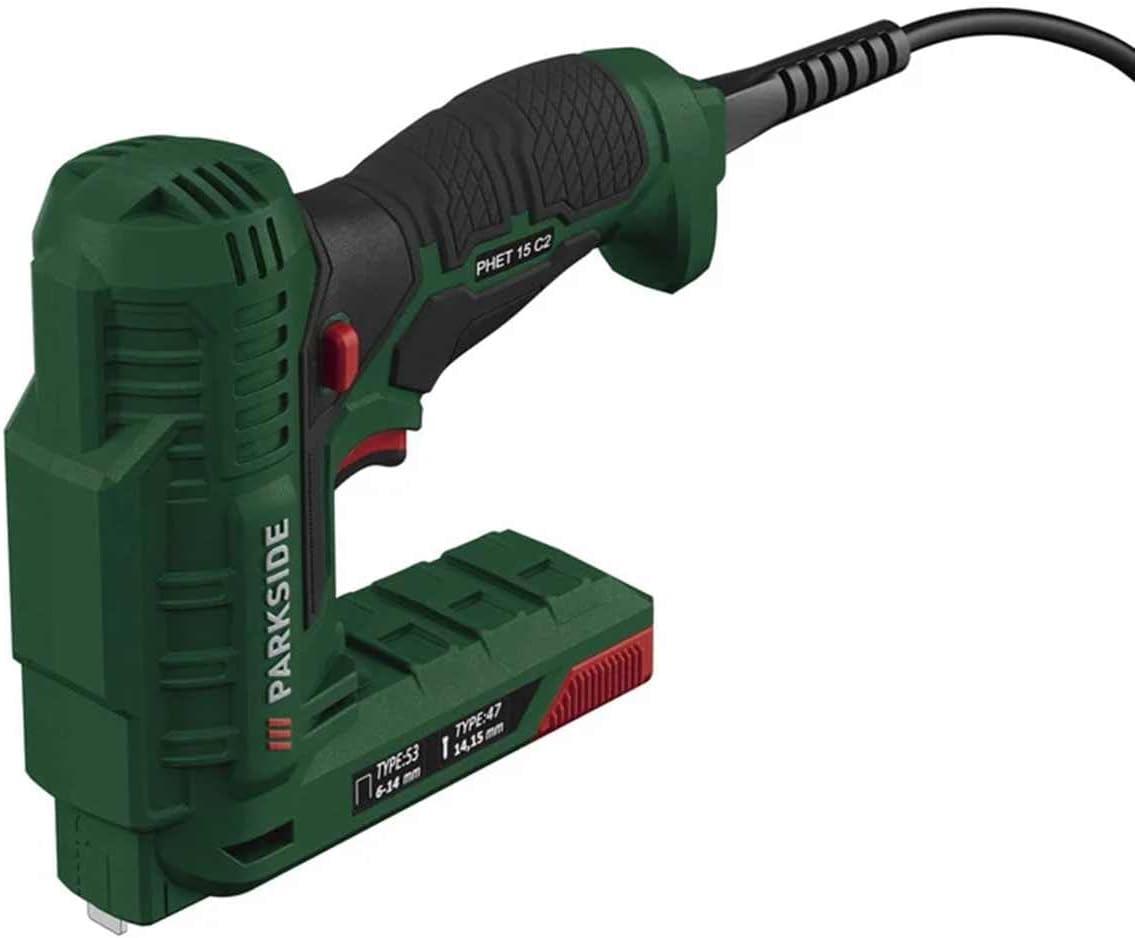

Figure 4.2: Side view of the PARKSIDE PHET 15 Electric Stapler, highlighting the ergonomic grip and power cord.

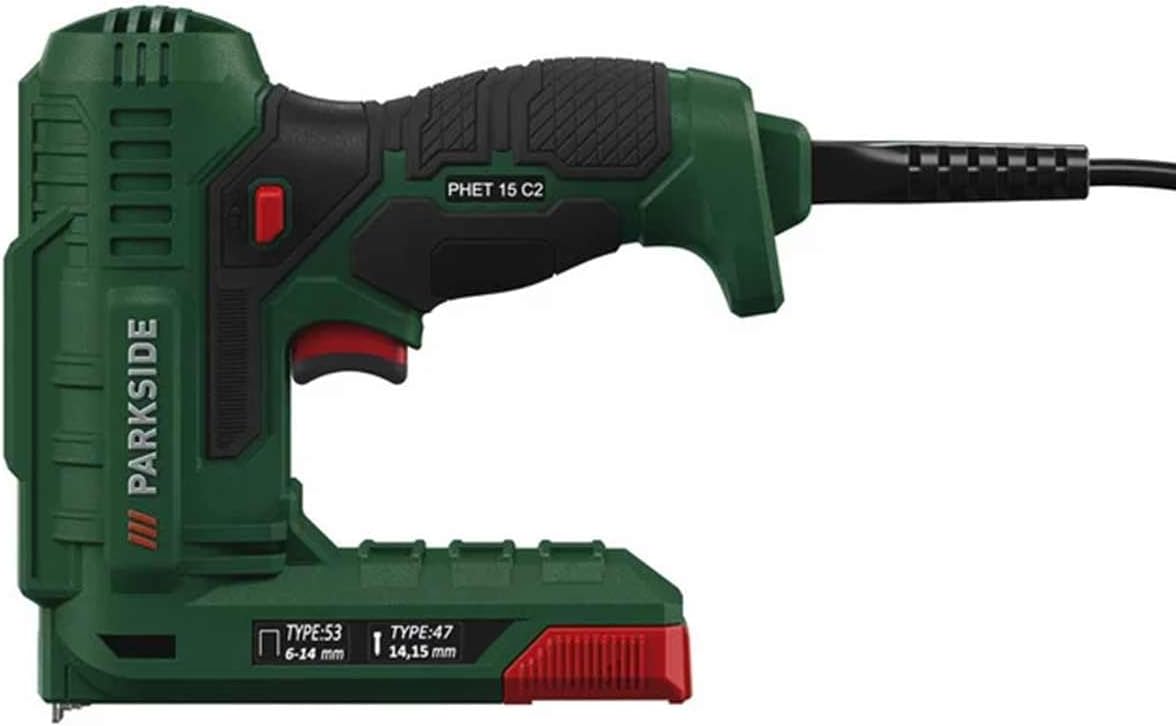

Figure 4.3: Angled view of the PARKSIDE PHET 15 Electric Stapler, showing the staple type indicators (Type 53, Type 47).

Figure 4.4: Bottom view of the staple magazine on the PARKSIDE PHET 15 Electric Stapler, indicating the loading mechanism.

Figure 4.5: Example of compatible staples for the PARKSIDE PHET 15 Electric Stapler, including both narrow crown and U-shaped staples.

Key Components:

• Trigger: Activates the stapling mechanism.
• Staple Magazine: Holds the staples.
• Staple Release Latch: Used to open the staple magazine for loading.
• Power Cord: Connects the stapler to an electrical outlet.
• Staple Type Indicators: Markings on the tool indicating compatible staple types (e.g., Type 53, Type 47).

5. Setup

5.1 Loading Staples

1. Disconnect Power: Ensure the stapler is unplugged from the power outlet.
2. Open Magazine: Locate the staple release latch at the bottom of the stapler. Press or slide it to open the staple magazine.
3. Insert Staples: Place a strip of compatible staples (Type 53, 6-14mm or Type 47, 14-15mm) into the magazine with the staple legs pointing downwards.
4. Close Magazine: Slide the magazine cover back into place until it clicks securely.

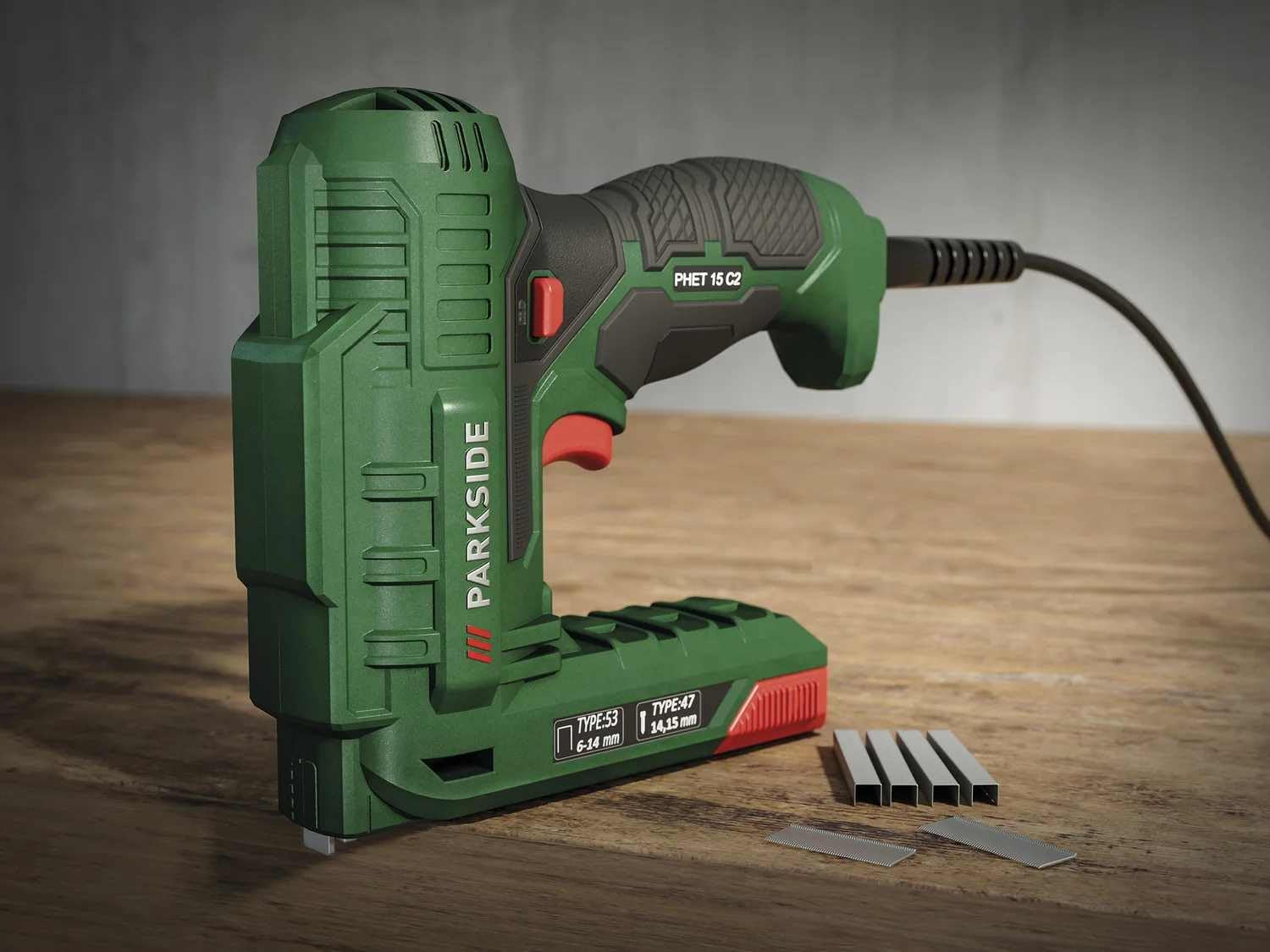

Figure 5.1: Illustration of loading staples into the magazine of the electric stapler.

6. Operating Instructions

6.1 General Operation

1. Connect Power: Plug the stapler into a suitable electrical outlet.
2. Position Stapler: Place the nose of the stapler firmly against the material you wish to staple. Ensure the material is stable and secure.
3. Activate Trigger: Press the trigger to drive a staple into the material. The automatic mechanism will drive the staple with consistent force.
4. Release Trigger: Release the trigger after each staple.
5. Check Staple Depth: If staples are not fully driven, ensure the stapler is held firmly against the surface.

Figure 6.1: A user demonstrating the use of the electric stapler on a canvas frame, showing proper grip and positioning.

Figure 6.2: A user operating the electric stapler on a wooden frame, illustrating the application of staples for upholstery or similar tasks.

6.2 Applications

The PARKSIDE® Hobby Electric Stapler PHET 15 is suitable for various hobby and light-duty tasks, including:

• Upholstery projects
• Attaching fabric to frames
• Crafts and DIY projects
• Light wood fastening

7. Maintenance

Regular maintenance ensures the longevity and optimal performance of your electric stapler.

7.1 Cleaning

• Disconnect Power: Always unplug the stapler before cleaning.
• Wipe Down: Use a soft, damp cloth to wipe the exterior of the stapler. Do not use harsh chemicals or abrasive cleaners.
• Clear Debris: Periodically check the staple magazine and firing mechanism for any dust, debris, or staple fragments and remove them.

7.2 Storage

Store the stapler in a dry, clean place, away from direct sunlight and extreme temperatures. Ensure it is unplugged and any remaining staples are removed from the magazine before storage.

8. Troubleshooting

This section addresses common issues you might encounter with your electric stapler.

If the problem persists after attempting these solutions, please contact customer support.

9. Specifications

10. Warranty and Support

For warranty information or technical support, please refer to the contact details provided with your purchase or visit the official Parkside website. Keep your proof of purchase for warranty claims.

Manufacturer: Parkside
