AMERLIFE Full Size Lift Up Storage Bed Frame with Charging Station User Manual

1. Introduction

This manual provides detailed instructions for the assembly, operation, and maintenance of your AMERLIFE Full Size Lift Up Storage Bed Frame. This bed frame features a gas-lift mechanism for under-bed storage, an integrated headboard with a charging station, and a sturdy, noise-free design that eliminates the need for a box spring.

Image 1.1: AMERLIFE Full Size Lift Up Storage Bed Frame with mattress lifted, showcasing the under-bed storage and headboard charging station.

2. Safety Information

• Always use caution when operating the gas-lift mechanism. Ensure hands and fingers are clear of moving parts.
• Do not exceed the maximum weight capacity of 1000 lbs (453 kg) for the bed frame.
• Be careful around sharp edges during assembly and use.
• Always follow assembly instructions carefully to prevent injury and ensure structural integrity.
• Ensure all electrical connections for the charging station are properly secured and used with compatible devices.

3. Package Contents

Please verify that all components are present before beginning assembly. If any parts are missing or damaged, contact customer support.

• Headboard (with integrated charging station)
• Footboard
• Side Rails
• Slat System (wooden slats and plastic clips)
• Gas Lift Mechanism (pistons and frame)
• Hardware Kit (screws, bolts, Allen wrench)
• Assembly Instructions

4. Setup and Assembly

Assembly typically requires two people and takes approximately one hour. Follow the included illustrated instructions for best results. All parts are labeled for easy identification.

1. Unpack and Organize: Carefully unpack all components and lay them out on a clean, soft surface to prevent scratches. Verify all parts against the package contents list.
2. Assemble Frame: Attach the side rails to the headboard and footboard using the provided hardware. Ensure all connections are secure.
3. Install Gas Lift Mechanism: Secure the gas lift mechanism to the bed frame according to the instructions. This system allows for easy lifting of the mattress platform.
4. Attach Slats: Place the wooden slats into the designated slots on the bed frame. Secure them with the plastic clips. Ensure slats are evenly spaced and firmly in place to support the mattress.
5. Connect Charging Station: Plug the power cord from the headboard's charging station into a wall outlet.

Image 4.1: Illustration of the bed frame's sturdy metal structure, easy assembly features, and noise-free design.

5. Operating Instructions

5.1. Gas-Lift Storage Mechanism

The bed frame features a smooth gas-lift mechanism for accessing under-bed storage. This system is designed to lift the mattress effortlessly.

• To Open: Locate the lift-up handle (typically a fabric strap) at the foot of the bed. Firmly pull the handle upwards. The gas pistons will assist in lifting the mattress platform. Continue lifting until the platform is fully raised and locked into position.
• To Close: Gently push down on the mattress platform. The gas pistons will slowly lower the platform back into its closed position. Ensure no items or body parts are in the way before closing.
• Anti-Slip Device: The bed frame includes an anti-slip device to prevent the mattress from sliding when the platform is lifted.

Image 5.1: Details of the lift-up handle and anti-slip device for the gas-lift mechanism.

Image 5.2: Close-up of the ample under-bed storage space.

5.2. Headboard Charging Station

The integrated headboard features a convenient charging station for your electronic devices.

• Power Outlets: The charging station includes two standard AC outlets (110V/12A) for plugging in lamps, laptops, or other electronics.
• USB Ports: Two USB ports (5V/3A) are provided for charging smartphones, tablets, and other USB-powered devices.
• Storage Shelf: The headboard also offers an open storage shelf for placing small items like books, alarm clocks, or decorative pieces.

Image 5.3: Detailed view of the headboard charging station with AC outlets and USB ports.

6. Maintenance

• Cleaning: Wipe the wooden and metal surfaces with a soft, damp cloth. Avoid harsh chemicals or abrasive cleaners that could damage the finish.
• Hardware Check: Periodically check all bolts and screws to ensure they remain tight. Tighten as necessary to maintain stability.
• Gas Lift Mechanism: Inspect the gas pistons for any signs of wear or damage. If the lifting mechanism becomes difficult to operate or fails to hold the mattress, contact customer support for assistance.
• Electrical Components: Ensure the charging station's power cord is not pinched or damaged. Do not overload the outlets or USB ports.

7. Troubleshooting

8. Specifications

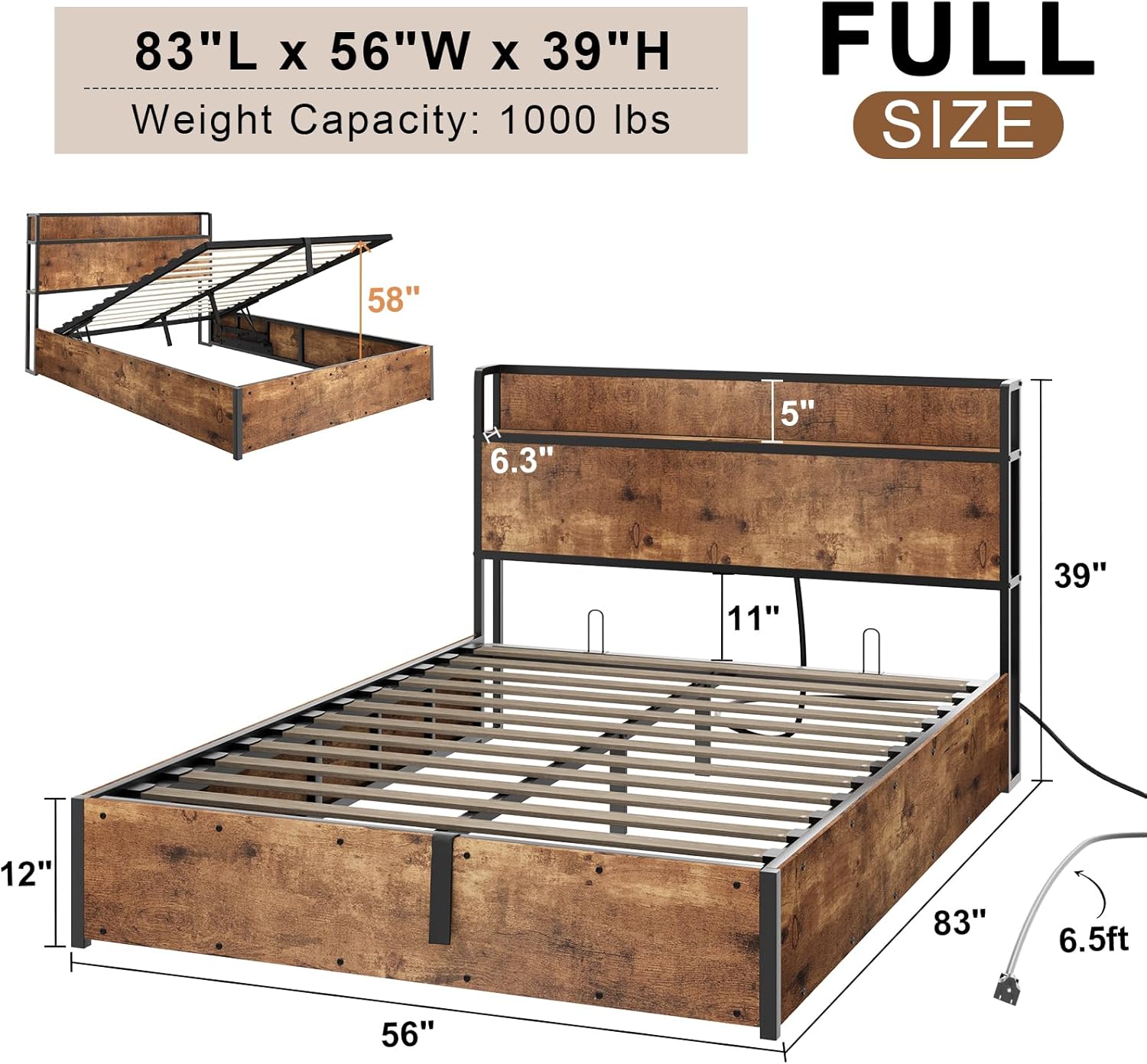

Image 8.1: Dimensional diagram and weight capacity of the AMERLIFE Full Size Bed Frame.

Image 8.2: Recommended mattress thickness for optimal use.

9. Warranty and Support

For warranty information or customer support, please refer to the documentation included with your purchase or visit the official AMERLIFE store. You can also contact the seller directly through the platform where the product was purchased.

Visit the AMERLIFE Store for more products and information.
