VOLTZ VZ-DS-500 Electric Belt and Disc Sander Instruction Manual

1. Important Safety Instructions

Read and understand all safety warnings and instructions before operating this tool. Failure to follow the warnings and instructions may result in electric shock, fire, and/or serious injury.

• Work Area Safety: Keep the work area clean and well-lit. Cluttered or dark areas invite accidents. Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases, or dust.
• Electrical Safety: Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Avoid body contact with earthed or grounded surfaces.
• Personal Safety: Always wear eye protection. Use hearing protection when operating for extended periods. Dress properly; avoid loose clothing or jewelry. Secure long hair.
• Tool Use and Care: Do not force the power tool. Use the correct power tool for your application. Disconnect the plug from the power source before making any adjustments, changing accessories, or storing power tools.
• Maintenance: Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts, and any other condition that may affect the power tool’s operation.

2. Product Overview

The VOLTZ VZ-DS-500 is a versatile electric belt and disc sander designed for various sanding and grinding applications. It features a 500W motor, a 6-inch disc sander, and a 4x36 inch belt sander, operating at a single speed of 2980 RPM.

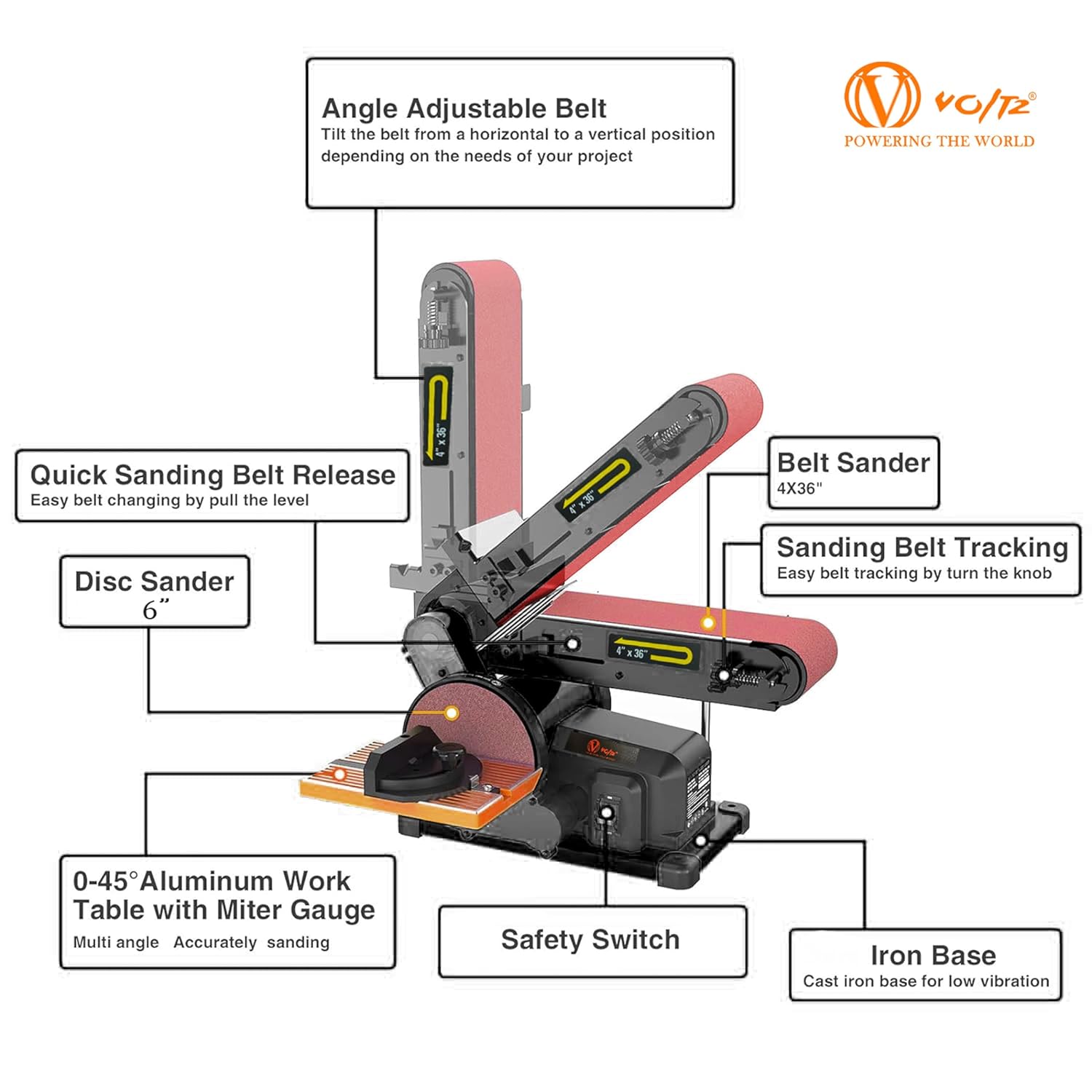

Figure 1: Overview of the VOLTZ VZ-DS-500 Electric Belt and Disc Sander. This image shows the complete assembly of the sander, highlighting its dual belt and disc sanding capabilities.

Figure 2: The VOLTZ VZ-DS-500 Electric Belt and Disc Sander, emphasizing its 500W power and 2980 RPM maximum speed.

3. Setup and Assembly

Before initial use, ensure all components are present and undamaged. Position the sander on a stable, level workbench.

1. Unpacking: Carefully remove the sander and all accessories from the packaging.
2. Placement: Place the sander on a sturdy workbench. The iron base provides stability and reduces vibration.
3. Work Table Installation: Attach the 0-45° aluminum work table to the disc sander as shown in the diagram. Ensure it is securely fastened.
4. Power Connection: Connect the power cord to a suitable 230V AC power outlet.

Figure 3: Product dimensions of the VOLTZ VZ-DS-500, showing its compact size for benchtop convenience (51 cm length, 33 cm width, 34 cm height).

Figure 4: User-friendly design elements, including rubber footpads (1) for vibration prevention and dual dust collection ports (2, 3) for a cleaner workspace.

4. Operating Instructions

The VZ-DS-500 offers both belt and disc sanding functionalities. Always ensure the workpiece is securely held and your hands are clear of the sanding surfaces.

4.1. General Operation

• Power On/Off: Use the safety switch located on the front of the machine to turn the sander on or off.
• Speed: The sander operates at a single speed of 2980 RPM.

4.2. Belt Sanding

• Angle Adjustment: The belt sander can be tilted from a horizontal to a vertical position to suit different project requirements. Loosen the adjustment knob, set the desired angle, and tighten the knob securely.
• Workpiece Handling: Apply gentle, even pressure when sanding. Move the workpiece consistently across the belt to ensure uniform material removal and prevent gouging.

4.3. Disc Sanding

• Work Table Adjustment: The aluminum work table can be adjusted from 0 to 45 degrees. Use the miter gauge for accurate angle sanding.
• Workpiece Handling: Always sand on the downward-rotating side of the disc to prevent the workpiece from being thrown upwards. Use the work table to support the workpiece.

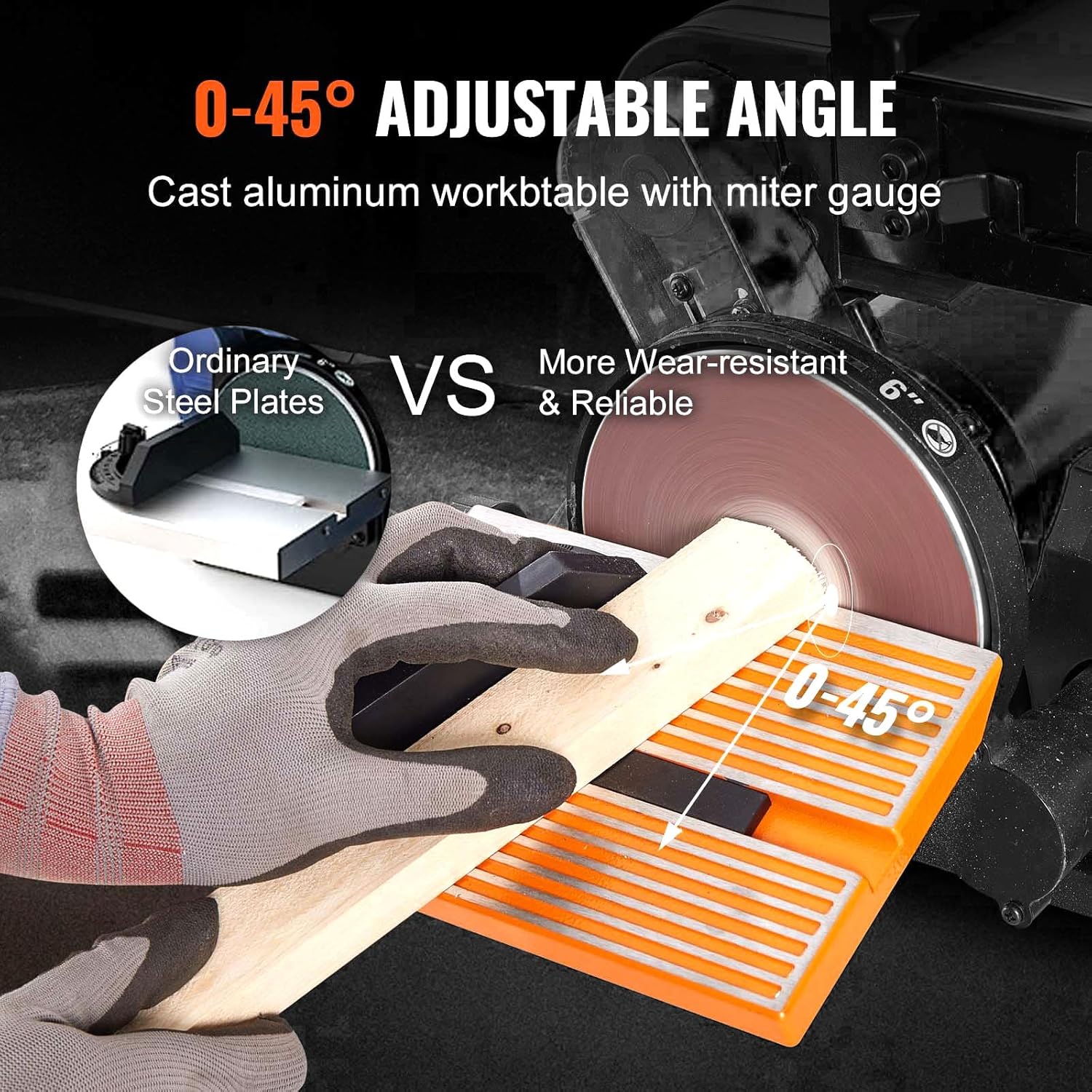

Figure 5: The 0-45 degree adjustable aluminum worktable with miter gauge, allowing for precise angle sanding on the disc sander.

Figure 6: Visual guide demonstrating proper techniques for both belt sanding (left) and disc sanding (right) operations.

5. Maintenance

Regular maintenance ensures optimal performance and extends the lifespan of your sander. Always disconnect the power before performing any maintenance.

• Cleaning: Regularly clean dust and debris from the machine, especially around the motor and sanding surfaces. Use the integrated dust collection ports for a dust-free operation.
• Belt Replacement: To replace the sanding belt, use the quick sanding belt release lever. Slide off the old belt and install a new one, ensuring it is centered. Adjust belt tracking using the knob if necessary.
• Disc Replacement: Replace worn sanding discs as needed. Ensure the new disc is properly adhered and centered on the disc plate.
• Inspection: Periodically inspect the power cord, switch, and all moving parts for wear or damage.

Figure 7: Illustration of the high-efficiency dust collection system, showing separate exhaust ports for the disc and belt to extend machine service life.

6. Troubleshooting

7. Specifications

8. Warranty and Support

For warranty information, technical support, or service inquiries, please contact VOLTZ Tools directly.

• Manufacturer: VOLTZ, Voltz Tools
• Address: Plot No. 541 Nangli sakrawati New delhi - 110043
• Toll Free Number: 1800-572-8672
• Whatsapp: 9625417892
• Email: vcare@voltztools.com
