1. Important Safety Information
Please read all instructions carefully before installation and use. Failure to follow these instructions may result in injury or product damage. Keep this manual for future reference.
- Always wear safety glasses during installation.
- Handle glass panels with extreme care. Tempered glass, while strong, can shatter if struck at the edges or corners.
- Ensure the installation surface is level and structurally sound.
- Professional installation is highly recommended to ensure proper fit and safety.
- Do not use abrasive cleaners or tools on glass or metal finishes.
Figure 1: Safety features of the tempered glass with explosion-proof film.
2. Product Overview
The ComfyStyle Semi-Frameless Sliding Shower Door is designed for modern bathrooms, offering both functionality and aesthetic appeal. It features a durable aluminum alloy frame and 1/4-inch (6mm) clear SGCC tempered glass with an explosion-proof film for enhanced safety. The door's design allows for flexible installation, accommodating shower stalls from 56 to 60 inches in width and 70 inches in height.
- Contemporary Design: Top guide bar can be trimmed up to 4 inches for width customization (56-60 inches).
- Reversible Installation: Can be installed to slide left or right.
- Safety and Security: 1/4-inch (6mm) thick SGCC-certified tempered glass with explosion-proof film.
- Splash Prevention: Effective bottom and side seal strips keep the bathroom floor dry.
- Easy Maintenance: Features water repellent technology for easy cleaning.
Figure 2: ComfyStyle Semi-Frameless Sliding Shower Door.
3. Components List
Before beginning installation, ensure all parts are present and undamaged. Refer to the packaging for a complete list of hardware.
- Tempered Glass Panels (x2)
- Top Guide Bar (Aluminum Alloy)
- Bottom Guide Assembly
- Long Handle (x1)
- Short Handle (x1)
- Side Seal Strips
- Bottom Seal Strip
- Mounting Hardware (screws, anchors, etc.)
Figure 3: Double Handles (Long and Short).
Figure 4: Aluminum Alloy Top Rail.
Figure 5: Bottom Guide Assembly.
Figure 6: Magnet Seal Strips.
4. Installation Instructions
This shower door is designed for straightforward installation, but professional assistance is recommended for optimal results. All necessary mounting hardware and detailed instructions are included with your purchase.
- Prepare the Opening: Ensure your shower stall opening is between 56 and 60 inches wide and 70 inches high. The product offers up to 3/8 inches of adjustability for uneven walls.
- Trim the Top Guide Bar: The top guide bar can be trimmed up to 4 inches to precisely fit your shower opening width. Measure carefully before cutting.
- Install Top and Bottom Rails: Securely attach the aluminum alloy top guide bar and the bottom guide assembly to the shower enclosure according to the detailed diagrams in the included manual.
- Mount Glass Panels: Carefully place the tempered glass panels into the installed guide rails. The door features a double sliding reversible design, allowing you to choose whether the door slides to the left or right.
- Attach Handles: Install the long and short handles onto the glass panels.
- Apply Seal Strips: Install the side and bottom magnet seal strips to ensure a watertight enclosure and prevent splashes.
- Final Adjustments: Make any necessary adjustments to ensure smooth sliding operation and a secure fit.

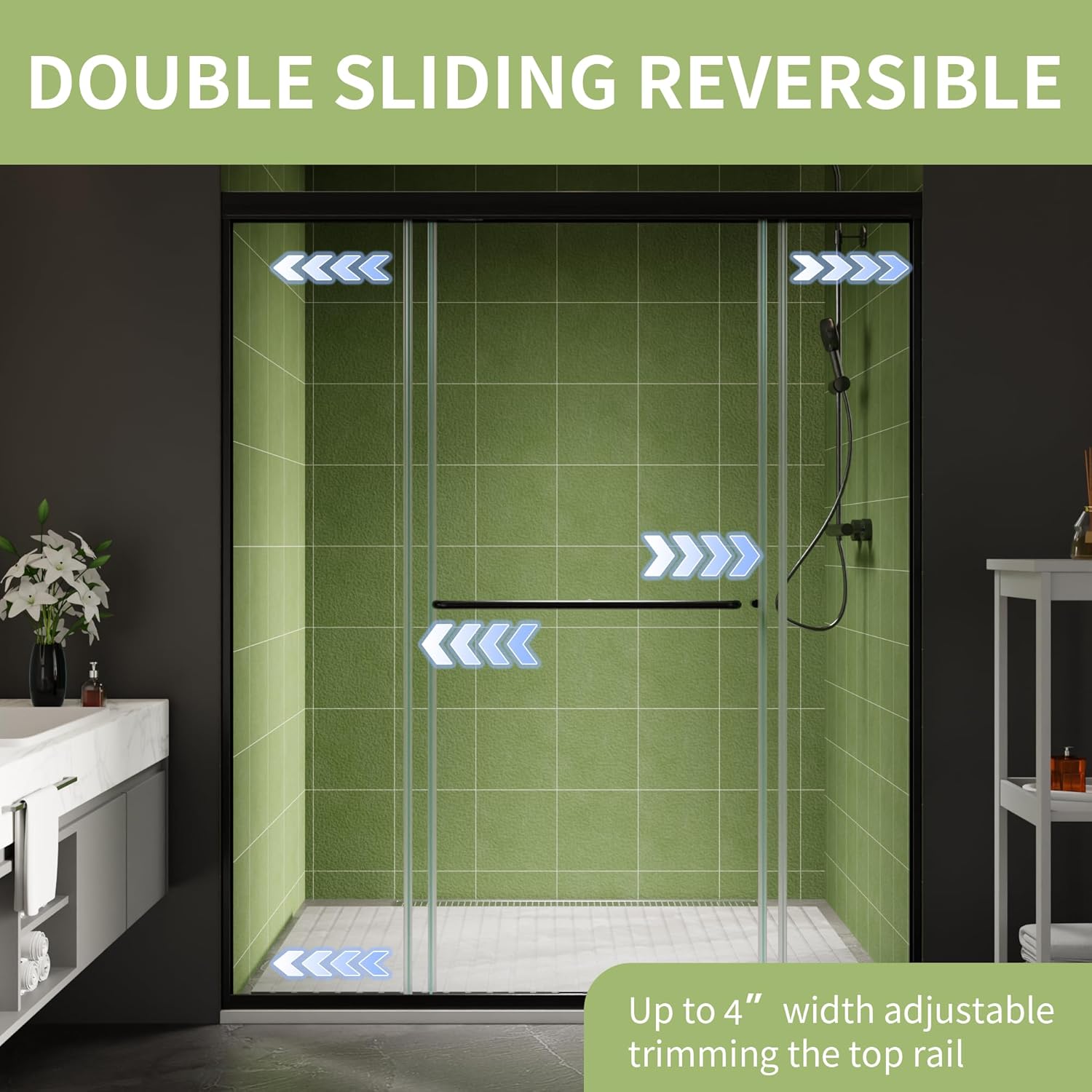

Figure 7: Double Sliding Reversible and Adjustable Width.

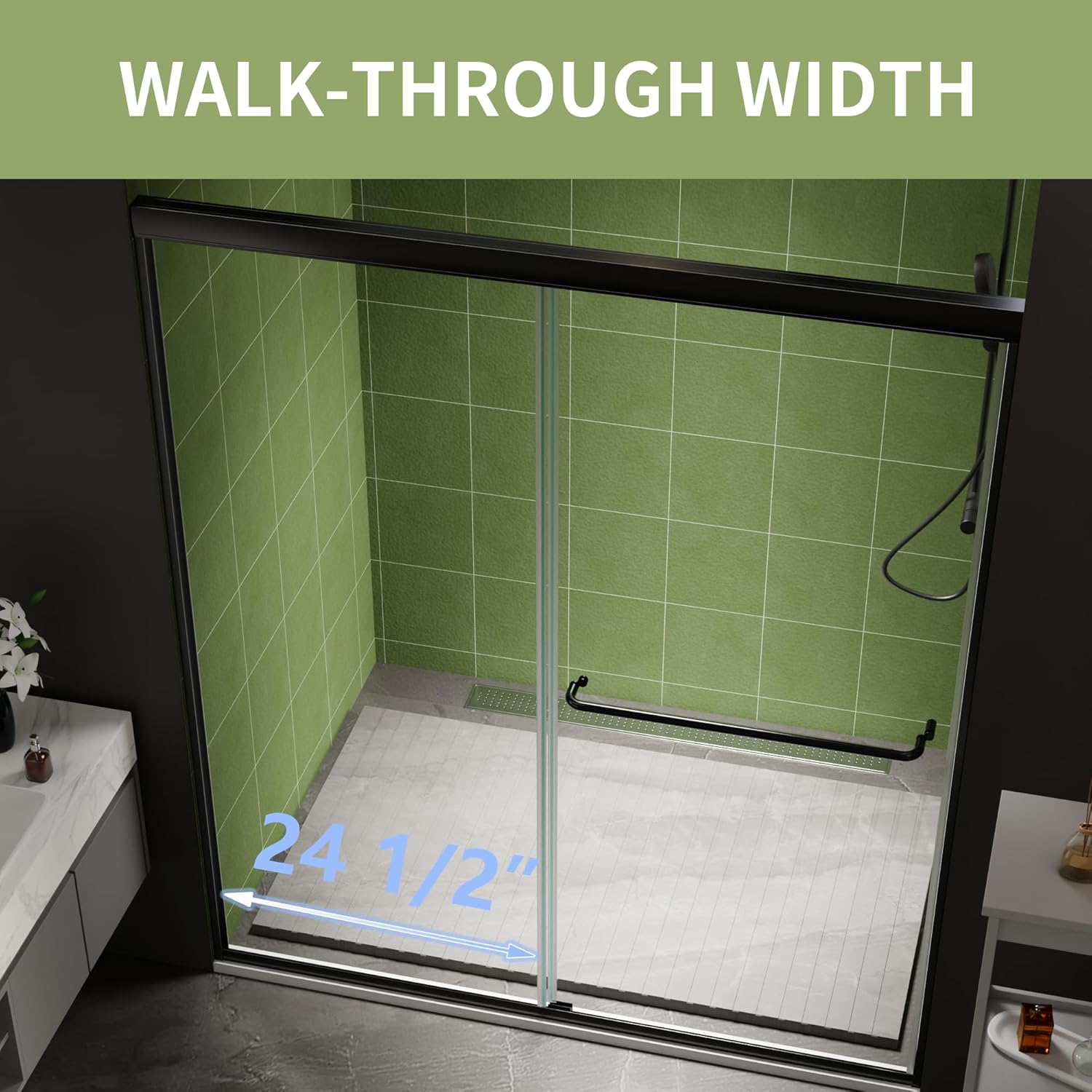

Figure 8: Walk-Through Width.
Installation Video Guide
Video 1: Official ComfyStyle Sliding Shower Door Installation Guide. This video demonstrates the installation process, highlighting key features like the aluminum alloy top rail, handles, bottom guide assembly, and explosion-proof film.
5. Operating Instructions
The ComfyStyle sliding shower door is designed for smooth and effortless operation.
- Opening/Closing: Gently grasp the handle and slide the door along the top and bottom tracks. Avoid forcing the door.
- Reversible Design: The door can be opened from either the left or right side, depending on your installation preference.
- Secure Closure: Ensure the magnet seal strips engage fully when the door is closed to prevent water leakage.
6. Maintenance and Care
Proper maintenance will ensure the longevity and appearance of your shower door.
- Regular Cleaning: Clean glass panels regularly with a soft cloth and a non-abrasive glass cleaner. The glass features a nano-clean coating for easier cleaning.
- Frame Care: Wipe down the Matt Black frame with a soft, damp cloth. Avoid harsh chemicals that can damage the finish.
- Seal Strips: Periodically check the seal strips for wear and tear. Clean any soap scum or mildew to maintain their effectiveness.
- Track Maintenance: Keep the top and bottom tracks free of debris to ensure smooth sliding.
Figure 9: Water Repellent Technology for easy cleaning.
7. Troubleshooting
If you encounter any issues, please refer to the following common solutions:
- Door not sliding smoothly: Check tracks for debris and clean thoroughly. Ensure rollers are properly aligned.
- Water leakage: Verify that seal strips are correctly installed and free from damage. Ensure the door closes completely and the magnet seals engage.
- Glass appears cloudy: Use a specialized glass cleaner for shower doors to remove hard water spots and soap scum.
For persistent issues or concerns not addressed here, please contact ComfyStyle customer support.
8. Specifications
| Feature | Detail |
|---|---|
| Brand | ComfyStyle |
| Model | 56-60 in.W x 70 in.H Semi-Frameless Sliding Shower Door |
| Color | Silding Matt Black |
| Material | Glass, Aluminum Alloy |
| Glass Thickness | 1/4 inch (6mm) SGCC Tempered Glass |
| Adjustable Width | 56-60 inches (Top guide bar trimmable up to 4 inches) |
| Height | 70 inches |
| Item Weight | 99.4 Pounds |
| Style | Modern |
| Required Assembly | Yes |
| UPC | 799787249671 |
Figure 10: Model Dimensions and Configuration.
9. Warranty and Support
ComfyStyle is committed to providing high-quality products. This product comes with a 30-day easy return policy. For any questions, concerns, or assistance with installation or troubleshooting, please contact ComfyStyle Customer Support.
Contact information for customer support can typically be found on the product packaging or the retailer's website where the product was purchased.
