BPL BMGJ20775 750 Watts Mixer Grinder

Important Safety Instructions

Please read all instructions carefully before using the appliance. Retain this manual for future reference.

• Always ensure the mixer grinder is placed on a stable, flat, and dry surface.
• Do not immerse the motor unit in water or any other liquid. Clean with a damp cloth only.
• Ensure the jar is properly locked onto the motor unit before operating.
• Never touch moving parts, such as blades, when the appliance is in operation. Always wait for the blades to stop completely before opening the lid or removing the jar.
• Unplug the appliance from the power outlet when not in use, before assembling or disassembling parts, and before cleaning.
• Do not operate the appliance with a damaged cord or plug, or after the appliance malfunctions or has been dropped or damaged in any manner.
• Keep hands and utensils out of the jar while blending to reduce the risk of severe injury to persons or damage to the mixer grinder.
• Do not overload the mixer grinder. Refer to the maximum capacity markings on the jars.
• This appliance is for household use only. Do not use outdoors.
• Keep out of reach of children. Close supervision is necessary when any appliance is used by or near children.

Product Overview

The BPL BMGJ20775 Mixer Grinder is designed for efficient and versatile kitchen tasks, featuring a powerful 750W copper motor and durable stainless steel blades.

Components

• Motor Unit with Knob Control
• Juicer Jar with Fruit Filter
• Two Stainless Steel Grinding Jars (various sizes)
• Lids for all jars
• Blades (pre-fitted in jars)

Key Features

• 750 Watts 100% Copper Motor for powerful performance.
• Triple Lock Jar Mechanism for secure operation.
• SS 304 Food Graded Blades for durability and hygiene.
• Active Air Flow Technology for efficient cooling.
• Smart Safety Sense for enhanced user protection.
• Mix Xpert Juicer Jar with integrated Fruit Filter.

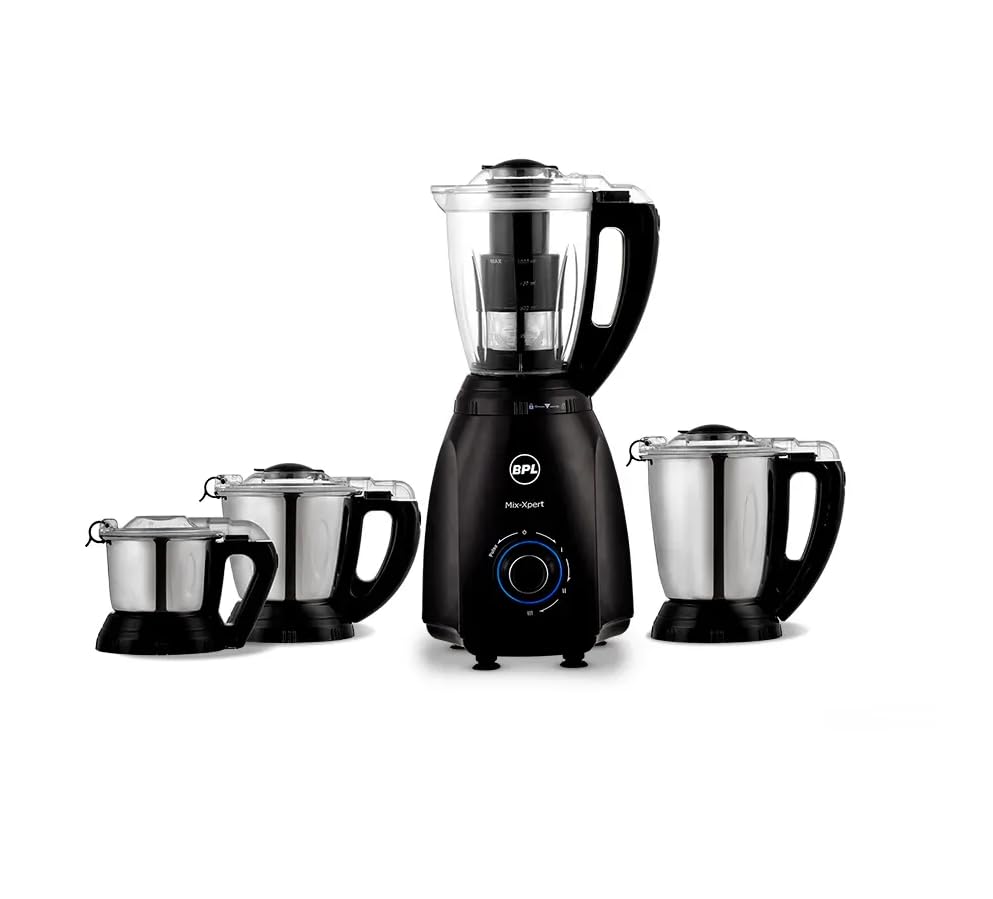

Image: The BPL BMGJ20775 Mixer Grinder, showcasing the main motor unit and the three accompanying jars (juicer, medium, and small grinding jars).

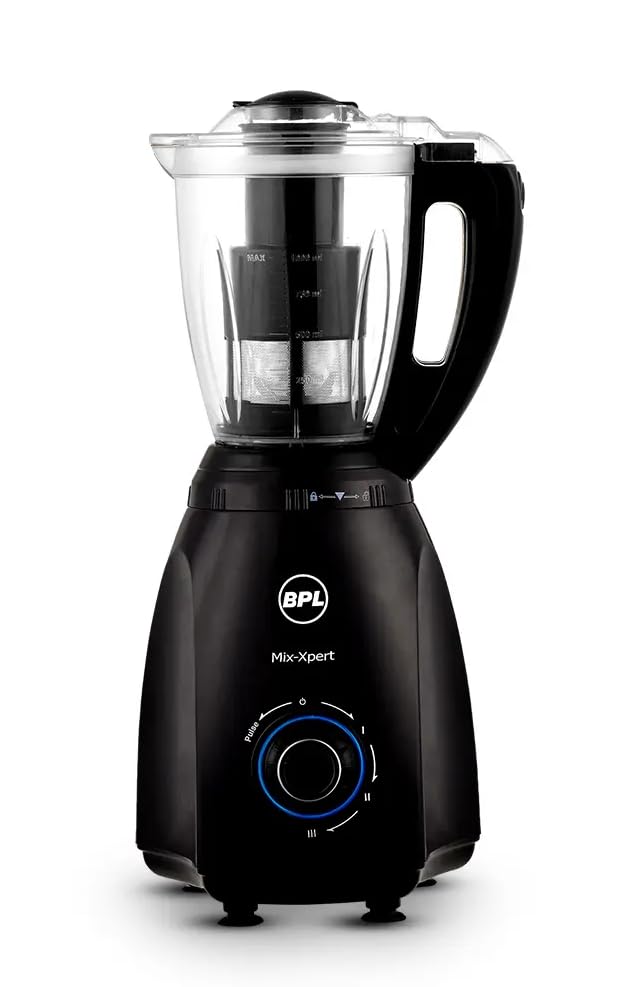

Image: A closer view of the BPL BMGJ20775 Mixer Grinder's motor unit with the transparent juicer jar attached, highlighting the control knob and brand logo.

Setup

1. Unpacking: Carefully remove all components from the packaging. Check for any damage. Retain packaging for future storage or transport.
2. Initial Cleaning: Before first use, wash all removable parts (jars and lids) with warm soapy water. Rinse thoroughly and dry. Wipe the motor unit with a damp cloth. Do not immerse the motor unit in water.
3. Placement: Place the motor unit on a clean, dry, stable, and flat surface, away from the edge of the countertop. Ensure there is adequate ventilation around the unit.
4. Power Connection: Ensure the power switch is in the 'OFF' position (or the knob is at '0') before plugging the appliance into a standard electrical outlet.

Operating Instructions

General Operation

1. Prepare Ingredients: Cut ingredients into small pieces suitable for the jar size. For wet grinding, add sufficient liquid.
2. Load Jar: Place the prepared ingredients into the appropriate jar. Do not fill beyond the maximum fill line indicated on the jar.
3. Secure Lid: Place the lid firmly on the jar. Ensure the lid is properly sealed.
4. Attach Jar to Motor Unit: Place the jar onto the motor unit. Rotate the jar clockwise until it locks securely into place using the Triple Lock Jar Mechanism. You should hear a click or feel it firmly seated.
5. Select Speed: Plug in the mixer grinder. Turn the knob to the desired speed setting (1, 2, or 3). For short bursts, use the 'Pulse' setting by rotating the knob to 'P' and holding it, then releasing.
6. Monitor: Do not operate continuously for more than 3-5 minutes. Allow a cooling period of 2-3 minutes between cycles to prevent overheating.
7. Finish: Once grinding/blending is complete, turn the knob to '0' and unplug the appliance. Wait for the blades to stop completely before removing the lid and jar.

Specific Usage Tips

• Wet Grinding (e.g., batters, chutneys): Use the larger jars. Add water or other liquids as needed to achieve desired consistency.
• Dry Grinding (e.g., spices, coffee beans): Use the smaller grinding jars. Ensure ingredients are completely dry for best results.
• Juicing (using Juicer Jar): Place fruits/vegetables into the juicer jar. The integrated fruit filter will separate pulp from juice.

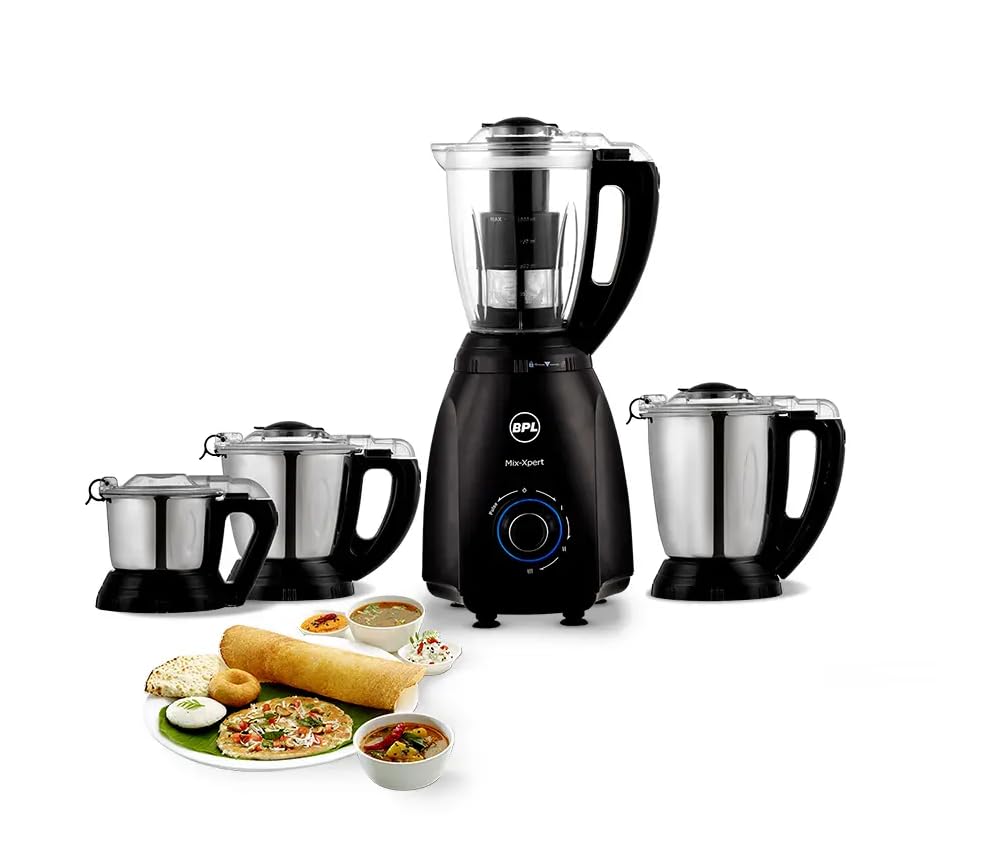

Image: The BPL BMGJ20775 Mixer Grinder displayed with various food items, illustrating its versatility in preparing different dishes.

Maintenance and Cleaning

Regular cleaning ensures the longevity and hygienic operation of your mixer grinder.

1. Unplug: Always unplug the appliance from the power outlet before cleaning.
2. Clean Jars and Lids: Immediately after use, rinse the jars and lids to prevent food from drying on. Wash them with warm soapy water using a soft brush or sponge. Rinse thoroughly and dry completely before storing. Be extremely careful when handling blades.
3. Clean Motor Unit: Wipe the motor unit with a soft, damp cloth. Do not use abrasive cleaners or immerse the motor unit in water. Ensure no liquid enters the motor housing.
4. Storage: Store the mixer grinder and its accessories in a clean, dry place, away from direct sunlight and heat. Ensure all parts are dry before storing to prevent mold or odor.

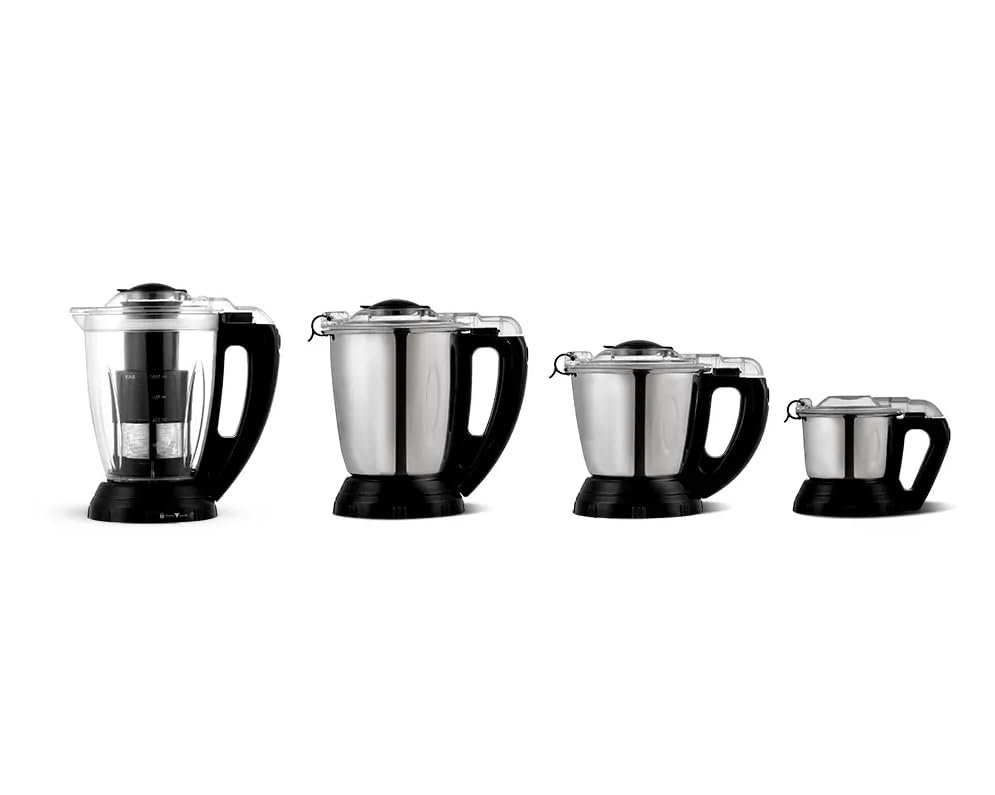

Image: The three different jars provided with the BPL BMGJ20775 Mixer Grinder, showcasing their varying sizes and stainless steel construction.

Troubleshooting

Specifications

Warranty and Support

For warranty information, service, or support, please refer to the warranty card included with your product or contact BPL customer service. Keep your purchase receipt as proof of purchase.

For further assistance, you may visit the official BPL website or contact their customer support helpline.
