AKORD Armoire S60 Wardrobe with 60 cm Extension

1. Introduction

This manual provides comprehensive instructions for the assembly, operation, and maintenance of your AKORD Armoire S60 wardrobe. Designed for functional storage, this wardrobe features a spacious interior with shelves, a hanging rail, and two drawers, making it suitable for various items including clothing and home textiles. Its timeless design complements both modern and classic interior styles.

The AKORD Armoire S60 is constructed from high-quality Kronospan furniture board, known for its resistance to abrasion and scratches. ABS edges provide enhanced protection against moisture and mechanical damage. Robust GTV brand drawer slides support loads up to 15 kg, and sturdy hinges ensure reliable door operation. This product is designed for durability and ease of maintenance.

2. Safety Warnings

WARNING:

• The wardrobe may tip over if not securely fastened to the wall. Always use the provided wall-mounting hardware to anchor the unit to a solid wall surface.
• Exercise caution when handling heavy components during assembly to prevent injury. It is recommended to assemble with at least two people.
• Keep small parts and packaging materials away from children to avoid choking hazards.

3. Package Contents

Before beginning assembly, verify that all components listed below are present and undamaged. If any parts are missing or damaged, please contact customer support.

• Wardrobe panels (sides, top, bottom, back)
• 2 Doors
• 2 Drawers (fronts, sides, backs, bottoms)
• Shelves
• Hanging rail
• GTV drawer slides
• Hinges
• Handles
• Assembly hardware (screws, dowels, connectors, wall-mounting kit)
• Instruction manual (this document)

4. Setup and Assembly

The AKORD Armoire S60 is designed for straightforward assembly. However, some users have noted that precise alignment is crucial, especially for drawer slides. We recommend carefully following the included step-by-step assembly instructions provided in the separate booklet.

1. Preparation: Clear a spacious area for assembly. Lay out all components and hardware. Ensure you have the necessary tools (e.g., screwdriver, hammer, level).
2. Base Assembly: Assemble the base frame of the wardrobe according to the diagrams.
3. Side Panels: Attach the side panels to the base.
4. Internal Structure: Install the internal shelves and hanging rail supports.
5. Back Panel: Secure the back panel to the main structure.
6. Drawer Assembly: Assemble the two drawers, ensuring the GTV slides are correctly installed for smooth operation.
7. Door Installation: Attach the doors using the provided hinges. Adjust hinges for proper alignment.
8. Wall Mounting: Crucially, secure the assembled wardrobe to a solid wall using the anti-tip kit. This prevents accidental tipping and ensures stability.
9. Final Checks: Verify all screws are tightened and the wardrobe is stable and level.

Figure 1: Technical drawing illustrating the dimensions of the AKORD S60 wardrobe, including the main unit and the 60 cm extension. Key measurements such as height, width, and depth are indicated in millimeters, providing a detailed overview for assembly and placement.

Figure 2: A full front view of the AKORD S60 wardrobe, showcasing its Sonoma Oak and White finish. This image displays the two doors and two drawers, highlighting the overall aesthetic and design of the assembled unit.

5. Operating Instructions

The AKORD Armoire S60 is designed for intuitive use and efficient storage.

• Doors: Gently open and close the two hinged doors. Avoid forcing them to prevent damage to hinges or panels.
• Drawers: Utilize the two smooth-gliding drawers for smaller items or folded clothing. The GTV slides are designed for durability and can support up to 15 kg per drawer.
• Hanging Rail: Use the integrated hanging rail for garments that require hanging, such as shirts, jackets, or dresses.
• Shelves: Arrange items on the internal shelves. The spacious interior allows for organized storage of various textiles and personal belongings.

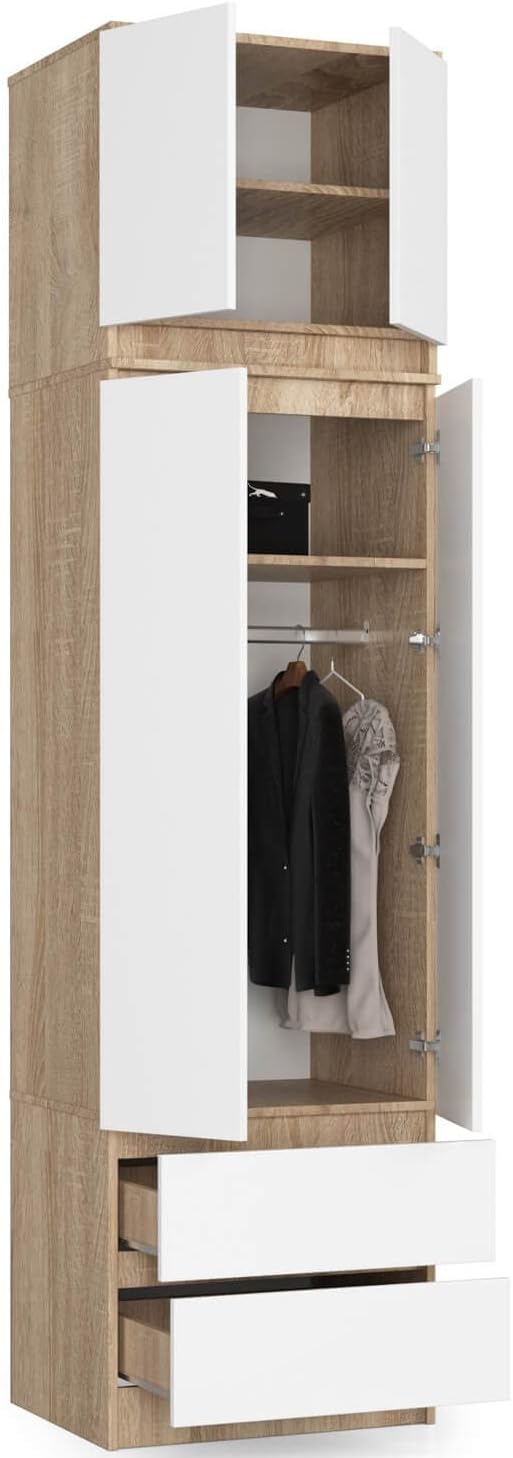

Figure 3: An interior view of the AKORD S60 wardrobe with its doors and drawers open. This image clearly shows the internal configuration, including the upper shelves, the central hanging rail, and the two lower drawers, demonstrating its versatile storage capabilities.

6. Maintenance

To ensure the longevity and appearance of your AKORD Armoire S60, follow these simple maintenance guidelines:

• Cleaning: Wipe surfaces with a soft, damp cloth. Avoid abrasive cleaners or harsh chemicals, as these can damage the finish.
• Spills: Clean up spills immediately to prevent staining or moisture damage, especially on the ABS edges.
• Hardware: Periodically check all screws and fittings to ensure they remain tight. Retighten if necessary.
• Drawer Slides: If drawer operation becomes stiff, a small amount of silicone-based lubricant can be applied to the slides.
• Sunlight Exposure: Avoid prolonged direct exposure to strong sunlight, which can cause fading or discoloration over time.

7. Troubleshooting

This section addresses common issues you might encounter with your AKORD Armoire S60.

• Wardrobe feels unstable:
  Ensure the wardrobe is placed on a level surface. Verify that all assembly screws are tightened. Most importantly, confirm that the wardrobe is securely anchored to the wall using the provided anti-tip hardware.
• Doors do not align or close properly:
  Check that the wardrobe is level. Adjust the hinges on the doors. Most hinges allow for minor adjustments using a screwdriver to align the doors vertically, horizontally, and in depth.
• Drawers are stiff or do not slide smoothly:
  Ensure the drawer slides are correctly installed and aligned. Check for any obstructions in the slides. A small amount of silicone lubricant can improve smoothness. Verify that the drawer contents do not exceed the 15 kg weight limit.
• Damage during transport:
  If components arrived damaged, please contact the retailer or manufacturer's customer service immediately with details and photographic evidence of the damage.
• Difficulty with assembly:
  Refer to the detailed assembly instructions booklet. If specific steps are unclear, consider seeking assistance from a second person or contacting customer support for clarification.

8. Specifications

9. Warranty and Support

The AKORD Armoire S60 is covered by a 24-month warranty from the date of purchase, covering manufacturing defects. This warranty does not cover damage resulting from improper assembly, misuse, neglect, or normal wear and tear.

For warranty claims, missing parts, or technical assistance, please contact your retailer or AKORD customer support. Please have your proof of purchase and model number (SZCLPS60NADBIASZA) ready when contacting support.
