Introduction
Thank you for purchasing the AKORD K120 10-Drawer Chest. This manual provides essential information for the safe assembly, proper use, and maintenance of your new furniture. Please read these instructions carefully before beginning assembly and retain them for future reference.

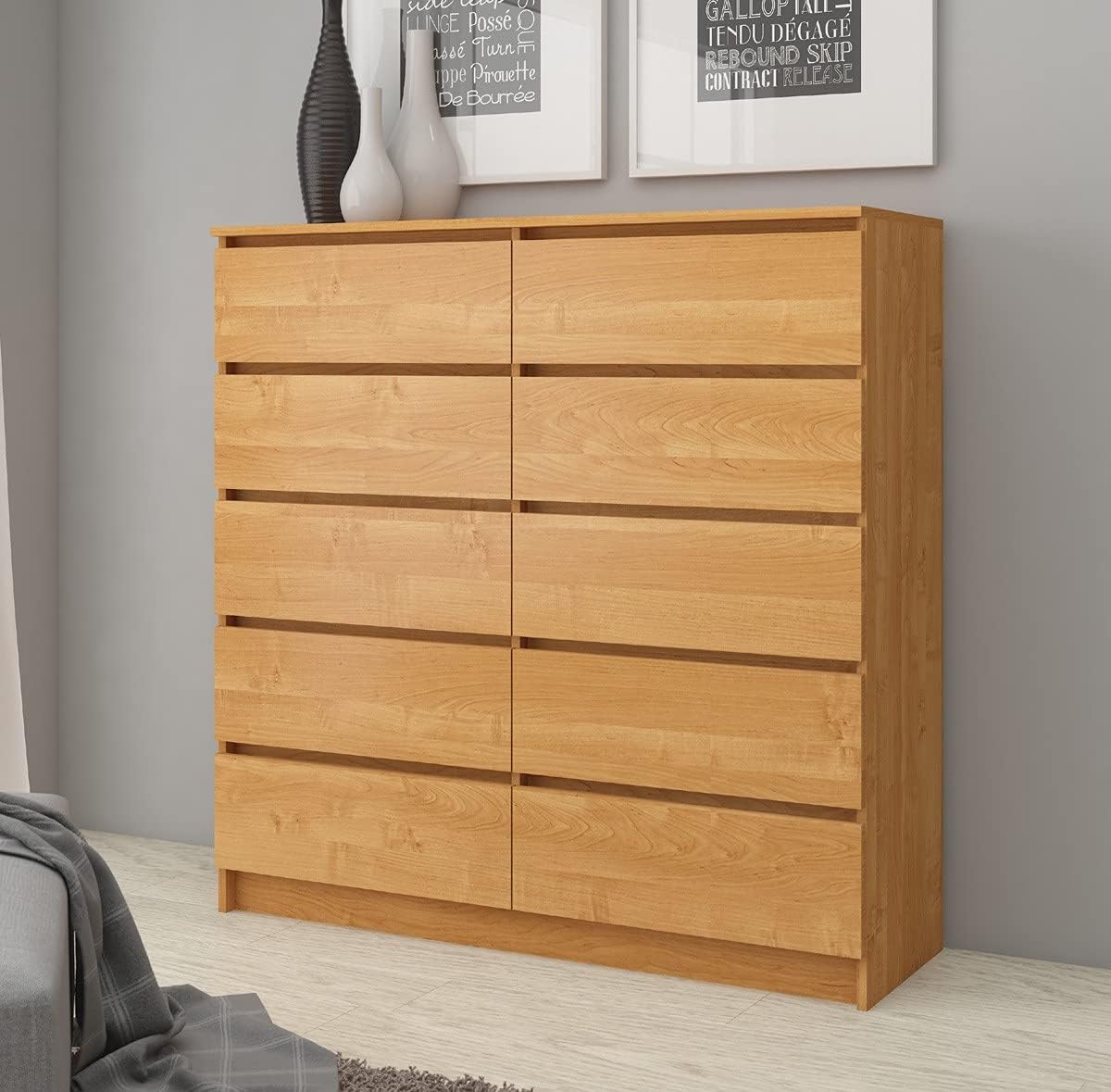

Image: The AKORD K120 10-Drawer Chest with an alder finish, featuring ten spacious drawers and a minimalist design.
Safety Information
For your safety and to prevent damage to the product, please observe the following guidelines:
- Always assemble the chest on a soft, clean surface to prevent scratches.
- Ensure all hardware is securely tightened before use. Periodically check and re-tighten as necessary.
- Do not overload drawers. Distribute weight evenly.
- For stability, it is highly recommended to anchor the chest to a wall using the provided anti-tip hardware. This prevents accidental tipping, especially in households with children.
- Keep small parts and packaging materials away from children.
- Refer to the official safety information document for additional details: Safety Information (PDF).
Package Contents
Before beginning assembly, verify that all components are present and undamaged. If any parts are missing or damaged, please contact customer support.
- Side Panels (2)
- Top Panel (1)
- Bottom Panel (1)
- Back Panel (1 or more sections)
- Drawer Fronts (10)
- Drawer Sides, Backs, and Bottoms (for 10 drawers)
- Drawer Runners/Slides (20 pairs)
- Assembly Hardware (screws, dowels, cam locks, anti-tip kit)
Assembly Instructions
Assembly typically requires two adults. Please follow the steps below carefully. Tools required: Phillips head screwdriver, hammer (optional), measuring tape.
- Prepare the Workspace: Clear a spacious area and lay down a blanket or cardboard to protect the furniture panels from scratches during assembly.
- Assemble the Main Frame: Attach the side panels to the bottom and top panels using the provided dowels and cam locks. Ensure the grooves for the back panel are facing the correct direction.
- Insert the Back Panel: Slide the back panel into the grooves. Secure it with small nails or screws as indicated in the detailed diagram.
- Install Drawer Runners: Attach the drawer runners to the inside of the chest's side panels. Pay attention to the orientation (left and right) and ensure they are level.
- Assemble Drawers: For each of the ten drawers, connect the side panels to the front and back panels. Slide the drawer bottom into the grooves. Attach the remaining part of the drawer runners to the sides of each drawer.
- Insert Drawers: Carefully slide each assembled drawer into its corresponding runners in the chest. Ensure they glide smoothly.
- Attach Anti-Tip Hardware: Secure the chest to the wall using the provided anti-tip kit. This is a critical safety step to prevent the unit from tipping over.
Image: A close-up view showing the metal drawer runners securely installed on the interior side panel of the chest.

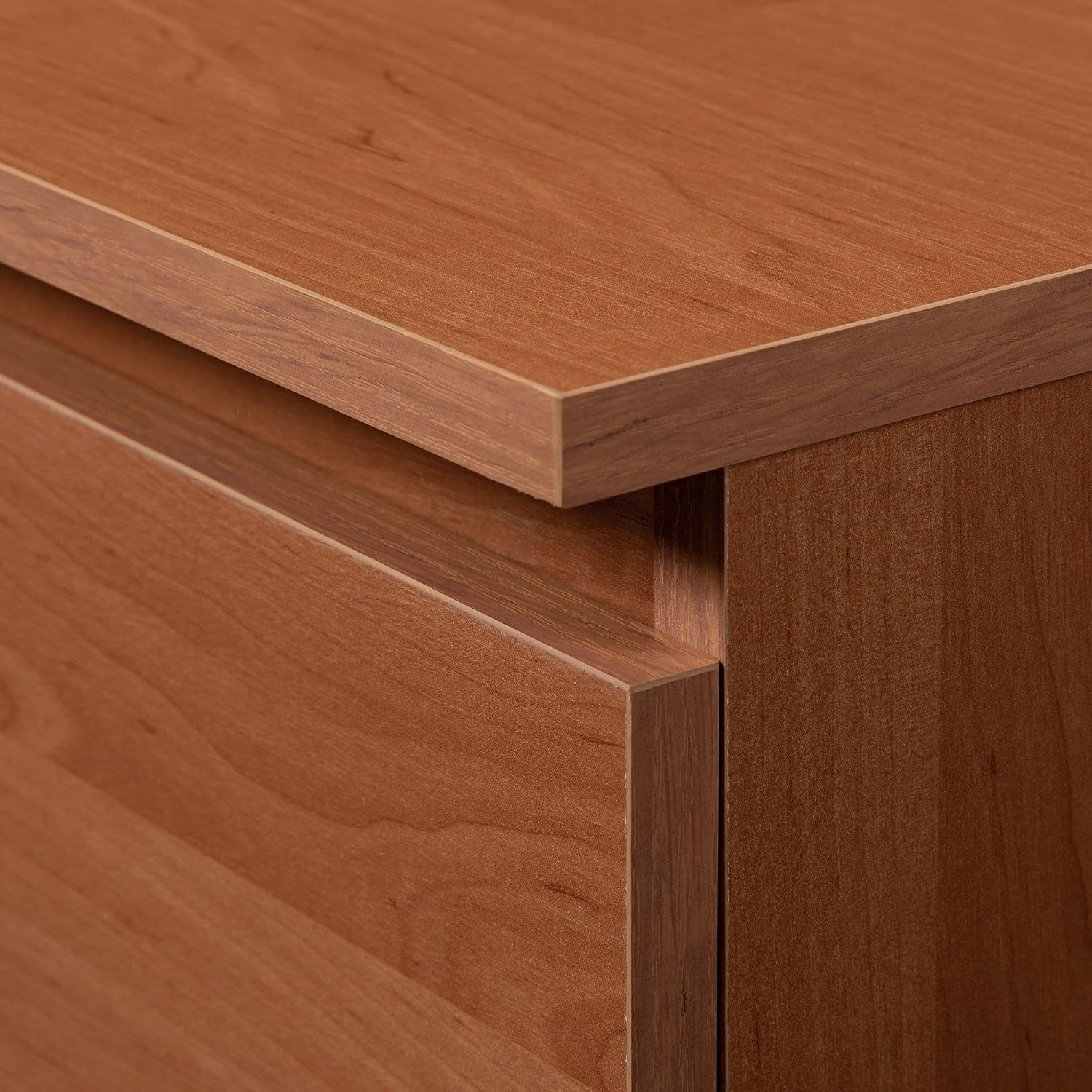

Image: A detailed view of the handle-less design of the drawer front, showing the clean, integrated look.
Image: The AKORD K120 chest with multiple drawers partially open, demonstrating the smooth operation and storage capacity.
Operating Instructions
The AKORD K120 chest is designed for easy and efficient storage. To operate the drawers, simply pull them open and push them closed. The smooth metal runners ensure effortless movement.
- Avoid forcing drawers if they feel stuck. Check for obstructions.
- Do not stand or climb on the chest.
- Keep heavy items in lower drawers to maintain stability.
Maintenance
To ensure the longevity and appearance of your AKORD K120 chest, follow these maintenance tips:
- Cleaning: The laminated surface is resistant to water, stains, and scratches. Clean regularly with a dry or damp soft cloth. Avoid abrasive cleaners or harsh chemicals.
- Spills: Wipe up spills immediately to prevent moisture damage.
- Sunlight: Avoid prolonged exposure to direct sunlight to prevent fading.
- Hardware: Periodically check all screws and fittings and tighten them if necessary to maintain structural integrity.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Drawers do not slide smoothly. | Misaligned runners, obstructions, loose screws. | Check runner alignment, remove obstructions, tighten screws on runners and drawers. |
| Chest feels unstable or wobbly. | Loose assembly hardware, uneven floor, not wall-anchored. | Tighten all assembly screws. Ensure the chest is on a level surface. Install or check wall anchoring. |
| Gap between drawer front and frame. | Drawer not fully inserted, misaligned runners, incorrect assembly. | Push drawer firmly. Recheck runner installation. Review assembly steps for drawer placement. |
Specifications
Detailed specifications for the AKORD K120 10-Drawer Chest:
Image: Technical drawing illustrating the overall dimensions of the AKORD K120 chest (1204mm width, 400mm depth, 1213mm height) and individual drawer dimensions (596mm width, 360mm depth, 100mm height).
| Feature | Detail |
|---|---|
| Model Number | OP0LK-1OLC009 |
| Dimensions (Overall) | 120 cm (Width) x 40 cm (Depth) x 121 cm (Height) |
| Weight | 73 kg |
| Material | Laminated Board |
| Number of Drawers | 10 |
| Color/Finish | Alder (Olcha) |
Warranty and Support
AKORD products are manufactured to high-quality standards. For any questions regarding assembly, missing parts, or product defects, please contact your retailer or AKORD customer service directly. Please have your model number (K120 / OP0LK-1OLC009) and purchase information ready when contacting support.
