1. Introduction

This manual provides comprehensive instructions for the proper assembly, operation, and maintenance of your BORWOLF HD 400/70mm Refractor Astronomy Telescope. Please read this manual thoroughly before use to ensure optimal performance and longevity of your instrument.

The BORWOLF 400/70mm telescope features a 400mm focal length and 70mm aperture with fully coated optics, designed to provide clear and stunning images. It includes a 5x Barlow lens, a 5x24 finder scope, and an adjustable aluminum alloy tripod, making it suitable for both astronomical observations and terrestrial viewing.

2. Product Components and Structure

Familiarize yourself with the various components of your telescope before assembly.

Figure 2.1: Main components of the BORWOLF HD 400/70mm Refractor Telescope.

Figure 2.2: All included accessories and parts.

The package includes:

• Main Telescope Tube (Objective lens, Focuser)
• Adjustable Aluminum Alloy Tripod
• Finderscope (5x24)
• Eyepieces (H20mm, H12mm, H6mm)
• 45° Erecting BAK4 Prism (Zenith Mirror)
• 5X Barlow Lens (Multiplier Mirror)
• Moon Filter
• Phone Clip
• Lens Cover

3. Setup Instructions

Follow these steps to assemble your telescope:

1. Set up the Tripod: Extend the legs of the aluminum alloy tripod to a stable position. Adjust the height as needed using the tripod height lock.
2. Attach the Main Telescope Tube: Securely mount the main telescope tube onto the tripod head. Ensure it is firmly attached using the provided screws or clamps.
3. Install the Diagonal Mirror: Insert the 45° Erecting BAK4 Prism (diagonal mirror) into the focuser of the main telescope tube. Tighten the small screw on the focuser to hold it in place.
4. Insert an Eyepiece: Choose an eyepiece (e.g., H20mm for lower magnification and wider field of view) and insert it into the diagonal mirror. Tighten the small screw on the diagonal mirror to secure the eyepiece.
5. Attach the Finderscope: Mount the 5x24 finderscope onto the main telescope tube using its bracket. Align the finderscope with the main telescope during daylight hours by pointing the main telescope at a distant, easily identifiable object and then adjusting the finderscope until the object is centered in its crosshairs.
6. Optional: Attach Barlow Lens: For increased magnification, insert the 5X Barlow lens into the diagonal mirror first, then insert an eyepiece into the Barlow lens.
7. Optional: Attach Phone Clip: If you wish to use your smartphone for photography, attach the phone clip to an eyepiece.

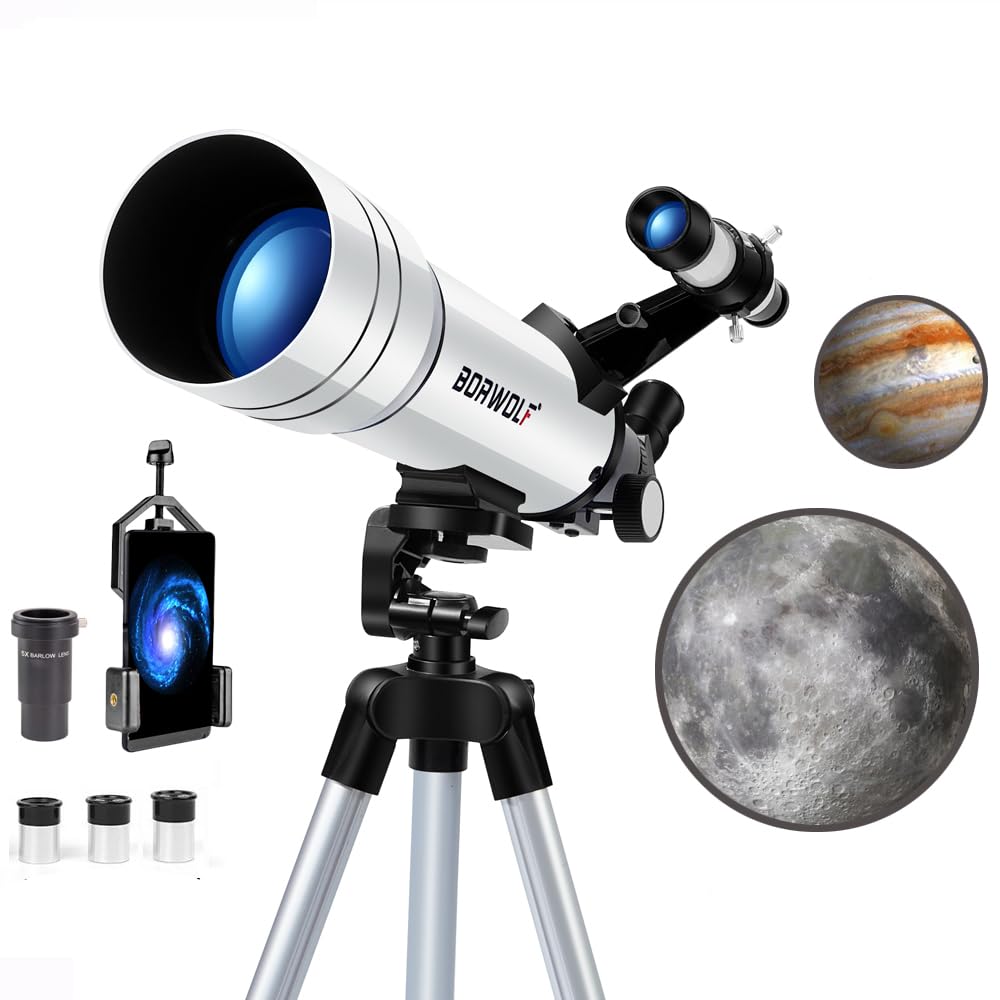

Figure 3.2: Telescope fully assembled with phone clip, ready for observation.

4. Operating Instructions

4.1. Magnification

The telescope comes with multiple eyepieces and a Barlow lens to achieve various magnifications. To calculate magnification, divide the telescope's focal length (400mm) by the eyepiece's focal length. The 5X Barlow lens multiplies the magnification of any eyepiece by five.

Figure 4.1: Magnification options and their effects on viewing.

• H20mm Eyepiece: Provides 20X magnification (400mm / 20mm = 20X). Ideal for wide-field views of the moon, star clusters, and terrestrial objects.
• H12mm Eyepiece: Provides 33.3X magnification (400mm / 12mm = 33.3X). Suitable for more detailed views of the moon and brighter planets.
• H6mm Eyepiece: Provides 66.6X magnification (400mm / 6mm = 66.6X). Offers higher detail for lunar craters and planetary features.
• 5X Barlow Lens: When used with the H6mm eyepiece, it provides 333X magnification (66.6X * 5 = 333X). Use for very detailed observations under stable atmospheric conditions.

4.2. Focusing

Once an object is located, slowly turn the focus knob on the focuser until the image appears sharp and clear. Fine adjustments may be needed as objects move or atmospheric conditions change.

4.3. Terrestrial and Astronomical Viewing

The 45° Erecting BAK4 Prism ensures that images are viewed upright, making the telescope suitable for both astronomical and terrestrial observations, such as bird watching or viewing distant landscapes.

Figure 4.2: Telescope configured for bird watching with a phone clip.

4.4. Using the Moon Filter

For observing the moon, attach the moon filter to the eyepiece. This filter reduces the brightness of the moon, allowing for more comfortable viewing and revealing finer surface details.

Figure 4.3: Observing planets with the BORWOLF telescope.

5. Maintenance

Proper care will extend the life and performance of your telescope:

• Cleaning Lenses: Use a soft, lint-free cloth specifically designed for optical lenses. Gently wipe the objective lens and eyepieces. Avoid touching optical surfaces with bare hands.
• Storage: Store the telescope in a dry, dust-free environment. Use the lens covers when not in use to protect the optics from dust and scratches.
• Handling: Always handle the telescope with care. Avoid sudden impacts or dropping the instrument.

6. Troubleshooting

If you encounter issues with your telescope, refer to the following common problems and solutions:

• Blurry Image: Adjust the focus knob slowly until the image is sharp. Ensure the correct eyepiece is securely inserted. Check for condensation or dirt on the lenses.
• Difficulty Locating Objects: Ensure the finderscope is properly aligned with the main telescope. Start with the lowest magnification eyepiece (H20mm) for a wider field of view to locate objects, then switch to higher magnification.
• No Image Visible: Remove all lens caps (objective lens and eyepiece). Ensure the diagonal mirror and eyepiece are correctly inserted and secured.
• Unstable View: Ensure the tripod legs are fully extended and stable on a flat surface. Tighten all locking mechanisms on the tripod and telescope mount.

7. Specifications

8. Warranty and Support

Your BORWOLF HD 400/70mm Refractor Astronomy Telescope comes with a TWO-YEAR warranty. This warranty covers manufacturing defects and ensures the quality of your product.

For any questions, technical support, or warranty claims, please contact BORWOLF customer service through the retailer where you purchased the product or visit the official BORWOLF website for contact information.
