Hoteche 8-1/4-Inch Sliding Compound Miter Saw (Model P805217A) User Manual

Introduction

This manual provides essential information for the safe and effective operation, maintenance, and troubleshooting of your Hoteche 8-1/4-Inch Sliding Compound Miter Saw. Please read all instructions carefully before use to ensure proper handling and to prevent injury or damage.

Important Safety Instructions

Always follow basic safety precautions to reduce the risk of fire, electric shock, and personal injury when operating power tools.

• Wear Eye Protection: Always wear safety goggles or safety glasses with side shields that comply with current national standards.
• Wear Hearing Protection: Use earplugs or earmuffs during operation to prevent hearing damage.
• Keep Hands Clear: Never place hands near the cutting area or blade. Always use the provided guards.
• Secure Workpiece: Always clamp or otherwise firmly secure the workpiece to the miter saw table before cutting.
• Unplug Before Adjustments: Disconnect the saw from the power source before making any adjustments, changing accessories, or performing maintenance.
• Use Correct Blade: Only use blades designed for the material being cut and that match the saw's specifications (8-1/4 inch, 24T for wood/metal).
• Maintain Good Footing: Ensure a stable and balanced position when operating the saw.
• Keep Work Area Clean: Cluttered areas invite accidents. Ensure adequate lighting.
• Avoid Dangerous Environments: Do not use power tools in damp or wet locations, or expose them to rain.
• Do Not Force Tool: The tool will do the job better and more safely at the rate for which it was designed.

Product Components

Familiarize yourself with the parts of your Hoteche miter saw before operation.

Figure 1: Miter Saw Components Overview
This image displays the various parts of the miter saw, including the operating handle, safety hoods, laser, miter bench, side supports, saw base, and various locks and scales for adjustments.

• Operating Handle: For controlling the saw's movement and power.
• Release Lever for Saw Blade Guard: Used to retract the blade guard for blade changes.
• Sawing Arm: The movable arm that holds the blade and motor.
• Moving Safety Hood: Retracts during cutting to expose the blade.
• Top Safety Hood (Fixed): Stationary guard over the top of the blade.
• Cover for Saw Blade Screws: Protects the blade mounting screws.
• Bevel Angle Scale: Indicates the angle of the blade tilt.
• Laser: Projects a line onto the workpiece for precise cutting alignment.
• Mitre Bench: The rotating base for miter angle adjustments.
• Bench Insert (Slotted Plate): Supports the workpiece and allows blade passage.
• Side Supports: Extendable supports for longer workpieces.
• Saw Base: The main stable platform of the saw.
• Mitre Scale: Indicates the angle of the miter cut.
• Mitre Angle Lock: Secures the miter bench at the desired angle.
• ON/OFF Switch for Laser Light: Activates or deactivates the laser guide.
• ON/OFF Switch for Machine: Main power switch for the saw.
• Carry Handle: For transporting the saw.
• Connection for Dust Extractor: Port for attaching a dust collection system.
• Setting Screw for Cutting Depth: Adjusts the maximum depth of cut.
• Lock Nut: Secures various adjustable parts.
• Depth Stop: Limits the downward travel of the blade.
• Release Knob: Used for adjusting the sliding mechanism.
• Drag Lock: Secures the sliding mechanism.
• Guide Rails: Allow the saw head to slide for wider cuts.
• Bevel Angle Lock: Secures the saw head at the desired bevel angle.
• Fence: Provides support and alignment for the workpiece.

Included Items

Your Hoteche Miter Saw package includes the following items:

Figure 2: Included Accessories
This image illustrates the accessories provided with the miter saw, such as carbon brushes, hex wrenches, a dust bag, a working clamp, a TCT saw blade, and extension bars.

• 1 Pair of Carbon Brushes
• 2 Pcs Hex Wrenches
• 1 Pc Dust Bag
• 1 Pc Working Clamp
• 1 Pc TCT Saw Blade (8-1/4 inch, 24T)
• 1 Pair of Extension Bars

Setup and Assembly

Unpacking

Carefully remove all components from the packaging. Inspect the saw and all accessories for any damage that may have occurred during shipping. Do not discard packaging materials until you are certain all parts are present and the tool is functioning correctly.

Mounting the Saw

For stable and safe operation, it is recommended to securely mount the miter saw to a workbench or a dedicated miter saw stand. Use appropriate bolts and washers to fasten the saw through the mounting holes in its base.

Attaching Extension Bars

The included extension bars can be attached to the sides of the saw base to provide additional support for longer workpieces. Slide the extension bars into the designated slots and tighten any securing knobs or screws.

Dust Bag Installation

Attach the dust bag to the dust extraction port located at the rear of the saw. Ensure it is securely fastened to collect sawdust during operation and maintain a cleaner workspace. For improved dust collection, connect a shop vacuum to the dust port.

Operating Instructions

Before operating, ensure all safety precautions are understood and followed.

Powering On/Off

To turn the saw ON, press the ON/OFF switch for the machine. To turn OFF, release the switch. The saw features a safety trigger to prevent accidental startup.

Adjusting Miter Angles

The miter saw allows for angle adjustments from 0° to ±45°. To adjust, loosen the miter angle lock, rotate the miter bench to the desired angle indicated on the miter scale, and then re-tighten the lock. The saw features 9 positive detent stops for common angles.

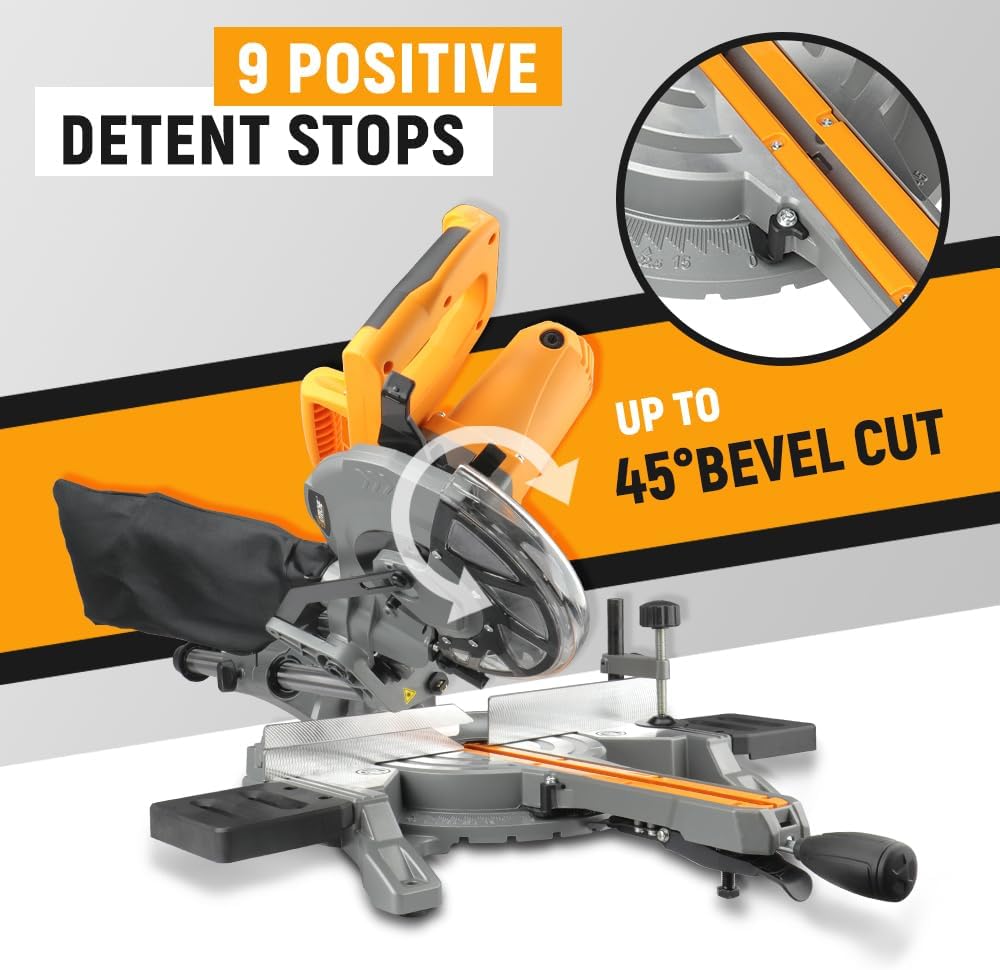

Figure 3: Miter and Bevel Angle Adjustments
This image highlights the 9 positive detent stops for miter angles and the capability for up to 45-degree bevel cuts, demonstrating the saw's versatility.

Adjusting Bevel Angles

The saw head can be tilted for bevel cuts at 90° and 45°. To adjust, loosen the bevel angle lock, tilt the saw head to the desired angle shown on the bevel angle scale, and then re-tighten the lock.

Using the Sliding Function

For cutting wider materials, the saw head can slide along the guide rails. To enable sliding, release the drag lock. Push the saw head back, lower the blade into the workpiece, and then push the saw head forward through the cut. For non-sliding cuts, engage the drag lock.

Laser Guide Operation

The integrated laser guide assists in achieving precise cuts. Activate the laser by pressing the ON/OFF switch for the laser light. Align the laser line with your pencil mark on the workpiece before making the cut.

Figure 4: Laser Guide in Use
This image demonstrates the laser guide projecting a red line onto a piece of wood, indicating the precise cutting path for enhanced accuracy.

Making a Cut

1. Place the workpiece firmly against the fence and on the miter bench. Use the working clamp to secure it if necessary.
2. Adjust the miter and/or bevel angle as required.
3. Activate the laser guide and align the blade with your cut line.
4. Hold the operating handle firmly and press the ON/OFF switch to start the motor. Allow the blade to reach full speed before cutting.
5. Slowly lower the saw blade into the workpiece. If using the sliding function, pull the saw head towards you, lower the blade, and push it through the material.
6. Once the cut is complete, release the ON/OFF switch and allow the blade to stop completely before raising the saw arm.
7. Remove the cut workpiece.

Figure 5: Miter Saw in Operation
This image shows a user making a precise cut on a wooden board using the Hoteche miter saw, demonstrating proper technique and workpiece positioning.

Blade Replacement

Always unplug the saw from the power source before attempting to change the blade. Use the provided hex wrenches for this procedure.

Figure 6: Saw Blade Change Procedure
This visual guide illustrates the four steps involved in safely changing the saw blade, from loosening screws to securing the new blade.

1. Step 1: Loosen the screw on the guard mounting plate and remove it from the product.
2. Step 2: Press the blade guard release lever and lower the retractable blade guard upwards. Reattach the screw to expose the saw blade.
3. Step 3: Press the spindle lock button fully and hold it in position. Turn the clamping screw until the spindle is locked.
4. Step 4: Loosen the clamping screw in a clockwise direction and remove it together with the outer flange and saw blade. Then change the blade. Note: The blade bolt has reversed threads; turn clockwise to loosen.
5. Install the new blade, ensuring the teeth are oriented correctly for cutting. Reassemble the outer flange and clamping screw, tightening counter-clockwise. Release the spindle lock and replace the guard mounting plate.

Maintenance

Regular maintenance ensures the longevity and safe operation of your miter saw. Always unplug the tool before performing any maintenance.

• Cleaning: Regularly clean the saw, especially the miter bench, guide rails, and blade area, to remove sawdust and debris. Use a brush or compressed air. Ensure the dust bag is emptied frequently.
• Blade Inspection: Inspect the saw blade before each use for sharpness, cracks, or missing teeth. Replace dull or damaged blades immediately.
• Carbon Brush Replacement: The motor's carbon brushes will wear down over time. Replace them when they are significantly worn to maintain motor performance. Refer to the included accessories for replacement brushes.
• Lubrication: Periodically apply a light coat of machine oil to the guide rails to ensure smooth sliding action.
• Fastener Check: Periodically check all nuts, bolts, and screws for tightness. Tighten as necessary.

Troubleshooting

This section addresses common issues you might encounter with your miter saw.

Specifications

Key technical specifications for the Hoteche 8-1/4-Inch Sliding Compound Miter Saw (Model P805217A):

• Model Number: P805217A
• Blade Diameter: 8-1/4 Inches (210mm)
• Input Power: 12.5 Amps (1500 Watts)
• Voltage: 110-120V AC
• No-Load Speed: 5000 RPM
• Blade Teeth: 24T
• Miter Angles: 0° to ±45°
• Bevel Angles: 0° to 45° (Single Bevel)
• Max Cutting Capacity (0° Miter, 90° Bevel): 310mm x 62mm
• Item Weight: 30 Pounds
• Dimensions (L x W x H): 27.95" x 15.74" x 9.84"
• Power Source: Corded Electric
• Blade Material: High Speed Steel
• Handle Material: Aluminum

Warranty and Support

This Hoteche product comes with an extended warranty. For specific warranty details, claims, or technical support, please refer to the warranty card included with your product or contact Hoteche customer service directly. Keep your purchase receipt as proof of purchase.

For further assistance, you may visit the official Hoteche store on Amazon: Hoteche Store
