SILKYDRY Tilt Out Trash Cabinet and Kitchen Island Manual

Introduction

Thank you for choosing the SILKYDRY Tilt Out Trash Cabinet and Kitchen Island. This versatile furniture piece is designed to enhance your kitchen, laundry room, or other living spaces by providing hidden waste storage, additional countertop space, and convenient organization. Please read this manual thoroughly before assembly and use to ensure safe and proper operation.

The SILKYDRY Tilt Out Trash Cabinet and Kitchen Island in a white finish, featuring a natural wood countertop, two drawers, and a tilt-out compartment for a trash bin, with an additional cabinet on the right.

Safety Information

• Always use caution when operating the tilt-out mechanism to avoid pinching fingers.
• Do not overload shelves or drawers. Refer to the specifications for weight limits.
• Keep the cabinet away from direct heat sources and open flames.
• Always follow the assembly instructions carefully to ensure structural integrity.
• Utilize the provided anti-toppling devices to secure the cabinet to a wall, especially in households with children or pets, to prevent accidental tipping.

Product Dimensions

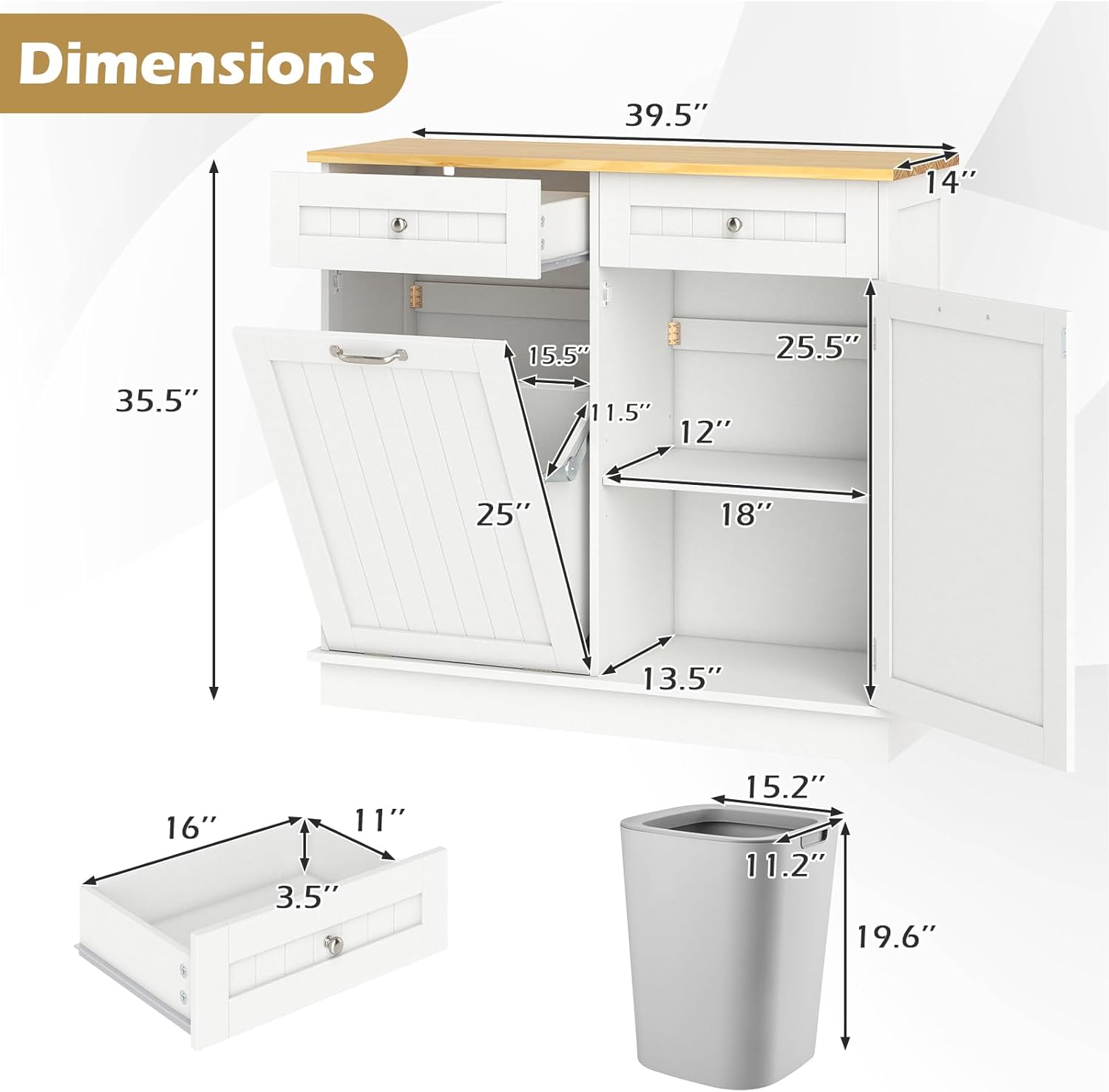

Detailed measurements of the cabinet, including overall dimensions (39.5"W x 14"D x 35.5"H) and internal compartment sizes.

Assembly Instructions

For a comprehensive visual guide to assembling your SILKYDRY Tilt Out Trash Cabinet, please refer to the official assembly video below. Ensure all parts are present and accounted for before beginning assembly.

Key Assembly Steps:

1. Unpack and Identify Parts: Carefully unpack all components and hardware. Refer to the included parts list in the packaging to ensure everything is present. The assembly video provides a visual overview of all parts.
2. Assemble Side Panels: Attach the drawer slides to the side panels (parts 15 and 16 in the video) using screws (G) and cam locks (A).
3. Connect Crossbars: Secure the crossbars (parts 12 and 13) between the side panels using cam locks (B) and wooden dowels (C). Ensure the panels are aligned correctly.
4. Install Bottom Panels: Slide the bottom panels (part 24) into their designated grooves within the assembled frame.
5. Attach Back Panel: Secure the back panel (part 2) to the main frame using screws (A) and wooden dowels (C).
6. Install Top Panel: Place the rubber wood countertop (part 1) onto the assembled frame and secure it using screws (A).
7. Assemble Tilt-Out Door: Attach the handle (N) and hinges (H) to the tilt-out door (part 18).
8. Assemble Drawers: Construct the two drawers (parts 19, 20, 21, 22, 23) by screwing the sides together and attaching the drawer fronts with handles (L) and knobs (M). Attach the drawer slides to the assembled drawers.
9. Install Tilt-Out Mechanism: Attach the tilt-out mechanism (parts 4, 5, 6, 7) to the cabinet frame and the tilt-out door.
10. Insert Drawers: Slide the completed drawers into their respective tracks.
11. Install Anti-Toppling Devices: Secure the anti-toppling devices (V, W) to the back of the cabinet and to a wall stud to prevent tipping.

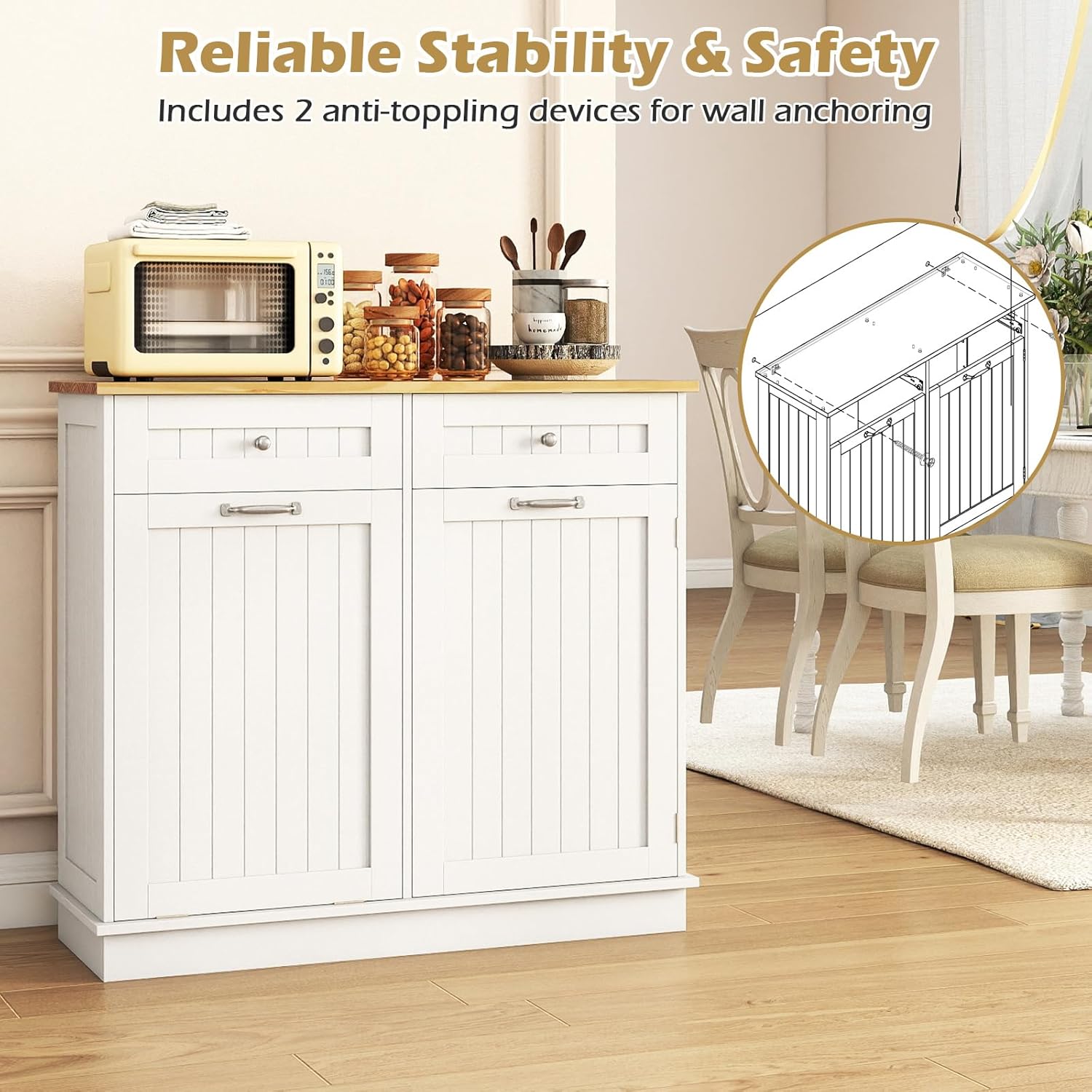

Illustration of the anti-toppling device, crucial for securing the cabinet to the wall and ensuring stability.

Operating Instructions

Using the Tilt-Out Compartment:

The cabinet features a tilt-out door designed to conceal a trash bin or laundry hamper. Gently pull the handle on the tilt-out door to open it. Insert a standard 14.5-gallon (55 L) trash bin (not included) or laundry bag into the compartment. Push the door back until it closes securely. This mechanism helps contain odors and keeps contents out of sight and away from pets.

The tilt-out compartment can be used for a trash bin, laundry hamper, or pet food storage, keeping items hidden and secure.

Using the Drawers:

The two top drawers provide convenient storage for utensils, small kitchen gadgets, or other household items. Pull the knobs to open and push to close. The smooth slide rails ensure easy access.

Adjustable Shelf:

The enclosed side cabinet features a 3-position adjustable shelf. To adjust the shelf height, remove the shelf, reposition the shelf pins to your desired height, and then place the shelf back on the pins. This allows for flexible storage of various-sized items.

The cabinet offers expanded storage with two large drawers and an enclosed side cabinet featuring a 3-position adjustable shelf for versatile organization.

Maintenance

Cleaning:

Wipe the cabinet surfaces with a soft, damp cloth. Avoid using harsh chemicals or abrasive cleaners, as these may damage the finish. For the rubber wood countertop, use a mild wood cleaner and wipe dry immediately.

General Care:

Periodically check all screws and connections to ensure they remain tight. Retighten if necessary. Avoid placing hot items directly on the countertop without protection. Protect the cabinet from excessive moisture and direct sunlight to prolong its lifespan.

Troubleshooting

• Cabinet feels wobbly: Ensure all cam locks and screws are fully tightened. Verify that the anti-toppling devices are securely installed to a wall stud.
• Drawers do not slide smoothly: Check that the drawer slides are correctly installed and free from obstructions. Lubricate the slides with a silicone-based spray if needed.
• Tilt-out door not closing properly: Inspect the tilt-out mechanism for any misalignment or obstructions. Ensure the trash bin inside is not interfering with the door's movement.
• Chemical smell: New furniture may have a slight odor. Ensure adequate ventilation in the room for a few days after assembly to allow the smell to dissipate.

Specifications

Warranty and Support

For any questions, concerns, or assistance with your SILKYDRY Tilt Out Trash Cabinet, please contact our customer support. While specific warranty details are not provided in this manual, we are committed to ensuring your satisfaction with our products.

Please retain your purchase receipt for any warranty claims or support inquiries. For further information, you may visit the SILKYDRY Store on Amazon.
