Moulinex EZ145A20
Moulinex Easy Fry Compact 3L Air Fryer User Manual
Model: EZ145A20
Introduction
Welcome to the user manual for your new Moulinex Easy Fry Compact 3L Air Fryer. This appliance is designed to help you prepare healthy and delicious homemade meals with little to no added oil, utilizing advanced hot air technology for perfect results. Its compact 3L capacity is ideal for cooking for up to 4 people. Please read this manual thoroughly before first use to ensure safe and optimal operation.
Image: The Moulinex Easy Fry Compact 3L Air Fryer, showcasing its design with the cooking basket partially open, revealing crispy fries inside.
Important Safety Instructions
When using electrical appliances, basic safety precautions should always be followed, including the following:
- Read all instructions before use.
- Do not touch hot surfaces. Use handles or knobs.
- To protect against electric shock, do not immerse cord, plugs, or appliance in water or other liquid.
- Close supervision is necessary when any appliance is used by or near children.
- Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts.
- Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions or has been damaged in any manner.
- The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
- Do not use outdoors.
- Do not let cord hang over edge of table or counter, or touch hot surfaces.
- Do not place on or near a hot gas or electric burner, or in a heated oven.
- Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
- Always attach plug to appliance first, then plug cord into the wall outlet. To disconnect, turn any control to "off", then remove plug from wall outlet.
- Do not use appliance for other than intended use.
- This appliance is for household use only.
Product Components
Familiarize yourself with the main parts of your Moulinex Easy Fry Compact Air Fryer.
- 1. Main Unit: Houses the heating element and fan.
Image: Front view of the Moulinex Easy Fry Compact 3L Air Fryer, showing its sleek, white design.
- 2. Digital Control Panel: Intuitive touch screen for setting time, temperature, and selecting programs.
Image: A hand interacting with the intuitive touch control panel of the air fryer, highlighting its ease of use.
- 3. Cooking Basket: Removable basket for holding food.
- 4. Crisping Grid: Inserted into the basket for optimal air circulation.
- 5. Handle: For safely pulling out and inserting the cooking basket.
Initial Setup
Before using your air fryer for the first time, follow these steps:
- Unpack: Carefully remove all packaging materials and any promotional labels.
- Clean: Wash the cooking basket and crisping grid with hot water, dish soap, and a non-abrasive sponge. Rinse thoroughly and dry completely. Wipe the main unit with a damp cloth.
- Placement: Place the air fryer on a stable, level, heat-resistant surface, away from walls or other appliances to allow for proper air circulation. Ensure there is at least 10 cm (4 inches) of free space on the back and sides, and 10 cm (4 inches) above the appliance.
- First Use Odor: It is normal for a slight odor to be present during the first few uses as manufacturing residues burn off. This is harmless and will dissipate. To minimize this, you can run the air fryer empty for about 10 minutes at 200°C (390°F) before cooking food.
Operating Instructions
Your Moulinex Easy Fry Compact Air Fryer features a digital control panel and 10 automatic programs for versatile cooking.
General Operation
- Plug In: Connect the power cord to a grounded wall outlet. The appliance will power on and display the default settings or standby mode.
- Prepare Food: Place your ingredients in the cooking basket. Do not overfill the basket to ensure even cooking.
- Insert Basket: Slide the cooking basket back into the main unit until it clicks into place.
- Select Program or Manual Settings:
- Automatic Programs: Press the menu button or cycle through the preset icons on the digital panel. The air fryer offers 10 automatic programs: Fries, Chicken, Steak, Fish, Dessert, Pizza, Nuggets, Vegetables, Shrimp, and Bacon.
Image: The digital control panel displaying icons for 10 automatic cooking programs, designed for perfect results.
- Manual Mode: If a preset program is not suitable, manually adjust the temperature (80-200°C) and time (up to 60 minutes) using the '+' and '-' buttons.
- Automatic Programs: Press the menu button or cycle through the preset icons on the digital panel. The air fryer offers 10 automatic programs: Fries, Chicken, Steak, Fish, Dessert, Pizza, Nuggets, Vegetables, Shrimp, and Bacon.
- Start Cooking: Press the 'Start/Stop' button to begin the cooking process. The fan and heating element will activate.
- Shake/Flip (if needed): For some foods, especially fries or nuggets, shaking or flipping halfway through cooking ensures even crisping. The appliance may beep to remind you. Carefully pull out the basket, shake, and reinsert.
- Cooking Completion: The air fryer will beep when the cooking time is complete. Carefully pull out the basket and transfer the cooked food to a serving plate.
- Power Off: Unplug the appliance from the wall outlet after use.
Hot Air Circulation Technology
The Moulinex Easy Fry Compact uses advanced hot air technology to circulate hot air rapidly around the food, ensuring even cooking and a crispy texture with minimal oil.

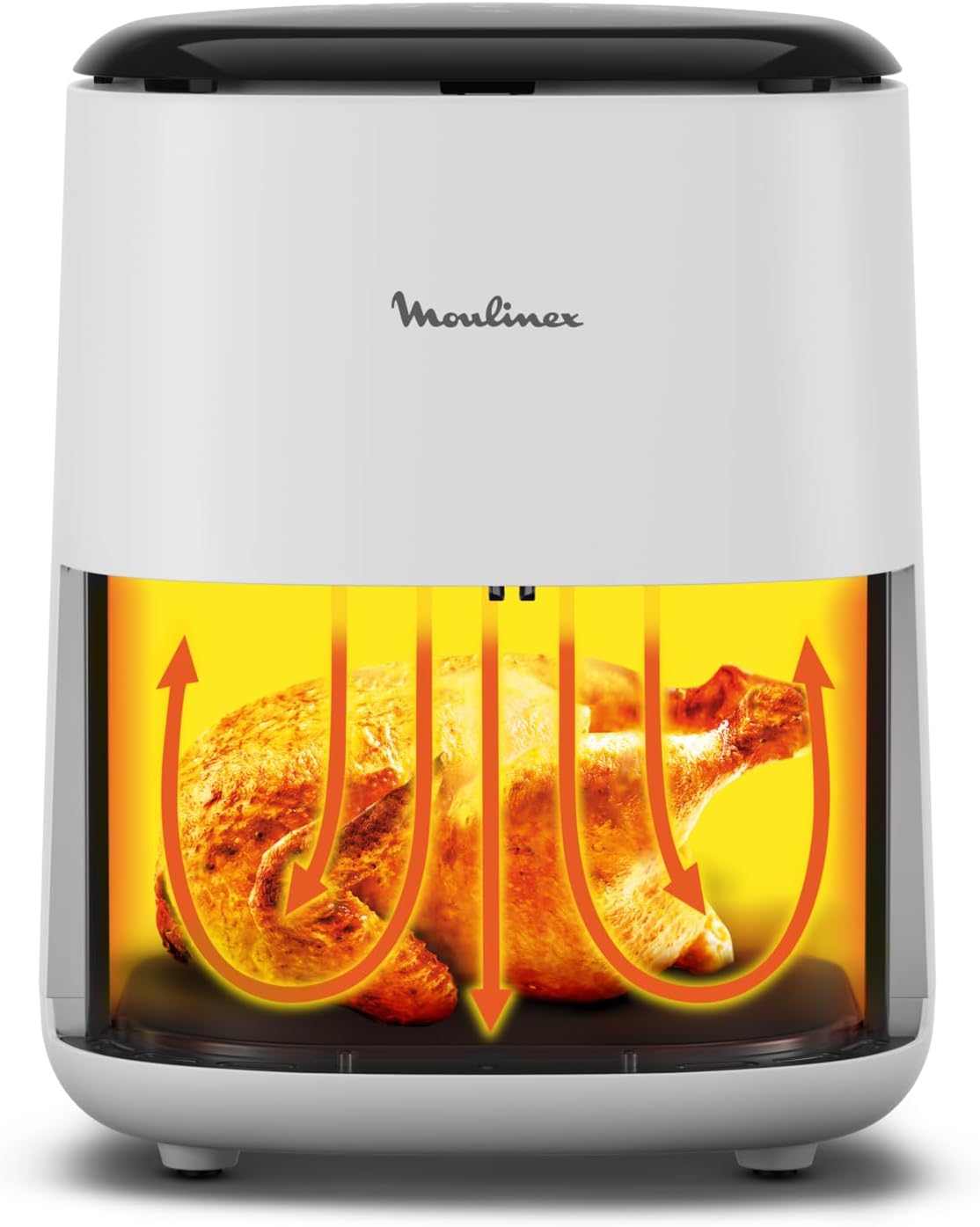

Image: An internal view of the air fryer illustrating the rapid hot air circulation around food, such as a whole chicken, for efficient and even cooking.
Cleaning and Maintenance
Regular cleaning ensures the longevity and optimal performance of your air fryer.
- Unplug and Cool: Always unplug the air fryer and allow it to cool completely before cleaning.
- Basket and Grid: The cooking basket and crisping grid are non-stick coated and can be washed by hand with hot water, dish soap, and a non-abrasive sponge. They are also dishwasher safe.
- Main Unit: Wipe the exterior of the air fryer with a damp cloth. Do not immerse the main unit in water or any other liquid.
- Heating Element: Use a cleaning brush to remove any food residue from the heating element inside the appliance.
- Storage: Ensure all parts are clean and dry before storing the air fryer in a cool, dry place.
Troubleshooting Guide
If you encounter any issues with your air fryer, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Air fryer does not turn on. | Appliance not plugged in or power outlet issue. | Ensure the power cord is securely plugged into a working outlet. Check the circuit breaker. |
| Food is not cooked evenly. | Basket is overloaded or food is not shaken/flipped. | Do not overload the basket. Shake or flip food halfway through cooking for even results. |
| Food is not crispy. | Not enough oil (for certain foods), temperature too low, or cooking time too short. | Add a small amount of oil (e.g., 1 tablespoon for fries). Increase temperature or cooking time. Ensure food is dry before cooking. |
| White smoke coming from the appliance. | Grease residue from previous use or high-fat food. | Clean the basket and crisping grid thoroughly after each use. For high-fat foods, drain excess fat during cooking. |
| Appliance smells during first use. | Manufacturing residues burning off. | This is normal and will dissipate. Run the air fryer empty for 10 minutes at 200°C before first use. |
Technical Specifications
Detailed specifications for the Moulinex Easy Fry Compact 3L Air Fryer.
- Brand: Moulinex
- Model Number: EZ145A20
- Color: White
- Product Dimensions (L x W x H): 32 x 23 x 29 cm
- Capacity: 3 Liters
- Power: 1300 Watts
- Voltage: 220-240 Volts
- Material: Plastic
- Automatic Shut-off Function: Yes
- Item Weight: 2.76 Kilograms
Image: A diagram illustrating the precise dimensions of the Moulinex Easy Fry Compact Air Fryer (Length: 32 cm, Width: 23.1 cm, Height: 29.1 cm).
Warranty and Support
Moulinex is committed to providing quality products.
- Spare Parts Availability: Spare parts for this product are available for a period of 15 years from the date of purchase.
- For detailed warranty information, please refer to the warranty card included with your product or visit the official Moulinex website.
- For technical support or service, please contact Moulinex customer service. Contact details can typically be found on the Moulinex website or in the product packaging.
