Introduction
Thank you for choosing the VEHHE Shower Head with Silver Hose. This manual provides essential information for the proper installation, operation, and maintenance of your new shower head. Please read these instructions carefully before use to ensure optimal performance and longevity of the product.
Product Overview
The VEHHE Shower Head is designed to enhance your showering experience with multiple spray modes and a large rain shower panel. It features a durable construction and an easy-to-clean design.
Key Features:
- Multiple Spray Modes: Equipped with 4 adjustment buttons that combine 7 water jet modes and 1 stop mode to meet various daily needs. Mode switching is smooth for a pleasant user experience.
- Large Rain Shower Panel: The large panel ensures wider water coverage, providing a gentle rain-like shower experience. The design also promotes water efficiency.
- Easy Cleaning: Features 112 silicone nozzles and 33 ABS outlets for uniform water flow and to prevent limescale buildup. Blockages can be easily cleared by wiping the nozzles by hand.
- Universal Connection: Utilizes a standard 1/2 inch connection, allowing for tool-free installation in minutes. Compatible with most bathroom setups.
- Premium Materials: Constructed from high-quality ABS material with a chrome-plated surface, ensuring durability, corrosion resistance, and easy cleaning.
Image: Front view of the VEHHE shower head, highlighting its spray nozzles and sleek design.
Image: The VEHHE shower head connected to its silver hose, ready for installation.
Setup and Installation
The VEHHE Shower Head is designed for easy, tool-free installation. Follow these steps to set up your new shower head.
Installation Steps:
- Prepare the Area: Ensure the water supply to your shower is turned off. Remove your old shower head and clean any residue from the shower arm thread.
- Attach the Hose: Connect one end of the silver hose to your shower arm. Hand-tighten until secure. A rubber washer should be inside the connector to prevent leaks.
- Connect Shower Head: Connect the other end of the silver hose to the VEHHE shower head. Hand-tighten until secure. Ensure a rubber washer is properly seated.
- Check for Leaks: Turn on the water supply and check for any leaks at the connections. If leaks occur, tighten slightly more by hand. Do not overtighten.
- Test Spray Modes: Once installed, test all spray modes to ensure proper function.
Image: Close-up of the shower hose connection, illustrating the universal 1/2 inch fitting.
Operating Instructions
The VEHHE Shower Head offers multiple spray settings for a customized showering experience.
Changing Spray Modes:
- Locate the 4 adjustment buttons on the side of the shower head handle.
- Pressing these buttons will cycle through the 7 available water jet modes, including a gentle rain, powerful massage, and mixed sprays.
- One of the buttons also functions as a stop mode, temporarily pausing water flow without adjusting temperature settings.
Image: The shower head in operation, showing different water spray patterns from its nozzles.
Maintenance
Regular cleaning and maintenance will ensure your VEHHE Shower Head continues to perform effectively.
Cleaning the Shower Head:
- The shower head features silicone nozzles designed to prevent limescale buildup. If you notice reduced water flow or uneven spray, simply wipe the silicone nozzles with your hand or a soft cloth to dislodge any mineral deposits.
- For more stubborn deposits, a mild descaling solution or a mixture of white vinegar and water can be used. Apply the solution to the nozzles, let it sit for a few minutes, then scrub gently and rinse thoroughly.
- Clean the exterior of the shower head and hose with a soft cloth and mild soap and water. Avoid abrasive cleaners or harsh chemicals, as these can damage the chrome finish.
Image: A close-up view of the shower head nozzles, illustrating the silicone material designed for easy cleaning.
Troubleshooting
If you encounter any issues with your VEHHE Shower Head, refer to the following common problems and solutions.
- Low Water Pressure:
- Check if the silicone nozzles are clogged with limescale. Clean them as described in the Maintenance section.
- Ensure your main water supply valve is fully open.
- Verify that the hose is not kinked or obstructed.
- Leaking Connections:
- Ensure all connections are hand-tightened securely.
- Check that rubber washers are properly seated in both ends of the hose. Replace if damaged.
- Apply plumber's tape (PTFE tape) to the threads of the shower arm before attaching the hose for an improved seal.
- Difficulty Changing Spray Modes:
- Ensure the buttons are not obstructed by mineral buildup. Clean the area around the buttons.
- If the issue persists, contact customer support.
Specifications
Detailed technical specifications for the VEHHE Shower Head (Model GQJHSRG).
| Product Dimensions (L x W x H) | 26 x 11 x 12.7 cm |
| Weight | 520 grams |
| Manufacturer | VEHHE |
| Item Model Number | GQJHSRG |
| Country of Origin | China |
| Brand | VEHHE |
| Style | Modern |
| Shape | Rectangular |
| Material | Acrylonitrile Butadiene Styrene (ABS) |
| Finish Type | Painted (Chrome-plated surface) |
| Installation Type | Wall Mount |
| Color | Silver |
| Number of Settings | 7 |
| Number of Jets | 1 (Refers to the main spray outlet, with multiple patterns) |
| Water Flow Control | Yes (Stop mode included) |
| Special Features | 7-type water-saving jet shower head |
| Setting Type | PowerSpray |
| Hose Length | 1.6 Meters |

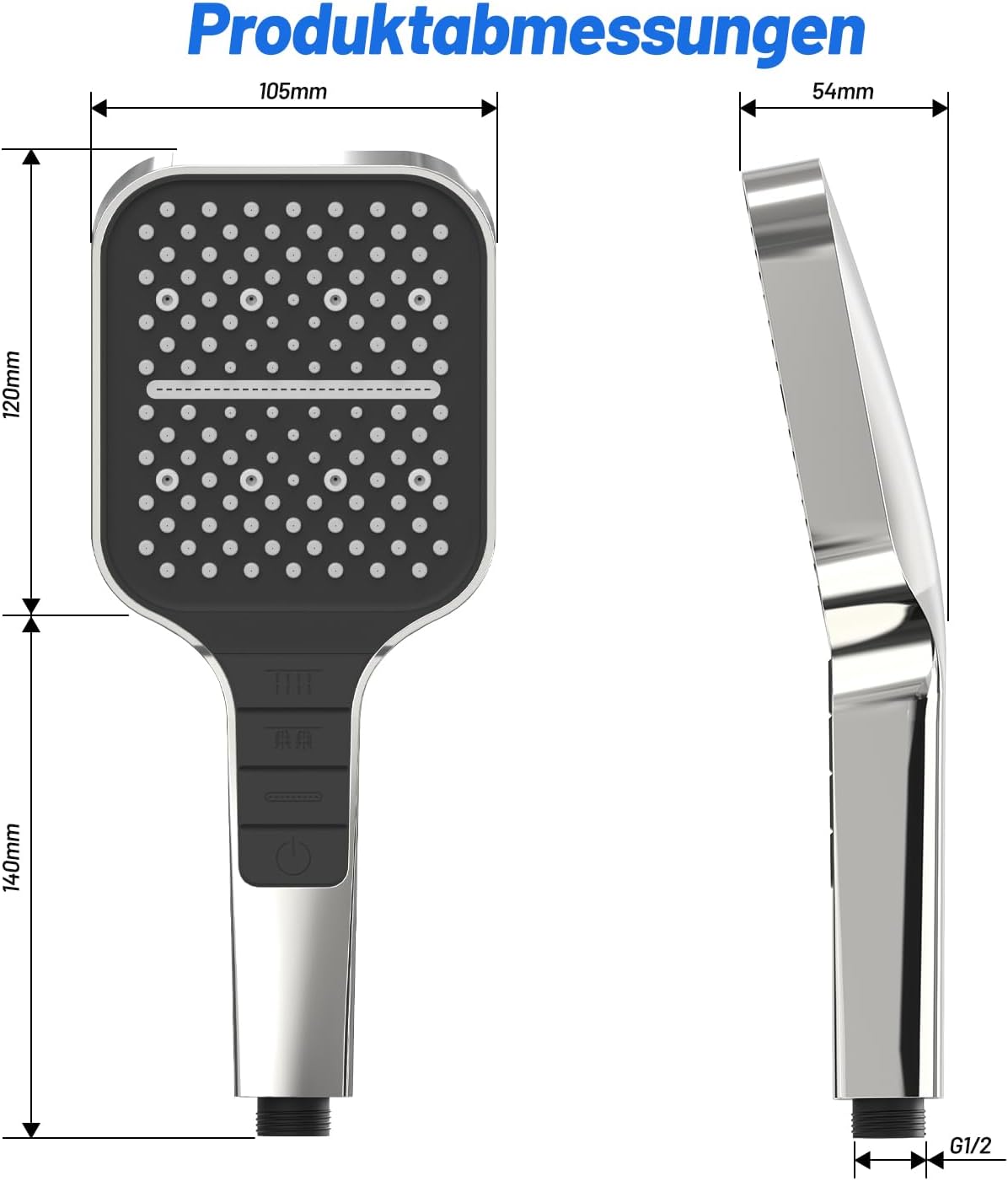

Image: Technical diagram illustrating the dimensions of the shower head in millimeters.
Warranty and Support
VEHHE products are manufactured to high-quality standards. For warranty information or technical support, please refer to the contact details provided with your purchase or visit the official VEHHE website. Please retain your proof of purchase for any warranty claims.
