1. Product Overview
This document provides comprehensive instructions for the DAZOM Rear Wiper Blade and Arm Set, designed for specific vehicle models. This set includes one rear windshield wiper arm and one rear windshield wiper blade, engineered for effective and quiet operation.

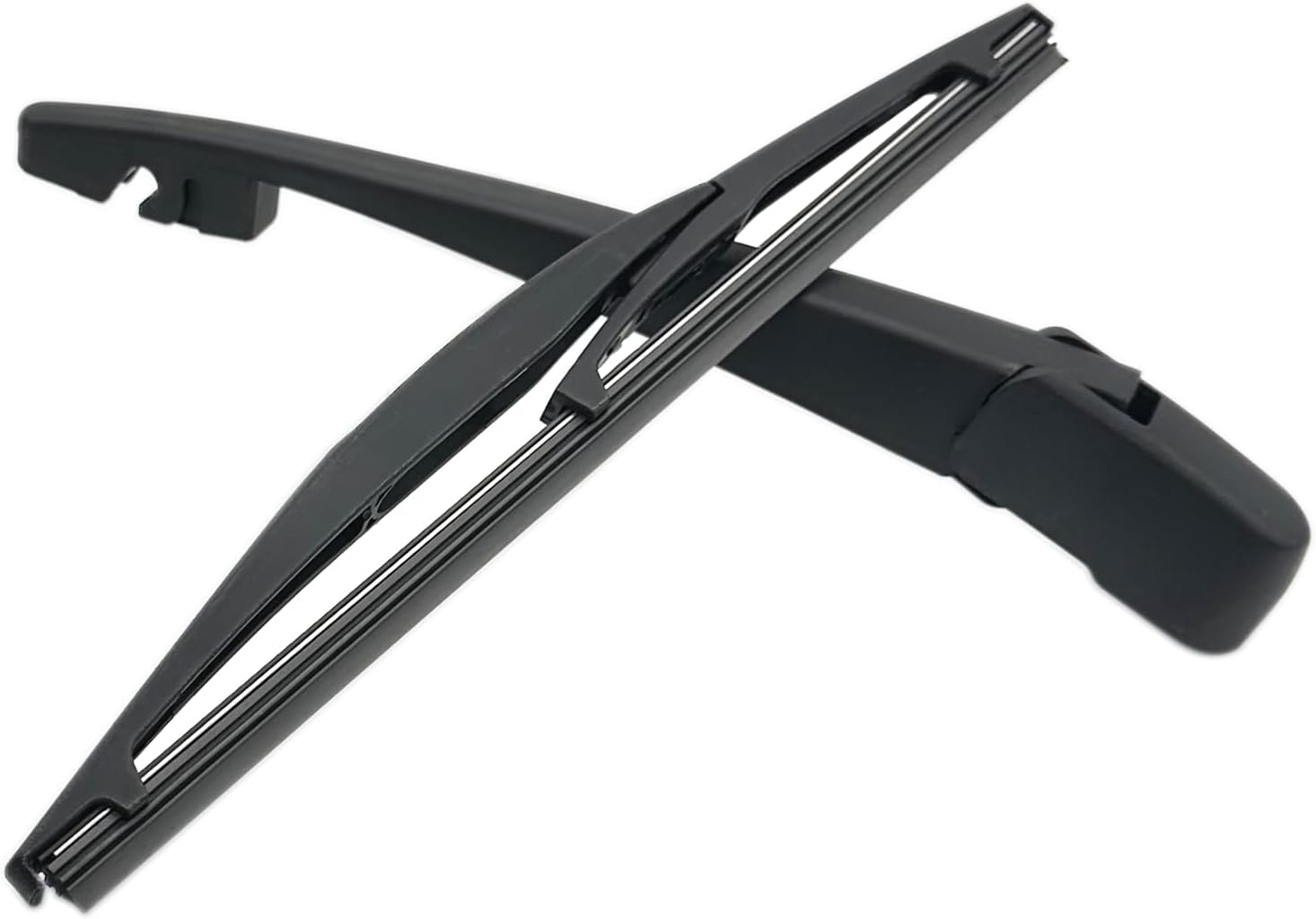

Image 1.1: The DAZOM Rear Wiper Blade and Arm Set, showing both components.
2. Product Features
- Durable Construction: The wiper arm and blade are manufactured from high-polymer plastic material, ensuring durability and a long service life.
- Smooth and Silent Wiping: The blade features a rubber and flexible soft layer design, contributing to smooth and quiet operation.
- OEM Matching: Designed to match original equipment specifications for precise fitment and reliable performance.
2.1 Wiper Blade Components

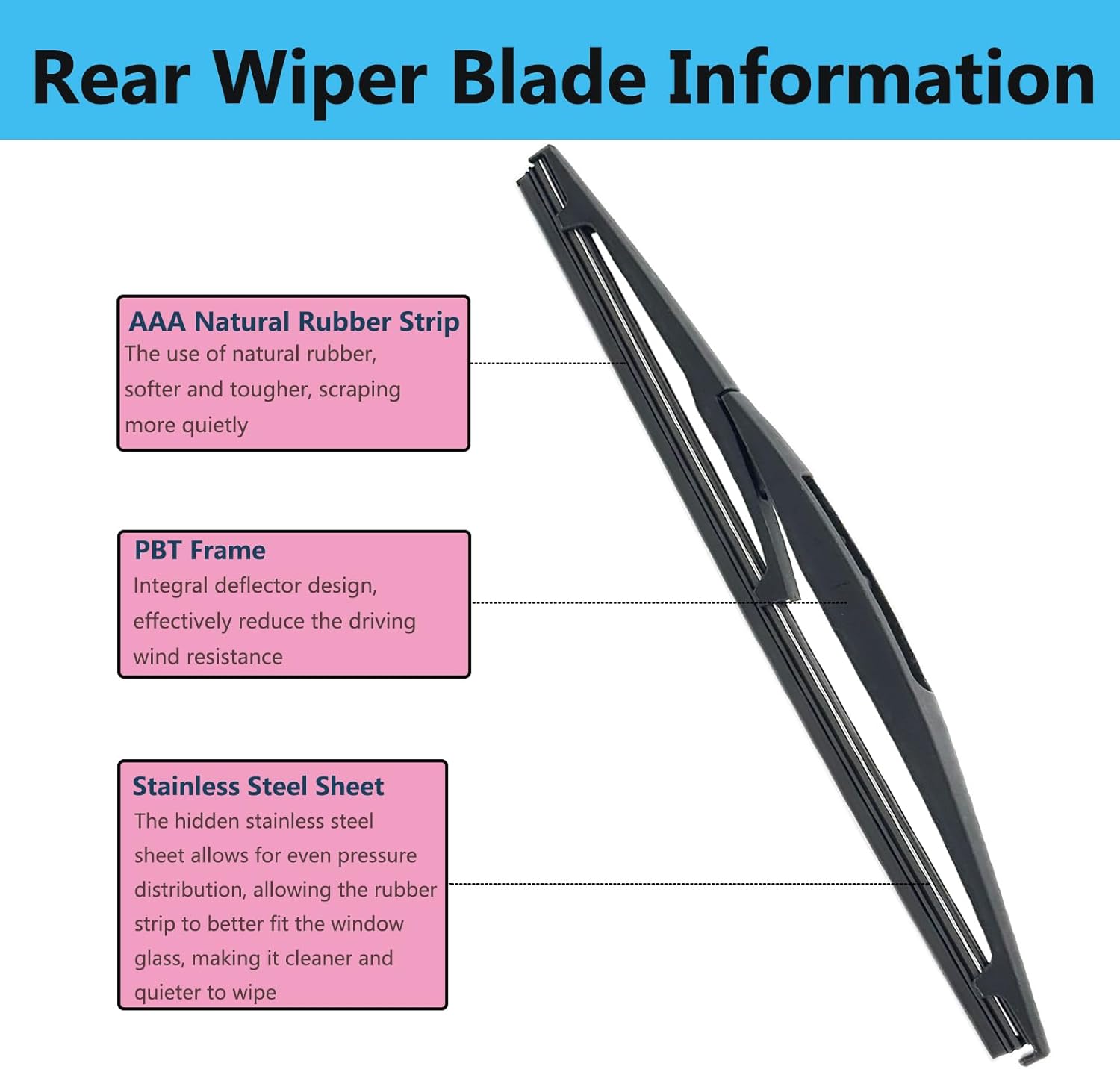

Image 2.1: Detailed view of the wiper blade components.
- AAA Natural Rubber Strip: Utilizes natural rubber for enhanced softness and toughness, resulting in quieter scraping.
- PBT Frame: Features an integral deflector design to reduce driving wind resistance.
- Stainless Steel Sheet: A hidden stainless steel sheet ensures even pressure distribution, allowing the rubber strip to conform better to the window glass for cleaner and quieter wiping.
2.2 Wiper Arm Components
Image 2.2: Detailed view of the wiper arm components.
- Wiper Arm Connection: Features a strong plastic interface with an original OE design for exact fit, durability, and flexible rotation.
- Rear Windshield Interface: Equipped with an anti-rust and strong metal interface for durable and secure attachment.
3. Compatibility and Fitment
This rear windshield wiper set is designed for specific vehicle models and years. Please verify your vehicle's make, model, and year against the list below to ensure proper fitment.
Image 3.1: Visual representation of compatible vehicle models and years.
| Make | Model | Year Range |
|---|---|---|
| Mitsubishi | Outlander Sport | 2011-2020 |
| Mitsubishi | ASX | 2010-2018 |
| Honda | HR-V | 2016-2020 |
| Honda | XR-V | 2015-2018 |
| Honda | Vezel | 2015-2018 |
| Infiniti | QX80 | 2014-2020 |
| Infiniti | QX56 | 2011-2013 |
| Nissan | Leaf | 2010-2018 |
| Suzuki | Swift | 2005-2018 |
| Suzuki | SX4 | 2006-2018 |
| Suzuki | S-cross | 2006-2018 |
| Suzuki | Splash | 2008-2014 |
| Suzuki | Ignis | 2016-2018 |
| Citroen | C4 Aircross | 2012-2018 |
| Peugeot | 4008 | 2012-2017 |
| Opel | Agila | 2008-2014 |
| Fiat | Sedici | 2006-2014 |
4. Installation Instructions
Follow these steps to install the DAZOM Rear Wiper Blade and Arm Set:
- Step 1: Prepare the Wiper Arm and Blade. Align the wiper arm with the cross-pillar, which is located in the middle of the wiper blade.
- Step 2: Attach the Wiper Arm to the Blade. Position the wiper arm in a vertical direction. The arm should securely engage and become stuck in the blade's attachment point.
- Step 3: Install the Complete Assembly. Once the arm and blade are securely joined, install the entire kit onto your vehicle's rear windshield wiper post. Ensure it clicks into place firmly.
Installation is now complete. Test the wiper function to ensure proper operation.
5. Specifications

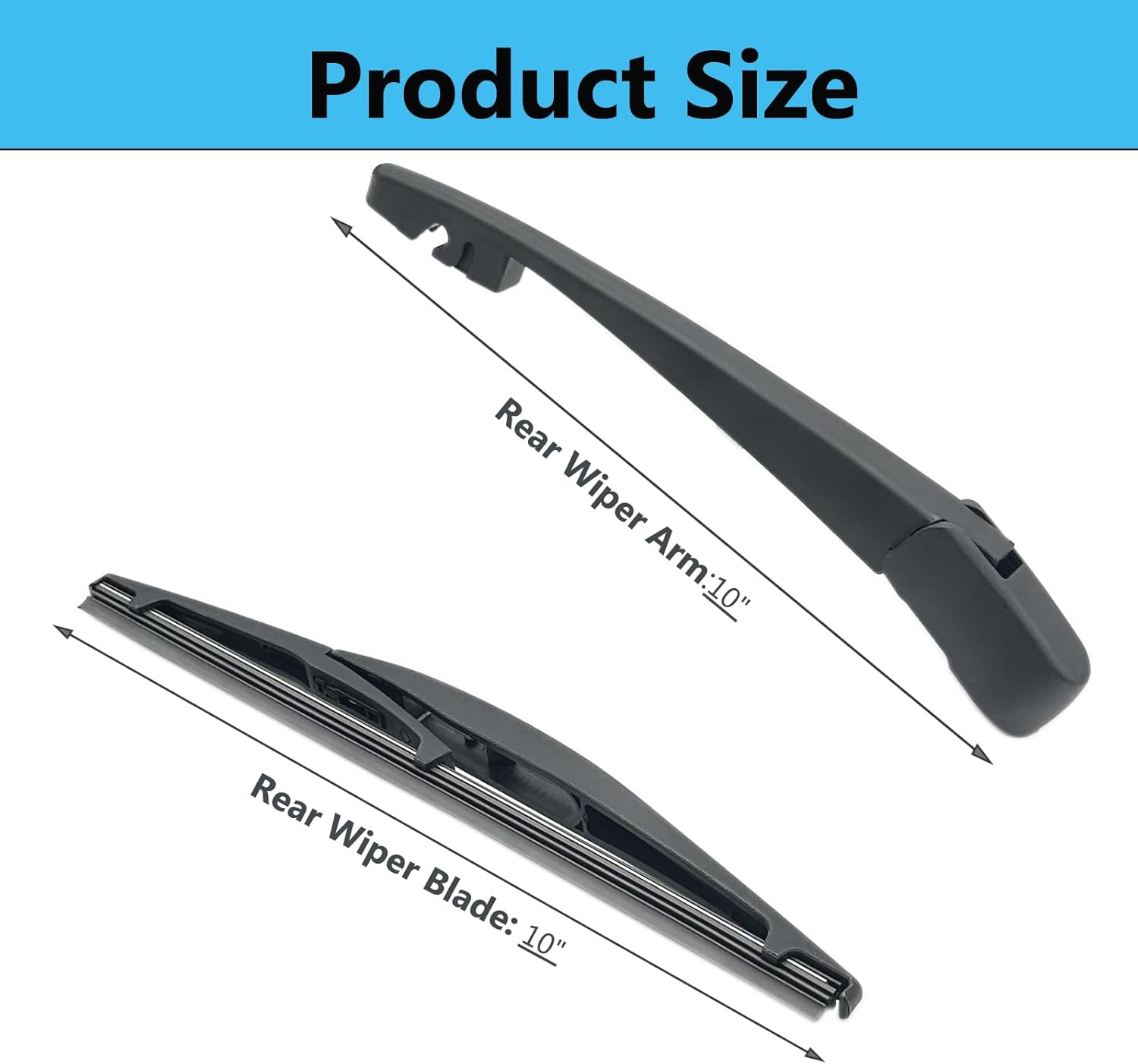

Image 5.1: Diagram illustrating the dimensions of the rear wiper arm and blade.
| Specification | Detail |
|---|---|
| Brand | DAZOM |
| Model Number | R6W106 |
| Placement on Vehicle | Rear Windshield |
| Vehicle Service Type | Car |
| Fit Type | Vehicle Specific Fit |
| Mounting Type | Pinch Tab |
| Item Weight | 5.6 ounces |
| Package Dimensions | 11.81 x 2.83 x 1.85 inches |
| OEM Part Numbers | 8253A029, MZ690940, 76720-T7A-003, 76730-T7A-003, 258780-1LA0A, 2587801LA0A, 3834063J00, 3882163J00, 38340-63J00, 38821-63J00 |
6. Maintenance
To ensure optimal performance and longevity of your rear wiper blade and arm set, consider the following maintenance tips:
- Regular Cleaning: Periodically clean the wiper blade rubber with a soft cloth and windshield washer fluid to remove dirt, grime, and road film.
- Inspect for Wear: Regularly check the wiper blade for signs of wear, such as cracks, tears, or hardening of the rubber. Replace the blade if any damage is observed.
- Clear Debris: Before operating the wipers, ensure no large debris (e.g., leaves, ice) is present on the windshield, as this can damage the blade.
- Winter Care: In freezing conditions, lift the wiper arm off the windshield to prevent the blade from freezing to the glass.
7. Troubleshooting
If you encounter issues with your rear wiper blade and arm set, consider the following common troubleshooting steps:
- Streaking or Smearing: This often indicates a dirty or worn wiper blade. Clean the blade thoroughly or replace it if cleaning does not resolve the issue.
- Squeaking or Chattering: This can be caused by a dirty windshield, a worn blade, or an incorrect blade angle. Clean the windshield and blade, or inspect the blade for damage.
- Wiper Not Moving: Check your vehicle's fuse box for a blown wiper fuse. If the fuse is intact, there may be an issue with the wiper motor or electrical connection, which may require professional inspection.
- Incomplete Wipe: Ensure the wiper arm is securely attached and that the blade is the correct size for your vehicle.
8. Warranty and Support
For information regarding product warranty, returns, or technical support, please refer to the seller's policies on the platform where the product was purchased. Keep your proof of purchase for any warranty claims.
For further assistance, you may contact DAZOM customer service through the contact information provided with your purchase or on the official DAZOM website, if available.
