Parryware Cute Range One-Piece Floor Mount Western Commode

1. Introduction

Thank you for choosing the Parryware Cute Range One-Piece Floor Mount Western Commode. This manual provides essential information for the safe and efficient installation, operation, and maintenance of your new sanitary fixture. Please read these instructions carefully before beginning installation or use, and retain them for future reference.

2. Safety Information

• Always ensure the water supply is turned off before attempting any installation or maintenance.
• Wear appropriate personal protective equipment (PPE) such as gloves and eye protection during installation.
• Ceramic products can be heavy and fragile. Handle with care to prevent injury or damage.
• If you are unsure about any part of the installation process, it is recommended to consult a qualified plumber.
• Keep small parts and tools out of reach of children.

3. Package Contents

Verify that all components are present and undamaged before proceeding with installation.

• Toilet Bowl (One-Piece Commode)
• Quick Connect Fixtures (for installation)

4. Setup and Installation

This Parryware commode is designed for floor-mounted installation. Professional installation is highly recommended to ensure proper function and prevent leaks.

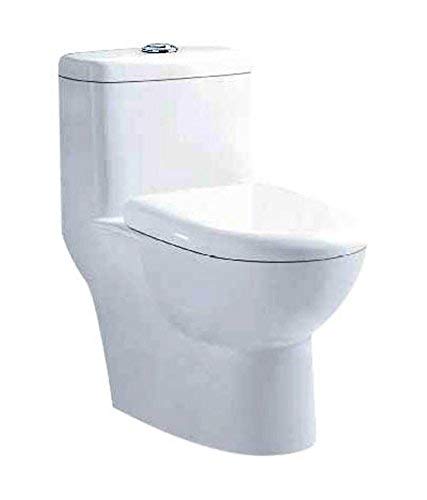

Image 1: Parryware Cute Range One-Piece Floor Mount Western Commode. This image displays the complete white ceramic commode, highlighting its compact and integrated design suitable for modern bathrooms.

Installation Steps:

1. Site Preparation: Ensure the floor is level and clean. Confirm the drain pipe location aligns with the commode's S-trap.
2. Dry Fit: Carefully place the commode over the drain opening to check alignment and fit. Mark the bolt locations on the floor.
3. Secure the Commode: Install the floor bolts as per the marked positions. Apply a wax ring or suitable sealing gasket around the drain opening. Carefully lower the commode onto the bolts and press firmly to create a seal. Tighten the nuts onto the bolts evenly, ensuring not to overtighten and crack the ceramic.
4. Connect Water Supply: Connect the flexible water supply line from the shut-off valve to the commode's fill valve inlet. Hand-tighten first, then use a wrench for a snug fit, avoiding overtightening.
5. Test for Leaks: Slowly turn on the water supply. Allow the tank to fill. Flush the commode several times, checking for any leaks around the base, water supply connection, and tank fittings.
6. Seal the Base: Apply a bead of silicone sealant around the base of the commode where it meets the floor. This provides a finished look and prevents water from seeping underneath.

5. Operating Instructions

The Parryware Cute Range Commode operates with a standard flushing mechanism.

• To flush, press down firmly on the flush lever located on the side or top of the tank.
• Hold the lever down briefly to ensure a complete flush.
• The tank will automatically refill after flushing.

6. Maintenance

Proper care and maintenance will ensure the longevity and appearance of your Parryware commode.

• Regular Cleaning: Clean regularly with non-abrasive cleaners. Use a soft cloth or sponge.
• Avoid Harsh Chemicals: Do not use harsh chemicals like acid-based cleaners, abrasive powders, or strong disinfectants, as these can damage the ceramic finish and cause scaling or discoloration.
• Wipe Dry: After cleaning, wipe the commode with a dry cloth where necessary to prevent water spots and maintain shine.
• Check for Leaks: Periodically inspect the water connections and base for any signs of leaks. Address any leaks promptly to prevent water damage.

7. Troubleshooting

Here are some common issues and their potential solutions:

• Commode Leaks at Base: This often indicates an improper seal with the wax ring or floor bolts. Turn off the water supply and re-seat the commode, ensuring the wax ring is correctly positioned and bolts are tightened evenly. Professional assistance may be required.
• Tank Not Filling or Filling Slowly: Check if the water supply valve is fully open. Inspect the fill valve inside the tank for obstructions or damage.
• Weak or Incomplete Flush: Ensure the water level in the tank is at the recommended mark. Check the flapper or flush valve for proper sealing and operation. A partial blockage in the trap or drain line could also be a cause.
• Continuous Running Water: This usually indicates a faulty flapper valve that isn't sealing properly, or the fill valve is set too high. Adjust the water level or replace the flapper/fill valve as needed.
• Blockage: Use a plunger to clear minor clogs. For stubborn blockages, a toilet auger (snake) may be necessary. Avoid using harsh chemical drain cleaners as they can damage plumbing.

If these steps do not resolve the issue, contact a qualified plumber.

8. Specifications

9. Warranty Information

Parryware provides the following warranty for this product:

• Ceramic: 10 years
• Fixtures and other accessories: 2 years

Terms and Conditions Apply. Please refer to your purchase documentation or contact Parryware customer support for full warranty details.

10. Customer Support

For further assistance, technical support, or warranty claims, please contact Parryware customer service. Keep your model number (C896046) and proof of purchase readily available when contacting support.

Note: No official product videos were available from the seller for embedding in this manual.
