1. Important Safety Instructions
Please read and understand all instructions before using this product. Failure to follow these instructions may result in electric shock, fire, or serious injury.
- Indoor and Outdoor Use: This product is suitable for both indoor and outdoor applications. Ensure the plug and controller are protected from direct water exposure when used outdoors.
- Power Source: Use only with a 29V low voltage UL certified power adapter. Do not connect to a different voltage supply.
- Avoid Damage: Do not damage the insulation of the wire or the LED bulbs. Do not hang objects from the string lights.
- Installation: Ensure the lights are securely installed to prevent them from falling. Do not install near heat sources or flammable materials.
- Connection: These lights are connectable. Do not exceed the maximum recommended number of connected sets (up to 2 sets for this model) to avoid overloading.
- Maintenance: Unplug the lights from the power source before any maintenance or cleaning.
- Children and Pets: Keep out of reach of children and pets to prevent entanglement or accidental ingestion of small parts.
2. Product Overview
The Vivideal 500 LED 165FT Warm White String Lights are designed for versatile decoration, offering multiple lighting modes and a convenient timer function. They are suitable for various indoor and outdoor settings.
Key Features:
- Length: 165 feet (50 meters) of LED string light, with an additional 10 feet (3 meters) lead wire.
- LED Count: 500 warm white LED bulbs.
- Lighting Modes: 8 distinct lighting modes for various ambiance settings.
- Timer Function: Built-in 6 hours ON / 18 hours OFF timer.
- Memory Function: Retains the last selected lighting mode after power off.
- Waterproof Rating: IP44 rated for outdoor use, resistant to splashes and rain.
- Safety: UL certified 29V low voltage plug.
- Connectable: Can connect up to 2 sets of these lights.
Package Contents:
- 1 x Vivideal 500 LED 165FT Warm White String Lights
- 1 x UL Certified Power Adapter with Controller Button

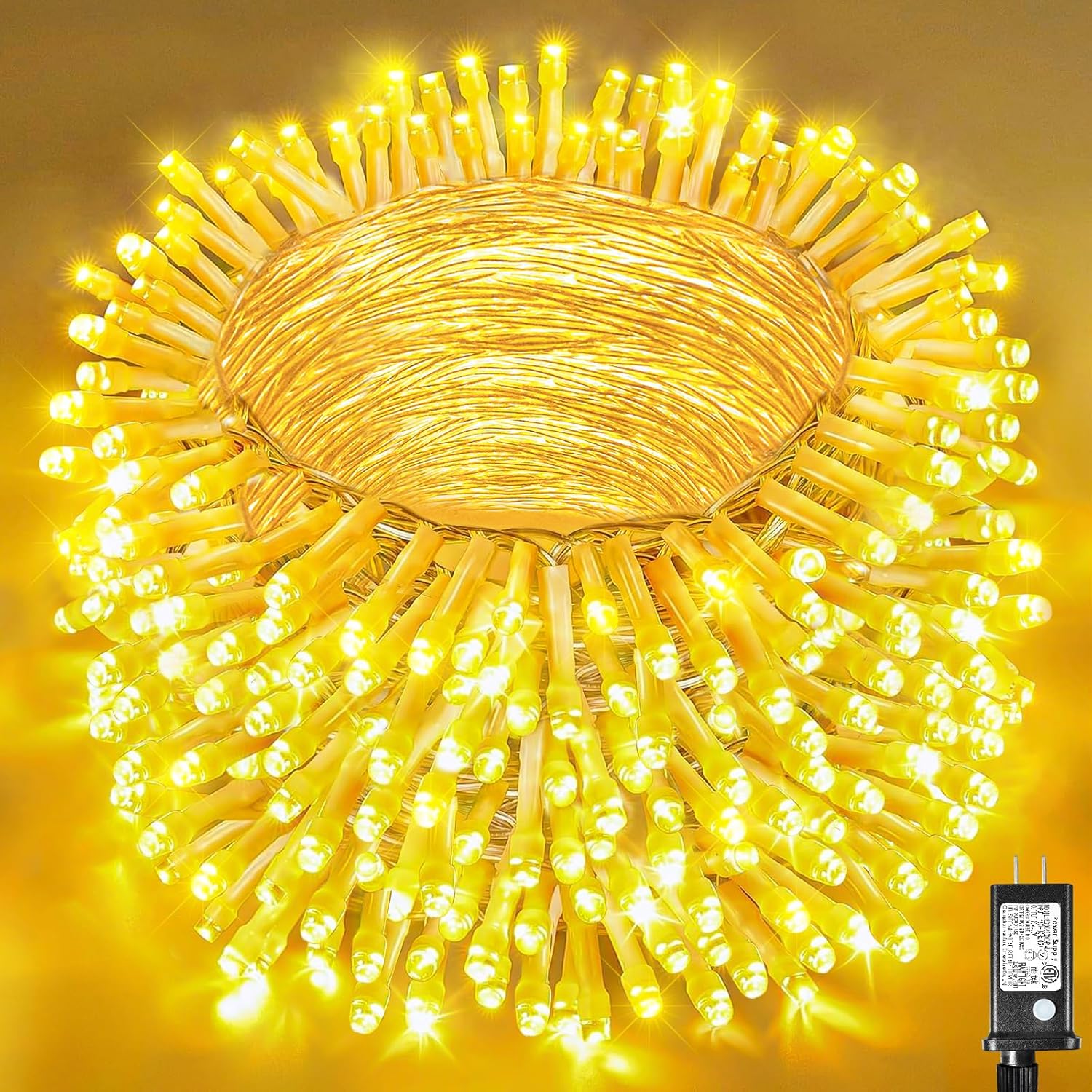

Image: The Vivideal 500 LED Warm White String Lights, coiled, with the power adapter visible.
3. Setup Instructions
- Unpack: Carefully remove the string lights and power adapter from the packaging.
- Inspect: Check the lights and wiring for any signs of damage. Do not use if any damage is found.
- Placement: Determine the desired location for your lights. Ensure the power outlet is within reach of the lead wire.
- Installation: Hang or drape the string lights as desired. Use appropriate fasteners (not included) to secure them, especially for outdoor installations or in windy conditions. Avoid pulling or twisting the wires excessively.
- Connecting Multiple Sets (Optional): If connecting multiple sets, align the male and female connectors at the end of each string and push them firmly together. Ensure the connection is secure and sealed if used outdoors. Do not connect more than two sets end-to-end.
- Power Connection: Plug the power adapter into a standard electrical outlet.
Image: A diagram illustrating the connectable feature of the string lights, showing the extension cord, LED spacing, and total length.
4. Operating Instructions
Powering On/Off:
Once plugged into a power outlet, the lights will illuminate in the last selected mode due to the memory function. To turn off the lights, simply unplug the power adapter from the outlet.
Changing Lighting Modes:
The power adapter features a control button. Press this button repeatedly to cycle through the 8 available lighting modes:
- Combination
- In Waves
- Sequential
- Slo-glo
- Chasing/Flash
- Slow Fade
- Twinkle/Flash
- Steady On
Image: An illustration detailing the 8 different lighting modes and indicating the location of the control button on the power plug.
Timer Function:
To activate the timer function:
- Press and hold the button on the power adapter for 3 seconds.
- A green indicator light on the adapter will illuminate, confirming the timer is active.
- Once activated, the lights will automatically turn on for 6 hours and then turn off for 18 hours, repeating this cycle daily.
To deactivate the timer, press and hold the button again for 3 seconds until the green light turns off.
Image: A visual representation of the timer function, showing the lights operating for 6 hours and then off for 18 hours.
5. Maintenance
- Cleaning: Ensure the lights are unplugged before cleaning. Wipe gently with a soft, dry cloth. Do not use harsh chemicals or abrasive cleaners.
- Storage: When not in use, carefully coil the string lights to prevent tangling. Store them in a cool, dry place, away from direct sunlight and extreme temperatures.
- Inspection: Periodically inspect the lights, wires, and plug for any signs of wear or damage. Replace the product if any damage is detected.
6. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Lights do not turn on. | No power to the outlet. Plug not securely connected. Timer function is active and lights are in 'off' cycle. Damaged power adapter or string. | Check the power outlet with another device. Ensure the plug is fully inserted into the outlet. Check the green indicator light on the adapter. If on, wait for the 'on' cycle or deactivate the timer. Inspect for damage. If damaged, discontinue use and contact support. |
| Lights flicker or some bulbs are out. | Loose connection. Damaged wire or bulb. | Check all connections, especially if multiple sets are linked. Gently inspect the wire for breaks. If individual bulbs are out, it may be normal wear or minor damage; the rest of the string should function. If large sections are out or flickering persists, contact support. |
| Timer function not working as expected. | Timer not activated correctly. Power interruption. | Ensure the green indicator light on the adapter is on. If power was interrupted, the timer may reset; reactivate it by pressing and holding the button for 3 seconds. |
7. Specifications
- Model: BG-CL3M3-306L01
- Brand: Vivideal
- Light Source: LED
- LED Quantity: 500
- Light Color: Warm White
- Total Length: 175 ft (53m) (165ft LED string + 10ft lead wire)
- Power Source: Corded Electric
- Voltage: 29V (Low Voltage)
- Wattage: 6 Watts
- Water Resistance: IP44 (Waterproof)
- Material: Copper, Plastic
- Special Features: 8 Lighting Modes, Timer Function (6H On/18H Off), Memory Function, Connectable (up to 2 sets)
- Indoor/Outdoor Usage: Both
- Manufacturer: Linhai Baoguang Lighting Co.,Ltd
- Date First Available: September 4, 2023
8. Warranty and Support
Vivideal provides a 12-month after-sales service for this product. If you encounter any issues or have questions regarding your Vivideal 500 LED 165FT Warm White String Lights, please do not hesitate to contact our customer service team.
We offer 24-hour online customer service to assist you. Please refer to your purchase documentation or the Vivideal brand store on Amazon for contact details.
