Generic 50 Amp 125/250V NEMA 14-50R Flush Mount Electrical Outlet Instruction Manual

Introduction

This instruction manual provides essential information for the safe and proper installation, operation, and maintenance of the Generic 50 Amp 125/250V NEMA 14-50R Flush Mount Electrical Outlet. Please read this manual thoroughly before installation and retain it for future reference.

Important Safety Information

WARNING: Risk of electric shock or fire. Installation must be performed by a qualified electrician in accordance with all national and local electrical codes.

• Always disconnect power at the circuit breaker or fuse box before installing or servicing the outlet.
• Verify that the power is off using a voltage tester before proceeding.
• Ensure all wiring connections are secure and properly insulated.
• Do not exceed the specified electrical ratings of the outlet.
• This outlet is designed for indoor use unless installed in an outdoor-rated enclosure with a suitable cover.

Product Overview

The Generic NEMA 14-50R Flush Mount Electrical Outlet is a durable receptacle designed to provide 50 Amp, 125/250 Volt power access. It is suitable for use with ranges, dryers, and electric vehicle (EV) chargers. This is a 3-pole, 4-wire straight-blade receptacle.

Key Features:

• UL Listed for safety and quality.
• NEMA 14-50R configuration.
• Compatible with 30 AMP, 40 AMP, and 50 AMP applications.
• Constructed from quality materials for long-term reliability.
• Matte finish.

Figure 1: Front view of the NEMA 14-50R flush mount electrical outlet. This image shows the face of the black outlet with its four slots and central screw hole, mounted on a metal plate with multiple screw holes for installation.

Setup and Installation

Proper installation is crucial for safety and performance. If you are not familiar with electrical wiring, consult a qualified electrician.

Tools and Materials Required (Not Included):

• Screwdrivers (Phillips and flathead)
• Wire strippers
• Voltage tester
• Electrical tape
• Electrical box (appropriate for flush mounting)
• Wall plate (if not included with your specific purchase)

Installation Steps:

1. Disconnect Power: Locate the circuit breaker or fuse that controls the power to the installation area. Turn off the power completely. Use a voltage tester to confirm that the power is off before touching any wires.
2. Prepare Wiring: Ensure the electrical box is properly installed and secured. Pull the electrical wires through the box, leaving enough length to work with. Strip approximately 3/4 inch of insulation from the ends of each wire.
3. Identify Wires and Terminals: The NEMA 14-50R outlet has four terminals:
   • X and Y: Hot (Line 1 and Line 2) terminals, typically brass or black screws.
   • W: Neutral terminal, typically silver or white screw.
   • G: Ground terminal, typically green screw.

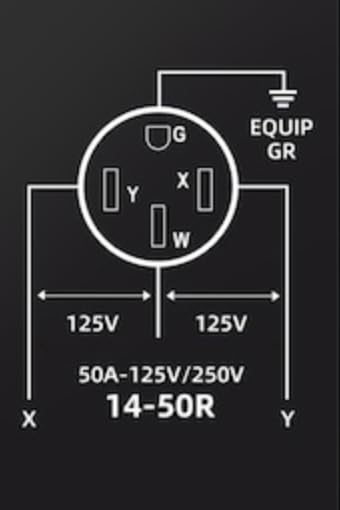

   Figure 2: NEMA 14-50R wiring diagram. This diagram illustrates the terminal configuration (G, X, Y, W) and voltage distribution (125V between X and W, and Y and W, and 250V between X and Y), along with the equipment ground connection.
4. Connect Wires:
   • Connect the green or bare copper ground wire to the green (G) terminal.
   • Connect the white neutral wire to the silver (W) terminal.
   • Connect the black hot wire (Line 1) to one of the brass (X or Y) terminals.
   • Connect the red hot wire (Line 2) to the remaining brass (X or Y) terminal.
   Ensure all wire connections are tight and secure.


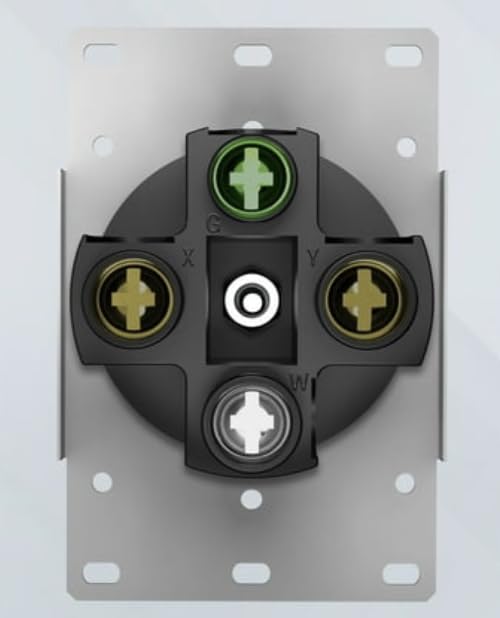

   Figure 3: Back view of the NEMA 14-50R outlet. This image displays the rear of the outlet, showing the four color-coded terminal screws (green for ground, silver for neutral, and two brass for hot lines) ready for wire connections.

5. Mount the Outlet: Carefully push the wired outlet into the electrical box. Secure the outlet to the box using the mounting screws provided.
6. Install Wall Plate: Attach the decorative wall plate over the outlet and secure it with the provided screws.
7. Restore Power: Once installation is complete and all connections are secure, turn the power back on at the circuit breaker or fuse box.
8. Test: Plug in a compatible appliance or EV charger to verify proper operation.

Operating Instructions

This NEMA 14-50R outlet is designed for straightforward operation:

1. Ensure the appliance or device you intend to connect is compatible with a NEMA 14-50R receptacle and operates at 125/250V, 50 Amp (or lower, such as 30A or 40A).
2. Align the prongs of your appliance's plug with the corresponding slots on the outlet.
3. Firmly insert the plug into the outlet until it is fully seated.
4. To disconnect, grasp the plug firmly and pull it straight out from the outlet. Do not pull by the cord.

Maintenance

The NEMA 14-50R outlet requires minimal maintenance:

• Periodically inspect the outlet for any signs of damage, such as cracks, discoloration, or loose connections.
• Ensure the wall plate is securely fastened.
• Clean the surface of the outlet with a dry, soft cloth. Do not use liquid cleaners or abrasive materials.
• If any damage is observed, disconnect power and have the outlet inspected and replaced by a qualified electrician.

Troubleshooting

If you experience issues with your NEMA 14-50R outlet, consider the following:

If troubleshooting steps do not resolve the issue, contact a qualified electrician for assistance.

Specifications

Warranty and Support

Specific warranty information is not provided in the product details. For warranty inquiries or technical support, please contact the retailer or manufacturer directly. Always refer to local electrical codes and consult a qualified electrician for installation or service.
