Aerofit AF 8700 Leg and Foot Massager User Manual

1. Introduction

Thank you for choosing the Aerofit AF 8700 Leg and Foot Massager. This device is designed to provide a relaxing and revitalizing massage experience for your feet, ankles, calves, and even thighs. Utilizing air pressure, kneading, and vibratory actions, along with a heating function, it aims to relieve muscle tension and improve blood circulation. Please read this manual thoroughly before use to ensure proper operation, maintenance, and safety.

2. Important Safety Instructions

To reduce the risk of electric shock, burns, fire, or injury, always follow these basic safety precautions:

• Read all instructions before using this appliance.
• Always unplug the appliance from the electrical outlet immediately after using and before cleaning.
• Do not use while bathing or in a shower.
• Do not place or store appliance where it can fall or be pulled into a tub or sink.
• Do not place in or drop into water or other liquid.
• Never use pins or other metallic fasteners with this appliance.
• Close supervision is necessary when this appliance is used by, on, or near children, invalids, or disabled persons.
• Use this appliance only for its intended use as described in this manual. Do not use attachments not recommended by the manufacturer.
• Never operate this appliance if it has a damaged cord or plug, if it is not working properly, if it has been dropped or damaged, or dropped into water. Return the appliance to a service center for examination and repair.
• Keep the cord away from heated surfaces.
• Never use while sleeping or drowsy.
• Never drop or insert any object into any opening.
• Do not operate where aerosol (spray) products are being used or where oxygen is being administered.
• Do not use on bare skin.
• Do not use on infants, invalids, or sleeping or unconscious persons.
• Do not use on insensitive skin or on a person with poor blood circulation.
• Do not crush. Avoid sharp folds.
• This appliance is for household use only.

3. Product Overview

The Aerofit AF 8700 is designed for comprehensive leg and foot massage. It features a robust construction with intuitive controls.

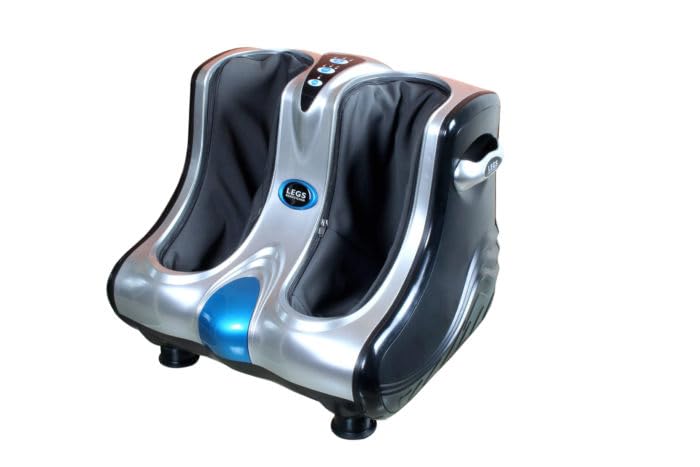

Figure 1: Aerofit AF 8700 Leg and Foot Massager. This image displays the massager from an angled front view, showing the two leg/foot compartments, the control panel at the top, and the silver and black casing with a blue accent.

Key Features:

• Multi-Directional Massage: Capable of massaging feet, calves, knees, and thighs.
• Adjustable Angle: The massager's angle can be adjusted from 0 to 90 degrees for optimal comfort.
• Multiple Settings: Offers 6 massage strengths, 6 massage processes, and 12 combinations.
• Heating Function: Integrated far infrared heating to enhance circulation.
• Kneading and Vibratory Action: Combines these actions for a comprehensive massage.
• Rolling Massage: Special rolling massage feature for the soles of the feet.
• Auto Programs: Includes 3 auto programs and 3 personal preference programs.
• LED Display: For easy operation and program selection.
• Auto Shut-off: Automatically turns off after 15 minutes of continuous use.
• Removable Fabric Covers: Two removable fabric covers for easy cleaning.

4. Setup

1. Unpacking: Carefully remove the massager from its packaging. Retain packaging for future storage or transport.
2. Placement: Place the massager on a flat, stable surface. Ensure there is enough space around the unit for comfortable use and proper ventilation.
3. Power Connection: Ensure the power switch is in the OFF position. Plug the power cord into a standard AC 220-240V electrical outlet. This appliance is not cordless.
4. Adjust Angle: Adjust the massager's angle (0 to 90 degrees) to suit your preferred massage position for feet, calves, or thighs.

5. Operating Instructions

Before operating, ensure the massager is properly set up and you are seated comfortably.

1. Power On: Press the Power button on the control panel to turn on the massager. The LED display will illuminate.
2. Select Program: The massager offers 3 auto programs and 3 personal preference programs. Use the 'Program' button to cycle through the available massage processes.
3. Adjust Strength: Use the 'Strength' button to select from 6 different massage intensity levels. Start with a lower strength and gradually increase to your comfort level.
4. Activate Heat Function: Press the 'Heat' button to activate the far infrared heating function. Press again to turn it off.
5. Rolling Massage: The special rolling massage for the sole is integrated into certain programs.
6. Vibration: The massager provides two vibrations on each side, which are part of the massage processes.
7. Auto Shut-off: The massager will automatically turn off after 15 minutes of continuous operation. You can restart it if desired.
8. Power Off: Press the Power button again to turn off the massager when finished. Unplug the unit from the power outlet.

Note: The combination of 6 massage strengths and 6 massage processes results in 12 unique massage combinations. Experiment to find your ideal massage effect.

6. Maintenance

Cleaning:

• Always unplug the massager before cleaning.
• Wipe the exterior of the massager with a soft, damp cloth. Do not use abrasive cleaners, solvents, or harsh detergents.
• The two fabric covers are removable for easy cleaning. Gently remove them and hand wash with mild soap and water, then air dry completely before reattaching.
• Do not immerse the massager in water or any other liquid.

Storage:

• Store the massager in a cool, dry place when not in use.
• Avoid placing heavy objects on top of the massager.
• Do not wrap the power cord tightly around the appliance.

7. Troubleshooting

If the problem persists after attempting these solutions, please contact Aerofit customer support.

8. Specifications

• Model: AF 8700
• Manufacturer: Aerofit
• Power: 80W
• Voltage: AC 220-240V
• Motors: 4
• Product Dimensions (LxWxH): 45.7 x 58.4 x 73.7 Centimeters
• Special Features: Heat function, Multi-angle adjustment, Rolling massage
• Auto Shut-off: 15 minutes
• Color: Grey

9. Warranty and Support

The Aerofit AF 8700 Leg and Foot Massager comes with a 1-year brand warranty from the date of purchase. This warranty covers manufacturing defects under normal use.

For warranty claims, technical support, or any inquiries regarding your product, please contact Aerofit customer service. Keep your purchase receipt as proof of purchase.
