Effeuno N3 Electric Pizza Oven User Manual

1. Introduction

Welcome to the Effeuno N3 Electric Pizza Oven user manual. This guide provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your new pizza oven. The Effeuno N3 is designed to achieve professional-grade pizza results, particularly authentic Neapolitan pizza, in a home setting. Its robust construction and high-temperature capabilities make it suitable for various baking tasks beyond pizza, including bread and pastries.

2. Safety Instructions

Please read all safety instructions carefully before using the appliance. Failure to follow these instructions may result in electric shock, fire, or serious injury.

• Electrical Safety: Ensure the oven is connected to a grounded electrical outlet with the correct voltage (220V / 230V ~50-60Hz). Do not use extension cords unless absolutely necessary and ensure they are rated for the oven's power (2100W).
• High Temperatures: The oven reaches temperatures up to 500°C (932°F). Surfaces will become extremely hot during operation. Use oven mitts or heat-resistant gloves when handling the oven or its contents.
• Oven Door: The oven door features three layers of glass (tempered outer, middle, and ceramic inner) for insulation and safety. However, the outer glass may still be hot. Avoid direct contact during operation.
• Ventilation: Operate the oven in a well-ventilated area. Do not block any ventilation openings on the appliance.
• Children and Pets: Keep children and pets away from the oven during operation and while it is cooling down.
• Placement: Place the oven on a stable, heat-resistant surface, away from flammable materials. Ensure adequate clearance around the oven for air circulation.
• Cleaning: Always unplug the oven and allow it to cool completely before cleaning. Do not immerse the oven in water or any other liquid.

3. Product Overview

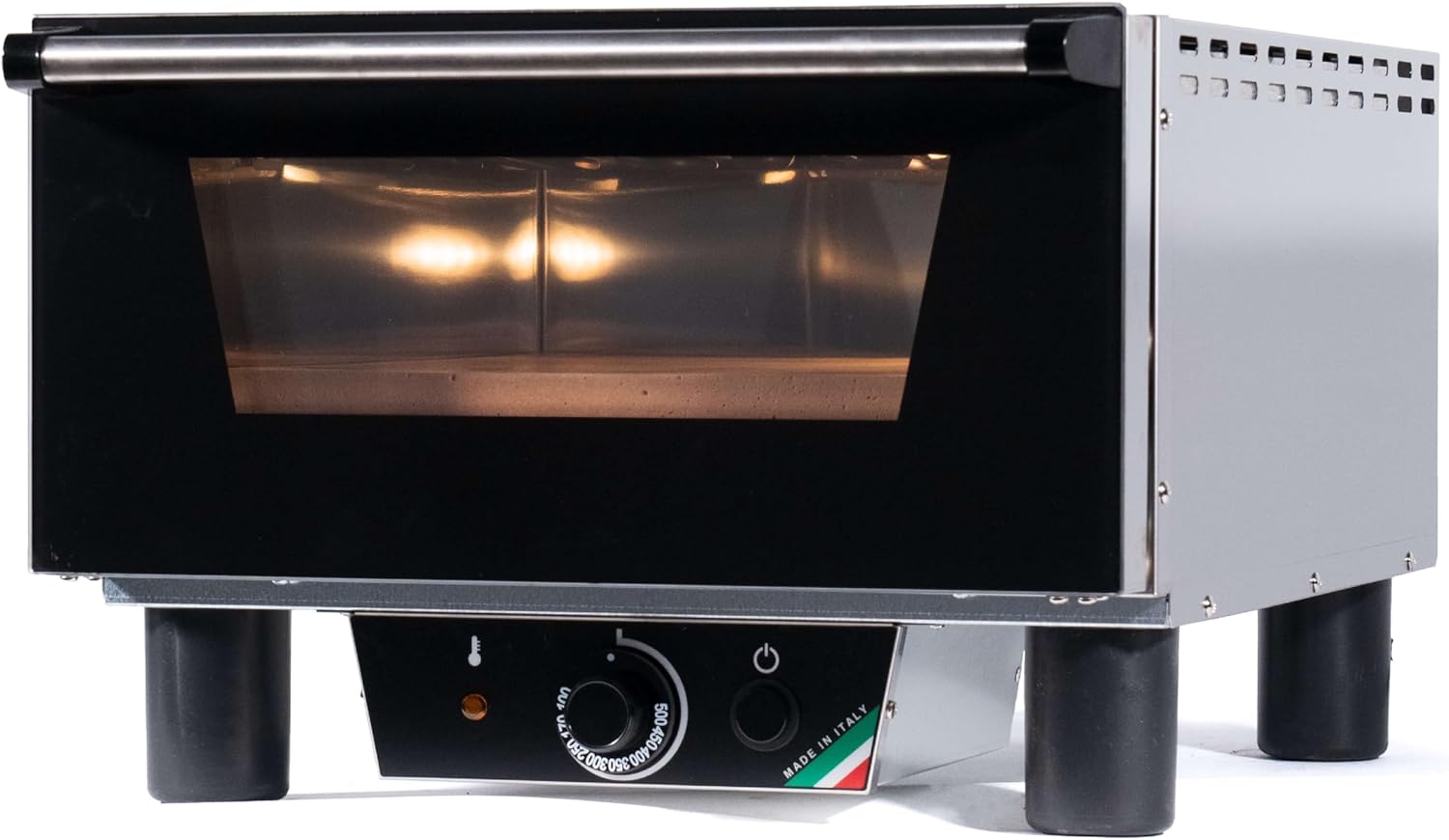

The Effeuno N3 Electric Pizza Oven is a compact yet powerful appliance designed for optimal baking performance. Key components include:

• Biscotto Stone: A refractory cooking surface specifically designed for high-temperature baking, ideal for Neapolitan pizza.
• Heating Elements: Upper and lower heating elements provide precise and powerful heat distribution.
• Control Panel: Features a temperature dial and power button. Some models may offer separate control for upper and lower elements.
• Triple-Layered Glass Door: Ensures heat retention and user safety.
• Internal Lighting: A room lighting lamp allows for easy monitoring of the cooking process.

4. Setup

Follow these steps to set up your Effeuno N3 Electric Pizza Oven:

1. Unboxing: Carefully remove the oven from its packaging. Retain packaging materials for future transport or storage.
2. Placement: Place the oven on a flat, stable, and heat-resistant surface. Ensure there is at least 10 cm (4 inches) of clearance on all sides and above the oven for proper ventilation. Do not place it near water sources or flammable materials.
3. Initial Cleaning: Before first use, wipe the exterior with a damp cloth. The Biscotto stone should not be washed with water; simply brush off any loose debris.
4. First Use / Burn-in: For the first use, operate the oven empty at maximum temperature (500°C) for approximately 30-45 minutes. This process helps to burn off any manufacturing residues and odors. Ensure the area is well-ventilated during this initial burn-in.
5. Power Connection: Plug the oven into a suitable grounded electrical outlet.

5. Operating Instructions

Operating your Effeuno N3 for optimal results:

1. Power On: Turn the main power switch or button to the 'ON' position.
2. Set Temperature: Rotate the temperature dial to your desired setting. For Neapolitan pizza, set it to 500°C.
3. Preheating: Allow the oven to preheat thoroughly. The Effeuno N3 reaches 500°C in approximately 35 minutes. A preheating indicator light may illuminate and turn off when the desired temperature is reached.
4. Loading Food: Carefully open the oven door. Using a pizza peel, slide your pizza or other food onto the center of the Biscotto stone. Close the door immediately to retain heat.
5. Cooking Time: Cooking times will vary based on the food type and desired doneness. For Neapolitan pizza, cooking can be as fast as 90 seconds. Monitor through the glass door or by briefly opening the door.
6. Adjusting Elements (if applicable): If your model allows, you can adjust the top and bottom heating elements independently to fine-tune cooking and browning. Refer to the control panel markings for specific adjustments.
7. Internal Light: Use the internal room lighting lamp to observe the cooking process without opening the door, preserving heat.
8. Unloading Food: Once cooked, carefully remove the food using a pizza peel or appropriate heat-resistant utensils.
9. Power Off: After use, turn the temperature dial to 'OFF' or the lowest setting, and then turn off the main power switch. Unplug the oven from the wall socket when not in use.

6. Maintenance

Proper maintenance ensures the longevity and performance of your oven:

• Cool Down: Always allow the oven to cool completely before cleaning or moving.
• Exterior Cleaning: Wipe the exterior surfaces with a soft, damp cloth. For stubborn stains, a mild detergent can be used, followed by wiping with a clean, damp cloth. Do not use abrasive cleaners or scouring pads.
• Interior Cleaning: For the interior, once cooled, use a dry brush or cloth to remove any food debris. Do not use water or liquid cleaners inside the oven chamber.
• Biscotto Stone Care: The Biscotto stone is porous and should not be washed with water or soap. After use, once cooled, scrape off any stuck-on food with a plastic scraper or stiff brush. Any discoloration or charring on the stone is normal and will not affect performance.
• Storage: Store the oven in a dry, clean place when not in use.

7. Troubleshooting

If you encounter issues with your Effeuno N3 oven, refer to the following common problems and solutions:

• Oven Not Heating:
  • Ensure the oven is properly plugged into a working electrical outlet.
  • Check if the power switch is in the 'ON' position.
  • Verify that the temperature dial is set to a desired temperature.
• Uneven Cooking/Browning:
  • Ensure the oven has fully preheated to the set temperature.
  • If your model has separate element controls, adjust them to balance top and bottom heat.
  • Ensure the pizza or food is centered on the Biscotto stone.
• Excessive Smoke/Odor:
  • During initial burn-in, some smoke/odor is normal. Ensure good ventilation.
  • If occurring during regular use, check for food spills or residues inside the oven and clean thoroughly once cooled.

For issues not covered here, or if problems persist, please contact customer support.

8. Specifications

Detailed specifications for the Effeuno N3 Electric Pizza Oven:

9. Warranty and Support

For warranty information, product support, or service inquiries, please contact Black Rock Grill, the seller of your Effeuno N3 Electric Pizza Oven. Please have your purchase details and model number (N3) ready when contacting support.

Contact information for Black Rock Grill can typically be found on your purchase receipt or on their official website.
