VASAGLE LBC072G49 5-Tier Corner Wall Shelf Instruction Manual

1. Introduction

Thank you for choosing the VASAGLE LBC072G49 5-Tier Corner Wall Shelf. This elegant and functional floating shelf is designed to optimize corner spaces in your home, providing additional storage and display areas. Its unique zigzag design and dove grey finish complement various interior styles. This manual provides essential information for safe assembly, proper installation, and effective maintenance of your new shelf.

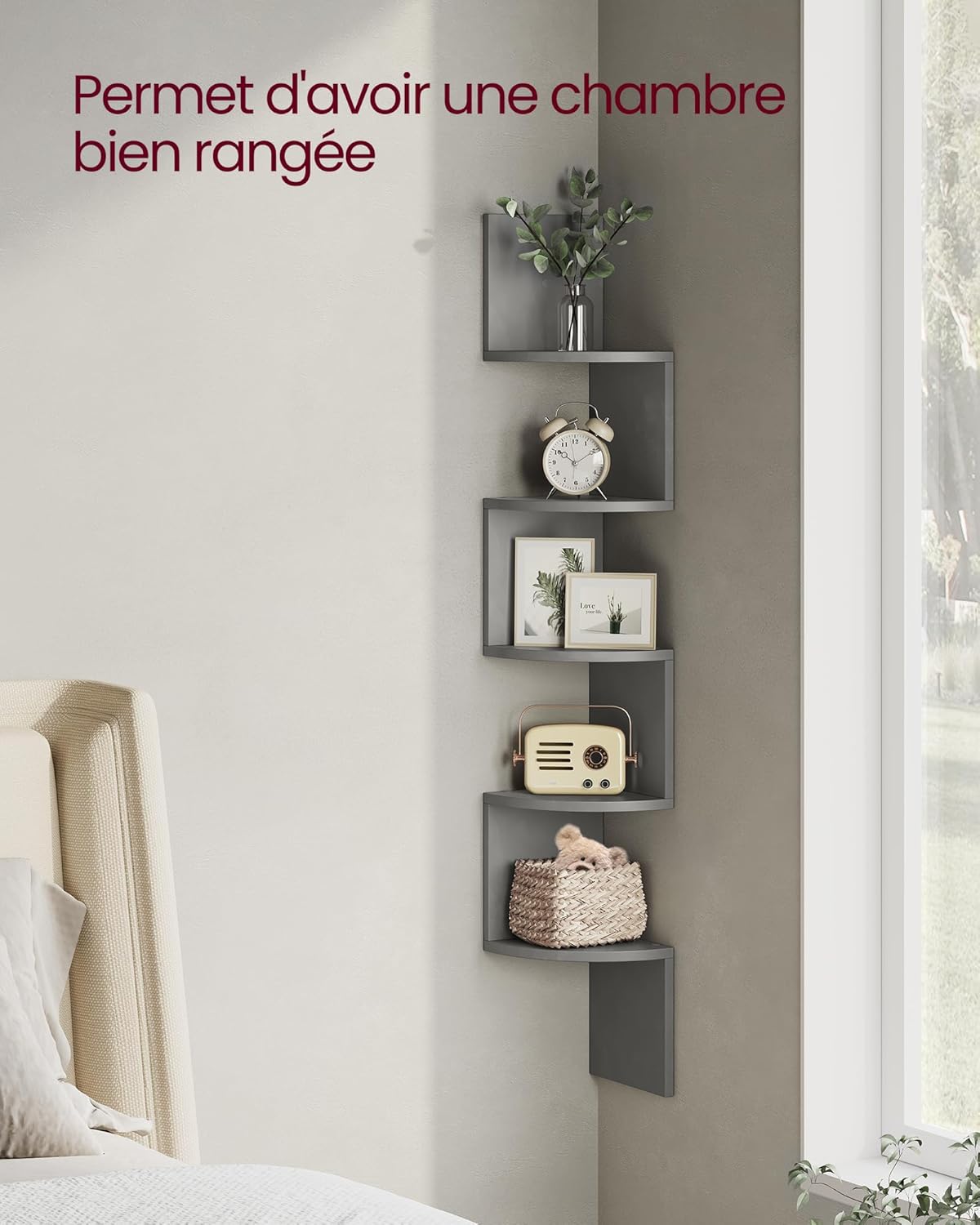

Image 1.1: The VASAGLE LBC072G49 5-Tier Corner Wall Shelf in a living room setting.

2. Safety Information

Please read and understand all safety instructions before assembly and use. Failure to follow these instructions may result in injury or damage to the product.

• Wall Mounting: This shelf is designed for wall mounting. Ensure the wall material is suitable for drilling and can support the weight of the shelf and its contents. Use appropriate wall anchors for your specific wall type (e.g., drywall, concrete, brick).
• Weight Capacity: Each shelf tier has a maximum weight capacity of 6 kg (13.2 lbs). Do not exceed this limit to prevent structural failure and potential injury. Distribute weight evenly across the shelves.
• Stability: Regularly check the wall mounting for tightness and stability. Re-tighten screws if necessary.
• Children and Pets: Keep children and pets away from the assembly area. Small parts can be a choking hazard.
• Tools: Use only the recommended tools for assembly.

Image 2.1: Each shelf tier supports a maximum of 6 kg.

3. Package Contents

Before beginning assembly, verify that all parts listed below are present and undamaged. If any parts are missing or damaged, please contact customer support.

• Shelf Boards:
  • Part A: Top Shelf Board (1x)
  • Part B: Intermediate Shelf Boards (4x)
  • Part C: Vertical Support Boards (2x)
  • Part D: Vertical Support Boards (2x)
  • Part E: Bottom Shelf Board (1x)
• Hardware Kit: Includes screws, wall anchors, and other necessary fasteners for assembly and wall mounting.
• Instruction Manual: This document.

Note: The exact number and type of fasteners may vary slightly. Refer to the included assembly diagram for precise details.

4. Assembly Instructions

Assembly is designed to be straightforward with numbered parts and clear instructions. It is recommended to assemble the shelf on a soft, clean surface to prevent scratches.

Tools Required (Not Included):

• Phillips Head Screwdriver
• Drill (for wall mounting)
• Level
• Pencil
• Measuring Tape

Step-by-Step Assembly:

1. Prepare Components: Unpack all components and lay them out. Identify each part using the labels (A, B, C, D, E) and the hardware.
2. Assemble the First Section: Attach a vertical support board (C or D) to an intermediate shelf board (B) using the provided screws. Ensure the curved edges align correctly.
3. Continue Building: Repeat the process, connecting the remaining intermediate shelf boards (B) and vertical support boards (C and D) in the zigzag pattern as shown in the diagram.
4. Attach Top and Bottom Boards: Secure the top shelf board (A) and bottom shelf board (E) to the assembled structure.
5. Wall Mounting Preparation: Once the shelf structure is complete, choose the desired location on your wall. Use a level and pencil to mark the drilling points for the wall anchors.
6. Drill and Install Anchors: Drill holes at the marked points. Insert the appropriate wall anchors for your wall type.
7. Mount the Shelf: Carefully align the shelf with the installed wall anchors and secure it firmly to the wall using the provided screws. Ensure it is level and stable before placing any items on it.

Image 4.1: Assembly diagram with numbered parts and illustrated steps.

5. Usage Guidelines

The VASAGLE LBC072G49 corner shelf is versatile and can be used in various rooms to enhance storage and display.

• Placement: Ideal for living rooms, bedrooms, bathrooms, kitchens, or offices to utilize corner spaces.
• Display Items: Suitable for displaying small plants, books, CDs, decorative items, souvenirs, or toiletries.
• Weight Distribution: Always distribute the weight of items evenly across the shelf tiers. Avoid placing heavy objects on only one side or concentrated in one spot.
• Avoid Overloading: Do not exceed the 6 kg (13.2 lbs) weight limit per shelf tier.

Image 5.1: Example usage in a bedroom for organized display.

6. Maintenance

Proper care will ensure the longevity and appearance of your VASAGLE corner shelf.

• Cleaning: Wipe the surface with a soft, damp cloth. Avoid using harsh chemicals or abrasive cleaners, which can damage the finish.
• Spills: Immediately wipe up any liquid spills to prevent water damage to the engineered wood.
• Scratch Resistance: While the material is designed to be durable, avoid dragging sharp or heavy objects across the surface to prevent scratches.
• Environmental Conditions: Avoid placing the shelf in direct sunlight or near heat sources, as this can cause fading or warping. Maintain a stable room temperature and humidity.

Image 6.1: The shelf surface is easy to clean and designed for durability.

7. Troubleshooting

If you encounter any issues during assembly or use, refer to the following common solutions:

• Shelf is Wobbly:
  • Ensure all screws are tightened securely.
  • Verify that the wall anchors are properly installed and suitable for your wall type.
  • Check if the shelf is mounted on a flat, even wall surface.
• Parts Do Not Align:
  • Double-check the assembly diagram (Image 4.1) to ensure parts are oriented correctly.
  • Loosen screws slightly, adjust alignment, then re-tighten.
• Missing Hardware:
  • Carefully check all packaging materials.
  • Contact customer support for replacement parts.

8. Specifications

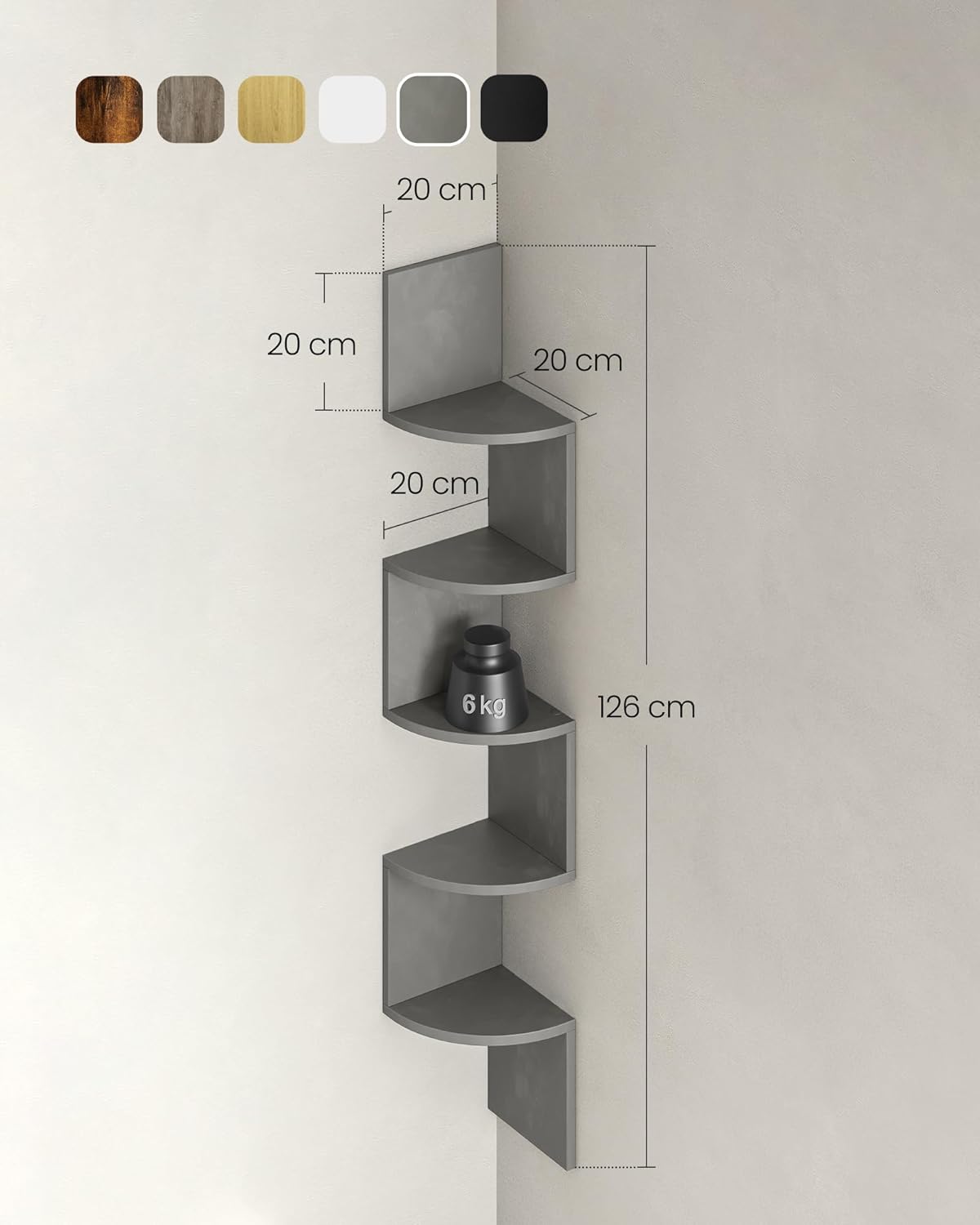

Image 8.1: Product dimensions and weight capacity overview.

9. Warranty and Support

VASAGLE products are designed for quality and durability. While specific warranty details may vary by region and retailer, we are committed to customer satisfaction.

If you have any questions, require assistance with assembly, or need to report missing/damaged parts, please contact the retailer where you purchased the product or visit the official VASAGLE website for customer support information.

For more information about VASAGLE products, visit their brand store: VASAGLE Brand Store
