Retekess TD167F Long Range Pager System User Manual

Introduction

The Retekess TD167F Long Range Pager System is designed to enhance communication and efficiency in various service environments such as restaurants, hotels, and clubs. This system features a robust design with an 800-meter working distance, multiple alert modes, and user-friendly operation to streamline customer service and staff coordination.

The Retekess TD167F pager system includes a central transmitter and 20 coaster pagers, all housed on a sleek charging base.

Package Contents

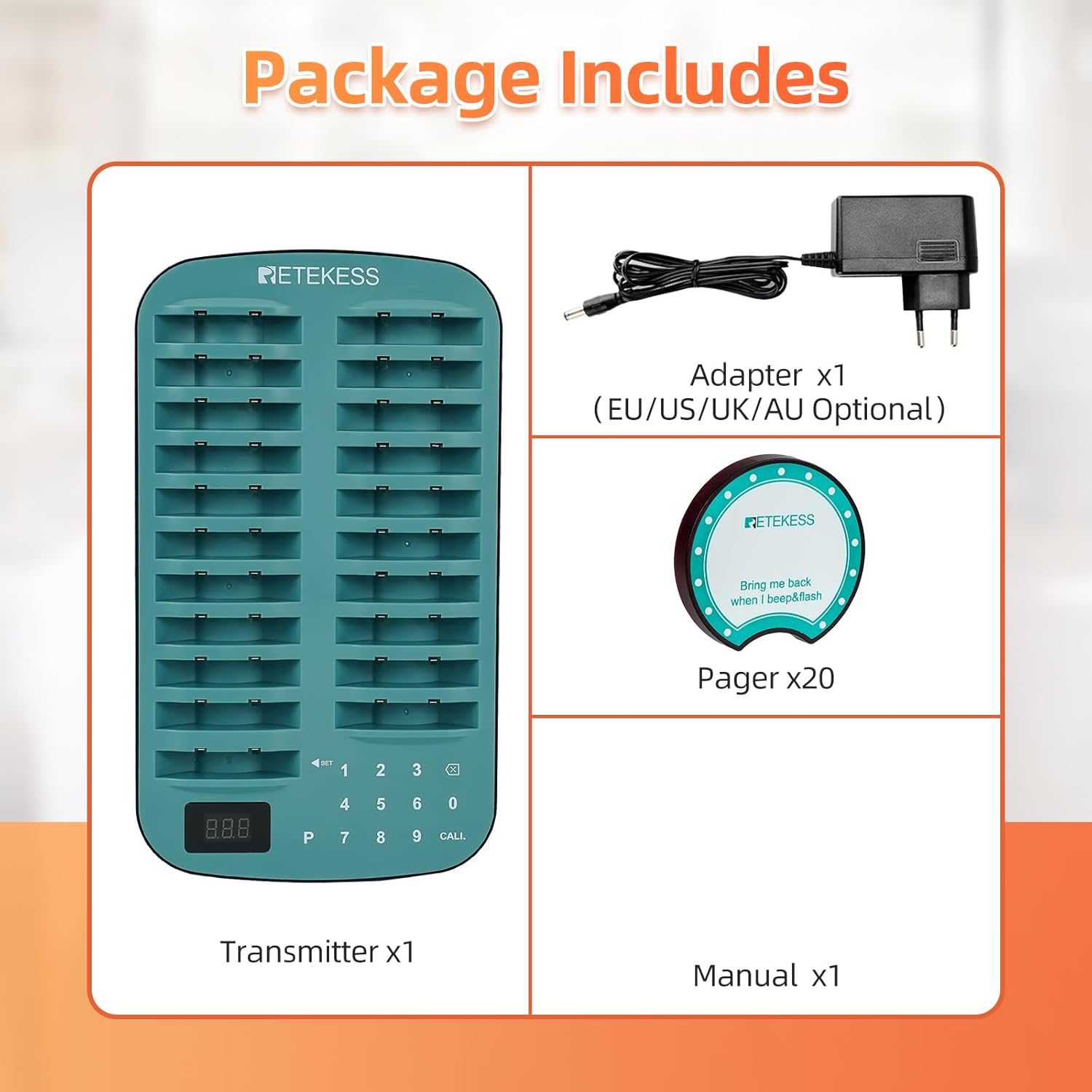

The package typically includes one transmitter, an adapter (EU/US/UK/AU optional), 20 pagers, and a user manual.

Setup

Setting up your Retekess TD167F system is straightforward. Follow these steps to get started:

1. Power On: Connect the charging base to a power outlet using the provided adapter. The system will power on automatically once charged.
2. One-Key Pairing: The system supports one-key pairing for quick and easy setup. Place a pager into the designated pairing slot on the base. The pager will automatically pair with the system.
3. Charging Pagers: Place all pagers onto the charging slots on the base. Ensure they are properly seated to begin charging. The pagers have a built-in 300mAh battery, offering approximately 25 hours of standby time when fully charged.

The dedicated pairing slot simplifies the programming process for each pager.

Operating Instructions

Calling a Pager

To call a specific pager, simply enter the pager number on the transmitter's keypad and press the "CALL" button. The corresponding pager will activate with its set prompt mode.

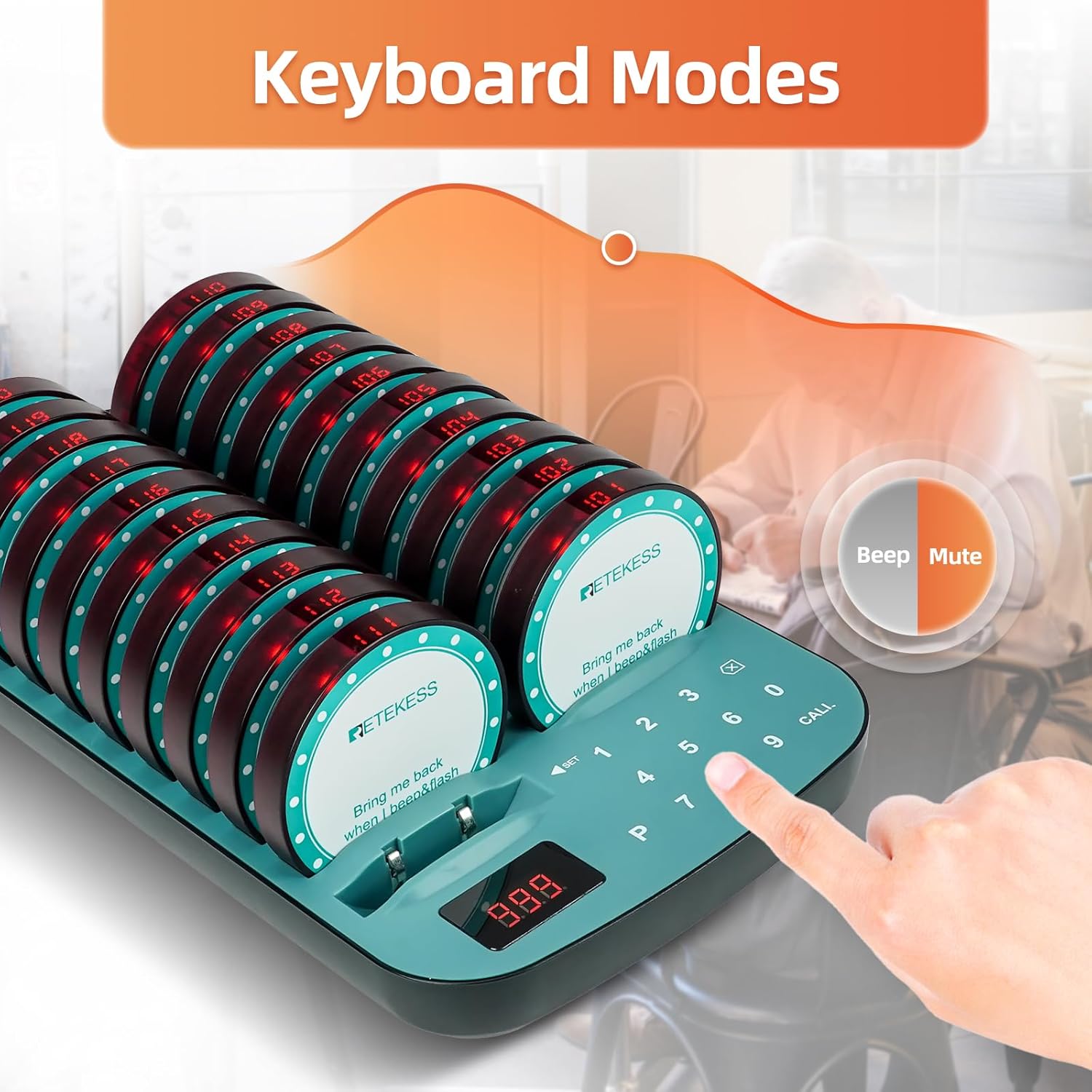

The capacitive touch keypad provides a clear digital display for easy number entry.

Multiple Prompt Modes

The TD167F offers various prompt modes to suit different environments and preferences:

• Buzzer: An audible alert.
• Vibration: A silent tactile alert.
• Flash: A visual light alert.
• Combinations of these modes (e.g., Buzzer + Flash, Buzzer + Vibration, Flash + Vibration, or all three).

Customize the alert type for each pager based on your operational needs.

Adjusting Prompt Duration and Sound

You can adjust the duration of the prompt and enable/disable the sound and light prompts:

1. Set Prompt Duration: Press the "CALL" and "Delete" buttons simultaneously to enter the setting menu. Select F2 and enter a value between 0-250 seconds for the desired prompt duration.
2. Turn On/Off Prompt Sound: In the setting menu, enter 1 to turn on the sound prompt or 0 to turn it off.
3. Turn On/Off Vibration Prompt: In the setting menu, enter 0 to turn off the vibration prompt.
4. Turn On/Off Light Prompt: In the setting menu, select F5 and enter 0 to turn off the light prompt.
5. Turn On/Off Out-of-Range Alarm: In the setting menu, select F7 and enter 1 to turn on the alarm prompt.

The system allows for flexible adjustment of prompt duration up to 250 seconds.

Out of Range Reminder

The system features an out-of-range alarm. If a pager leaves the set working range (up to 800m/2625ft in open air), it will trigger an alarm to notify the user to return. This helps prevent pagers from being lost or customers from missing their calls.

The pager alerts the user if they move beyond the system's operational range.

The system provides a long working distance, ideal for large venues.

One-Key Shutdown

To power off all pagers simultaneously, enter "999" on the transmitter keypad and press the "CALL" button. This will turn off all active pagers.

The one-key shutdown feature allows for convenient power management of all pagers.

Maintenance

To ensure the longevity and optimal performance of your Retekess TD167F pager system, follow these maintenance guidelines:

• Cleaning: Regularly wipe the transmitter and pagers with a soft, dry cloth. For stubborn dirt, use a slightly damp cloth and mild, non-abrasive cleaner. Ensure no liquid enters the devices.
• Charging: Always place pagers back on the charging base when not in use to ensure they are fully charged for the next use. Avoid over-discharging the batteries.
• Storage: Store the system in a cool, dry place away from direct sunlight, extreme temperatures, and high humidity.
• Handling: Handle pagers and the transmitter with care to prevent drops or impacts that could damage internal components.

Troubleshooting

If you encounter issues with your Retekess TD167F pager system, refer to the following common troubleshooting tips:

• Pager not responding:
  • Ensure the pager is fully charged.
  • Verify the pager is within the operating range of the transmitter.
  • Re-pair the pager with the transmitter using the one-key pairing function.
• Short operating range:
  • Check for obstructions (e.g., thick walls, metal structures) that might interfere with the signal.
  • Ensure the transmitter is placed in a central location with minimal interference.
  • Avoid placing the system near other electronic devices that emit strong electromagnetic fields.
• Pagers not charging:
  • Ensure the power adapter is securely connected to the charging base and a working power outlet.
  • Check that the pagers are correctly seated in their charging slots and that the charging contacts are clean.
• No sound/vibration/light from pager:
  • Check the prompt mode settings on the transmitter to ensure the desired alert type is enabled (refer to "Adjusting Prompt Duration and Sound" section).

If issues persist, please contact customer support for further assistance.

Specifications

Warranty and Support

Retekess stands behind the quality of its products. Your TD167F pager system comes with the following warranty and support:

• Warranty: A 1-year warranty is provided for the radio body of the system. Accessories are covered by a 2-month warranty.
• Returns: Enjoy a 30-day no-reason return policy.
• Customer Service: For any questions, technical support, or warranty claims, please contact Retevis Direct, the seller, through your purchase platform.

All products undergo thorough testing, examination, and packaging before shipment to ensure quality.
