Nordic Breeze 5060895031621
Nordic Breeze 5-in-1 Portable Air Conditioner 9,000 BTU
User Manual
Introduction
Welcome to the Nordic Breeze 5-in-1 Portable Air Conditioner user manual. This appliance is designed to provide optimal climate control for your living space, offering cooling, heating, air supply, dehumidification, and purification functionalities. Please read this manual thoroughly before operating the unit to ensure safe and efficient use.

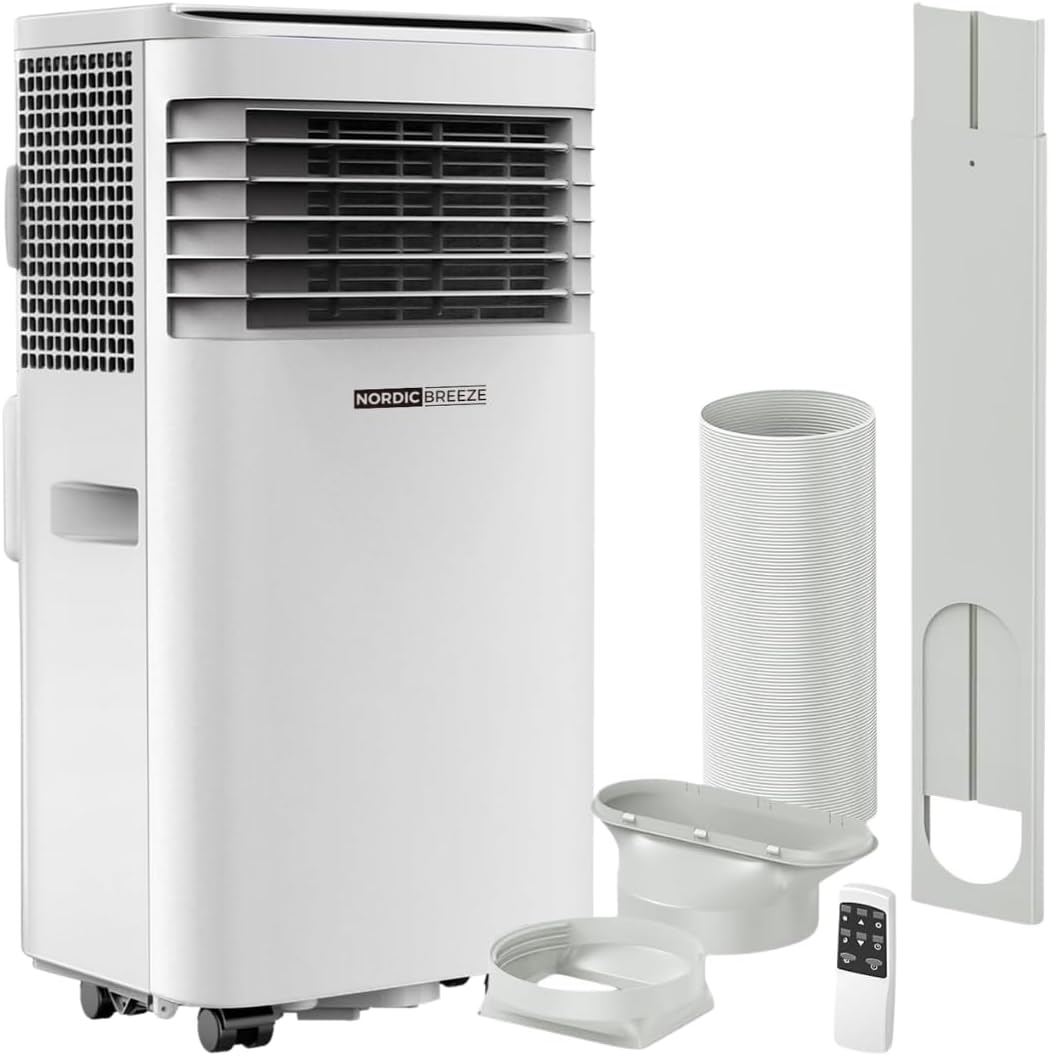

Image: The Nordic Breeze portable air conditioner unit shown with its complete set of accessories, including the exhaust hose, window venting kit, and remote control, ready for setup.
Safety Information
Always observe the following safety precautions to reduce the risk of electric shock, fire, or injury:
- Ensure the unit is placed on a flat, stable surface.
- Do not block air inlets or outlets. Maintain at least 30cm clearance around the unit.
- Use only with a properly grounded electrical outlet.
- Do not operate the unit with a damaged power cord or plug.
- Keep children and pets away from the unit during operation.
- Unplug the unit before cleaning or performing any maintenance.
- Do not use the unit in wet environments or near water.
- This appliance is for indoor use only.
- The unit contains R32 refrigerant. Do not attempt to service the refrigerant circuit yourself. Contact qualified personnel for repairs.
Product Components
Familiarize yourself with the main components of your Nordic Breeze Portable Air Conditioner:
- Main Unit (with control panel and display)
- Exhaust Hose
- Window Venting Kit (adjustable window slider, exhaust hose adapter, window kit adapter)
- Remote Control
- Drain Hose (for dehumidification mode)
- Mesh Air Filter (located at the rear)
Image: A comprehensive view of all included components: the main air conditioner unit, exhaust hose, window kit pieces, remote control, and the printed user manual.
Setup Instructions
Follow these steps for initial setup of your portable air conditioner:
- Unpacking: Carefully remove the unit and all accessories from the packaging. Retain packaging for future storage or transport.
- Positioning: Place the unit on a firm, level surface near a window and a grounded electrical outlet. Ensure there is at least 30cm of clear space around the unit for proper airflow. The unit is equipped with four wheels and carry handles for easy movement.
- Install Exhaust Hose:
- Attach the exhaust hose adapter to one end of the exhaust hose.
- Attach the window kit adapter to the other end of the exhaust hose.
- Insert the exhaust hose adapter into the exhaust outlet on the rear of the main unit.
- Install Window Venting Kit:
- Adjust the window slider kit to fit your window opening. Secure it in place.
- Insert the window kit adapter (with the attached exhaust hose) into the opening of the window slider kit.
- Ensure the window is sealed around the kit to prevent air leakage.
- Power Connection: Plug the power cord into a grounded 230V/50Hz electrical outlet.
Image: The portable air conditioner unit positioned next to a window, demonstrating the correct installation of the exhaust hose and adjustable window venting kit for efficient operation.
Operating Instructions
Your Nordic Breeze portable air conditioner can be operated using the control panel on the unit or the remote control.
Control Panel and Display
The top panel of the unit features a digital display and touch controls for various functions.
Image: An angled view highlighting the top of the air conditioner, clearly showing the integrated control panel with its digital display and touch-sensitive buttons for operation.
- Power Button: Turns the unit On/Off.
- Mode Button: Cycles through Cooling, Heating, Dehumidifying, Air Supply, and Purification modes.
- Temperature Up/Down Buttons: Adjusts the desired temperature in Cooling or Heating mode.
- Fan Speed Button: Selects fan speed (Low, Medium, High).
- Timer Button: Sets the 24-hour timer for automatic On/Off.
- Sleep Mode Button: Activates quiet operation for restful nights.
Remote Control
The remote control provides convenient access to all functions from a distance.
- Ensure batteries are correctly inserted.
- Point the remote control directly at the unit's receiver.
- All functions available on the control panel are also accessible via the remote.
Operating Modes
- Cooling Mode: Reduces room temperature. Set desired temperature using the Up/Down buttons. The unit will cool until the set temperature is reached.
- Heating Mode: Increases room temperature. Set desired temperature. The unit will heat until the set temperature is reached.
- Dehumidifying Mode: Removes excess moisture from the air. Connect the drain hose for continuous drainage in this mode. The fan operates at a fixed low speed.
- Air Supply (Fan) Mode: Circulates air without cooling or heating. Select desired fan speed.
- Purification Mode: Activates the air purification function. This mode can be used independently or in conjunction with other modes.
Maintenance
Regular maintenance ensures optimal performance and longevity of your unit.
Cleaning the Air Filter
The Nordic Breeze portable air conditioner features an easy-clean mesh filter. It is recommended to clean the filter every two weeks, or more frequently depending on usage and air quality.
- Power Off and Unplug: Always turn off the unit and unplug it from the power outlet before cleaning.
- Remove Filter: Locate the mesh filter at the rear of the unit. Gently slide it out.
- Clean Filter: Use a vacuum cleaner to remove dust and debris from the filter. For heavier dirt, wash the filter gently with lukewarm water and a mild detergent. Rinse thoroughly.
- Dry Filter: Allow the filter to air dry completely before reinserting it. Do not expose to direct sunlight or high heat.
- Reinstall Filter: Slide the dry filter back into its slot on the unit.
Draining Water (Dehumidification/Cooling)
In dehumidification mode, or during prolonged cooling in high humidity, water will accumulate inside the unit. The unit has an internal reservoir and may stop operating when full. For continuous operation, especially in dehumidification mode, connect the provided drain hose to the continuous drainage port at the rear of the unit and direct it to a suitable drain or container.
Troubleshooting
If you encounter issues with your unit, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Unit does not turn on. | No power, power cord unplugged, circuit breaker tripped. | Check power connection, ensure outlet is working, reset circuit breaker. |
| Unit is not cooling/heating effectively. | Air filter dirty, exhaust hose blocked/disconnected, room too large, windows/doors open. | Clean air filter, check exhaust hose connection and ensure it's not kinked, close windows/doors, ensure unit is sized for the room. |
| Unit is noisy. | Unit not on a level surface, fan speed too high. | Ensure unit is on a flat surface, reduce fan speed. |
| Water leakage. | Drain plug not properly sealed, drain hose kinked or blocked. | Check drain plug, clear any blockages in the drain hose. |
| Remote control not working. | Batteries dead or incorrectly inserted, remote not pointed at unit. | Replace batteries, ensure correct polarity, point remote directly at the unit's receiver. |
If the problem persists after trying these solutions, please contact customer support.
Specifications
Detailed technical specifications for the Nordic Breeze 5-in-1 Portable Air Conditioner:
| Feature | Specification |
|---|---|
| Model Number | 5060895031621 |
| Cooling Capacity | 9,000 BTU |
| Recommended Room Size | Up to 450 sq ft (41.8 m²) |
| Functions | Cooling, Heating, Air Supply, Dehumidification, Purification |
| Dimensions (H x W x D) | 68.2 cm x 32.4 cm x 28.3 cm |
| Weight | 22.54 KG |
| Energy Efficiency Class | Class A |
| Power Consumption | 785 Watts (0.785 KWh) |
| Voltage | 230 Volts |
| Refrigerant | R32 |
| Special Features | Sleep Mode, 24-Hour Timer, Remote Control, Overheat Protection |
Image: A visual representation of the unit's dimensions, indicating a height of 68.2cm, a width of 32.4cm, and a depth of 28.3cm.
Warranty and Support
Your Nordic Breeze 5-in-1 Portable Air Conditioner comes with a 1-year warranty for personal use. This warranty covers manufacturing defects and ensures peace of mind with your purchase.
For any queries, technical assistance, or warranty claims, please contact our dedicated customer support team. Our contact information can be found on our official website or the product packaging.
Please have your model number (5060895031621) and purchase date ready when contacting support.
