YAXRO Vacuum Cleaner Dust Paper Bags Instruction Manual

1. Product Overview

These YAXRO dust paper bags are designed as replacement components for a wide range of vacuum cleaner models from brands such as Philips, Electrolux, Midea, Haier, Sharp, Samsung, Pensonic, and LG. They are constructed from composite paper material, featuring a two-layer design for effective filtration and dust collection. Regular replacement of these bags is essential for maintaining optimal vacuum cleaner performance and suction efficiency.

2. Product Specifications

Image: A detailed view of a single dust bag with measurements indicating its overall size (110mm x 100mm) and the diameter of the collar (50mm).

Compatible Models (Partial List):

• Philips: FC8334, FC8336, FC8338, FC8344, FC8347, FC8348, FC8349, FC8188, FC8189
• Electrolux: ZW1100-207, ZW1100-208, ZW1100-207W, ZW1100-208B, ZW1100-202, ZW1100-203, ZW1100-206, ZW1200-121, ZW1200-203, ZW1300-201, Z1450, Z1460, Z1470
• Midea: QZ11A, QZ11B, QZ11C, QZ11D, QZ12G, QZ12E, QZ14F, QZ14H, QZ12B, QZ14S3, QZ13A, QZ14B, QW14B, QC11D, QW12T4, QW12T5, QW12Z4, QW12T-202, QW12T-06G, QW12T-07G, QW13T-07D, QW12Z-07G, QW12Z-02E, QW12Z-06E, QW12S-05H, QW12S-05J, QW13S-07J, QW12T-602, QW12T-607, QW12T-608
• Haier: ZW1000-3/5/6/7/8/23, ZW1000-201, ZW1000-203, ZW1100-3/4, ZW1100-201, ZW1100-202, ZW1100-203, ZW1200-1/2/3/4/5/7/8/9/10/12/23, ZW1200-201, ZW1200-202, ZW1200-203, ZW1200-211, ZW1200-212, ZW1200-213, ZW1200-215, ZW1200-231, ZW1200-232, ZW1300-5, ZW1400-3
• Samsung: (Specific models not detailed in source, general compatibility implied)
• Pensonic: (Specific models not detailed in source, general compatibility implied)
• LG: V-3700Y, V-3710Y, V-982SER, V-2600SER, V-3700SER, V-3800SER, V-5800SE, V-4200SER, V-2940RL, V-2940RAL, V-CR142STN, V-3710R, V-866HAB, V-865SAY, V-864SAG, V-4200HAB, V-4200HAG, V-2600, V-2600G, V-132SDN, V-CR132SDN, V-CR132NBN
• Sanyo: SC-35A, SC-65A, SC-N200, SC-N300, SC-400, SC-600, SC-S700, SC-S750P, SC-S280, SC-Y120, SC-S380, SC-Y108, SC-Y109, SC-A601, SC-A602, SC-A603, SC-33A, SC-53A, SC-Y100, SC-620, SC-66A, SC-68A, SC-S35, SC-75A, SC-78A, SC-N170, SC-N210, SC-S260, SC-T100, SC-660, SC-800, SC-810, SC-410, SC-610, SC-460, SC-510, SC-C400, SC-N250, SC-39A, SC-38A, SC-A200, SC-A201, SC-A202, SC-P2, SC-P3, SC-P4, SC-P5, SC-P6, SC-P15
• Dragon: NK-108A, NK-191A(B), NK-193A, NK-1091B, NK-1099A, NK-120A(B), NK-156A, NK-157
• Puppy: D-990, D-992, D-997, D-900, D-996A, D-906, D-905, D-909

3. Installation Guide

Follow these steps to correctly install a new dust paper bag into your compatible vacuum cleaner. Always refer to your vacuum cleaner's specific instruction manual for detailed compartment access.

1. Open the Vacuum Cleaner Compartment: Locate and open the dust bag compartment on your vacuum cleaner. This usually involves unlatching a cover or lid.
2. Remove the Old Bag: Carefully remove the full or old dust bag. Ensure proper disposal according to local waste regulations.
3. Insert the New Bag: Take a new YAXRO dust paper bag. Align the bag's collar with the intake port inside the vacuum cleaner's compartment. Push the collar firmly onto the port until it is securely seated. Ensure the bag is unfolded and positioned correctly within the compartment without obstructing any closing mechanisms.

Image: An open vacuum cleaner compartment revealing a dust bag correctly inserted into the intake port, ready for use.

4. Close the Compartment: Gently close the vacuum cleaner's dust bag compartment, ensuring it latches securely. Do not force the lid if it does not close easily, as the bag might be improperly seated.

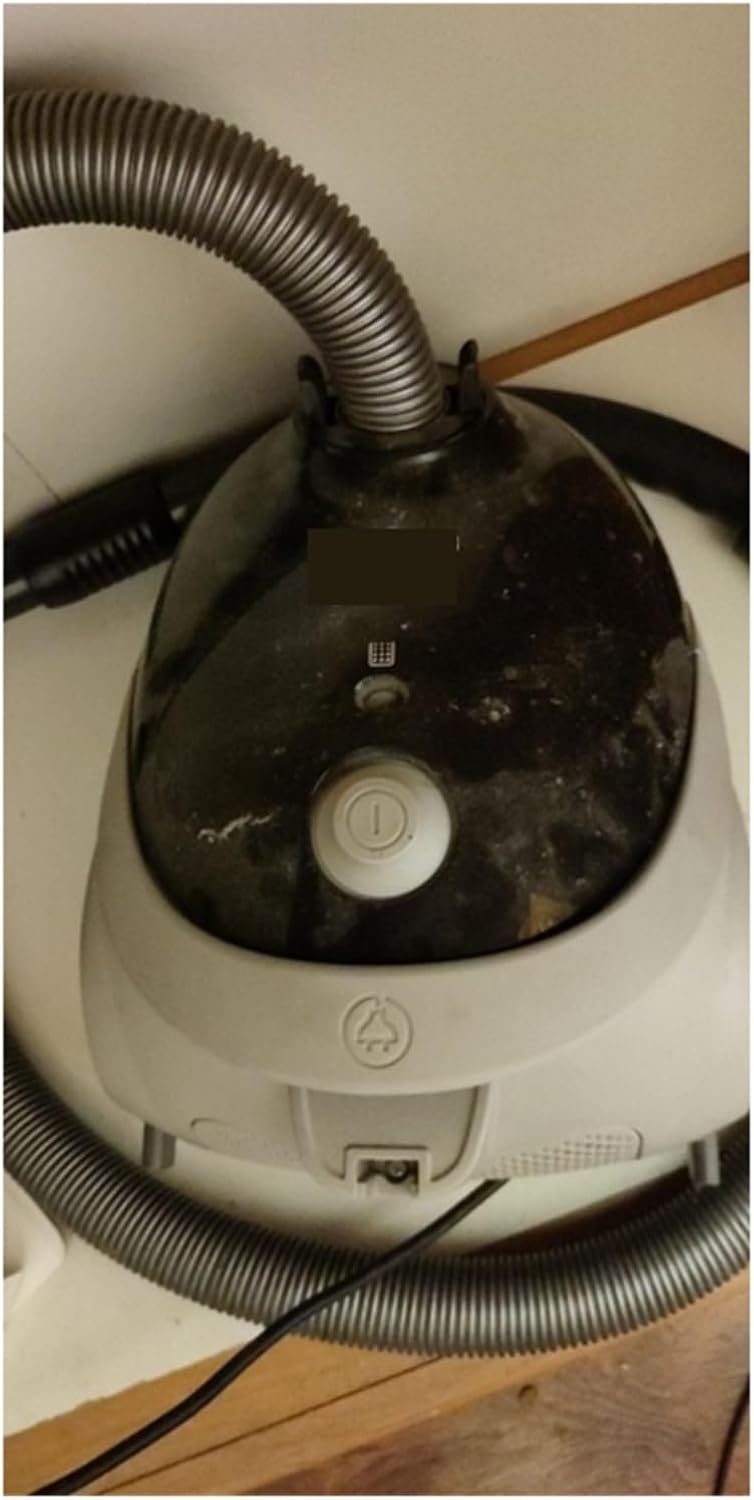

Image: A top-down view of a vacuum cleaner with its dust bag compartment securely closed, indicating successful installation.

4. Usage Recommendations

• Ensure the dust bag is properly installed before operating the vacuum cleaner to prevent dust leakage and damage to the appliance.
• Avoid vacuuming sharp objects, excessive liquids, or fine construction dust, as these can damage the bag or the vacuum cleaner.
• For optimal performance, do not overfill the dust bag. A full bag can reduce suction power and strain the vacuum cleaner motor.

5. Maintenance and Replacement

Regular replacement of your vacuum cleaner dust bag is crucial for maintaining cleaning performance and extending the life of your appliance.

• When to Replace: Replace the dust bag when it is approximately two-thirds full, or when you notice a decrease in suction power. Some vacuum cleaners have an indicator light that signals when the bag needs changing.
• Disposal: Once removed, the used dust bag can be sealed (if applicable) and disposed of with regular household waste. The design allows for easy and hygienic disposal.
• Filter Maintenance: While these bags provide filtration, regularly check and clean or replace your vacuum cleaner's motor filters as recommended by your vacuum cleaner manufacturer.

6. Troubleshooting

• Reduced Suction: If suction power decreases, first check if the dust bag is full and replace it if necessary. Also, ensure the bag is correctly installed and not obstructed. Check for blockages in the hose or attachments.
• Dust Leakage: If dust is escaping, verify that the dust bag's collar is securely attached to the vacuum cleaner's intake port and that the compartment lid is fully closed and latched.
• Bag Not Fitting: Double-check the compatibility list to ensure you have the correct bag for your vacuum cleaner model. Ensure the bag is unfolded and positioned correctly within the compartment.

7. Warranty and Support

Information regarding specific product warranty or direct support contacts for YAXRO dust paper bags is not provided with this manual. For any issues not covered in this guide, please refer to your vacuum cleaner's original manufacturer manual or contact the retailer where the product was purchased.
