Kondras ST58 7W Dimmable LED Light Bulbs (5000K Daylight White) Instruction Manual

Introduction

Thank you for choosing Kondras ST58 7W Dimmable LED Light Bulbs. These bulbs are designed to provide efficient, high-quality illumination with a vintage aesthetic. Featuring a standard E26 medium base, 5000K Daylight White color temperature, and a high Color Rendering Index (CRI 90+), these bulbs are suitable for various indoor and outdoor applications. This manual provides essential information for safe installation, operation, and maintenance.

Image: A pack of six Kondras ST58 7W Dimmable LED Light Bulbs, showcasing their clear glass and gold E26 bases.

Safety Information

• Always turn off the power supply before installing or replacing bulbs.
• Do not use these bulbs in fully enclosed fixtures, as this may shorten their lifespan.
• Ensure the bulb is securely screwed into the socket before turning on the power.
• Do not disassemble or modify the bulb.
• Avoid direct exposure to water or excessive moisture unless the fixture is rated for such conditions.
• These bulbs are designed for 100-120 Volts and 60 Hertz electrical systems.

Setup

1. Unpacking

Carefully remove the LED bulbs from their packaging. Inspect each bulb for any visible damage before installation.

2. Installation

1. Ensure the power to the light fixture is turned off at the circuit breaker or wall switch.
2. Allow any existing bulb to cool completely before removal.
3. Gently screw the Kondras ST58 LED bulb into the E26 medium base socket until it is finger-tight. Do not overtighten.
4. Restore power to the fixture.

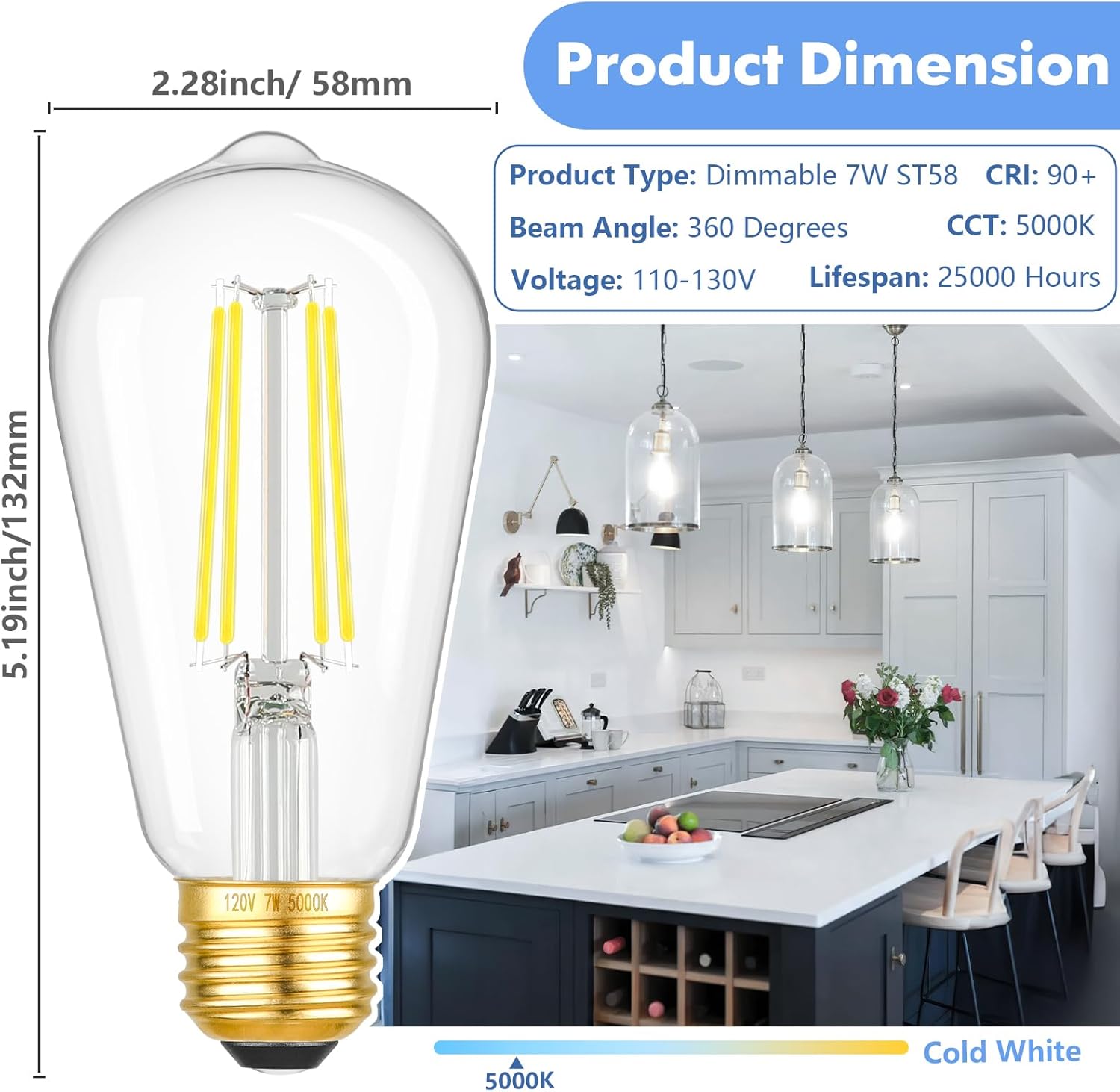

Image: Detailed product dimensions of the ST58 LED bulb, highlighting its size and key specifications like 7W, CRI 90+, 360-degree beam angle, 5000K CCT, 110-130V, and 25000 hours lifespan.

3. Dimmability

These bulbs are fully dimmable from 0% to 100% brightness. For optimal performance and to avoid flickering or buzzing, ensure your dimmer switch is compatible with LED bulbs. These bulbs are compatible with over 95% of dimmers on the market.

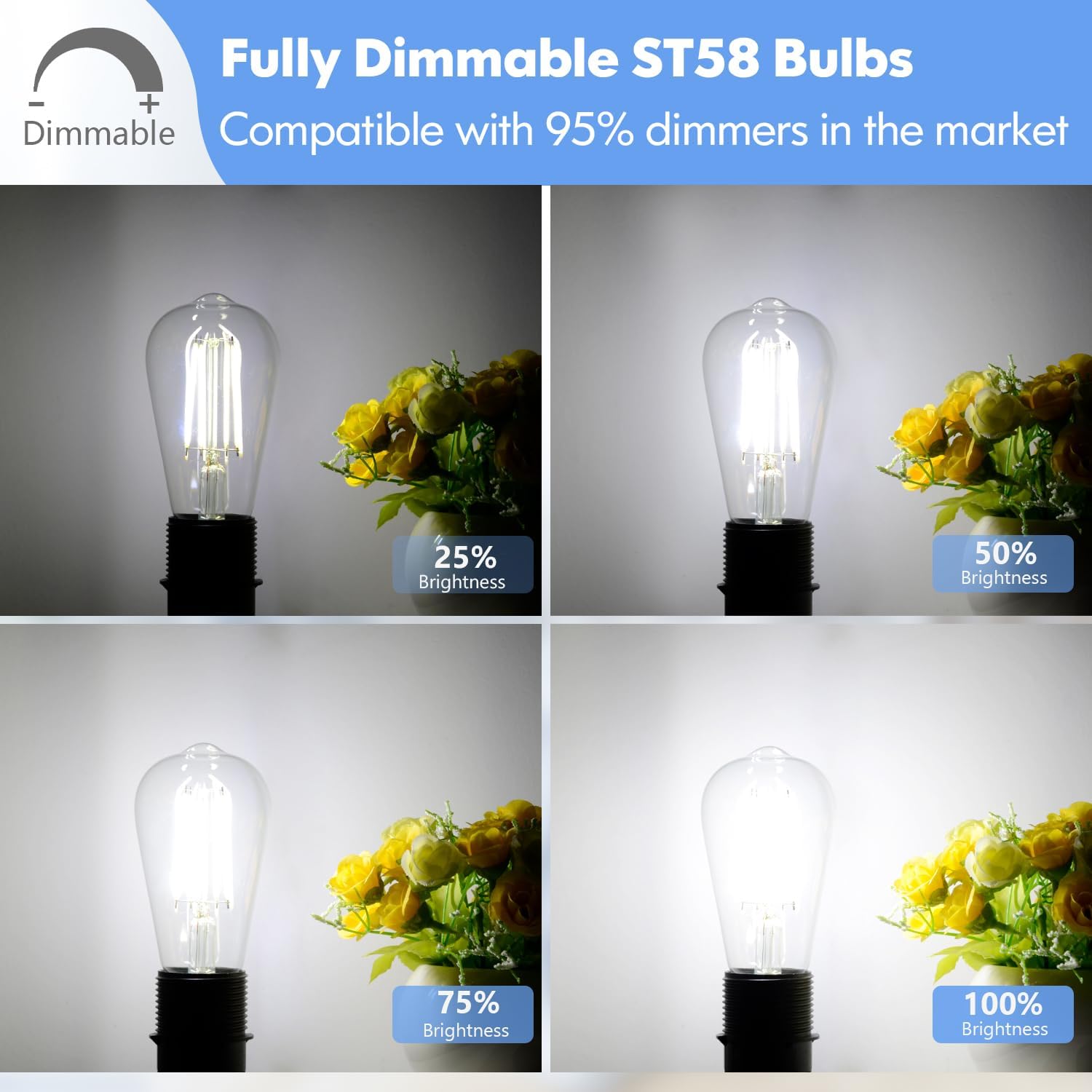

Image: Visual representation of the bulb's dimming capabilities, showing brightness levels from 25% to 100%.

Operating

1. Turning On/Off

Operate the bulbs using your standard wall switch. For dimmable functionality, use a compatible dimmer switch.

2. Adjusting Brightness (with compatible dimmer)

If connected to a compatible dimmer switch, rotate or slide the dimmer control to adjust the light output from 0% (minimum) to 100% (maximum) brightness. This allows you to customize the ambiance for various activities such as reading, watching TV, dining, or relaxing.

3. Light Quality

These bulbs emit a 5000K Daylight White light, providing a bright and crisp illumination suitable for task lighting and areas where clear visibility is desired. The high CRI 90+ ensures that colors appear vibrant and true to life.

Image: Comparison of color rendering with different CRI values, demonstrating the superior color accuracy of CRI 90+ bulbs.

4. Applications

Kondras ST58 LED bulbs are versatile and can be used in various fixtures and settings, including table lamps, floor lamps, wall sconces, vanity lights, pendants, and chandeliers. They are suitable for both indoor and outdoor use (when installed in appropriate outdoor-rated fixtures).

Image: Examples of ST58 LED bulbs used in different lighting fixtures within various rooms, showcasing their versatility.

5. Product Video

Maintenance

1. Cleaning

Before cleaning, ensure the power to the fixture is off and the bulb has cooled. Wipe the bulb with a soft, dry cloth. Do not use liquid cleaners or abrasive materials, as they may damage the bulb's surface or internal components.

2. Lifespan

These LED bulbs have an impressive average lifespan of 25,000 hours, significantly longer than traditional incandescent bulbs. This reduces the frequency of replacements and maintenance efforts.

Image: A visual comparison illustrating the energy savings and extended lifespan of Kondras LED bulbs compared to traditional incandescent bulbs.

Troubleshooting

• Bulb does not light up:
  Ensure the power switch is on and the bulb is securely screwed into the socket. Check if the circuit breaker has tripped. Test the bulb in another working fixture if possible.
• Flickering or buzzing:
  This often indicates incompatibility with the dimmer switch. Ensure you are using an LED-compatible dimmer. Some older dimmer switches may not work correctly with LED technology.
• Inconsistent dimming:
  Similar to flickering, this can be due to an incompatible dimmer switch. Replace the dimmer with one specifically designed for LED bulbs.
• Reduced brightness:
  If the bulb is dimmable, check the dimmer setting. Ensure the bulb is not in an enclosed fixture that could cause overheating and premature degradation.

Image: A visual demonstration of the flicker-free operation of Kondras bulbs compared to other bulbs that exhibit visible flicker.

Specifications

Warranty and Support

Warranty Information

Kondras LED bulbs are designed for durability and a long operational life of 25,000 hours. For specific warranty terms and conditions, please refer to the product packaging or contact Kondras customer service directly. Keep your purchase receipt as proof of purchase.

Customer Support

If you encounter any issues or have questions regarding your Kondras ST58 LED Light Bulbs, please contact our customer support team. You can typically find contact information on the product packaging or the official Kondras website. When contacting support, please have your product model number (ST587W-50-80-C) and purchase details ready.
