EtliN Vacuum Cleaner Parts Accessories Set Instruction Manual

1. Introduction

This manual provides detailed instructions for the installation, maintenance, and replacement of the EtliN Vacuum Cleaner Parts Accessories Set. This set is designed to maintain the optimal performance of your Bagotte BL509 robotic vacuum cleaner. Regular replacement of these parts is crucial for efficient cleaning and extending the lifespan of your device.

2. Product Overview and Compatibility

The EtliN Vacuum Cleaner Parts Accessories Set includes essential components for your Bagotte BL509 vacuum cleaner. Please verify compatibility before installation.

2.1 Included Components:

• 1 x Main Brush: Central rotating brush for deep cleaning.
• 4 x Side Brushes: Sweeps debris from edges and corners.
• 3 x Filters: Captures fine dust and allergens.
• 2 x Mop Cloths: For wet mopping functions.

2.2 Compatibility:

This accessory set is specifically compatible with the Bagotte BL509 Vacuum Cleaner.

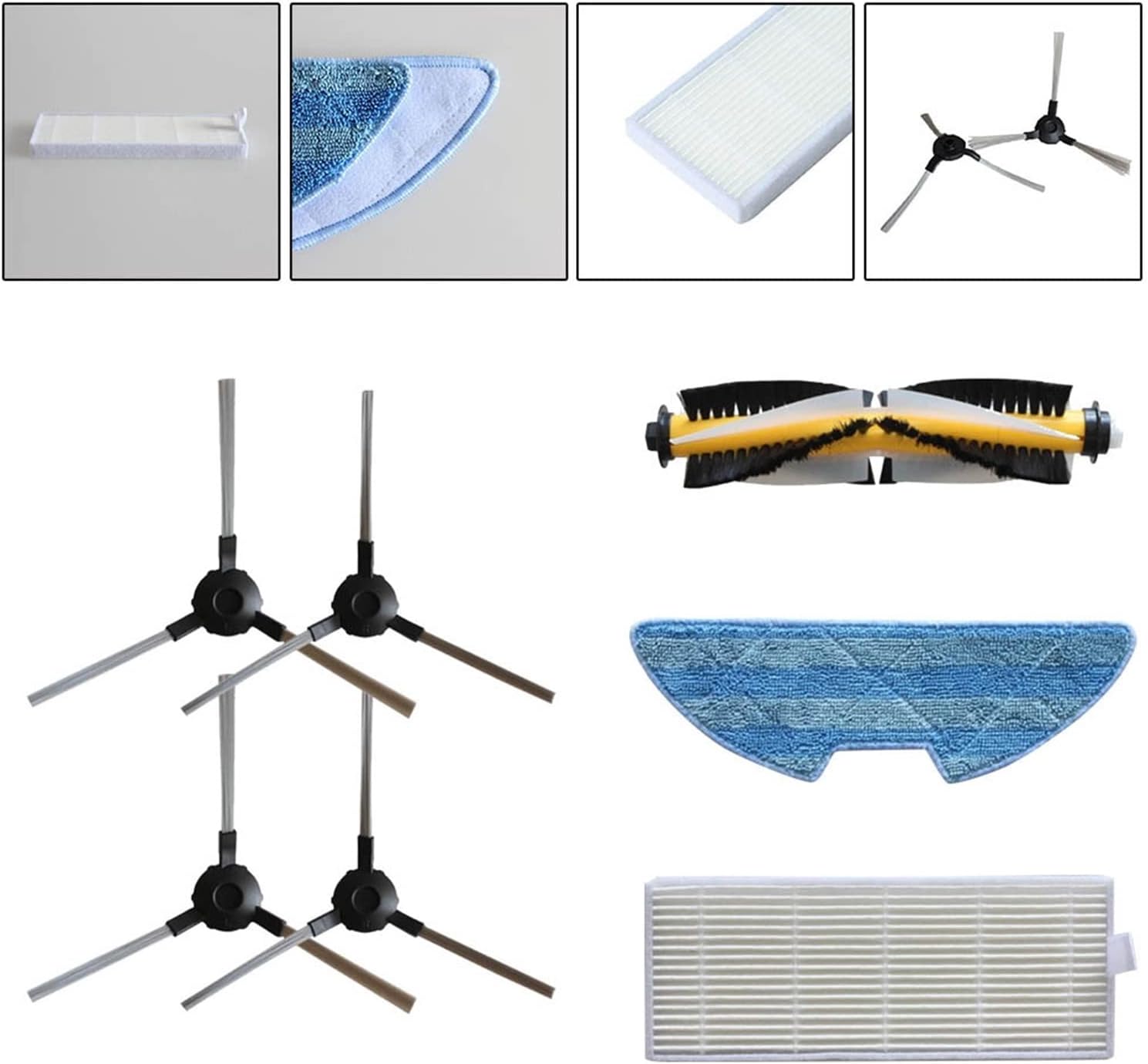

Image: Overview of the EtliN Vacuum Cleaner Parts Accessories Set, showing the main brush, four side brushes, a filter, and a mop cloth.

3. Installation Instructions

Always power off and unplug your Bagotte BL509 vacuum cleaner before attempting any installation or replacement of parts.

3.1 Main Brush Installation

1. Turn the vacuum cleaner upside down.
2. Locate the main brush cover, usually secured by two tabs or screws.
3. Press the tabs or unscrew the screws to remove the cover.
4. Lift out the old main brush.
5. Insert the new main brush, ensuring its ends align with the slots in the vacuum cleaner.
6. Replace the main brush cover and secure it.

Image: Detailed view of individual components, including the main brush, which is a yellow and black roller brush.

3.2 Side Brush Installation

1. Turn the vacuum cleaner upside down.
2. Locate the side brushes. They are typically held in place by a single screw or clip.
3. Unscrew or unclip the old side brush and remove it.
4. Align the new side brush with the post on the vacuum cleaner.
5. Secure the new side brush with the screw or clip.

Image: Four side brushes, each featuring three arms, ready for installation.

3.3 Filter Installation

1. Open the dustbin cover on your vacuum cleaner.
2. Remove the dustbin from the vacuum cleaner.
3. Locate the filter compartment within the dustbin.
4. Remove the old filter.
5. Insert the new filter, ensuring it is seated correctly and securely.
6. Close the filter compartment and reinsert the dustbin into the vacuum cleaner.

Image: A rectangular white HEPA filter, designed to capture fine dust particles.

3.4 Mop Cloth Installation

1. Locate the mop cloth attachment or water tank on your vacuum cleaner.
2. If applicable, remove the old mop cloth from its attachment.
3. Attach the new mop cloth to the designated area, typically using Velcro or a sliding mechanism.
4. Ensure the mop cloth is securely fastened before operating the vacuum cleaner in mopping mode.

Image: A blue microfiber mop cloth, designed for wet cleaning floors.

4. Operating Considerations

Once the accessories are installed, your Bagotte BL509 vacuum cleaner is ready for operation. These parts work in conjunction to provide thorough cleaning.

• The main brush agitates and lifts debris from carpets and hard floors.
• The side brushes sweep debris from edges and corners into the main cleaning path.
• The filter captures dust and allergens from the air as it passes through the vacuum.
• The mop cloth, when wet, cleans hard floors by wiping away dirt and stains.

Refer to your Bagotte BL509 vacuum cleaner's original manual for specific operating modes and schedules.

5. Maintenance and Replacement

Regular cleaning and timely replacement of these accessories are essential for maintaining your vacuum cleaner's performance and air quality.

5.1 Main Brush Maintenance

• Cleaning: Remove the main brush weekly. Use the cleaning tool (if provided with your vacuum) to cut and remove tangled hair or debris.
• Replacement: Replace the main brush every 6-12 months, or when bristles show significant wear.

5.2 Side Brush Maintenance

• Cleaning: Check side brushes weekly for tangled hair or debris. Clean them as needed.
• Replacement: Replace side brushes every 3-6 months, or if they become bent or damaged, as this affects their sweeping effectiveness.

5.3 Filter Maintenance

• Cleaning: Tap the filter gently over a trash can to remove accumulated dust after each use or every few uses. Do not wash the filter with water unless explicitly stated in your vacuum's manual, as this can damage it.
• Replacement: Replace the filter every 1-3 months, depending on usage and pet presence, to maintain optimal filtration performance.

5.4 Mop Cloth Maintenance

• Cleaning: Remove the mop cloth after each mopping cycle. Hand wash or machine wash with mild detergent. Air dry completely before reattaching.
• Replacement: Replace mop cloths every 3-6 months, or when they show signs of wear, reduced absorbency, or excessive staining.

6. Troubleshooting

If you encounter issues after installing new accessories, consider the following:

• Vacuum cleaner not picking up debris effectively:
  • Ensure the main brush is free of tangles and installed correctly.
  • Check if side brushes are bent or damaged; replace if necessary.
  • Verify the filter is clean and properly seated in the dustbin.
• Side brushes not spinning or spinning slowly:
  • Check for hair or debris wrapped around the brush post.
  • Ensure the side brush is securely screwed or clipped into place.
• Reduced suction power:
  • A clogged filter is a common cause. Clean or replace the filter.
  • Ensure the dustbin is empty and properly installed.
• Mop cloth not cleaning effectively:
  • Ensure the mop cloth is clean and properly attached.
  • Check the water tank (if applicable) for sufficient water.

For further troubleshooting, consult your Bagotte BL509 vacuum cleaner's original user manual or contact Bagotte customer support.

7. Specifications

8. Warranty and Support

This product is covered by the standard return policy of the retailer from which it was purchased. For specific warranty details or support regarding the EtliN accessories, please refer to the seller's information or contact EtliN customer service if available. For issues related to the Bagotte BL509 vacuum cleaner itself, please contact Bagotte customer support.
