KICHKING 49 Cu.Ft 2-Door Commercial Refrigerator

1. Introduction

Thank you for choosing the KICHKING 49 Cu.Ft 2-Door Commercial Refrigerator. This manual provides essential information for the safe and efficient operation, installation, and maintenance of your new appliance. Please read this manual thoroughly before installation and use, and retain it for future reference.

2. Safety Information

To ensure safe operation, always follow these basic precautions:

• Ensure the refrigerator is properly grounded before use.
• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
• Maintain adequate ventilation around the unit. Do not block air vents.
• Unplug the appliance before cleaning or performing any maintenance.
• Keep fingers out of the 'pinch point' areas between the doors and between the doors and cabinet.
• Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

3. Product Overview and Features

The KICHKING DLW54BR is a robust 2-door commercial refrigerator designed for optimal food preservation and energy efficiency.

Front view of the KICHKING 49 Cu.Ft 2-Door Commercial Refrigerator.

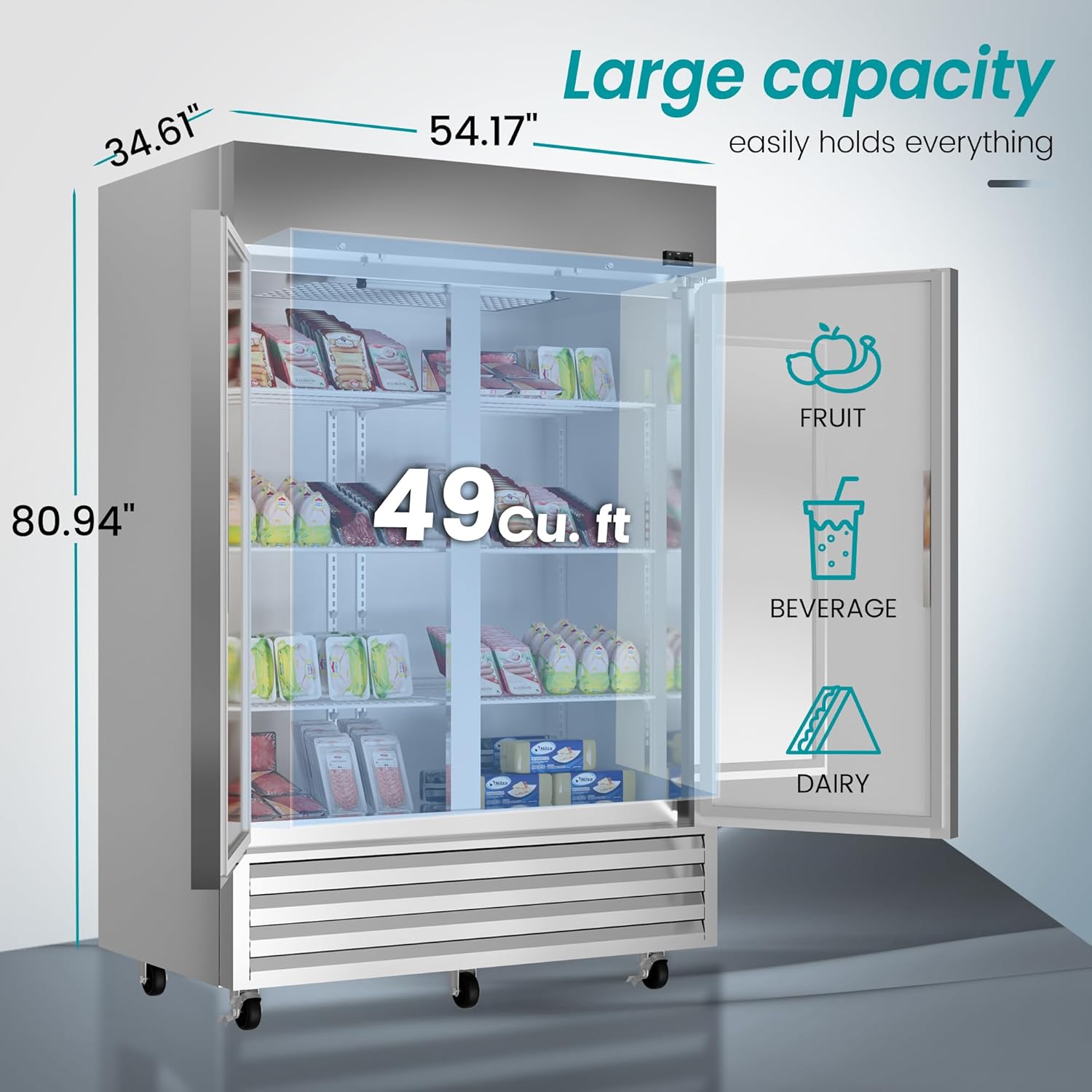

The refrigerator features a large 49 Cu.Ft capacity with overall dimensions of 33.9"D x 54.1"W x 79.7"H.

Key features include a digital display, 6 adjustable shelves, pre-installed wheels with brakes, and a secure door lock.

Equipped with OmniSmart Thermostat for efficient temperature control and an automatic defrost system.

Key Features:

• 3rd Generation Dynamic Cooling System: Ensures continuous circulation and even distribution of cold air, maintaining food freshness with lower environmental impact R600a N-BUTANE refrigerant.
• OmniSmart Thermostat: Automatically optimizes temperature control based on internal and external conditions. Features a fan auto-stop mechanism to prevent outside air entry and thickened foam insulation for consistent temperature.
• Digital Display & Auto Defrost: Easy temperature monitoring and customization via a digital display and electronic thermostat. Automatic defrost prevents frost buildup, preserving food flavor and nutrients.
• Handy Use Design: Spacious interior with 6 adjustable, corrosion-resistant shelves. Built-in LED lighting for visibility. Includes 6 pre-installed wheels (front 2 with brakes) for easy movement and stability. Secure door locks ensure food safety.
• All Stainless Steel Construction: Durable and easy-to-clean stainless steel exterior and interior.

4. Setup and Installation

Proper installation is crucial for optimal performance and longevity of your refrigerator.

1. Unpacking: Carefully remove all packaging materials. Inspect the unit for any shipping damage.
2. Placement: Position the refrigerator on a flat, stable surface. Ensure there is adequate clearance around the unit for proper ventilation (at least 4 inches from walls and other appliances).
3. Leveling: Use the adjustable feet on the pre-installed wheels to level the unit. The front two wheels have heavy-duty swivel castors with brakes; engage the brakes once the unit is in its final position to ensure stability.
4. Shelf Installation: Install the 6 adjustable shelves into the desired positions. Ensure shelves are correctly buckled into the second row of grilles to maintain proper distance from the back of the machine for optimal airflow.

Illustration of correct shelf placement to ensure proper airflow and prevent obstruction of vents.

5. Power Connection: Connect the refrigerator to a dedicated 115V/60Hz power outlet. Ensure the electrical supply matches the requirements listed on the product's specification label.

5. Operation

Operating your KICHKING commercial refrigerator is straightforward:

• Power On/Off: Use the main power switch, typically located near the digital display, to turn the unit on or off.
• Temperature Control: The digital display and electronic thermostat allow you to easily monitor and customize the desired temperature. The optimal temperature range for this unit is 33℉ to 41℉. Refer to the thermostat's specific instructions for setting the temperature.
• Automatic Defrost: The unit is equipped with an automatic defrost system. This system prevents ice buildup, eliminating the need for manual defrosting and helping to maintain consistent cooling performance.
• Door Locks: Each door features an individual lock for enhanced food safety and security, especially during off-hours. Use the provided keys to lock and unlock the doors.
• Interior LED Lighting: The built-in LED lighting illuminates the interior, making it easy to see and access stored items.

6. Maintenance

Regular maintenance ensures the longevity and efficiency of your refrigerator:

• Exterior Cleaning: The stainless steel exterior is easy to clean. Use a soft cloth with mild soap and water. Avoid abrasive cleaners or scouring pads that could scratch the surface.
• Interior Cleaning: Regularly clean the interior with a mild, non-abrasive cleaner. Remove shelves and clean them separately. Ensure the interior is dry before replacing items.
• Door Gaskets: Inspect door gaskets regularly for cracks or tears. Clean them with warm water and mild soap to ensure a tight seal, which is crucial for energy efficiency.
• Condenser Coil Cleaning: The compressor is located at the bottom. Periodically clean the condenser coils to remove dust and debris, which can impede cooling efficiency. This should be done by a qualified technician or by following specific instructions in the full product manual.

7. Troubleshooting

If you encounter issues with your KICHKING refrigerator, consider the following general advice:

• Unit Not Cooling: Check if the power cord is securely plugged in. Ensure the temperature setting is appropriate. Verify that the condenser coils are clean and not obstructed.
• Excessive Noise: Check if the unit is level. Ensure no objects are vibrating against the cabinet.
• Door Not Sealing: Inspect door gaskets for damage or debris. Ensure shelves are not preventing the door from closing properly.

For persistent issues or complex problems, please refer to the Warranty and Support section for contact information.

8. Specifications

9. Warranty and Support

KICHKING is committed to providing excellent service and support for your commercial refrigerator.

Warranty Coverage:

• 1 Year Labor Warranty
• 2 Year Parts Warranty
• 5 Year Compressor Warranty

For any questions or support needs regarding your KICHKING commercial refrigerator, our professional telephone team is available to assist you. We aim to respond to all inquiries within 24 hours.
