1. Introduction
Welcome to the HOVERFLY Elf Hoverboard user manual. This document provides essential information for the safe and effective operation, maintenance, and troubleshooting of your new self-balancing scooter. The HOVERFLY Elf Hoverboard is designed for recreational use, offering an engaging and dynamic riding experience for users within the specified weight range.

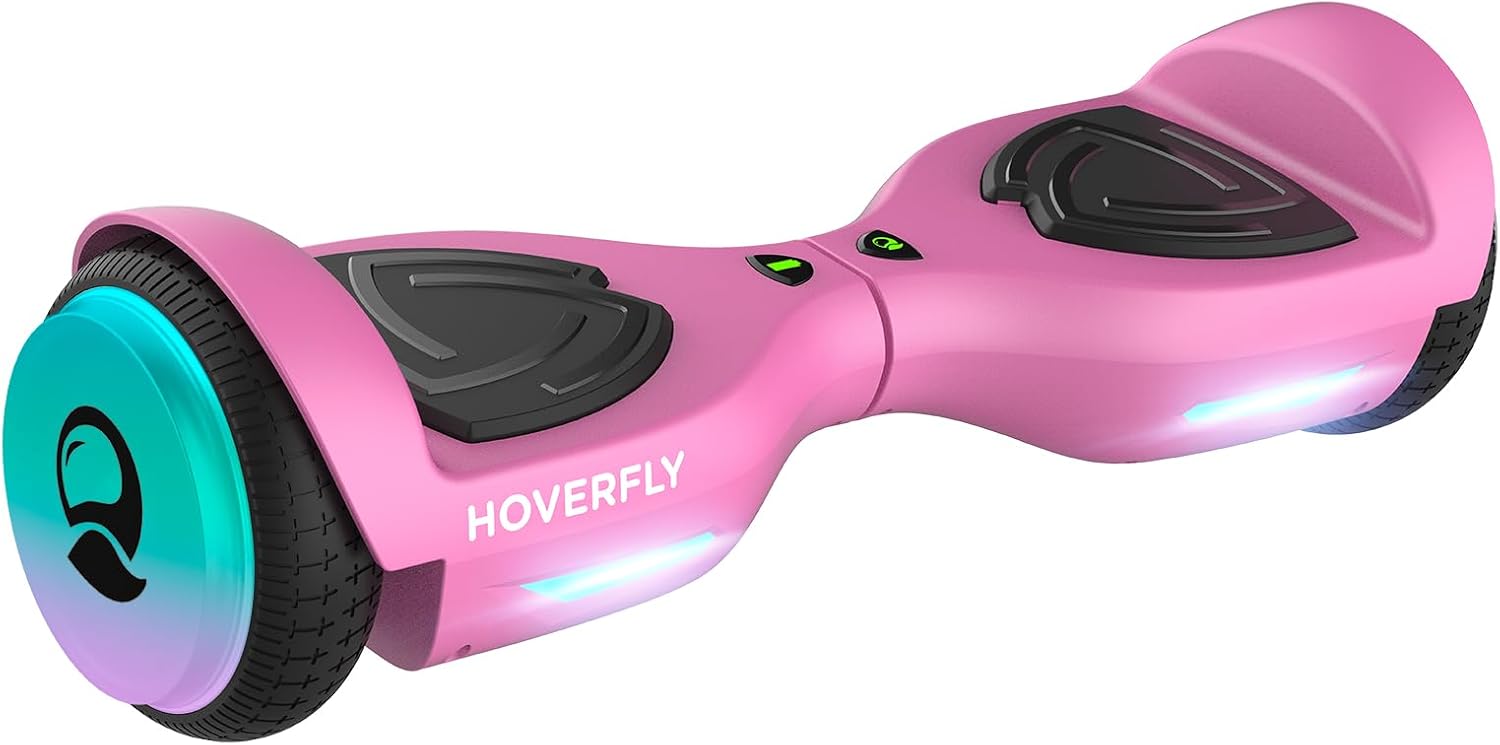

Image: The HOVERFLY Elf Hoverboard, showcasing its sleek design and illuminated wheels.
2. Safety Guidelines
Your safety is paramount. Please read and understand all safety instructions before operating the hoverboard. Failure to follow these guidelines may result in injury or damage to the product.
- UL2272 Certified: The HOVERFLY Elf Hoverboard is UL2272 certified, ensuring electrical, battery, and charger safety.
- Protective Gear: Always wear appropriate safety gear, including a helmet, knee pads, and elbow pads, especially for new riders.
- Age and Weight Limits: Suitable for kids aged 8+ and adults. The hoverboard supports riders up to 80kg (176 lbs). Do not exceed this weight limit.
- Riding Environment: Ride on smooth, flat, and dry surfaces. Avoid uneven terrain, steep inclines, wet areas, and busy roads.
- Awareness: Be aware of your surroundings, pedestrians, and obstacles. Maintain a safe distance from others.
- No Stunts: Do not attempt jumps, tricks, or dangerous maneuvers.
- Charging Safety: Use only the provided charger. Do not overcharge the battery. Disconnect the charger once charging is complete.
Image: A child safely riding the HOVERFLY Elf Hoverboard, demonstrating the importance of protective gear.
3. Components and Features
Familiarize yourself with the main parts of your HOVERFLY Elf Hoverboard:
- 6.5" Solid Rubber Wheels: Provide excellent grip and a smooth ride. Equipped with vibrant LED lights.
- Dual 200W Brushless Motors: Deliver powerful performance for speeds up to 10 km/h.
- 50.4Wh Lithium-Ion Battery: Powers the hoverboard for a maximum range of 5 km.
- Non-Slip Footpads: Ensure stability and security during rides.
- LED Headlight: Improves visibility for safer travel.
- LED Hub Lights: Illuminated side wheels for enhanced visibility and aesthetic appeal.
- Battery Indicator Light: Displays the current battery level.
- Power Button: To turn the hoverboard on or off.
- Charging Port: For connecting the charger.

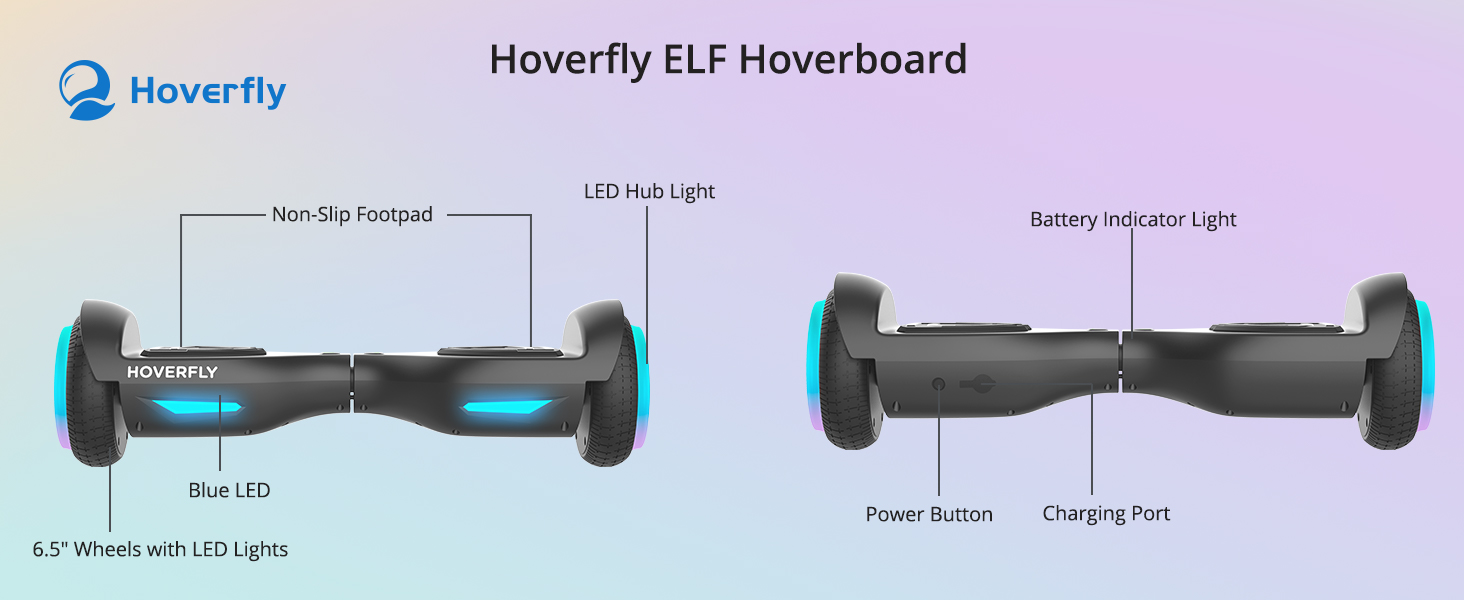

Image: A detailed diagram illustrating the key components and features of the HOVERFLY Elf Hoverboard.
4. Setup
4.1 Unboxing
Carefully remove all contents from the packaging. Ensure you have the HOVERFLY Elf Hoverboard, charger, and this user manual.
4.2 Initial Charging
Before first use, fully charge the hoverboard. Connect the charger to the charging port on the hoverboard, then plug the charger into a power outlet. The battery indicator light will show charging status. A full charge typically takes approximately 5 hours.

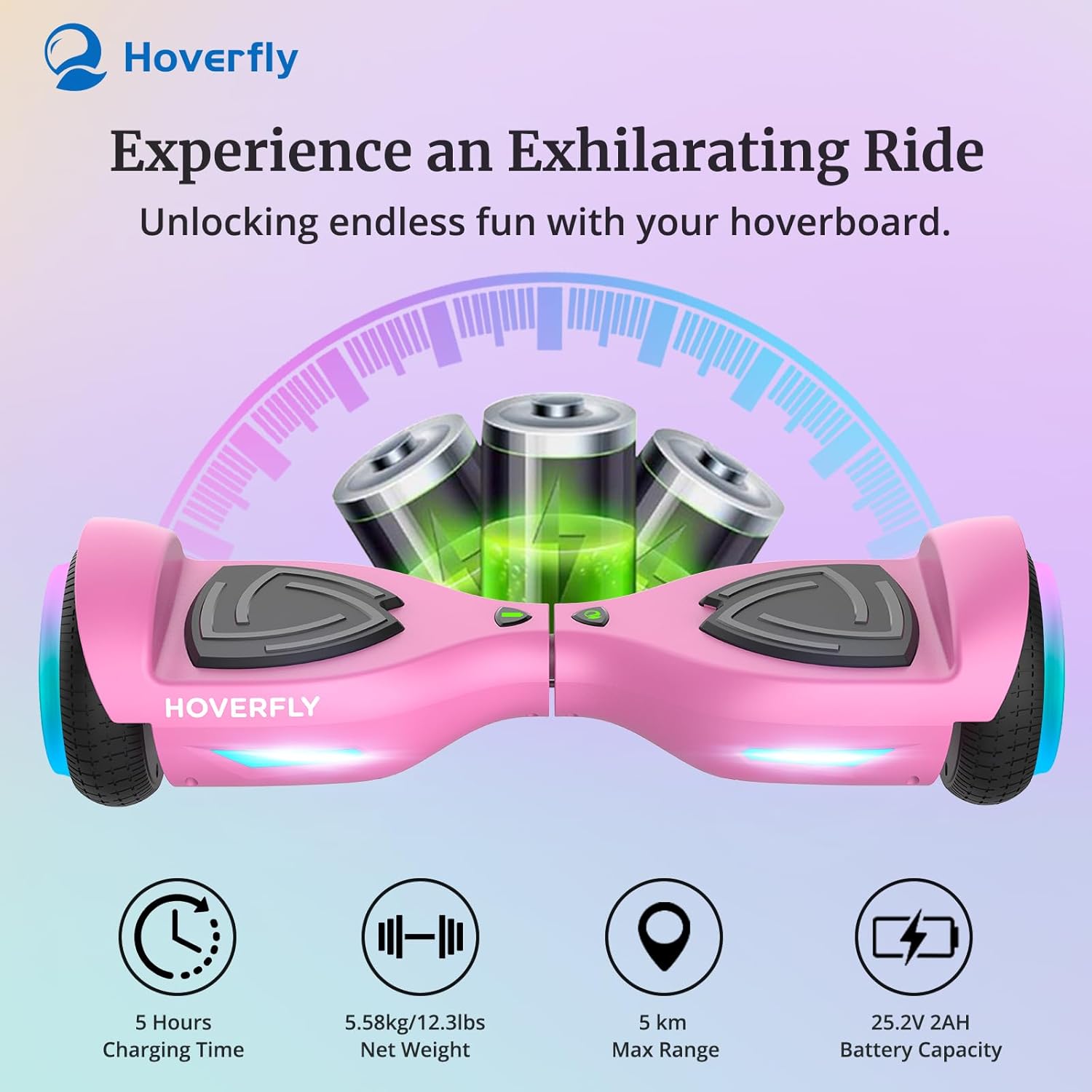

Image: Visual representation of the hoverboard's battery capacity and charging process.
4.3 Calibration (If Needed)
If the hoverboard does not seem balanced or rides unevenly, it may require calibration:
- Place the hoverboard on a flat, level surface.
- Ensure the hoverboard is turned off.
- Press and hold the power button for approximately 5-10 seconds until the lights flash.
- Release the button and turn the hoverboard off.
- Turn it back on. The hoverboard should now be calibrated.
5. Operating Instructions
5.1 Powering On/Off
Press the power button located on the hoverboard to turn it on. The indicator lights will illuminate. Press the power button again to turn it off.
5.2 Riding the Hoverboard
The HOVERFLY Elf hoverboard features a self-balancing system for easy learning and control.
- Mounting: Place one foot firmly on a footpad. Once the hoverboard stabilizes, quickly step on with your other foot. Maintain a relaxed posture and look straight ahead.
- Moving Forward/Backward: Lean slightly forward to move forward, and slightly backward to move backward. The pressure sensors under your feet detect your balance and adjust the motors accordingly.
- Turning: To turn left, press your right foot down slightly more. To turn right, press your left foot down slightly more.
- Stopping: To stop, simply stand upright and allow the hoverboard to come to a halt. Step off one foot at a time, ensuring the hoverboard is stable.
- 360-Degree Rotations: Apply forward pressure with one foot and backward pressure with the other to rotate in place.
Image: A child riding the hoverboard, with icons indicating max range (5 km), max speed (10 km/h), max weight (80 kg), motor (200W), wheel size (6.5"), and battery (50.4 Wh).
5.3 LED Lights
The hoverboard is equipped with a bright LED headlight and illuminated side wheels (hub lights) for improved visibility, especially in low-light conditions. These lights activate automatically when the hoverboard is in use.

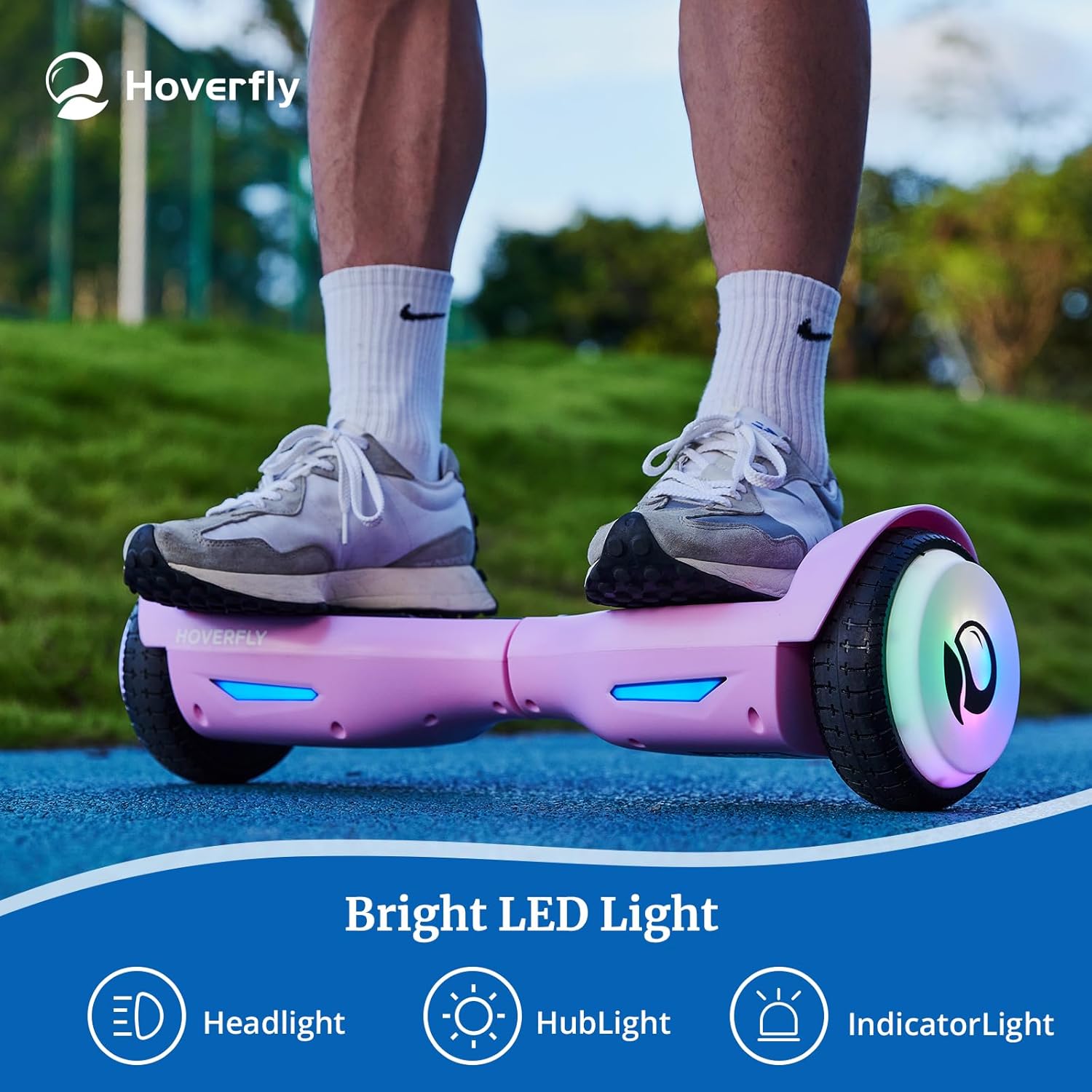

Image: A close-up view of the hoverboard's bright LED headlight, hub light, and indicator light in action.
6. Maintenance
Proper maintenance ensures the longevity and optimal performance of your HOVERFLY Elf Hoverboard.
- Cleaning: Wipe the hoverboard with a damp cloth. Do not use harsh chemicals or abrasive cleaners. Avoid direct water spray or submersion.
- Battery Care:
- Charge the battery fully before storing for extended periods.
- Recharge the battery every 30-60 days, even if not in use, to prevent deep discharge.
- Do not expose the battery to extreme temperatures.
- Storage: Store the hoverboard in a cool, dry place away from direct sunlight and moisture.
- Inspection: Regularly check for loose screws, damaged parts, or unusual noises. Do not operate if any damage is detected.
7. Troubleshooting
If you encounter issues with your HOVERFLY Elf Hoverboard, refer to the common problems and solutions below:
| Problem | Possible Cause | Solution |
|---|---|---|
| Hoverboard not turning on. | Low battery; Power button not pressed correctly. | Charge the hoverboard fully. Ensure the power button is pressed firmly. |
| Hoverboard not charging. | Charger not connected properly; Faulty charger/port. | Check all connections. Try a different outlet. If issue persists, contact customer support. |
| Hoverboard is unbalanced or vibrating. | Needs calibration; Uneven surface. | Perform calibration as described in Section 4.3. Ride on a flat, level surface. |
| Short battery life. | Battery not fully charged; Old battery; Riding conditions. | Ensure full charge. Battery degradation is normal over time. Heavy use or inclines reduce range. |
For issues not listed here or if solutions do not resolve the problem, please contact HOVERFLY customer support.
8. Specifications
Key technical specifications for the HOVERFLY Elf Hoverboard:
| Feature | Detail |
|---|---|
| Model Name | Elf |
| Brand | HOVERFLY |
| Motor Power | Dual 200W Brushless Motors |
| Max Speed | Up to 10 km/h |
| Max Range | Up to 5 km |
| Battery Type | Lithium Ion |
| Battery Capacity | 50.4 Wh (25.2V 2AH) |
| Charging Time | Approx. 5 hours |
| Wheel Size | 6.5 Inches (Solid Rubber) |
| Max Load | 80 kg (176 lbs) |
| Product Dimensions | 58.5 x 18 x 17.5 cm |
| Product Weight | 5.75 kg |
| Safety Certification | UL2272 |
9. Warranty and Support
HOVERFLY stands by the quality of its products.
- Warranty: Your HOVERFLY Elf Hoverboard comes with a 12-month warranty from the date of purchase. This warranty covers manufacturing defects. Please retain your proof of purchase.
- Technical Support: We offer lifetime technical support for your product. If you have any questions, concerns, or require assistance, our dedicated HOVERFLY team is available to provide prompt and helpful assistance.
- Contact Information: For support, please refer to the contact details provided on the HOVERFLY official website or your purchase documentation.
Image: HOVERFLY's commitment to 100% customer satisfaction and readily available support.
