YITAHOME Double Metal Bed Frame User Manual

1. Introduction

Thank you for choosing the YITAHOME Double Metal Bed Frame. This manual provides important information regarding the assembly, operation, maintenance, and troubleshooting of your new bed frame. Please read this manual thoroughly before assembly and retain it for future reference.

This bed frame is designed for a standard UK 4ft6 mattress (190x135cm) and features a modern style with integrated headboard and footboard, offering ample under-bed storage space.

Image 1.1: The YITAHOME Double Metal Bed Frame, showcasing its design and under-bed clearance in a typical bedroom environment.

2. Safety Instructions

• Always assemble the bed frame on a soft, clean surface to prevent scratches.
• Ensure all bolts and screws are securely tightened before use. Periodically check and re-tighten as necessary.
• Do not exceed the maximum weight capacity of 700 lbs (approximately 317 kg).
• Keep small parts and packaging materials away from children to prevent choking hazards.
• Avoid standing or jumping on the bed frame.
• Use only the mattress size specified (UK 4ft6 / 190x135cm) to ensure proper fit and safety.

3. Package Contents

Before beginning assembly, verify that all parts listed below are present and undamaged. If any parts are missing or damaged, please contact YITAHOME customer support.

• Headboard and Footboard sections
• Side Rails
• Support Legs (9 total)
• Metal Slats
• Hardware Pack (bolts, nuts, washers, Allen key)
• Installation Manual (this document)

4. Setup and Assembly

Assembly of the YITAHOME bed frame is designed to be straightforward, with certain components pre-installed to save time. It is recommended to have two people for assembly, though it can be completed by one person.

1. Unpack and Identify Parts: Carefully remove all components from the packaging and lay them out on a clean, soft surface. Refer to the parts list in Section 3 to identify each piece.
2. Unfold Main Frames: The bed frame features 3 pre-installed main frames that can be easily unfolded. Ensure the locking mechanisms are securely engaged.


Image 4.1: Illustration of the easy assembly process, highlighting the pre-installed main frames that unfold for quick setup.

3. Attach Headboard and Footboard: Connect the headboard and footboard sections to the main frame using the provided bolts and the Allen key. Do not fully tighten bolts until all connections are made.
4. Install Side Rails and Slats: Secure the side rails to the headboard and footboard. Then, place the metal slats onto the designated supports. The square tube design of the slats helps ensure mattress stability.
5. Tighten All Fasteners: Once all components are in place, systematically tighten all bolts and screws using the Allen key. Ensure all connections are firm and secure.
6. Place Mattress: Position your 4ft6 mattress directly onto the metal slats. No box spring is required.

The bed frame is designed with silent foam tape on the slats to eliminate friction noise, ensuring a quiet sleeping environment.

Image 4.2: Detail showing the silent foam tape applied to the bed frame slats and the robust square tube design, contributing to a noise-free and stable structure.

5. Operating Your Bed Frame

The YITAHOME Double Metal Bed Frame is designed for stable and comfortable sleep. Once assembled, simply place your mattress directly on the metal slats. The integrated headboard and footboard provide support and help keep your mattress securely in place.

The generous 32cm (12.6 inches) of under-bed clearance provides ample space for storage, allowing you to keep your bedroom tidy and organized. This space is ideal for storing items such as clothes, shoes, and bags in storage containers.

Image 5.1: The bed frame demonstrating its large under-bed storage capacity, with 32 cm (12.6 inches) of clearance for various items.

6. Maintenance

• Cleaning: Wipe the metal frame with a soft, damp cloth. Avoid using harsh chemicals or abrasive cleaners that could damage the finish.
• Fastener Check: Periodically (e.g., every 3-6 months) check all bolts and screws to ensure they remain tight. Re-tighten if necessary to maintain stability and prevent squeaking.
• Avoid Acidic Liquids: As per product care instructions, avoid contact with acidic liquids to prevent damage to the metallic finish.

7. Troubleshooting

8. Specifications

• Model: AEYIHQfnHt
• Brand: YITAHOME
• Size: Double (4FT6)
• Product Dimensions (L x W x H): 198.6 cm x 136.8 cm x 36 cm (78.19"L x 53.86"W x 14.17"H)
• Matching Mattress Size (excluded): UK 4ft6 (190cm x 135cm)
• Material: Metal
• Color: Black
• Weight Capacity: 700 lbs (approximately 317 kg)
• Under-Bed Clearance: 32 cm (12.6 inches)
• Assembly Required: Yes
• Special Features: No Box Spring Needed, Under Bed Storage, Squeak Resistant, Foldable Design

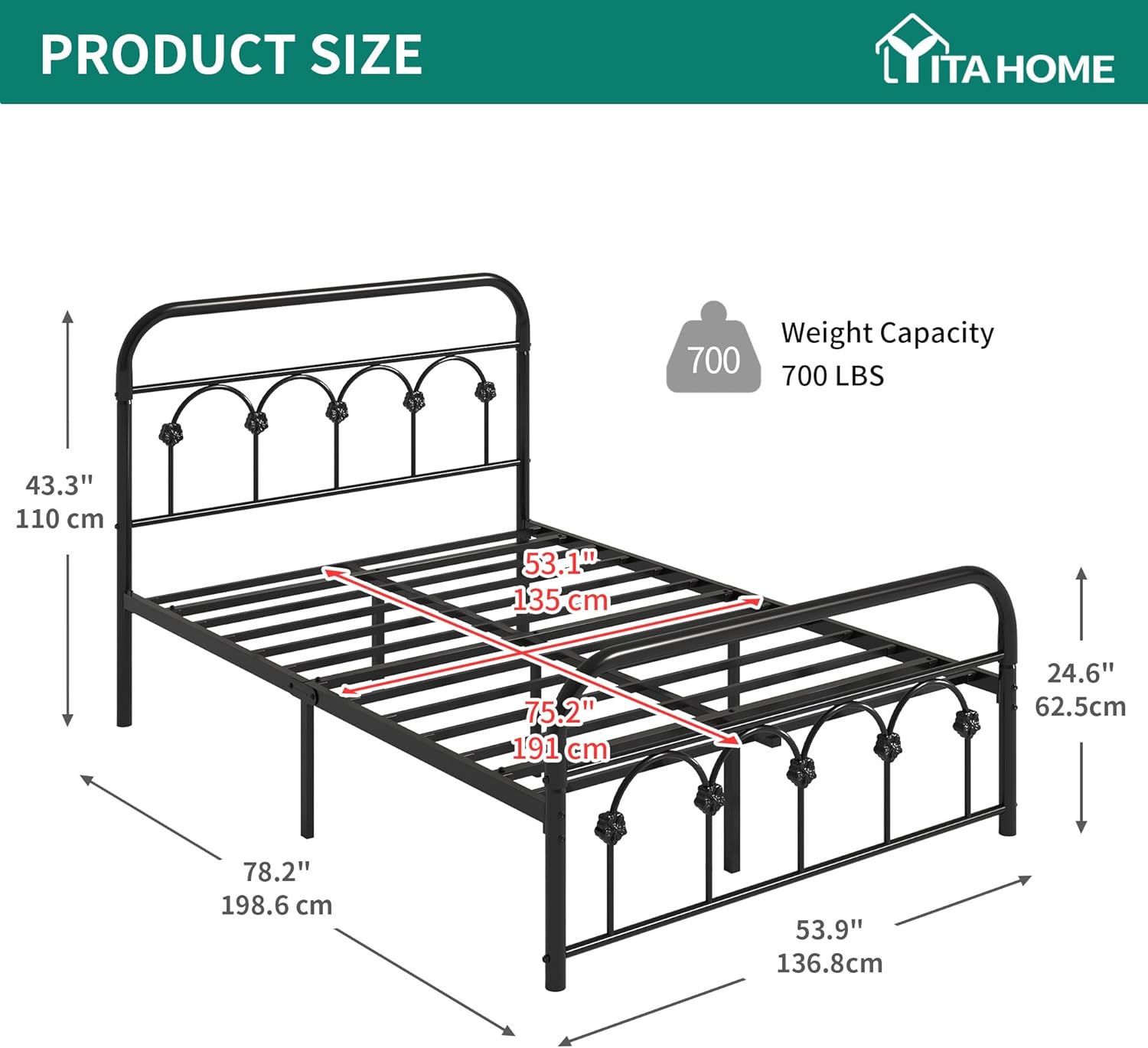

Image 8.1: Detailed dimensions and weight capacity of the YITAHOME Double Metal Bed Frame.

9. Warranty and Support

For warranty information, product support, or to purchase replacement parts, please visit the official YITAHOME website or contact their customer service directly. Refer to your purchase documentation for specific warranty terms and conditions.
