1. Introduction
The Bosch Automotive C30 Battery Charger is an advanced, microprocessor-controlled device designed for charging and maintaining 6V and 12V lead-acid batteries. This includes WET, EFB, GEL, AGM, and VRLA battery types commonly found in cars, scooters, motorcycles, classic cars, vans, and motorhomes. Its intelligent design ensures efficient and safe battery management, extending battery life and ensuring reliable vehicle starts.
Key Features:
- Wide Compatibility: Charges 6V-12V lead-acid, WET, EFB, GEL, AGM, and VRLA batteries.
- Intelligent Operation: Integrated microprocessor ensures faster charging times and optimizes battery condition.
- Automated and User-Friendly: Simple single-button operation and bright LED indicators for charge status.
- Memory Function: Resumes charging automatically after a power interruption, retaining the last setting.
- High Safety and Durability: Features protection against overheating, reverse polarity, and sparks. Automatic shutdown in case of anomalies. IP65 certified for dust and water resistance.
- Pulse Charging Mode: Automatically activates at low voltage or after charging to maintain optimal charge.
2. Important Safety Instructions
Please read and understand all safety information before using the Bosch C30 Battery Charger. Failure to follow these instructions may result in electric shock, fire, or serious injury.
- Personal Safety: Always wear eye protection and protective clothing when working with batteries. Battery acid is corrosive.
- Ventilation: Ensure adequate ventilation during charging. Batteries can produce explosive gases. Do not charge in a confined area.
- Spark Prevention: Avoid creating sparks near the battery. Connect and disconnect the charger clamps only when the charger is unplugged from the AC outlet.
- Correct Polarity: Connect the red (+) clamp to the positive battery terminal and the black (-) clamp to the negative battery terminal. Reverse polarity protection is built-in, but correct connection is always recommended.
- Electrical Safety: Do not expose the charger to rain or wet conditions. Do not operate the charger if it has received a sharp blow, been dropped, or otherwise damaged.
- Children and Pets: Keep the charger and battery out of reach of children and pets.
- Intended Use: This charger is designed for 6V and 12V lead-acid batteries only. Do not use it for charging dry-cell batteries that are commonly used with home appliances.
3. Package Contents
Verify that all items are present in the package:
- Bosch C30 Battery Charger Unit
- AC Power Cable
- Detachable Charging Cable with Battery Clamps
- Hanging Hook
- User Manual (this document)
- Carrying Bag
Image 3.1: Bosch C30 Battery Charger, detachable clamps, hanging hook, and carrying bag.
Image 3.2: The included black carrying bag with the Bosch logo, designed for convenient storage and transport of the charger and its accessories.
Image 3.3: The gray plastic hanging hook accessory, which allows the charger to be suspended for easier use and storage during charging.
4. Setup and Initial Connection
- Prepare the Battery: Ensure the battery terminals are clean and free of corrosion. If necessary, clean them with a wire brush.
- Connect Battery Clamps:
- Connect the red (+) clamp to the positive battery terminal.
- Connect the black (-) clamp to the negative battery terminal.
Ensure a secure connection. For vehicles, connect the negative clamp to the vehicle chassis away from the battery if the battery is still connected to the vehicle's electrical system, following vehicle manufacturer guidelines.
Image 4.1: Close-up of the red positive (+) and black negative (-) battery clamps, which connect the charger to the battery terminals.
- Connect Charger to AC Power: Plug the AC power cable into a standard wall outlet. The charger will enter standby mode, indicated by a green LED.
- Positioning the Charger: Use the included hanging hook to suspend the charger if desired, keeping it away from the battery and ensuring good ventilation.

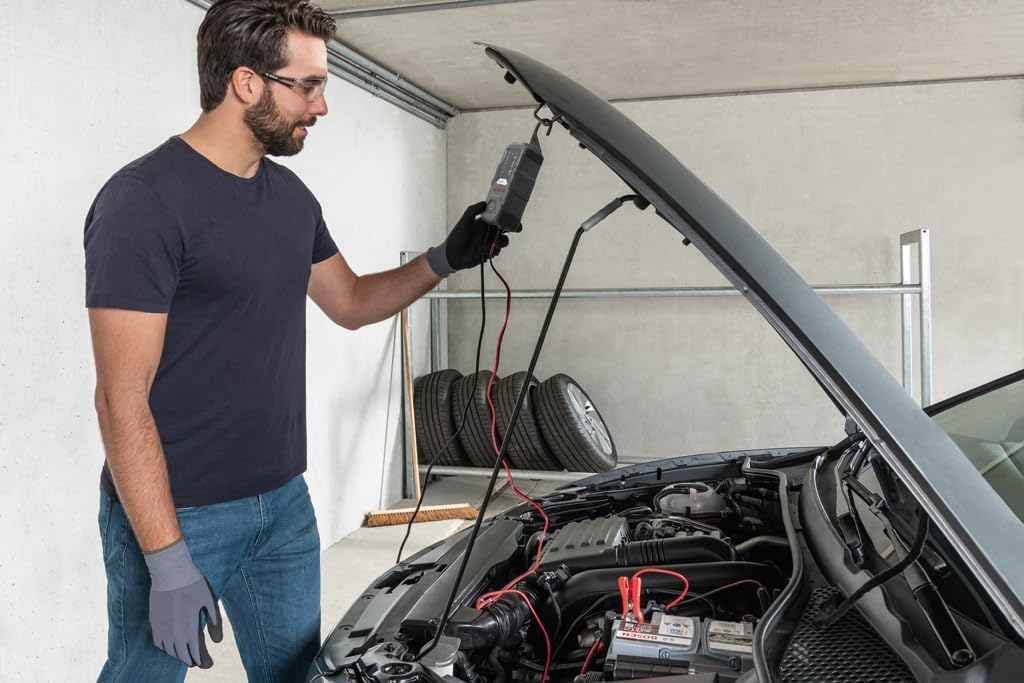

Image 4.2: A person connecting the Bosch C30 battery charger to a car battery under the hood, demonstrating proper setup.
5. Operating Instructions
The Bosch C30 charger features a simple, intuitive interface for ease of use.
5.1. Selecting Charging Mode
Once connected to the battery and AC power, press the MODE button to cycle through the available charging programs. The LED indicators will illuminate to show the selected mode.
- 6V Mode: For 6V batteries.
- 12V Mode (Car/Motorcycle): For 12V batteries in cars, motorcycles, etc.
- 12V Cold/AGM Mode: For 12V AGM batteries or charging in cold conditions.
The charger automatically detects the battery voltage (6V or 12V) and suggests the appropriate mode. You can manually override this if needed by pressing the MODE button.

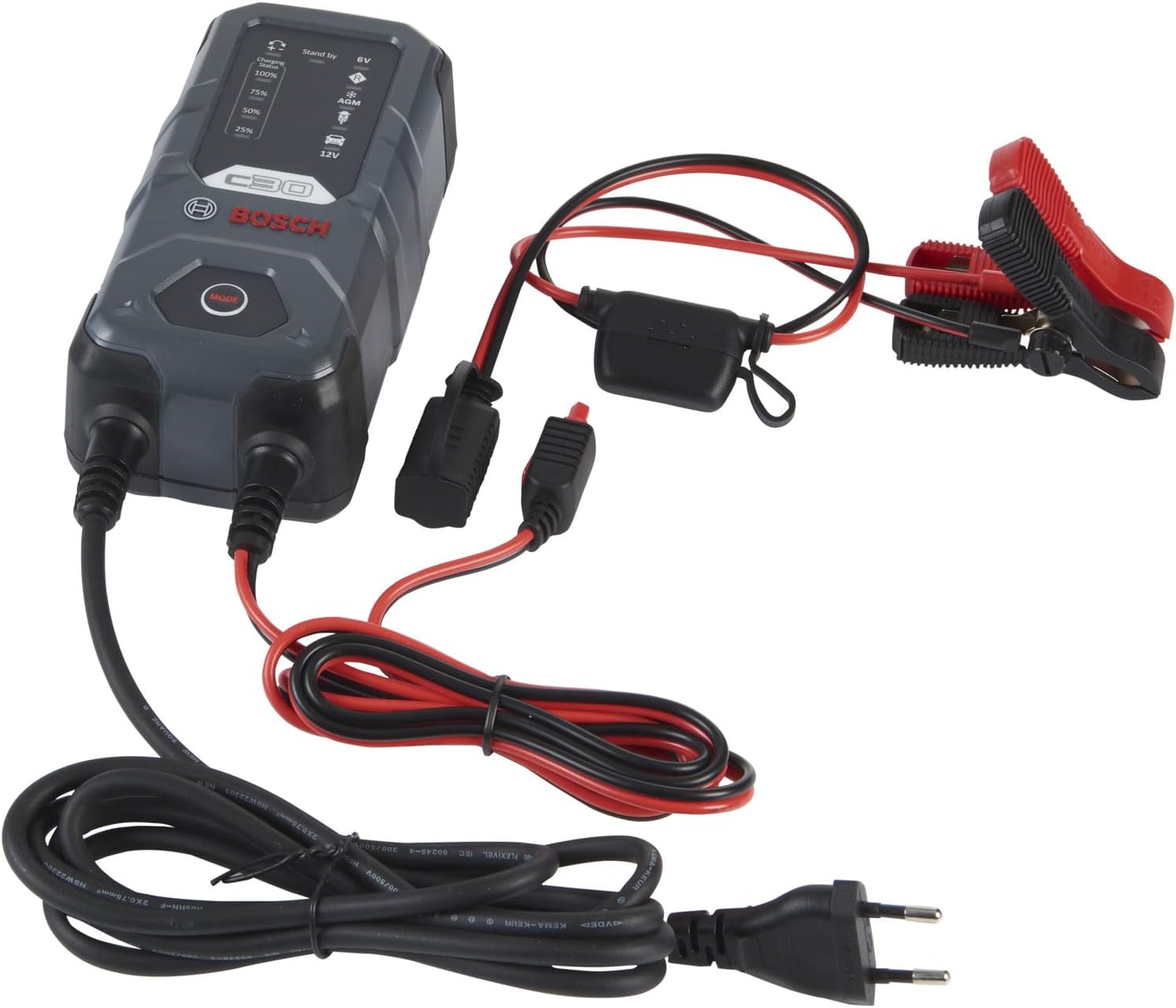

Image 5.1: The Bosch C30 charger unit, showing its illuminated display and the 'MODE' button for selecting charging programs.
5.2. Charging Process and Indicators
The charger's LED display provides real-time feedback on the charging status:
- Charging Status (25%, 50%, 75%, 100%): Indicates the approximate charge level of the battery.
- Standby LED: Green light indicates the charger is in standby mode, ready for operation.
- Charging in Progress: The relevant percentage LEDs will illuminate sequentially.
- Fully Charged (100%): When the 100% LED is solid, the battery is fully charged. The charger will then automatically switch to maintenance (pulse charging) mode.
5.3. Memory Function
In the event of a power outage, the C30 charger's memory function will save the last selected charging program. Once power is restored, the charger will automatically resume charging from where it left off.
5.4. Pulse Charging Mode
After the battery reaches full charge, or if a low voltage battery is detected, the charger automatically enters pulse charging mode. This mode delivers small, controlled pulses of current to maintain the battery's optimal charge level and prevent self-discharge, which is beneficial for extending battery life, especially during long-term storage.
6. Maintenance and Storage
Proper maintenance ensures the longevity and optimal performance of your Bosch C30 Battery Charger.
- Cleaning: Disconnect the charger from both the AC outlet and the battery before cleaning. Wipe the exterior with a soft, damp cloth. Do not use harsh chemicals or abrasive cleaners.
- Cable and Clamp Inspection: Regularly inspect the charging cables and battery clamps for any signs of damage, fraying, or corrosion. Replace damaged components immediately.
- Storage: Store the charger in a cool, dry place, away from direct sunlight and extreme temperatures. Use the provided carrying bag for organized storage and protection.
- Battery Maintenance: For batteries stored for extended periods, periodic charging with the C30's maintenance function is recommended to prevent deep discharge.
7. Troubleshooting
If you encounter issues with your Bosch C30 Battery Charger, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Charger does not turn on / No LEDs illuminate. | No AC power. Faulty AC outlet. Damaged power cable. | Check AC power connection. Try a different outlet. Inspect power cable for damage. |
| Charger is on but not charging (Standby LED only). | Incorrect battery connection. Battery voltage too low for selected mode. | Ensure clamps are securely connected with correct polarity. Press MODE button to select appropriate charging program. |
| Error indicator (e.g., specific LED pattern, no charge). | Reverse polarity connection. Short circuit. Overheating. Severely damaged battery. | Disconnect immediately. Check clamp polarity. Inspect cables for short circuits. Allow charger to cool down. If battery is severely damaged, it may not be chargeable. |
| Charging takes too long. | Battery is deeply discharged. Battery capacity is very high. | This is normal for deeply discharged or high-capacity batteries. Ensure correct charging mode is selected. |
If the problem persists after following these steps, please contact Bosch Automotive customer support.
8. Technical Specifications
| Feature | Specification |
|---|---|
| Brand | Bosch Automotive |
| Model Number | 0189911030 |
| Product Dimensions (L x W x H) | 16.9 x 5.4 x 8.1 cm |
| Output Voltage | 6V / 12V |
| Input Voltage | 230V / 50Hz (AC) |
| Current Rating | 0.8 A (6V) / 3.8 A (12V) |
| Compatible Battery Types | Lead-Acid, WET, EFB, GEL, AGM, VRLA |
| Protection Class | IP65 (Dust and Water Resistant) |
| Safety Features | Overheating protection, Reverse polarity protection, Spark protection, Automatic shutdown |
| Memory Function | Yes |
| Country of Origin | China |
9. Warranty and Support
9.1. Warranty Information
Bosch Automotive products are manufactured to high-quality standards and come with a manufacturer's warranty. Please refer to the warranty card included with your product or visit the official Bosch Automotive website for detailed warranty terms and conditions specific to your region.
9.2. Customer Support
For technical assistance, troubleshooting not covered in this manual, or warranty claims, please contact Bosch Automotive customer support. Contact information can typically be found on the Bosch Automotive website or on the product packaging.
You can visit the official Bosch Automotive store for more information and products: Bosch Automotive Store
