OKAIDI Baby Monitor Mount Instruction Manual

Introduction

This instruction manual provides detailed guidance for the installation, operation, and maintenance of your OKAIDI Baby Monitor Mount. This flexible and adjustable mount is designed to securely hold your baby monitor, offering optimal viewing angles without requiring permanent installation. It is compatible with various OKAIDI and HELLOBABY brand video baby monitors, including models OD8052, OD8060, OD8051, and OD8050.

Image: The OKAIDI Baby Monitor Mount securely attached to a crib railing, holding a baby monitor.

Safety Information

Please read and understand all safety instructions before using the product. Failure to follow these instructions may result in injury or damage.

• Important: Do not position the baby monitor directly above your baby. If the holder is not tightened correctly, the monitor may become dislodged and fall from the crib, posing a risk to the baby.
• Ensure the mount is securely fastened to a stable surface (crib railing, shelf, etc.) before attaching the monitor.
• Keep the monitor and its power cord out of reach of children to prevent strangulation hazards.
• Regularly check the mount's stability and the monitor's attachment.

Package Contents

Verify that all components are present in the package:

• 1 x OKAIDI Flexible Baby Monitor Mount

Image: The package includes one flexible baby monitor mount and two types of adapter plates for different monitor bases.

Setup and Installation

The OKAIDI Baby Monitor Mount is designed for easy, tool-free installation. No screws, drilling, or additional tools are required, ensuring no damage to your walls or furniture.

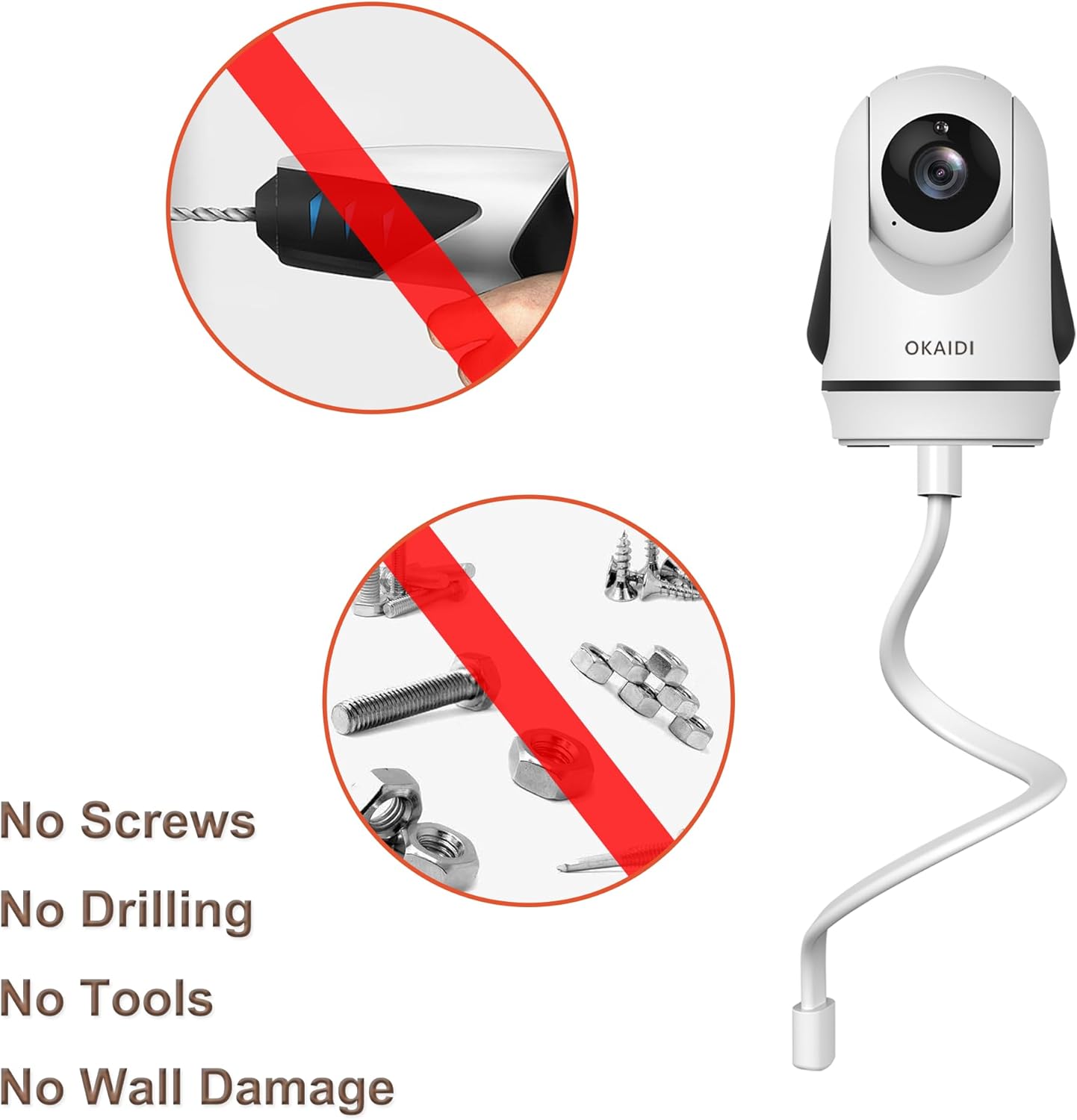

Image: This mount requires no screws, drilling, or tools for installation, preventing wall damage.

Compatibility

This mount is compatible with OKAIDI and HELLOBABY brand video baby monitors, including models OD8052, OD8060, OD8051, and OD8050. Both old and new interface versions of the monitor bases can be connected.

Image: The mount is compatible with multiple baby monitor models, indicated by checkmarks next to different camera designs.

Image: A visual comparison of an "old version" and "new version" monitor interface, confirming that both types can be connected to the mount.

Installation Steps

1. Step 1: Prepare the Monitor Base
   Identify the appropriate adapter plate for your baby monitor's base. Ensure it aligns correctly with the monitor's attachment point.
2. Step 2: Attach Adapter to Monitor
   Securely attach the chosen adapter plate to the bottom of your baby monitor. This usually involves twisting or clicking it into place until it is firm.
3. Step 3: Connect Mount to Adapter
   Take the flexible mount and connect its threaded end to the adapter plate now attached to your monitor. Twist clockwise until it is tightly secured.
4. Step 4: Position the Mount
   Wrap the flexible arm of the mount around a stable surface such as a crib railing, shelf, or handle. Bend and shape the arm to achieve the desired viewing angle. Ensure the mount is tightly wrapped and stable to prevent movement or falling.

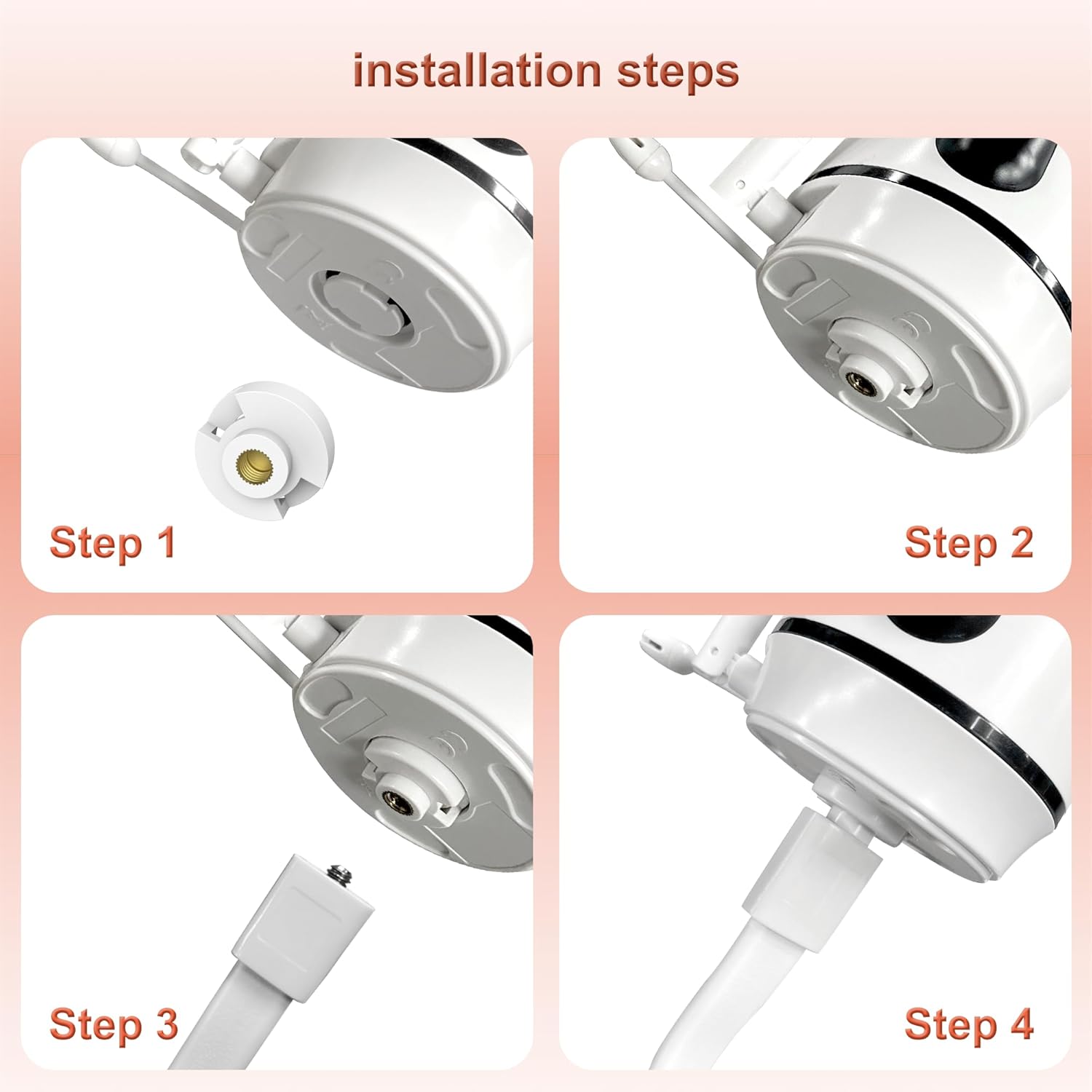

Image: A four-panel image illustrating the installation process: 1) preparing the monitor base, 2) attaching the adapter, 3) connecting the mount, and 4) positioning the flexible arm.

Image: A detailed view of the connection point where the flexible mount attaches to the baby monitor, showing the threaded screw mechanism.

Operation and Usage

Once installed, the OKAIDI Baby Monitor Mount provides flexible positioning for your monitor.

• Flexible and Adjustable: The mount's flexible arm allows for 360-degree rotation and multi-angle adjustment. Easily tilt, swivel, and adjust the height to achieve the optimal viewing angle of your baby.
• Portable Design: The mount can be easily disassembled and folded into a compact shape, making it convenient for travel, vacations, or temporary setups.

Image: The baby monitor mount positioned on a crib railing in a nursery, demonstrating its flexible placement.

Maintenance

To ensure the longevity and proper function of your OKAIDI Baby Monitor Mount, follow these simple maintenance guidelines:

• Cleaning: Wipe the mount with a soft, damp cloth. Avoid using harsh chemicals or abrasive cleaners, as these can damage the material.
• Storage: When not in use, store the mount in a clean, dry place away from direct sunlight and extreme temperatures.
• Inspection: Periodically inspect the mount for any signs of wear, damage, or loosening of connections.

Troubleshooting

If you encounter issues with your baby monitor mount, refer to the following common solutions:

• Monitor feels loose or unstable: Ensure that the mount is tightly wrapped around the crib railing or chosen surface. Verify that the connection between the monitor and the mount's adapter is securely tightened. Re-adjust the flexible arm to distribute weight evenly if necessary.
• Difficulty achieving desired angle: The flexible arm can be bent and twisted. Experiment with different configurations to find the most stable and optimal viewing angle.
• Mount does not fit my monitor: This mount is specifically designed for OKAIDI and HELLOBABY brand video baby monitors (models OD8052, OD8060, OD8051, OD8050). If your monitor is a different brand or model, it may not be compatible.

If you continue to experience problems, please contact OKAIDI customer support for assistance.

Specifications

Warranty and Support

For any questions, concerns, or support regarding your OKAIDI Baby Monitor Mount, please contact OKAIDI customer service. Refer to the product packaging or the official OKAIDI website for the most current contact information and warranty details.

Note: Specific warranty terms and conditions may vary. Please retain your proof of purchase for warranty claims.
