Introduction
Thank you for choosing the EcoChannels Drop In Kitchen Sink. This manual provides essential information for the safe and efficient installation, operation, and maintenance of your new sink. Please read these instructions thoroughly before beginning installation or use, and retain this manual for future reference.
Safety Information
Always observe basic safety precautions to reduce the risk of injury or property damage.
- Ensure all local plumbing and building codes are followed during installation.
- Wear appropriate personal protective equipment, such as safety glasses and gloves, during installation.
- Turn off the main water supply before beginning any plumbing work.
- Handle the sink with care to avoid scratches or damage to the finish.
- If you are unsure about any installation steps, consult a qualified professional.
Package Contents
Please verify that all components are present before beginning installation:
- EcoChannels Drop In Kitchen Sink (Gunmetal Black)
- Drain Assembly (Pop-Up Type)
- Roll-up Drying Rack
- Bottom Grid
- Mounting Clips and Screws
- Installation Template
This image displays the main sink unit along with the essential accessories provided for installation and daily use, including the drain assembly, a flexible roll-up drying rack, and a protective bottom grid.
Specifications
| Brand | EcoChannels |
| Model | 15 x 20 x 10 Drop in |
| Color | Gunmetal Black |
| Material | 16-Gauge SUS304 Stainless Steel |
| Finish Type | NANO PVD |
| Exterior Dimensions | 15" Width x 20" Depth x 10" Height |
| Interior Dimensions | 13" Width x 16" Depth x 10" Height |
| Countertop Cutout Size | 13.81" W x 18.81" D |
| Drain Opening | Standard 3.5" |
| Installation Type | Drop In / Topmount |
| Corner Radius | R10 mm |
| Sound Dampening | Soundproofing pads, Anti-condensation spray undercoating |
This diagram provides precise measurements for the sink's outer and inner dimensions, as well as the recommended countertop cutout size, crucial for accurate installation planning.
Setup and Installation
1. Pre-Installation Checklist
- Ensure you have all package contents as listed above.
- Required tools: Screwdriver, sealant, measuring tape, jigsaw (for countertop cutout), safety glasses, gloves.
- Prepare the countertop: Use the provided template to mark and cut the countertop opening. The recommended cutout size is 13.81" W x 18.81" D.
2. Installation Steps
- Prepare Mounting Clips: Bend the iron piece of each mounting hook to form a pivot with the sink bowl. This allows the hook to properly engage with the countertop.
- Attach Mounting Clips: Let the barb of the screw pass through the holes of the fixing piece under the sink panel. There are 10 mounting clips positioned around the sink for secure installation.
- Secure Sink to Countertop: Place the sink into the countertop opening. Use a screwdriver to tighten the screws on the mounting clips, locking the sink securely to the countertop. Ensure an even seal around the perimeter.
- Install Drain Assembly: Follow the instructions provided with your drain assembly to install it into the 3.5-inch drain opening of the sink. Apply sealant as necessary to prevent leaks.
- Connect Plumbing: Connect the sink's drain to your household plumbing system. Test for leaks by running water into the sink.
This image highlights the robust construction of the sink's underside, showcasing the rubber mute pads for noise reduction and the locking hooks essential for a stable drop-in installation. A caliper measurement confirms the 3mm thick panel.
Operation
Your EcoChannels kitchen sink is designed for daily kitchen tasks, from washing dishes to food preparation. Its single bowl design offers ample space, and the gunmetal black finish provides a modern aesthetic.
- Efficient Drainage: The sloped sink bottom with innovative X-shaped DRAIN GROOVES ensures quick water drainage and prevents pooling. An additional transparent DRAINAGE COATING further improves water runoff and reduces water spots.
- Roll-up Drying Rack: Utilize the included roll-up rack for air-drying dishes, fruits, or vegetables. It can be conveniently rolled up and stored when not in use.
- Bottom Grid: Place the bottom grid in the sink to protect the surface from scratches and erosion caused by pots, pans, and utensils.

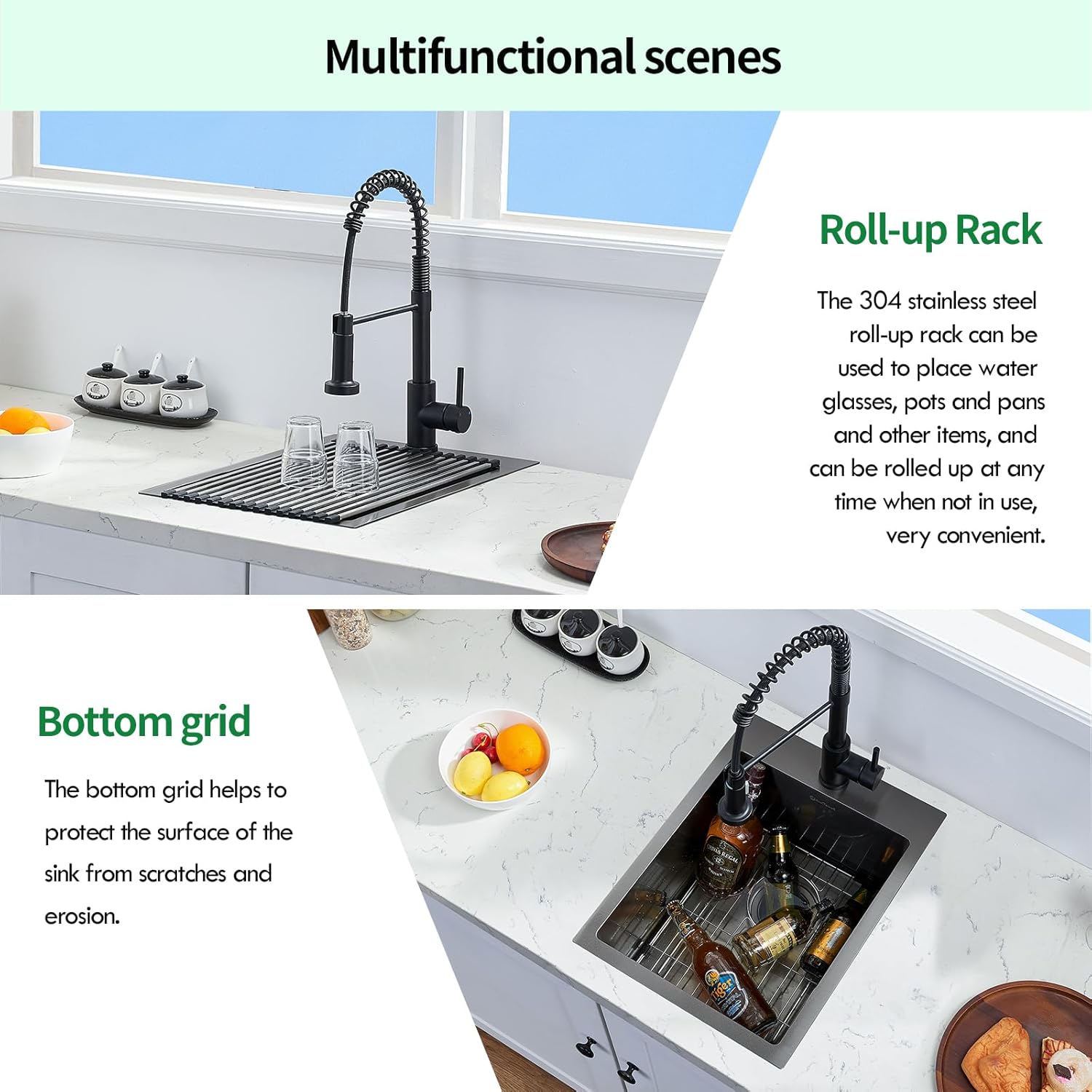

This image illustrates how the roll-up rack can be used for drying items over the sink, and how the bottom grid provides protection and support for items placed inside the sink bowl.
Care and Maintenance
Proper care will help maintain the appearance and longevity of your EcoChannels sink.
- Regular Cleaning: Wipe the sink with a dry cloth after each use to prevent water spots and mineral buildup. For deeper cleaning, use a mild soap or detergent and a soft cloth. Rinse thoroughly and dry.
- Avoid Abrasives: Do not use abrasive cleaners, steel wool, or harsh chemicals, as these can damage the NANO PVD gunmetal black finish.
- Scratch Resistance: While the sink is designed with scratch-resistance, avoid dragging sharp or heavy objects across the surface. The R10 mm rounded corners are designed for easy cleaning and to prevent debris accumulation.
- Anti-Condensation: The anti-condensation spray undercoating prevents moisture accumulation, contributing to a drier cabinet space below the sink.
This visual highlights the sink's design for quick water evacuation and the ease of cleaning its Nano-PVD surface, which resists stains and corrosion.
Troubleshooting
Below are common issues and their potential solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Water pooling in sink | Drainage grooves or slope obstructed. | Ensure drain grooves are clear of debris. Clean the sink surface thoroughly. |
| Water spots or streaks | Hard water deposits; not drying after use. | Wipe the sink dry after each use. For stubborn spots, use a vinegar-water solution, then rinse and dry. |
| Scratches on surface | Abrasive materials or sharp objects. | Use the bottom grid to protect the sink. Avoid dragging heavy or sharp items. Minor scratches may blend over time with regular use and cleaning. |
| Leaking around drain or edges | Improperly sealed connections. | Check all plumbing connections and mounting clips. Reapply plumber's putty or sealant if necessary. |
Warranty and Support
EcoChannels stands behind the quality of its products. While specific warranty details are not provided in this manual, please refer to your purchase documentation or the EcoChannels official website for comprehensive warranty information.
For technical assistance, replacement parts, or any questions regarding your EcoChannels Drop In Kitchen Sink, please contact our customer support:
- Website: EcoChannels Store on Amazon
- Email: support@ecochannels.com (placeholder)
- Phone: 1-800-XXX-XXXX (placeholder)
