Introduction
This manual provides essential information for the safe assembly, operation, and maintenance of your UDPATIO 12' x 16' Hardtop Gazebo. Please read all instructions carefully before beginning assembly and retain this manual for future reference.
Safety Information
WARNING: Failure to follow these safety instructions may result in injury or damage to the product.
- Ensure the gazebo is securely anchored to a stable foundation.
- Do not exceed the weight limit for any hanging accessories or roof loads.
- Follow all assembly instructions carefully to avoid injury.
- Keep children and pets away from the assembly area.
- Do not use open flames or heating devices too close to the gazebo curtains or netting.
Setup and Assembly
The UDPATIO 12' x 16' Hardtop Gazebo is designed for straightforward assembly. It typically ships in 4 boxes. Assembly is estimated to take approximately 8 hours for 2-3 people. Detailed installation instructions are included with your product to facilitate the process. Please refer to these specific instructions for step-by-step guidance.
The gazebo features a new splice card slot design that reduces the number of screws required, contributing to a stronger and more integrated structure. Pre-drilled holes and ground stakes are included to enhance stability and durability.

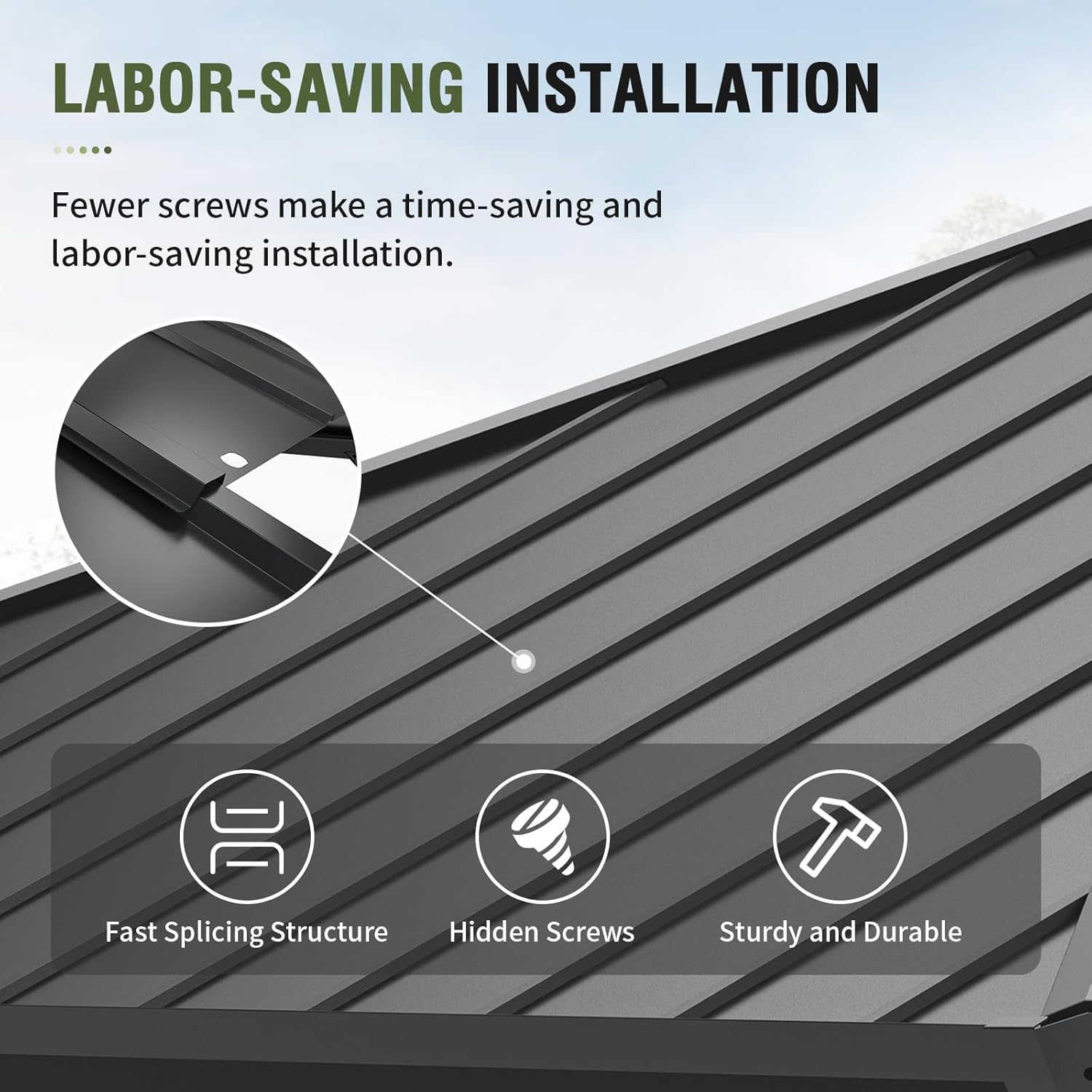

Image: The roof structure highlighting the labor-saving installation design with hidden screws and a fast splicing mechanism.
Video: An overview of the UDPATIO hardtop gazebo, showcasing its features and construction. This video provides a visual guide to the product's design and stability.
Operating Instructions
Your gazebo is equipped with a double-track system for its sidewalls, allowing for flexible use of the included privacy curtains and mosquito netting. These can be adjusted to suit your needs:
- Fully Open: Tie back both the privacy curtains and mosquito netting to allow maximum airflow and an unobstructed view.
- Semi-Open: Pull only the mosquito netting to protect against insects while maintaining ventilation and visibility.
- Fully Closed: Close both the privacy curtains and mosquito netting for enhanced privacy, sun protection, and shelter from light rain.
Sturdy hooks are integrated into the gazebo structure, providing convenient points to hang lights, heaters, or fans, enhancing your outdoor experience.
Image: Illustration demonstrating the versatility of the detachable curtains, showing fully open, semi-open (with netting), and fully closed configurations.
Maintenance
To ensure the longevity and optimal performance of your UDPATIO Hardtop Gazebo, regular maintenance is recommended:
- Roof Care: The double-roofed galvanized steel top is designed for superior protection against corrosion, heavy snow, and rain, and is certified fireproof. It also prevents 99% of UV rays. Periodically inspect the roof for any debris accumulation and clear as needed.
- Frame Maintenance: The 4.7-inch x 4.7-inch aluminum frame features rustproof pillars and a black powder-coated finish, making it stable, anti-corrosive, and waterproof. Clean the frame with a mild soap and water solution and a soft cloth. Avoid abrasive cleaners.
- Sidewalls and Netting: The double-layered curtains and mosquito netting can be spot cleaned with mild detergent. For deeper cleaning, follow the care instructions provided with the fabric.
- Anchoring: Regularly check the security of the pre-drilled holes and ground stakes to ensure the gazebo remains firmly anchored, especially after strong winds or heavy weather.
Image: The galvanized steel double roof, highlighting its protective features including UV resistance, fire resistance, anti-corrosion properties, air ventilation, and waterproofing.
Image: Detail of the aluminum frame, emphasizing its rust-resistant, corrosion-resistant, and all-weather durability for extended service life.
Image: Visual representation of the gazebo's weather resistance, demonstrating its ability to withstand snow and rain.
Troubleshooting
This section addresses common issues you might encounter with your gazebo.
- Loose Connections: If any part of the frame feels unstable, re-check all bolts and screws to ensure they are tightened securely. Refer to the assembly instructions for correct fastening points.
- Curtains/Netting Not Sliding Smoothly: Inspect the double-track system for any obstructions or debris. Ensure the tracks are clean and free of foreign objects.
- Water Leakage: While the roof is designed to be waterproof, ensure all roof panels are correctly installed and sealed according to the assembly instructions. Check for any gaps or misalignments.
- Gazebo Movement in Wind: Verify that the gazebo is properly anchored to the ground using the provided ground stakes or other suitable anchoring methods for your specific surface.
Specifications
| Feature | Detail |
|---|---|
| Brand | UDPATIO |
| Product Dimensions | 192"L x 144"W x 123.6"H (16'L x 12'W x 10.3'H) |
| Floor Area | 192 Square Feet |
| Item Weight | 540 Pounds |
| Frame Material | Aluminum |
| Roof Material | Galvanized Steel |
| Water Resistance Level | Waterproof |
| Ultraviolet Light Protection | 99% |
| Assembly Required | Yes |
| Color | Gray |
Image: Dimensional diagram of the 12' x 16' gazebo, illustrating its size and capacity for various outdoor furniture arrangements.
Customer Support
If you have any questions regarding the assembly, operation, or maintenance of your UDPATIO Hardtop Gazebo, please do not hesitate to contact us. Our customer support team is available to provide professional guidance and assistance.
