Goplus Jumbo Folding Utility Cart (Model SU-10046-AT) Instruction Manual

Introduction

This manual provides comprehensive instructions for the assembly, operation, and maintenance of your Goplus Jumbo Folding Utility Cart, Model SU-10046-AT. Please read this manual thoroughly before using the product to ensure safe and efficient operation.

Product Features

• Large Storage Capacity: Features two storage baskets. The front basket offers 27.5 gallons of space for items such as vegetables, snacks, books, laundry, tools, and cargo. A smaller back basket provides secure storage for personal belongings.

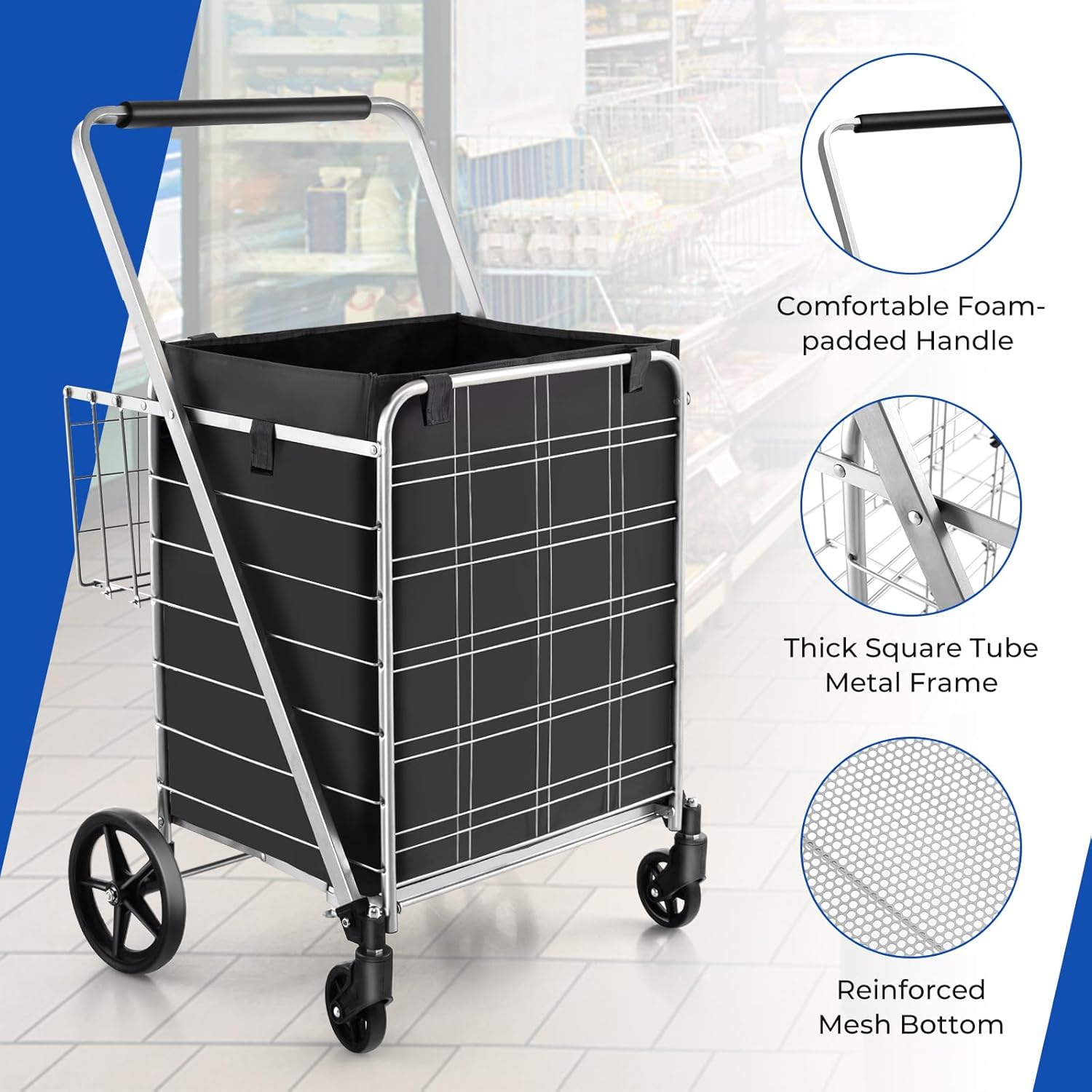

• Heavy-Duty Metal Frame: Constructed from thick square tube metal, ensuring a strong weight capacity of 330 lbs. The coated finish provides rust resistance for extended service life. A reinforced mesh bottom supports items and prevents small objects from falling through.
• Upgraded with Removable Bag: Includes a removable bag made from oxford liner, offering water repellence and wear-resistance. This bag helps prevent dust and ensures privacy for your items, attaching securely with hook & loop fasteners.
• Padded Handle & Easy Mobility: A comfortable foam-padded handle allows for firm control. The cart is equipped with two universal front wheels and two oversized rear wheels, designed to be anti-slip, shockproof, and wear-resistant. These wheels are suitable for various terrains, including cement, grassland, and brick.
• Versatile Folding Utility Cart: This cart serves multiple purposes, ideal for grocery shopping, camping, gardening, laundry, and moving tasks. Its foldable design facilitates convenient storage and transport.

Package Contents

Please verify that all components are present upon unpacking:

• 1 x Goplus Jumbo Folding Utility Cart Frame
• 4 x Wheels (2 universal front wheels, 2 oversized rear wheels)
• 1 x Removable Oxford Liner Bag

Setup and Assembly

The Goplus Jumbo Folding Utility Cart is designed for minimal assembly. Follow these steps to prepare your cart for use:

1. Unfold the Cart Frame: Carefully pull the sides of the cart frame apart until it fully extends and locks into its open position. Ensure all locking mechanisms are engaged.
2. Attach the Wheels: Insert the universal front wheels and oversized rear wheels into their designated slots on the cart frame. Apply firm pressure until they click securely into place. Verify that all wheels rotate freely.
3. Install the Liner Bag: Place the removable oxford liner bag into the main basket of the cart. Secure it using the hook & loop fasteners located along the top edge of the bag and the cart frame.

Image: The Goplus Jumbo Folding Utility Cart displayed in both its unfolded and folded states, illustrating its dimensions and compact storage capability.

Image: Detailed view of the cart's durable wheels, highlighting the oversized rear wheels and 360-degree swivel front wheels, suitable for various surfaces like brick, cement, and grassland.

Operating Instructions

Using your Goplus Jumbo Folding Utility Cart is straightforward:

1. Loading the Cart: Place items into the main basket, distributing weight evenly. Utilize the back basket for smaller, personal items. Do not exceed the maximum weight capacity of 330 lbs.
2. Maneuvering: Use the foam-padded handle to push or pull the cart. The 360-degree swivel front wheels provide easy steering, while the oversized rear wheels offer stability over varied terrain.
3. Folding for Storage: To fold the cart, remove any items and the liner bag. Locate the folding mechanism (often a latch or button near the base or handle) and disengage it. Gently push the sides of the cart inward until it collapses into a compact form. Secure it with the integrated fixing clip if available.

Image: A visual guide demonstrating the folding process of the utility cart, from its fully extended state to a compact, storable form, with a detail of the fixing clip.

Image: The Goplus Jumbo Folding Utility Cart in use, showcasing its large capacity filled with various items, including the waterproof liner bag.

Maintenance

Regular maintenance will prolong the life and performance of your utility cart:

• Cleaning: Wipe the metal frame with a damp cloth and mild detergent as needed. Dry thoroughly to prevent rust. The oxford liner bag can be removed and spot cleaned or hand washed.
• Wheel Inspection: Periodically check the wheels for debris, wear, or damage. Remove any tangled hair or string from the wheel axles to ensure smooth rotation.
• Storage: When not in use, fold the cart and store it in a dry place away from extreme temperatures and direct sunlight to protect the materials.

Image: A detailed view of the removable oxford liner bag, highlighting its material properties and how it attaches to the cart frame using hook and loop fasteners.

Troubleshooting

If you encounter issues with your utility cart, refer to the following common problems and solutions:

• Cart does not fold/unfold smoothly: Check for any obstructions in the folding mechanism. Ensure all parts are aligned correctly. Apply a small amount of silicone lubricant to moving joints if stiffness persists.
• Wheels are stiff or not rotating: Inspect wheels for debris (hair, lint, dirt) caught in the axles. Clean thoroughly. Ensure wheels are securely attached and not damaged.
• Cart feels unstable: Verify that the cart frame is fully extended and locked into position. Ensure weight is distributed evenly within the baskets and not exceeding the maximum capacity.

Specifications

Image: A visual representation of the cart's key specifications, including its dimensions, materials, and weight capacity.

Warranty and Support

Goplus products are manufactured to high-quality standards. For specific warranty information or technical support, please refer to the documentation included with your purchase or contact Goplus customer service directly. Keep your purchase receipt as proof of purchase for any warranty claims.

For further assistance, please visit the official Goplus website or contact their customer support.
