1. Introduction
Thank you for choosing the EVJUICION Portable EV Charger. This manual provides essential information for the safe and efficient operation of your charger. Please read it thoroughly before use and retain it for future reference.
1.1 Product Overview
The EVJUICION Portable EV Charger is designed to provide convenient and reliable charging for electric vehicles and plug-in hybrid vehicles equipped with a Type 2 charging port. It features a 16A current output, delivering up to 3.68 kW of power for fast charging.
Image: The EVJUICION portable EV charger, showing the control box, Schuko plug, Type 2 connector, and a portable storage bag.
1.2 What's in the Box
- EVJUICION Portable EV Charging Cable (8 Meter)
- Portable Storage Bag
- Instruction Manual (this document)
2. Safety Information
Always adhere to the following safety guidelines to prevent injury or damage to the product and vehicle.
- Ensure the power outlet is properly grounded and rated for 16A or higher. Using outlets with lower ratings (e.g., 10A/13A) may cause overheating.
- Do not use the charger if the cable, plug, or control box is damaged.
- Avoid submerging the control box or plug in water.
- Do not attempt to open, disassemble, or modify the charger.
- Keep children and pets away from the charging area.
- Operate the charger within the specified temperature range (-30°C to 50°C).
- Unplug the charger from the wall outlet when not in use to prolong its lifespan.
2.1 Safety Features
This charger is equipped with 8 intelligent protection functions:
- Overcurrent Protection
- Low Temperature Protection
- Overheat Protection
- Leakage Protection
- Overvoltage Protection
- Undervoltage Protection
- Surge Protection
- Waterproof Protection (IP67 for Type 2 plug when connected, IP54 for control box)
Image: Visual representation of the 8 intelligent safety protections, including icons for overcurrent, leakage, overvoltage, undervoltage, low temperature, overheat, surge, and waterproof.
Image: A diagram showing that a socket rated ≥16A is recommended for use with the 16A charger, while 10A/13A sockets are not recommended to prevent overheating.
3. Setup
The EVJUICION Portable EV Charger is designed for easy setup. Follow these steps for initial installation.

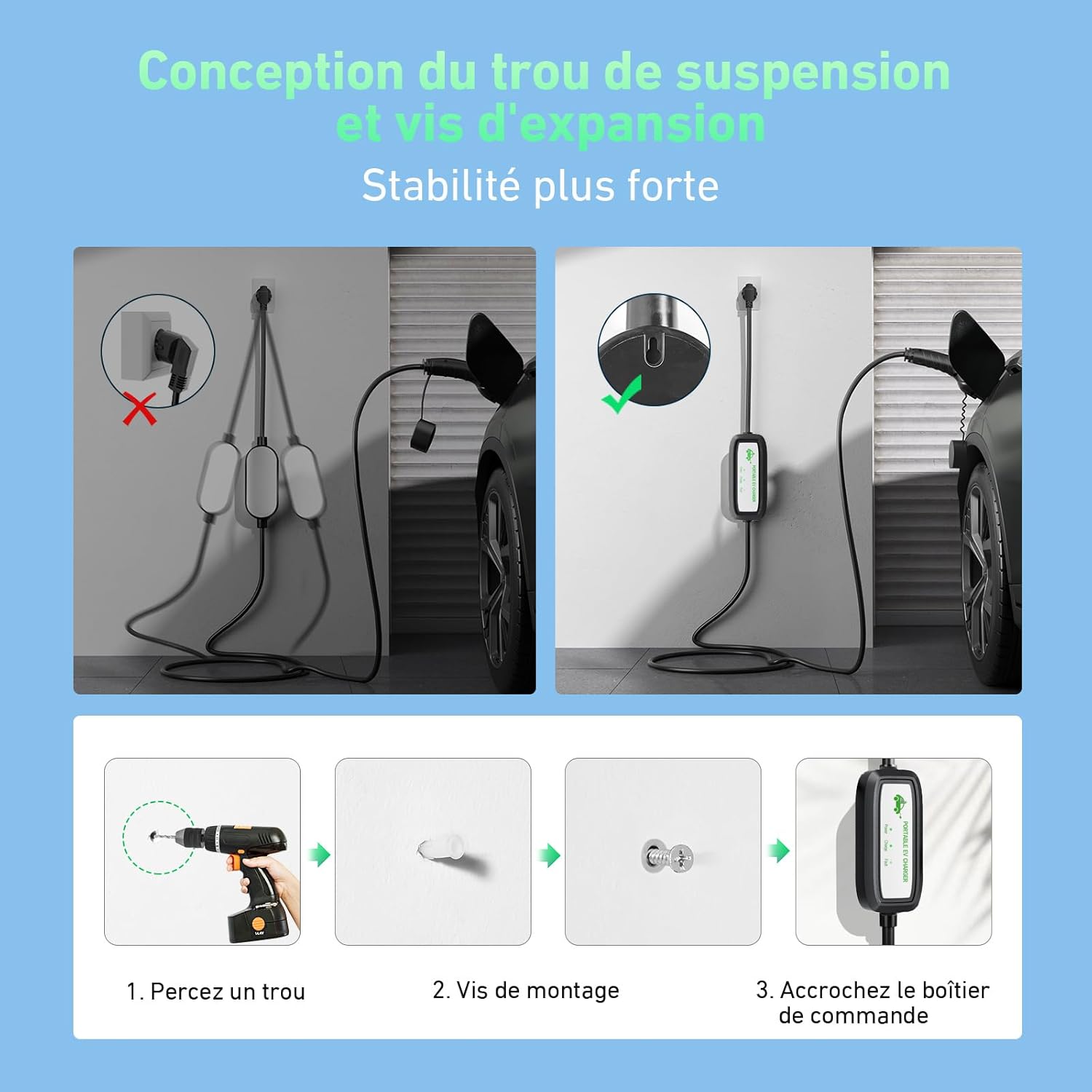

3.1 Mounting the Control Box (Optional)
For convenience and to keep the control box off the ground, you can mount it to a wall using the integrated hanging hole. This requires basic tools and a suitable mounting surface.
- Drill a hole: Select a suitable location near your power outlet and drill a hole.
- Insert mounting screw: Insert a screw or hook into the drilled hole, ensuring it is securely fastened.
- Hang the control box: Carefully hang the control box onto the screw/hook.
Image: A visual guide demonstrating how to mount the charger's control box to a wall for stability, showing drilling a hole, inserting a screw, and hanging the control box.
4. Operating Instructions
The charger offers a simple plug-and-play experience. Ensure all safety precautions are observed before charging.
- Insert the EU plug into the socket: Connect the Schuko (European 2-pin) plug securely into a compatible wall outlet. Ensure the outlet is rated for 16A or higher.
- Adjust charging current (if applicable): This model operates at a fixed 16A. If your vehicle allows current adjustment, ensure it is set to match the charger's 16A output.
- Insert the Type 2 plug into the vehicle: Connect the Type 2 connector firmly into your electric vehicle's charging port.
- Charging begins: The LED indicators on the control box will show the charging status.
- After charging: Once charging is complete, disconnect the Type 2 plug from the vehicle first, then unplug the EU plug from the wall socket. This practice helps prolong the charger's lifespan.
Image: A step-by-step visual guide on safe charging: 1. Insert EU plug, 2. Adjust vehicle current to 16A, 3. Insert Type 2 plug into vehicle, 4. Unplug EU plug after use.

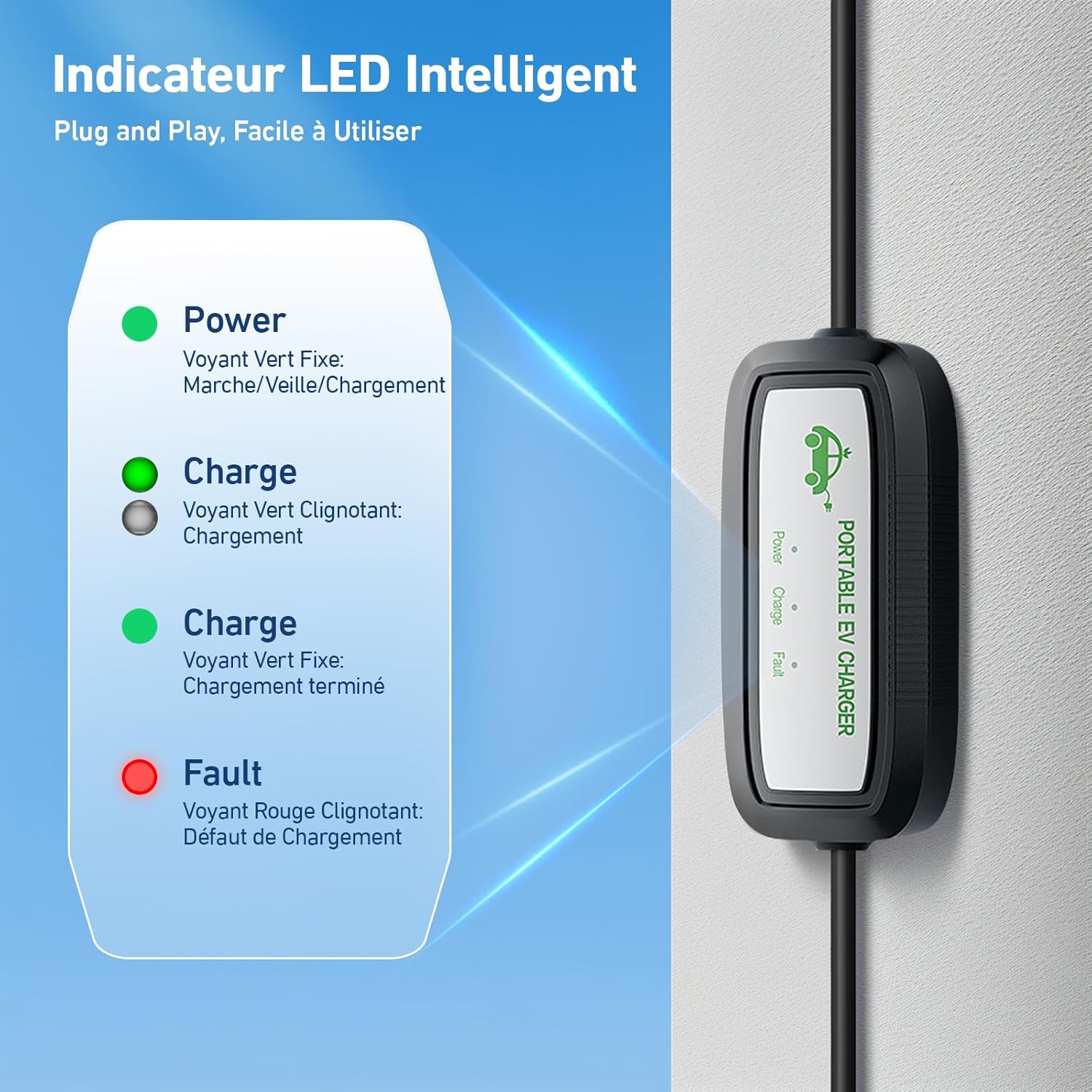

5. LED Indicator Guide
The control box features three LED indicators to display the charger's status:
- Power (Green LED):
- Solid Green: Power is on / Standby mode.
- Charge (Green LED):
- Flashing Green: Charging in progress.
- Solid Green: Charging complete.
- Fault (Red LED):
- Flashing Red: Charging error or fault detected. Refer to troubleshooting section.
Image: A detailed diagram illustrating the meaning of the Power, Charge, and Fault LED indicators on the control box, showing solid green for power/standby, flashing green for charging, solid green for charge complete, and flashing red for fault.
6. Compatibility
The EVJUICION Portable EV Charger is universally compatible with electric vehicles and plug-in hybrid vehicles that adhere to the IEC 62196-2 (Type 2) standard. It features a European 2-pin (Schuko) plug for power input.
6.1 Supported Vehicle Types
This charger is compatible with vehicles using Type 2 (Mennekes) 7-pin connectors and CCS 7-pins + 2-pins inlets. Common compatible brands include (but are not limited to):
- Toyota
- Peugeot
- Honda
- Chrysler
- Nissan
- Citroen
- Chevrolet
- Audi
- Hyundai
- Buick
- And many more...
Image: A visual guide displaying the Type 2 and CCS connector types and a list of compatible car brands such as Toyota, Peugeot, Honda, and others.
7. Maintenance
Proper maintenance ensures the longevity and safe operation of your EVJUICION charger.
- Cleaning: Wipe the charger and cables with a dry, clean cloth. Do not use abrasive cleaners or solvents.
- Storage: When not in use, store the charger in its portable bag in a dry, cool place, away from direct sunlight and extreme temperatures.
- Cable Care: Avoid kinking, twisting, or driving over the cable. Ensure the cable is not under tension during storage or use.
- Inspection: Regularly inspect the cable, plugs, and control box for any signs of damage, wear, or corrosion. If damage is found, discontinue use immediately and contact support.
7.1 Environmental Resistance
The charger is designed to withstand various environmental conditions:
- Temperature: Operates effectively from -30°C to 50°C.
- Water Resistance: The control box is IP54 rated, and the Type 2 plug is IP67 rated when connected to the vehicle, offering protection against dust and water splashes.
Image: The EV charger being used in various weather conditions, highlighting its IP54 control box and IP65 (note: feature bullets state IP67 for Type 2 plug) Type 2 plug, and its ability to function in cold (-30°C) and hot (50°C) temperatures.
8. Troubleshooting
If you encounter issues with your EVJUICION charger, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Charger not starting / No power LED |
|
|
| Fault LED flashing red |
|
|
| Slow charging speed |
|
|
If the problem persists after attempting these solutions, please contact EVJUICION customer support for assistance.
9. Specifications
| Feature | Detail |
|---|---|
| Brand | Evjuicion |
| Model Number | ADJZ-6 |
| Product Type | Portable EV Charger |
| Cable Length | 8 Meters (Other lengths available: 6m, 10m, 15m) |
| Connector Type (Vehicle) | Type 2 (IEC 62196-2) |
| Connector Type (Wall) | Schuko (European 2-pin) |
| Rated Current | 16 A |
| Output Voltage | 225 Volts |
| Max Power Output | 3.68 kW |
| Operating Temperature | -30°C to 50°C |
| Waterproof Rating | Control Box: IP54, Type 2 Plug (connected): IP67 |
| Certifications | CE, UL, RoHS, TÜV Rheinland |
| Cable Material | Thickened Copper Core, High-Quality TPU Sheath (UL94-V0 fire rating) |
| Mechanical Life | >10,000 plug/unplug cycles |
Image: A diagram illustrating the total length of the 8-meter cable, including the segments for the wall plug, control box, and vehicle connector. It also indicates other available lengths (6m, 10m, 15m).
Image: A detailed cross-section view of the charging cable, highlighting its high-quality construction, UL94-V0 fire rating, TPU material, 20,000 bend test rating, and TÜV Rheinland certification.
10. Warranty and Support
For warranty information, technical support, or any inquiries regarding your EVJUICION Portable EV Charger, please refer to the contact information provided with your purchase or visit the official EVJUICION website.
Please retain your proof of purchase for warranty claims.
