SPANN K16811 20V Lithium-Ion Battery User Manual

Introduction

Welcome to the user manual for your SPANN K16811 20V Lithium-Ion Battery. This battery is designed to provide reliable power for compatible Kimo cordless tools, including various models of chainsaws and leaf blowers. Please read this manual carefully before use to ensure safe and optimal performance and to prolong the life of your battery.

Important Safety Instructions

Always follow these safety guidelines to prevent injury or damage to the battery and connected tools.

• Do Not Disassemble: Do not attempt to disassemble, open, or service the battery pack. This will void the warranty and may cause electric shock or fire.
• Use Correct Replacement: Replace only with the battery pack designated for this product. Using an incompatible battery may result in fire, explosion, or injury.
• Avoid Physical Damage: Do not crush, puncture, or subject the battery to strong impacts.
• Protect from Elements: Do not expose the battery to fire, water, or extreme temperatures (above 60°C / 140°F).
• Charging: Use only the charger specified by the tool manufacturer for this battery. Improper charging may lead to overheating or explosion.
• Storage: Store the battery in a cool, dry place, away from flammable materials and direct sunlight.
• Disposal: Dispose of used batteries responsibly according to local regulations. Do not dispose of in household waste.

Image: Bottom view of the SPANN K16811 battery, showing important safety warnings and specifications printed on the label. This includes cautions against disassembly, exposure to high temperatures, and improper disposal.

Setup and Charging

Initial Charge

Before using your new SPANN K16811 battery for the first time, it is recommended to fully charge it. Refer to your Kimo tool's charger manual for specific charging instructions and indicators.

Installing the Battery

To install the battery into a compatible Kimo tool:

1. Ensure the tool is turned off and disconnected from any power source.
2. Align the battery with the battery slot on your compatible Kimo tool.
3. Slide the battery into place until it clicks securely. Ensure it is firmly seated before operating the tool.

Image: The SPANN K16811 battery positioned alongside several compatible Kimo 20V cordless tools, including a chainsaw, leaf blower, drill, and impact driver, illustrating its versatility and fit.

Operation

This 20V Lithium-Ion battery powers various Kimo cordless tools. Always ensure the battery is fully charged for optimal performance. Monitor the battery indicator on your tool, if available, to check the charge level during operation.

Battery Removal

To remove the battery from a compatible Kimo tool:

1. Ensure the tool is turned off.
2. Locate the red battery release button, typically found on the front or side of the battery.
3. Press and hold the release button, then slide the battery out of the tool.

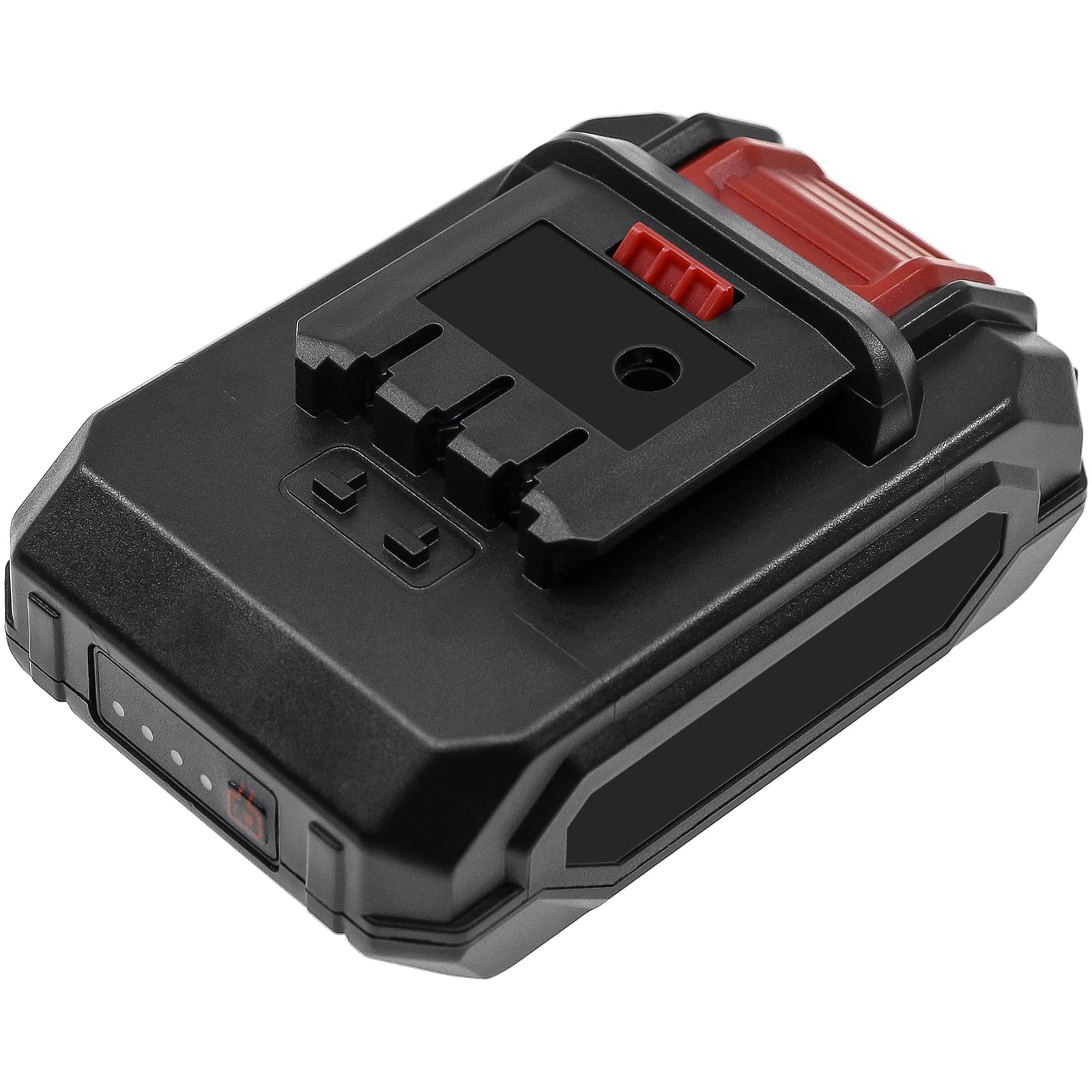

Image: A close-up view of the SPANN K16811 battery, highlighting the prominent red release button used for detaching the battery from compatible tools.

Maintenance and Storage

Cleaning

Keep the battery contacts clean and free of debris. Use a dry, clean cloth to wipe the battery exterior. Do not use liquids or solvents.

Storage

For optimal battery life, store the battery in a cool, dry place, away from direct sunlight and extreme temperatures. For long-term storage (over 30 days), charge the battery to approximately 50% capacity. Avoid storing fully discharged batteries as this can lead to irreversible damage.

Battery Life

To maximize the overall lifespan of your battery, avoid deep discharges and frequent overcharging. Allow the battery to cool down before recharging after heavy use.

Troubleshooting

If you encounter issues with your SPANN K16811 battery, refer to the following common troubleshooting steps:

Battery Not Charging

• Ensure the charger is properly connected to a functional power outlet and the battery.
• Check for any visible damage to the battery or charger.
• Verify that the ambient temperature is within the recommended charging range (typically 0°C to 40°C / 32°F to 104°F).
• If the issue persists, consult the charger's manual or contact customer support.

Tool Not Powering On

• Verify the battery is fully charged.
• Ensure the battery is correctly and securely installed in the tool.
• Check for any obstructions or debris in the tool's battery terminals or the battery's contacts.
• If the tool still does not power on, try another fully charged battery if available to rule out a tool issue.

Specifications

Detailed specifications for the SPANN K16811 20V Lithium-Ion Battery:

Warranty and Support

This SPANN battery comes with a 365-day warranty from the date of purchase. This warranty covers manufacturing defects under normal use. Please retain your proof of purchase for warranty claims.

For any questions, concerns, or technical support regarding your SPANN K16811 battery, please contact SPANN customer support through your retailer or the official brand channels.

For additional information regarding battery safety and specifications, you may refer to the manufacturer's website: www.cameronsino.com
