Niagara Luxury Handheld Bidet Sprayer

Introduction

Thank you for choosing the Niagara Luxury Handheld Bidet Sprayer. This manual provides essential information for the safe and efficient installation, operation, and maintenance of your new bidet sprayer. Please read these instructions thoroughly before installation and retain them for future reference.

Safety Information

• Always turn off the water supply to the toilet before beginning installation or performing any maintenance.
• Do not overtighten connections, as this may damage components and cause leaks.
• Ensure all connections are secure to prevent water leakage.
• Use only the provided components for installation.
• If you are unsure about any step, consult a qualified plumber.

Package Contents

Verify that all components are present before beginning installation:

A complete view of all parts included in the package: the handheld sprayer, the T-valve for water connection, the flexible metal hose, and the mounting bracket.

• Handheld Bidet Sprayer (Chrome Finish)
• 47-inch Metal Hose
• Brass Core T-Valve
• Sprayer Holder (for toilet tank or wall mount)
• Washers and Seals

Setup and Installation

No plumber is required for installation. Follow these steps to install your bidet sprayer:

1. Turn off Water Supply: Locate the water supply valve for your toilet (usually on the wall behind the toilet) and turn it clockwise until the water flow stops. Flush the toilet to drain the tank.
2. Disconnect Toilet Supply Line: Unscrew the existing water supply line from the bottom of the toilet tank. Have a small towel ready to catch any residual water.
3. Install T-Valve: Connect the T-valve to the bottom of the toilet tank where you disconnected the supply line. Ensure the rubber washer is properly seated. Hand-tighten first, then use a wrench for a snug fit, but do not overtighten.


   The brass core T-valve for connecting to the toilet's water supply.
4. Reconnect Toilet Supply Line: Connect the toilet's original water supply line to the bottom of the T-valve. Hand-tighten, then use a wrench for a snug fit.
5. Connect Bidet Hose: Connect one end of the metal bidet hose to the side outlet of the T-valve. Ensure the washer is in place. Hand-tighten, then use a wrench for a snug fit.


   The 47-inch flexible metal hose connects the T-valve to the sprayer head.

6. Attach Sprayer Head: Connect the other end of the metal bidet hose to the handheld sprayer head. Hand-tighten, then use a wrench for a snug fit.

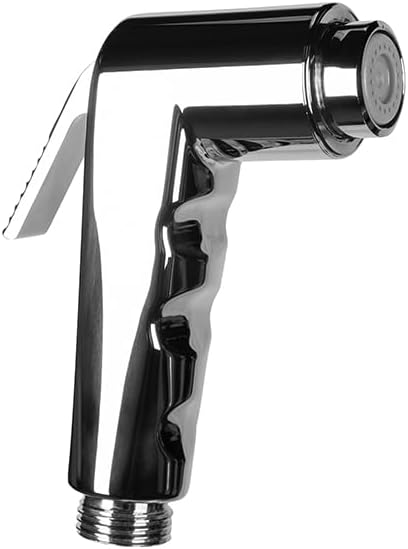

   The main sprayer head unit, featuring a polished chrome finish and ergonomic grip.

7. Mount Sprayer Holder: Choose your preferred mounting location for the sprayer holder:
   Option A: Toilet Tank Mount: Slide the bracket of the holder under the toilet tank lid.
   Option B: Wall Mount: Use the provided screws and anchors to securely attach the holder to a wall near the toilet.

This diagram illustrates the two primary mounting options for the bidet sprayer: either attached to the side of the toilet tank or securely mounted to a nearby wall.
8. Restore Water Supply: Slowly turn the main water supply valve back on (counter-clockwise). Check all connections for leaks. If leaks occur, tighten the connections slightly until they stop.

Operating Instructions

Your Niagara Handheld Bidet Sprayer offers two spray options for versatile use:

The bidet sprayer demonstrating one of its two spray options, providing a wide and gentle water flow.

• Continuous Spray: Lift the handle on the sprayer head upwards. This will engage a continuous spray, ideal for cleaning the toilet, cloth diapers, or bathing pets. The spray will continue until the handle is pushed back down.
• Controlled Spray: Press and hold the handle down. This allows you to control the duration and pressure of the spray. Release the handle to stop the water flow.

Important: Always ensure the T-valve is closed after each use to prevent accidental leaks or pressure buildup in the hose.

Maintenance

To ensure the longevity and optimal performance of your bidet sprayer, follow these maintenance guidelines:

• Cleaning: Clean the exterior of the sprayer and hose regularly with a soft cloth and mild soap. Avoid abrasive cleaners or harsh chemicals, as they can damage the chrome finish.
• Nozzle Cleaning: If the spray becomes weak or uneven, the nozzle may be clogged. Gently unscrew the nozzle head and rinse it under running water. Use a soft brush or toothpick to clear any mineral deposits.
• Leak Checks: Periodically check all connections for any signs of leakage. Tighten connections as needed, but do not overtighten.
• Rust Prevention: The sprayer features a chrome finish and stainless steel bracket designed to resist rust. Regular cleaning helps maintain its appearance and prevents mineral buildup.


  This image emphasizes the durable chrome finish and stainless steel bracket designed to resist rust and ensure product longevity.

Troubleshooting

Specifications

• Model: BS-0001
• Material: Plastic (Sprayer Body), Stainless Steel (Handle Material), Brass Core (T-Valve)
• Finish: Polished Chrome
• Hose Length: 47 inches
• Mounting Type: Wall Mount or Toilet Tank Mount
• Special Feature: Dual Function Sprayer (Continuous and Controlled)
• Item Weight: 1.4 Pounds

Warranty Information

Niagara products are manufactured to high-quality standards and are warranted against defects in materials and workmanship for a period of one (1) year from the original date of purchase. This warranty does not cover damage due to improper installation, misuse, abuse, or normal wear and tear. For warranty claims, please retain your proof of purchase and contact customer support.

Customer Support

For technical assistance, troubleshooting, or warranty inquiries, please contact Niagara Customer Support:

• Website: Visit the Niagara Store on Amazon
• Email: Refer to the Niagara website for current contact information.
• Phone: Refer to the Niagara website for current contact information.
