Sccaty SC-AP012 Replacement Air Filter User Manual

Introduction

This manual provides essential information for the Sccaty SC-AP012 Replacement Air Filter, designed specifically for the Sccaty Air Purifier Model SC-AP002. This H13 True HEPA filter is crucial for maintaining the air quality performance of your Sccaty air purifier.

Image: The Sccaty SC-AP012 Replacement Air Filter, showing its cylindrical shape and pleated filter material.

Key Features

The Sccaty SC-AP012 replacement filter features a 3-in-1 filtration system designed to capture a wide range of airborne particles and odors.

• H13 True HEPA Filtration: Captures 99.97% of airborne particles as small as 0.3 microns, including dust, pollen, pet dander, and mold spores.
• 3-in-1 Layer Design: Combines a Pre-Filter, H13 True HEPA Filter, and Activated Carbon Filter for comprehensive air purification.
• Pre-Filter: Traps larger particles such as hair, fibers, and lint, extending the life of the HEPA filter.
• Activated Carbon Filter: Absorbs unpleasant odors from cooking, pets, smoke, and volatile organic compounds (VOCs).
• Compatibility: Specifically designed for seamless integration with the Sccaty Air Purifier Model SC-AP002.

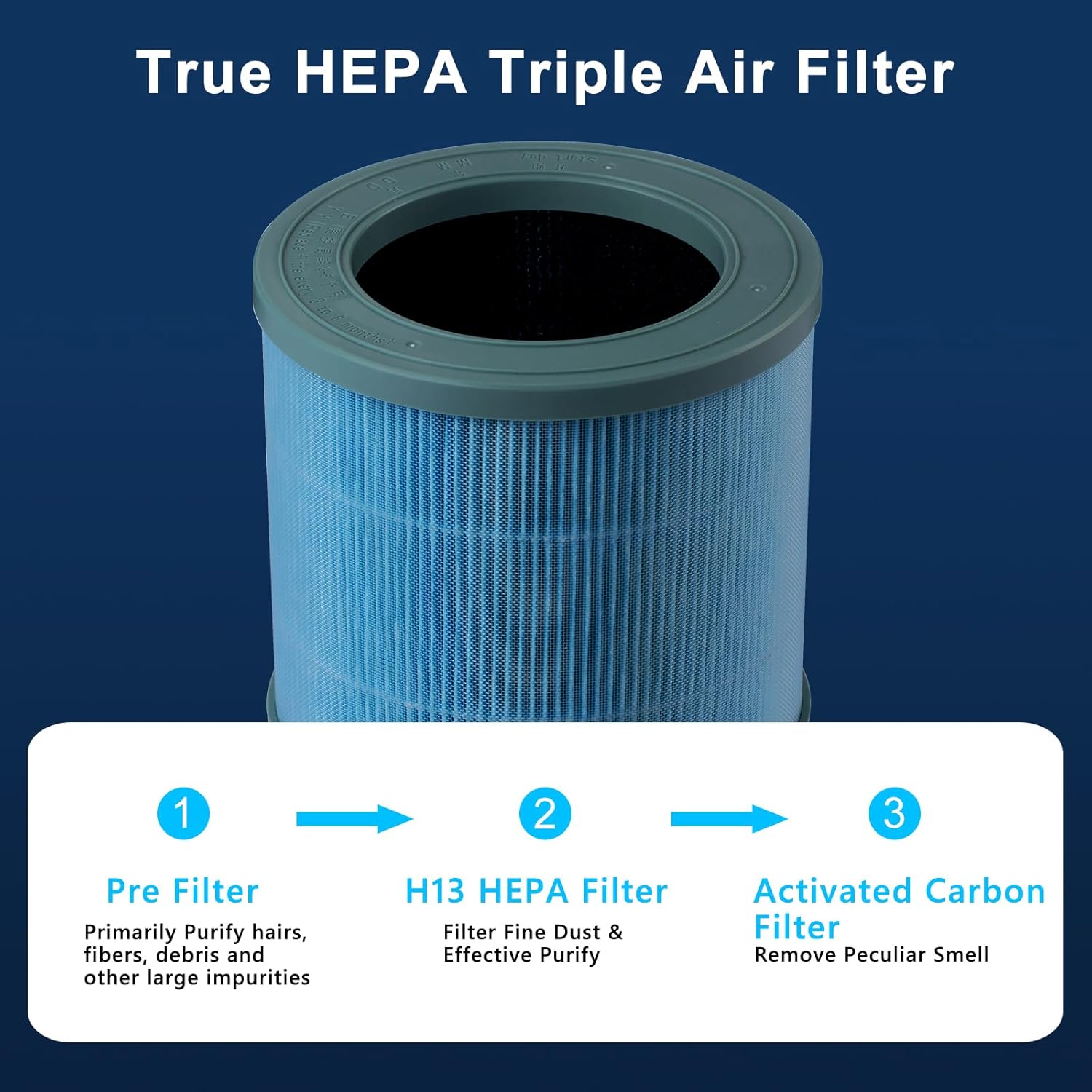

Image: Diagram illustrating the three layers of the filter: Pre-Filter, H13 HEPA Filter, and Activated Carbon Filter, with their respective functions.

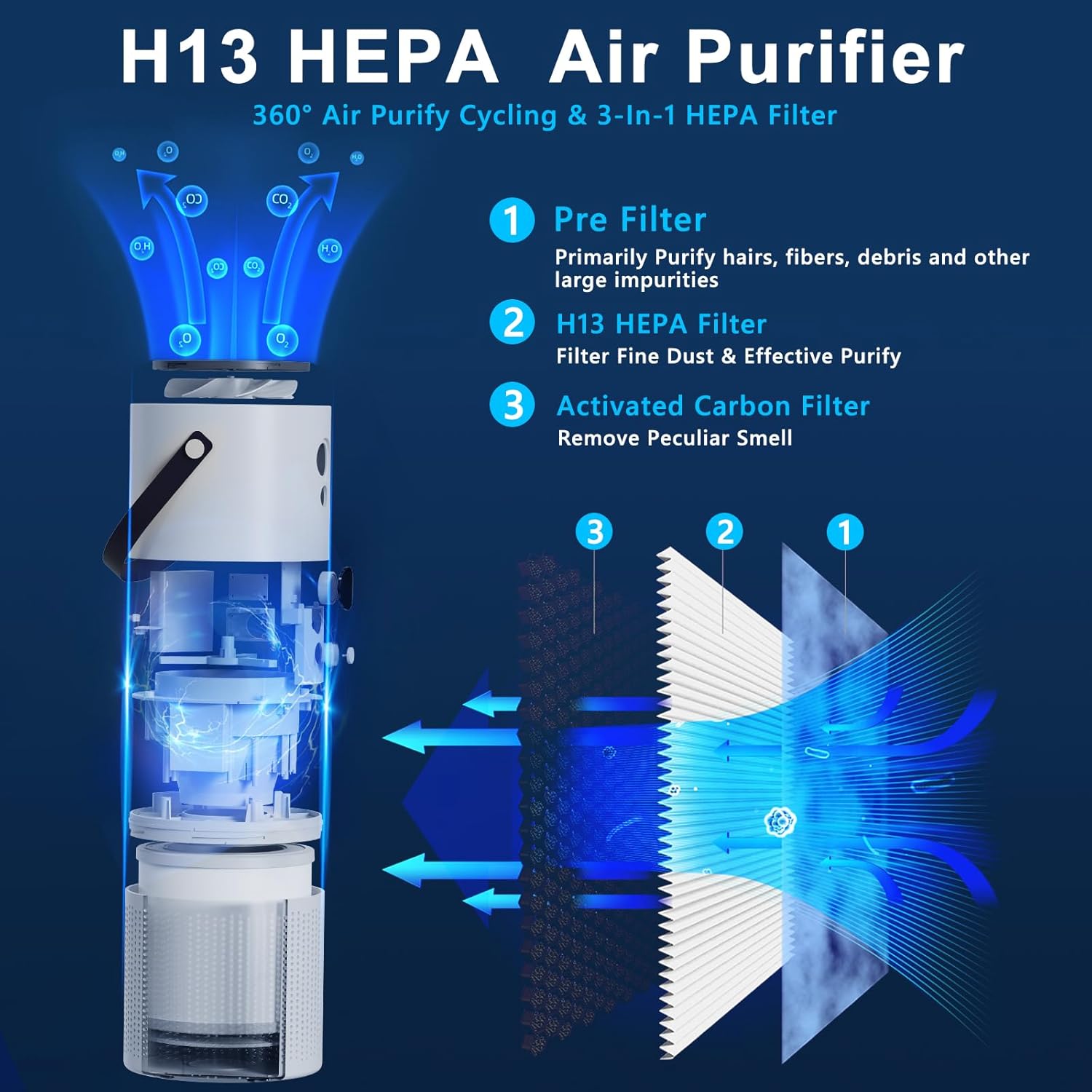

Image: Cross-section diagram of the Sccaty air purifier showing the 360° air intake and the path of air through the multi-layered filter system.

Filter Replacement Procedure

Follow these steps to replace the air filter in your Sccaty Air Purifier SC-AP002.

1. Step 1: Unplug the Purifier. Before beginning, ensure the air purifier is turned off and unplugged from the power outlet for safety.
2. Step 2: Unscrew the Product Counterclockwise. Gently twist the top section of the air purifier counterclockwise to unlock and separate it from the base.
3. Step 3: Take Out the Old Filter. Carefully lift the old filter out of the purifier's base. Dispose of the old filter responsibly.
4. Step 4: Put In the New Filter. Insert the new Sccaty SC-AP012 replacement filter into the base, ensuring it sits securely and correctly.
5. Step 5: Reinstall the Product Clockwise. Align the top section with the base and twist clockwise until it locks securely into place.
6. Step 6: Plug In and Reset. Plug the air purifier back into the power outlet. If your purifier has a filter reset indicator, follow its specific instructions to reset the filter life counter.

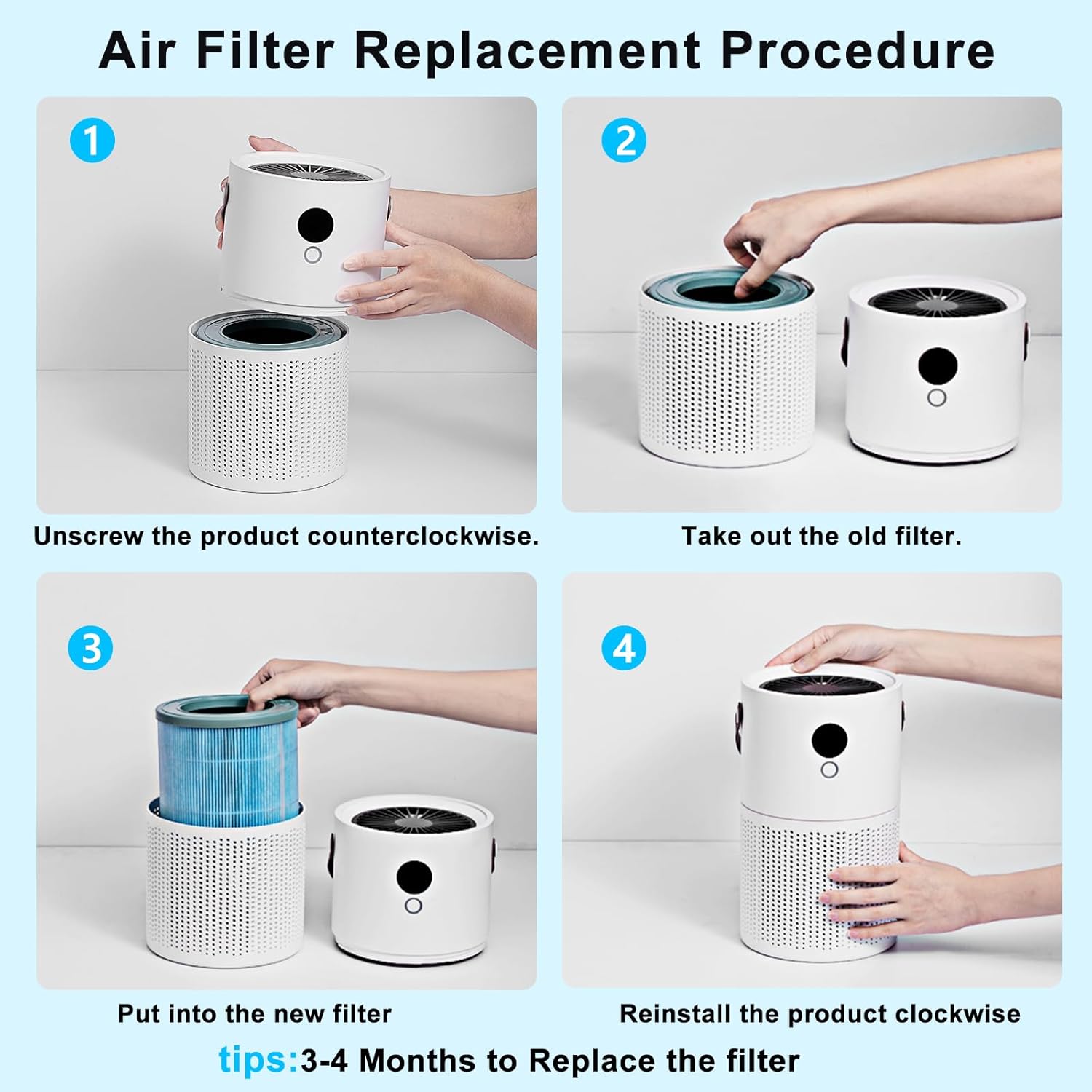

Image: Four-panel visual guide demonstrating the steps for replacing the air filter: unscrewing, removing old filter, inserting new filter, and reassembling the purifier.

Maintenance and Filter Life

To ensure optimal performance of your Sccaty Air Purifier, regular filter maintenance and timely replacement are essential.

• Filter Cleaning: It is recommended to clean the pre-filter layer of the filter every half month. This can typically be done by gently vacuuming the exterior of the filter to remove accumulated dust and large particles.
• Filter Replacement: The H13 HEPA filter should be replaced approximately every 3 to 4 months. This duration may vary depending on air quality, usage frequency, and environmental factors.
• Indicator Light: Your Sccaty Air Purifier SC-AP002 may have an indicator light to signal when the filter needs replacement. Refer to your purifier's manual for specific instructions on resetting this indicator after replacement.

Specifications

Note: The purifier dimensions are 13 x 13 x 14 cm (or 160mm x 268mm). The filter dimensions are inferred to be similar to the base of the purifier.

Image: Diagram showing the dimensions of the Sccaty Air Purifier SC-AP002 (160mm width, 268mm height).

Warranty and Support

Sccaty provides a warranty for its products to ensure customer satisfaction.

• Warranty Service: The Sccaty air purifier and Sccaty air purifier filter come with a 12-month warranty.
• For any inquiries, technical support, or warranty claims, please refer to the contact information provided with your original Sccaty Air Purifier purchase or visit the official Sccaty website.

Important Notes

• Always use genuine Sccaty replacement filters to ensure optimal performance and to maintain your purifier's warranty.
• Do not wash the HEPA or activated carbon filter. These filters are not designed for washing and doing so will damage their filtration capabilities.
• Keep the filter and purifier out of reach of children.
